How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
Frame AssemblyCylinder Assembly
Encoder Assembly
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Frame Assembly
| 1 | Cylinder (see separate parts list) | 34 | Encoder Mounting Screw |
| 2 | L.H. Cylinder Cover | 35 | Spacer |
| 3 | R.H. culinder Cover (not shown) | 36 | Spacer Mounting Screw |
| 4 | Threaded Rod | 37 | Limit Switch Bracket |
| 5 | Hex Jam Nut | 38 | Bracket Screw |
| 6 | Nut | 39 | Limit Switch |
| 7 | Screw | 40 | Limit Switch Mounting Screw |
| 8 | Screw | 41 | Eye Bolt |
| 9 | Spacer | 42 | S' Hook |
| 10 | L.H. Housing | 43 | Chain |
| 11 | Housing Cross Tie | 44 | R.H. Housing Foot |
| 12 | R.H. Housing | 45 | Screw |
| 13 | Cross Tie Screw | 46 | Set Screw |
| 14 | L.H. Reservoir Cover | 47 | L.H Housing Foot |
| 15 | Cover Screw | 48 | Housing Gib |
| 16 | Manifold Assembly | 49 | Housing Gib Mounting Screw |
| 17 | Motor | 50 | Ram |
| 18 | Motor Mounting Screw | 51 | Operator Station |
| 19 | R.H. Reservoir Cover | 52 | Screw |
| 20 | Filter Mounting Bracket | 53 | Ram Direction Control |
| 21 | Bracket Screw | 54 | Screw |
| 22 | Filter | 55 | Safety Rail |
| 23 | Filter Mounting Screw | 56 | Bracket |
| 24 | Inner Gib Spacer | 57 | Screw |
| 25 | Center Gib Spacer | 58 | Clamp Bar |
| 26 | Gib Liner | 59 | Screw |
| 27 | Liner Mounting Screw | 60 | Washer |
| 28 | Outer Gib Spacer | 61 | Allen Nut |
| 29 | Gib Spacer Mounting Screw | 62 | Spring |
| 30 | Ram Gib | 63 | Bed |
| 31 | Ram Gib Mounting Screw | 64 | Bed Mounting Screw |
| 32 | Shim | 65 | Bed Spacer |
| 33 | Encoder Assembly (see separate part list) |

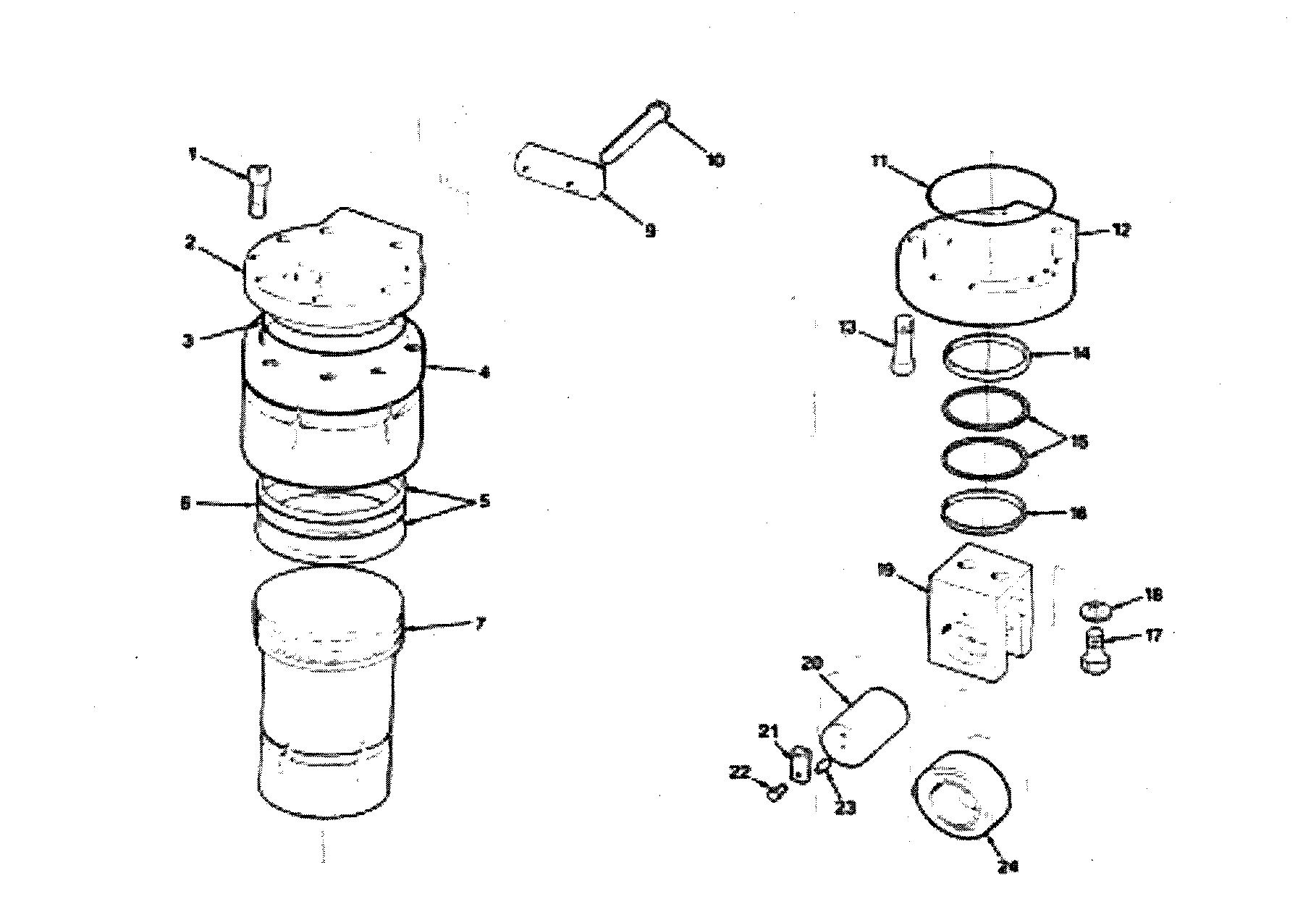

Cylinder Assembly
| 1 | Cap Screw | 13 | Cap Screw |
| 2 | L.H. upper Cap | 14 | Rod Bearing |
| 3 | "O" Ring | 15 | Rod Seal |
| 4 | Cylinder | 16 | Wiper Ring |
| 5 | Wear Ring | 17 | Bolt |
| 6 | Piston Seal | 18 | Washer |
| 7 | Piston | 19 | Ram Clevis |
| 8 | R.H. Upper Cap (not shown) | 20 | Ram Clevis Pin |
| 9 | Cylinder Mounting Pin | 21 | Pin Lock |
| 10 | Hex Head Bolt | 22 | Bolt |
| 11 | "O" Ring | 23 | Grease Fitting |
| 12 | Lower Cap | 24 | Bearing |

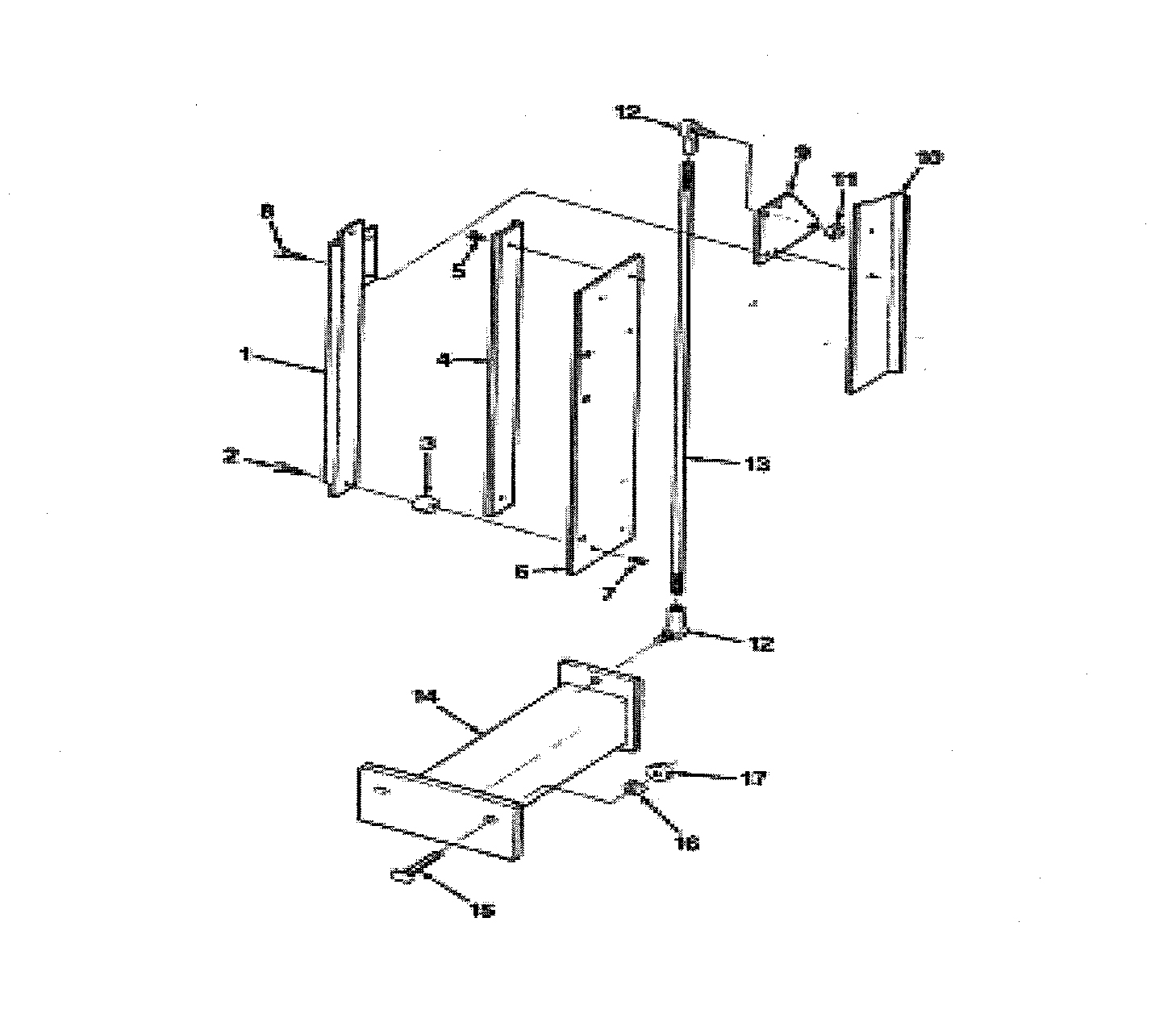

Encoder Assembly
| 1 | Liner Scale | 10 | Cover |
| 2 | Scale Mounting Screw | 11 | Hex Nut |
| 3 | Spacer | 12 | Ball Joint Rod End |
| 4 | Slide | 13 | Rod |
| 5 | Slide Screw | 14 | Bed Reference Bracket |
| 6 | Encoder Mounting Plate | 15 | V' Head Bolt |
| 7 | Set Screw | 16 | Washer |
| 8 | Screw | 17 | Hex Nut |
| 9 | Scanning Head Mounting Plate |
