HD-200 FRAME
1 | Manifold, Motor & Pump Assembly | 41 | "T" Nut | |
2 | Oil Sight Gage | 42 | Capscrew | |
3 | Reservoir Cover | 43 | Washer | |
4 | Gasket | 44 | Nut | |
5 | Frame | 45 | Stud | |
6 | Capscrew | 46 | Capscrew | |
7 | Capscrew | 47 | Adjusting Block | |
8 | Capscrew | 48 | Inner Pivot Block | |
9 | L.H. Outside Gib | 49 | Pivot Block Retainer | |
10 | Gib Liner | 50 | Washer | |
11 | Screw | 51 | Bolt | |
12 | L.H. Cylinder (R.H. Same) | 52 | Inner Pivot Shoe | |
13 | Filler Block | 53 | Outer Pivot Shoe | |
17 | Bed (Detachable Type) | 54 | Outer Pivot Block | |
18 | Capscrew (With Detachable Type Bed Only) | 55 | Stud | |
19 | Bolt (With Detachable Type Bed Only) | 56 | Nut | |
20 | Bed Shoe Lock (With Detachable Type Bed Only) | 60 | Gib Liner | |
21 | Bed Shoe (With Detachable Type Bed Only) | 61 | R.H. Outer Gib | |
22 | Capscrew (With Detachable Type Bed Only) | 62 | Capscrew | |
31 | R.H. Ram Liner | 63 | Control Box | |
32 | Ram | 64 | Washer | |
33 | Safety Rail | 65 | Bolt | |
34 | Bolt | 66 | Retaining Ring | |
35 | Pillow Block | 67 | Pin | |
36 | Bolt | 68 | Clevis | Clean Out |
37 | Center Ram Clamp Bars | 69 | "O" Ring | Cover Kit |
38 | Spring | 70 | Inspection Door | Purchased |
39 | End Ram Clamp Bars | 71 | Washer | As Assembly |
40 | R.H. Ram Liner | 72 | Bolt |

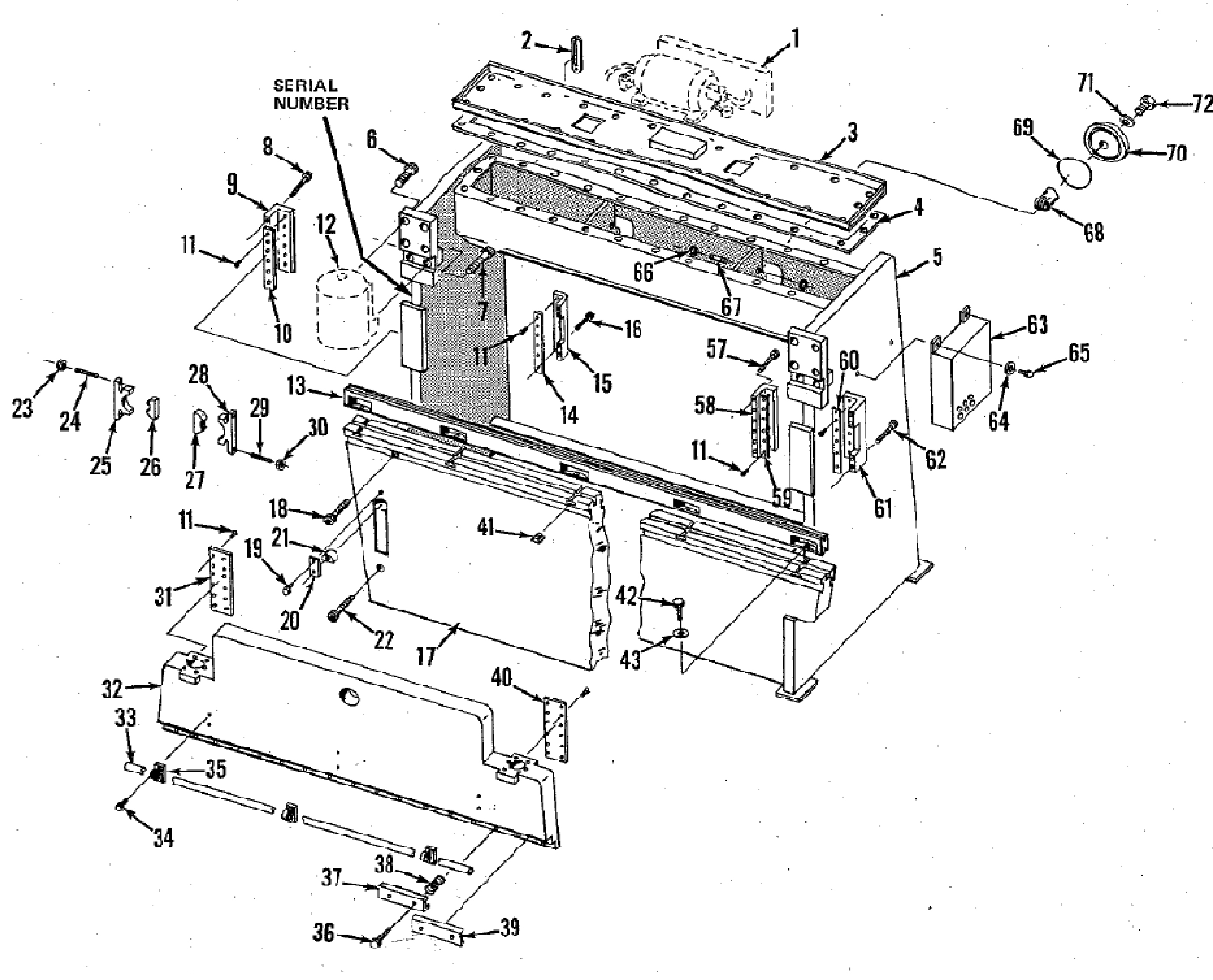

HD-300 FRAME
1 | Manifold, Motor & Pump Assembly | 32 | Ram | |
2 | Oil Sight Gage | 33 | Safety Rail | |
3 | Reservoir Cover | 34 | Bolt | |
4 | Gasket | 35 | Pillow Block | |
5 | Frame | 36 | Bolt | |
6 | Capscrew | 37 | Center Ram Clamp Bars | |
7 | Capscrew | 38 | Spring | |
8 | Capscrew | 39 | End Ram Clamp Bars | |
9 | L.H. Outside Gib | 40 | R.H. Ram Liner | |
10 | Gib Liner | 41 | "T" Nut | |
11 | Screw | 42 | Capscrew | |
12 | L.H. Cylinder (R.H. Same) | 43 | Washer | |
13 | Filler Block | 57 | Capscrew | |
14 | Gib Liner | 58 | R.H. Inner Gib | |
15 | L.H. Inner Gib | 59 | Gib Liner | |
16 | Capscrew | 60 | Gib Liner | |
17 | Bed (Detachable Type) | 61 | R.H. Outer Gib | |
18 | Capscrew (With Detachable Type Bed Only) | 62 | Capscrew | |
19 | Bolt (With Detachable Type Bed Only) | 63 | Control Box | |
20 | Bed Shoe Lock (With Detachable Type Bed Only) | 64 | Washer | |
21 | Bed Shoe (With Detachable Type Bed Only) | 65 | Bolt | |
22 | Capscrew (With Detachable Type Bed Only) | 66 | Retaining Ring | |
23 | Nut | 67 | Pin | Clean Out |
24 | Stud | 68 | Clevis | Cover Kit |
25 | Outer Pivot Shoe Retainer | 69 | "O" Ring | Purchased |
26 | Outer Pivot Shoe | 70 | Inspection Door | As Assembly |
27 | Inner Pivot Shoe | 71 | Washer | |
28 | Inner Pivot Shoe Retainer | 72 | Bolt | |
29 | Stud | |||
30 | Nut | |||
31 | R.H. Ram Liner |

MAIN CYLINDER
1 | Test Gage |
2 | Bleeder Valve |
3 | Socket |
4 | Plug |
5 | Nipple |
6 | Reducer |
7 | Cylinder |
8 | Piston |
9 | Piston Rings |
10 | Bushing |
11 | "O" Ring |
12 | Cylinder Cap |
13 | Capscrew |
14 | "V" Packing |
15 | Wiper Cord |
16 | Packing Gland |
17 | Capscrew |
18 | Capscrew |
19 | Ballcap |
20 | Lock |
21 | Capscrew |
22 | Shim |
23 | Ballscrew |
24 | Ballseat |
25 | Ram |
RAM LEVEL CONTROL
1 | Capscrew | 24 | Grease Fitting |
2 | Valve | 25 | Collar** |
3 | Sub Plate | 26 | Set Screw** |
4 | Valve Bracket | 27 | R.H. Pulley |
5 | Dowel | 28 | Pulley Shaft** |
6 | Bolt | 29 | Ram |
7 | Capscrew | 30 | Tape Adjustment Screw |
8 | Micro Switch | 31 | Set Screw |
9 | Capscrew | 32 | Pin & Knob |
10 | Micro Switch Plate | 33 | Screw Housing |
11 | Micro Switch Bracket | 34 | Tilt Adjust Scale |
12 | Nut | 35 | Screw |
13 | Capscrew | 36 | Bearing |
14 | Micro Switch Trip | 37 | Adjusting Knob |
15 | Tape Holder | 38 | Bracket Support |
16 | Tape Clamp | 39 | Tilt Adjust Bracket |
17 | Capscrew | 40 | Bolt |
18 | Tape | 41 | Bolt |
19 | Grease Fitting | *Purchased Together | |
20 | Collar* | **Purchased Together | |
21 | Set Screw* | ||
22 | L.H. Pulley | ||
23 | Pulley Shaft* |
UPPER AND LOWER LIMIT ASSEMBLY
1 | R.H. Outer Gib | 26 | Shaft |
2 | Dovetail Bolt | 27 | Bevel Gear |
3 | Speed Change Cam | 28 | Counter Plate |
4 | Knurled Nut | 29 | Screw |
5 | Upper Gage Rod Bracket | 30 | Button Head Screw |
6 | Capscrew | 31 | Bushing |
7 | Set Screw | 32 | Roll Pin |
8 | Bushing | 33 | Bevel Gear |
9 | Upper Stop Block | 34 | Gear Cover |
11 | Clamp Bolt | 35 | Screw |
12 | Clamp Nut | 36 | Roll Pin |
13 | Handle | 37 | Handle |
14 | Knob | 38 | Counter |
15 | Screw | 39 | Roll Pin |
16 | Gage Rod | 40 | Bevel Pinion |
17 | Roll Pin | 41 | Limit Switch (Speed Change) |
18 | Lower Stop Block | 42 | Screw |
19 | Lower Gage Rod Bracket | 43 | Bracket Support |
20 | Bushing | 44 | Limit Switch Mounting Plate |
21 | Set Screw | 45 | Bolt |
22 | Capscrew | 46 | Limit Switch (Bottom Limit) |
23 | Bevel Pinion | 47 | Limit Switch (Top Limit) |
24 | Bushing | 48 | Screw |
25 | Roll Pin |
HEAVY DUTY BACKGAGE MANUALLY OPERATED
1 | Handle | 36 | Retaining Ring |
2 | Collar | 37 | Sprocket |
3 | Spacer | 38 | Chain |
4 | Helical Gear | 39 | Backgage Screw |
5 | Spacer | 40 | Woodruff Key |
6 | Shaft | 41 | Backlash Plate |
7 | Key | 42 | Disc Springs |
8 | Bolt | 43 | Screw |
9 | Flange Block | 44 | Finger Rest Support Bracket |
10 | Flange Block | 45 | Stud |
11 | Bolt | 46 | Clamping Handle |
12 | Key | 47 | Rear Stop Plate |
13 | Retaining Ring | 48 | Bearing |
14 | Sprocket | 49 | Shaft |
15 | Retaining Ring | 50 | Retaining Ring |
16 | Counter Bracket | 51 | Ball Bushing |
17 | Counter Cover | 52 | Capscrew |
18 | Screw | 53 | Retaining Ring |
19 | Counter Cover | 54 | Capscrew |
20 | Counter Shaft | 55 | Elevating Screw |
21 | Retaining Ring | 56 | Thrust Bearing |
22 | Helical Gear | 57 | Knurled Nut |
23 | Dovetail Bolt | 58 | Finger Rest |
24 | Washer | 59 | Washer |
25 | Stud | 60 | Spring |
26 | Nut | 61 | Shouldered Capscrew |
27 | Support Plate | 62 | Chain |
28 | Lock Nut | 63 | Roll Pin |
29 | Lock Washer | 64 | Sprocket |
30 | Bearing Nut | 65 | Drive Tightener |
31 | Bearing | 66 | Dovetail Bolt |
32 | Bearing | 67 | Finger Support |
33 | Set Screw | 68 | Backgage Finger |
34 | Capscrew | 69 | Washer |
35 | Nut | 70 | Nut |
71 | Bed |
HEAVY DUTY BACKGAGE POWER OPERATED
16 | Counter Bracket | 41 | Backlash Plate | 66 | Dovetail Bolt |
17 | Counter | 42 | Disc Springs | 67 | Finger Support |
18 | Screw | 43 | Screw | 68 | Backgage Finger |
19 | Counter Cover | 44 | Finger Rest Support Bracket | 69 | Washer |
20 | Counter Shaft | 45 | Stud | 70 | Nut |
21 | Retaining Ring | 46 | Clamping Handle | 71 | Bed |
22 | Helical Gear | 47 | Rear Stop Plate | 72 | Sprocket |
23 | Dovetail Bolt | 48 | Bearing | 73 | Chain |
24 | Washer | 49 | Shaft | 74 | Bracket |
25 | Stud | 50 | Retaining Ring | 75 | Hydraulic Motor |
26 | Nut | 51 | Ball Bushing | 76 | Bolt |
27 | Support Plate | 52 | Capscrew | 77 | Bolt |
28 | Lock Nut | 53 | Retaining Ring | 78 | Screw |
29 | Lock Washer | 54 | Capscrew | 79 | Washer |
30 | Bearing Nut | 55 | Elevating Screw | 80 | Shaft |
31 | Spacer | 56 | Thrust Bearing | 81 | Key |
32 | Bearing | 57 | Knurled Nut | 82 | Spacer |
33 | Set Screw | 58 | Finger Rest | 83 | Helical Gear |
34 | Capscrew | 59 | Washer | 84 | Spacer |
35 | Nut | 60 | Spring | 85 | Bushing |
36 | Retaining Ring | 61 | Shouldered Capscrew | 86 | Bushing |
37 | Sprocket | 62 | Chain | 87 | Collar |
38 | Chain | 63 | Roll Pin | 88 | Key |
39 | Backgage Screw | 64 | Support | 89 | Sprocket |
40 | Woodruff Key | 65 | Drive Tightener | 90 | Roll Pin |
