Series A Air Operated Shear Form C-7-A
1. Click a link to view parts below or download a PDF Spec Sheet
2. Once you’ve found your part number and part name, request a parts quote
Questions? Contact Us
Jump to Assembly Parts and Manual Drawings
Click to enlarge
Download a PDF Spec Sheet
Basic Machine
Part # | Part Name |
---|---|
1 | Foot Valve |
2 | Gage Nut |
3 | Gage Washer |
4 | Front Gage Bar |
5 | Front Gage Bolt |
6 | Front Bracket Screw |
7 | Front Bracket |
8 | Air Cylinder Mounting Screw |
9 | Air Cylinder |
10 | Piston Rod Jam Nut |
11 | Air Cylinder Spacers (Certain Models Only) |
12 | Piston Rod Extension |
13 | Support Crew |
14 | R.H. Cylinder Support |
14A | L.H. Cylinder Support (Not Shown) |
15 | Holddown Spring Pin |
16 | Holddown Spring |
17 | Holddown |
18 | Holddown Adjusting Screw |
19 | Adjusting Screw Jam Nut |
20 | Plow Bolt Nut (Certain Models Only) |
21 | Knife Washer |
22 | Plow Bolts |
23 | Upper Knife |
24 | Lower Knife |
25 | Crosshead |
26 | Brace Rod Nuts |
27 | Crosshead Brace Rod |
28 | Coupling |
29 | Brace Rod |
30 | Brace Rod Bolt |
31 | Brace Rod Bolt Jam Nuts |
32 | Yoke Pins with Cotter Pins |
33 | Yokes |
34 | Treadle Rod Jam Nuts |
35 | Treadle Rod |
36 | Side Gage Screws |
37 | L.H. Side Gage |
38 | R.H. Side Gage |
39 | Bumper Screw |
40 | Crosshead Bumper (sold as one unit) |
41 | Bed Mounting Screw |
42 | Washer |
43 | Treadle |
44 | Bed Adjusting Screw |
45 | Adjusting Piece Screw |
46 | Adjusting Piece |
47 | Bed |
48 | Gib Liners |
49 | Oil Cup (Location Varies with Model) |
50 | Oil Cup |
51 | L.H. Leg (some models have Bed Tabs instead of Ledge) |
52 | R.H. Leg (some models have Bed Tabs instead of Ledge) |
53 | Treadle Bearings |
54 | Clamping Stud |

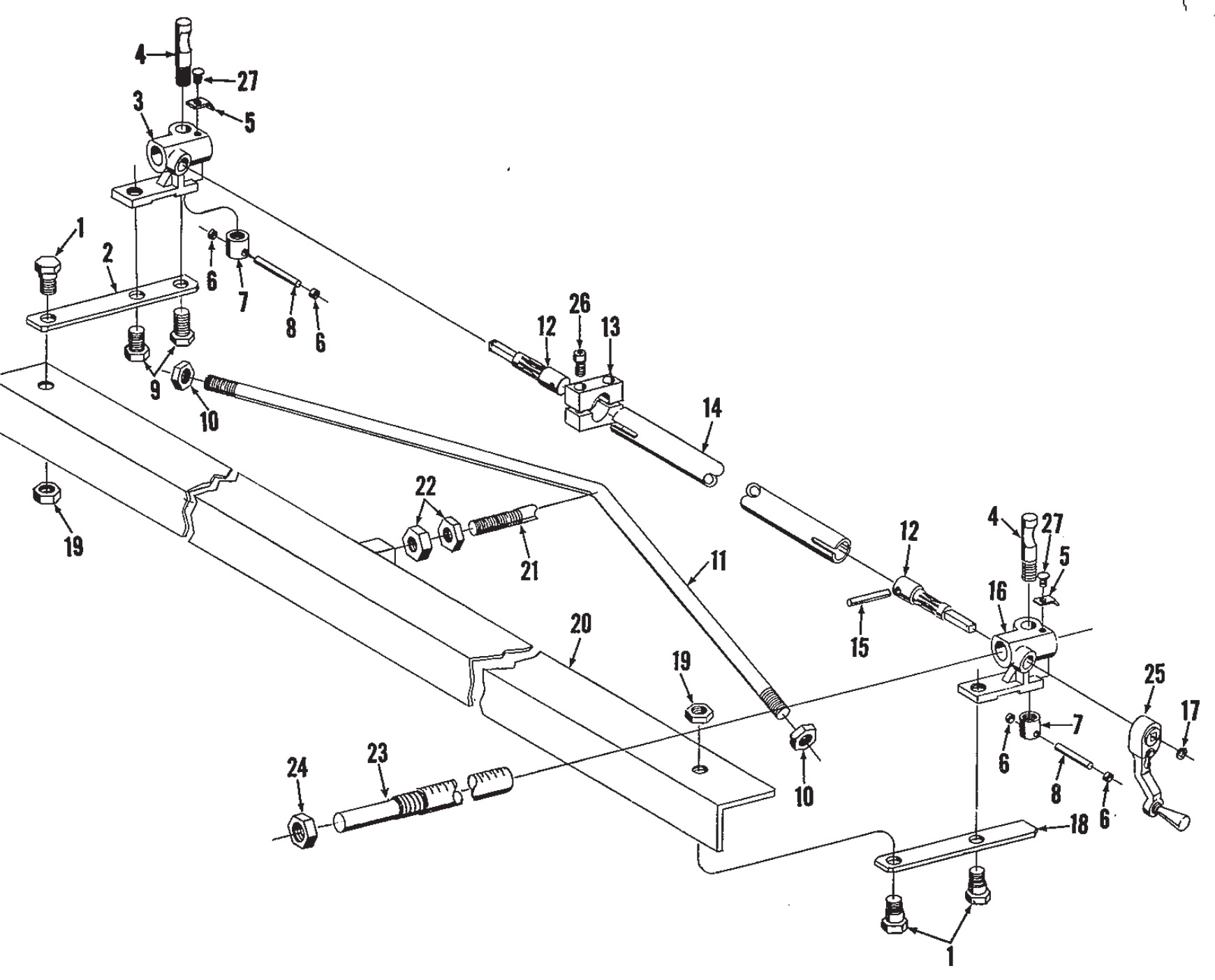

Rack & Pinion Back Gage
Part # | Part Name |
---|---|
1 | Shoulder Bolt |
2 | L.H. Support Link |
3 | L.H. Sleeve |
4 | Clamping Bolt |
5 | Pointer |
6 | Knob |
7 | Clamping Nut |
8 | Pin Handles |
9 | Hex Head Capscrew |
10 | Jam Nut |
11 | Brake Rod |
12 | Pinion Shaft |
13 | Clamp |
14 | Connecting Shaft |
15 | Roll Pin |
16 | R.H. Sleeve |
17 | Snap Ring |
18 | R.H. Support Link |
19 | Nut |
20 | Back Gage Bar |
21 | Brace Rod Bolt |
22 | Jam Nut |
23 | Back Gage Rod |
24 | Jam Nut |
25 | Ratchet Wrench |
26 | Socket Hd. Setscrew |
27 | Setscrew |
Ball Bearing Parallel Backgage
Part # | Part Name |
---|---|
1 | Counter Cover |
2 | Counter Pulley |
3 | Counter Bracket |
4 | Counter |
5 | Gear Case Mounting Screws |
6 | R.H. Gear Case |
7 | L.H. Gear Case |
8 | Knurled Knob |
9 | Handwheel |
10 | Friction Plate |
11 | Shaft - R.H. Gear Case |
12 | R.H. Bearing - R.H. Shaft |
13 | R.H. Gear Case Bevel Gear |
14 | L.H. Bearing - R.H. Shaft |
15 | Coupling Gear |
16 | Key |
17 | Key |
18 | Coupling Sleeve Scale |
19 | Coupling Sleeve |
20 | Spring |
21 | R.H. Trunnion - Connection Shaft |
22 | Connection Shaft |
23 | L.H. Trunnion - Connection Shaft |
24 | L.H. Gear Case Ring |
25 | Key |
26 | L.H. Gear Case Shaft |
27 | Nut |
28 | Washer |
29 | R.H. Bearing R.H. Shaft |
30 | Spacing Collar |
31 | L.H. Gear Case Bevel Gear |
32 | L.H. Bearing L.H. Shaft |
33 | Key |
34 | Pipe Plugs |
35 | Nut |
36 | Washer |
37 | Adjusting Screw Bevel Gear |
38 | Key |
39 | Adjusting Screw Bearing |
40 | Retaining Bushing |
41 | Retaining Bushing Nut |
42 | Slide Fastening Screw |
43 | Slide Nut |
44 | Slide |
45 | Stop Pin |
46 | Backgage Bar |
47 | Bracket Fastening Screws |
48 | L.H. Backgage Bracket |
49 | R.H. Backgage Bracket |
50 | Bracket Dowels |
51 | L.H. Adjusting Screw (Not Shown) |
52 | R.H. Adjusting Screw |
53 | Timing Belt |
54 | Timing Belt Pulley |
55 | Decimal Equiv. & Lub Plate |
56 | Brace Rod Nuts |
59 | Backgage Brace Rod |
60 | Jam Nuts |
61 | Brace Rod Bolt |
62 | Oil Hold Cover |
Front Extension Gage
Part # | Part Name |
---|---|
1 | Gage Block Adjusting Screw |
2 | Gage Block |
3 | Clamping Plate Screw |
4 | Clamping Plate |
5 | Scale Fastening Screw |
6 | Scale |
7 | Side Gage Mounting Screw |
8 | Floor Mounting Screw |
9 | Extension Gage Stand |
10 | Bracket Support |
11 | Gage Bottom |
12 | Side Gage |
