How to find the parts you need
Series F & G Foot Operated Squaring Shear Form C-4-A
① Click a link to view parts list below or download the spec sheet.
Basic Machine - Series F ShearsBasic Machine - Series G Shears
Quick Setting Back Gage (Standard on 22F, 30F, 36F, 42F, 48F, and G series
Rack & Pinion Back Gage (Standard on 5F, 6F, 8F, 10F)
Ball Bearing Parallel Package (optional on 8F & 10F only)
Front Extension Gage (Optional)
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Basic Machine – Series F Shears
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 1 | Bumper, Treadle (22F, 30F, 36F, 42F, 48F) | 20 | Plow Bolt Nut (certain models only) | 39 | Pin, Holddown |
| 2 | Gage Nut | 21 | Knife Washer | 40 | Yoke, Holddown |
| 3 | Gage Washer | 22 | Plow Bolts | 41 | Bed Mounting Screw |
| 4 | Front Gage Bar | 23 | Upper Knife | 42 | Washer |
| 5 | Front Gage Bolt | 24 | Lower Knife | 43 | Treadle |
| 6 | Front Bracket Screw | 25 | Crosshead (22F, 30F, 36F, 42F, 48F, 5F, 6F shown) | 44 | Bed Adjusting Screws |
| 7 | Front Bracket | 25A | Crosshead (8F, 10F shown) | 45 | Adjusting Piece Screws |
| 8 | Set Screw | 26 | Brace Rod Nuts | 46 | Adjusting Piece |
| 9 | Collar, Holddown Shaft | 27 | Crosshead Brace Rod | 47 | Bed (22F, 30F, 36F, 42F, 48F, 5F, 6F shown) |
| 10 | Set Screw | 28 | Coupling | 47A | Bed (8F and 10F shown) |
| 11 | Eccentric Lever | 29 | Brace Rod | 48 | Front Gib Liner |
| 12 | Eccentric Strap | 30 | Brace Rod Bolt | 49 | Rear Gib Liner |
| 13 | Holddown Shaft | 31 | Brace Rod Bolt Jam Nuts | 50 | Spring Spacer and Pin (when used) |
| 14 | Lockwasher | 32 | Yoke Pins with Lotter Pins | 51 | L.H. Leg (22F, 30F, 36F, 42F, 48F, 5F, 6F shown) |
| 15 | Holddown Spring Pin | 33 | Yokes | 52 | R.H. Leg (8F and 10F shown) |
| 16 | Holddown Spring | 34 | Treadle Rod Jam Nuts | 53 | Treadle Bearing |
| 17 | Holddown (36F, 42F, 48F shown) | 35 | Treadle Rod | 54 | Clamping Stud |
| 17A | Holddown (5F, 6F, 8F, 10F shown) | 36 | Side Gage Screws | 55 | Retainer Ring |
| 18 | Lockwashers | 37 | L.H. Side Gage | 56 | Counterbalance Spring |
| 19 | Knife Guard | 38 | R.H. Side Gage | 57 | Counterbalance Spring Rod |
| 58 | Locknuts |

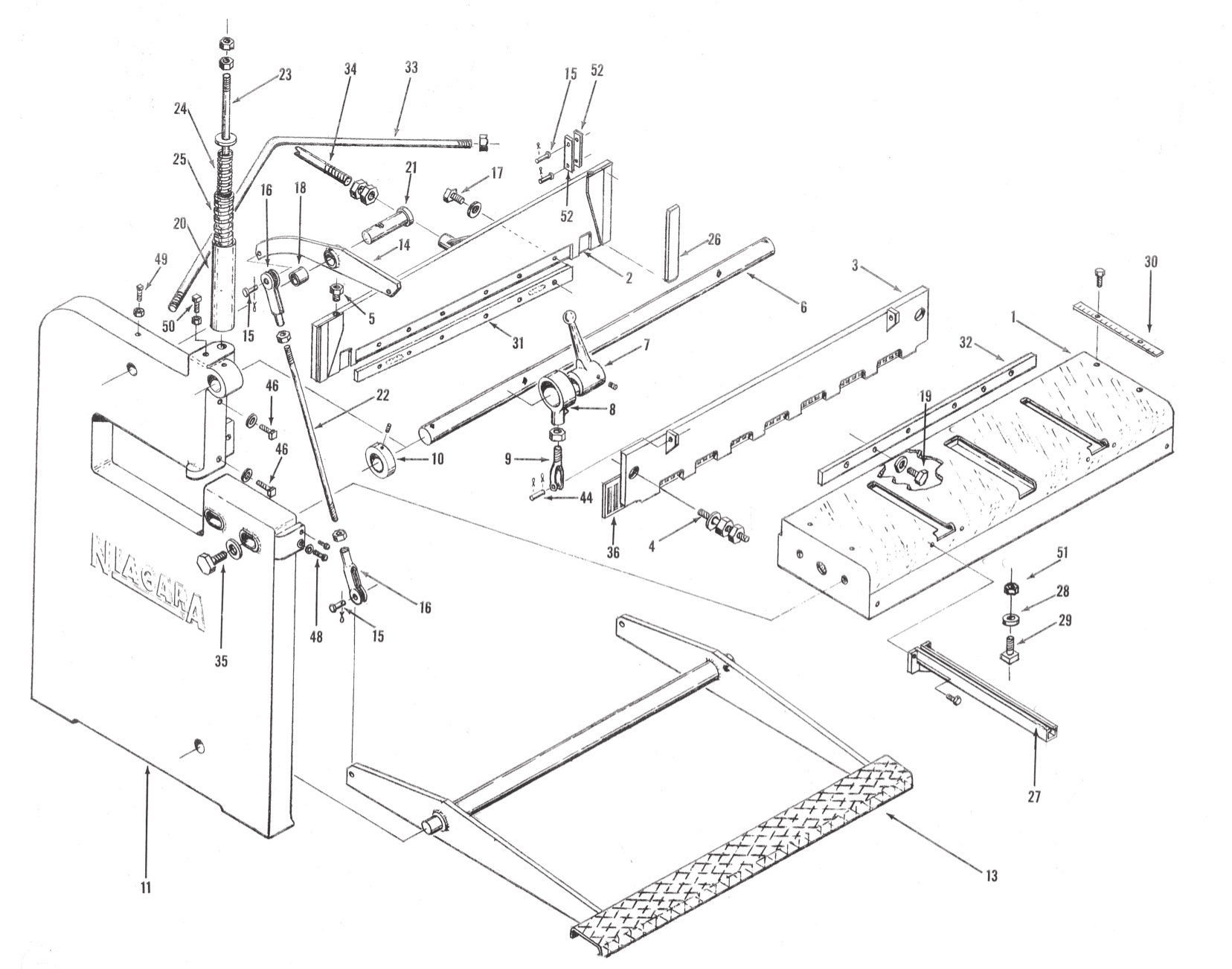

Basic Machine – Series G Shears
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 1 | Bed | 17 | Upper Knife Bolt & Washer | 32 | Lower Knife |
| 2 | Crosshead | 18 | Treadle Lever Bushing | 33 | Brace Rod with Nuts |
| 3 | Holddown | 19 | Lower Knife Bolt & Washer | 34 | Brace Rod Bolt with Nuts |
| 4 | Holddown Stud with Washer & Nuts | 20 | Spring Holder | 35 | Bed Clamping Bolt with Washer |
| 5 | Spring Rod Bushing | 21 | Treadle Lever Pin | 36 | Knife Guard |
| 6 | Holddown Shaft | 22 | Connecting Rod with Nuts | 44 | Holddown Pin with Cotter Pins |
| 7 | Eccentric Lever with Set Screw | 23 | Spring Rod with Washer & Nuts | 45 | Backgage Rod |
| 8 | Eccentric Strap | 24 | Spring | 46 | Gib Adjusting Screw with Washer |
| 9 | Holddown Yoke with Nut | 25 | Spring | 47 | Jam Nut |
| 10 | Holddown Shaft Collar with Set Screw | 26 | Gib | 48 | Bed Adjusting Screws with Washer |
| 11 | L.H. Housing | 27 | Front Bracket with Screws | 49 | Lever Setscrew with Nut |
| 12 | R.H. Housing (Not Shown) | 28 | Front Gage Stop | 50 | Crosshead Adjusting Screw with Nut |
| 13 | Treadle | 29 | Front Gage Bolt | 51 | Front Gage Nut |
| 14 | Treadle Lever | 30 | R.H. Side Gage | 52 | Treadle Lever Link |
| 15 | Lever Pin with Cotter Pin | 30A | L.H. Side Gage (Not Shown) | ||
| 16 | Connecting Rod Yoke | 31 | Upper Knife |
Quick Setting Back Gage (Standard on 22F, 30F, 36F, 42F, 48F, and G series
| Part # | Part Name | Part # | Part Name |
|---|---|---|---|
| 1 | Locknuts | 10 | Clamping Nut |
| 2 | Capscrew | 11 | Clamping Bolts |
| 3 | Capscrew | 12 | Back Gage Rod |
| 4 | Stud | 13 | Jam Nut |
| 5 | Link | 14 | Back Gage |
| 6 | Screw | 15 | R.H. Sleeve |
| 7 | Pointer | 16 | L.H. Sleeve |
| 8 | Knobs | ||
| 9 | Pin Handles |
Rack & Pinion Back Gage (Standard on 5F, 6F, 8F, 10F)
| Part # | Part Name | Part # | Part Name |
|---|---|---|---|
| 1 | Shoulder Bolt | 15 | Roll Pin |
| 2 | L.H. Support Link | 16 | R.H. Sleeve |
| 3 | L.H. Sleeve | 17 | Snap Ring |
| 4 | Clamping Bolt | 18 | R.H. Support Link |
| 5 | Pointer | 19 | Nut |
| 6 | Knob | 20 | Back Gage Bar |
| 7 | Clamping Nut | 21 | Brace Rod Bolt |
| 8 | Pin Handles | 22 | Jam Nut |
| 9 | Hex Head Capscrew | 23 | Back Gage Rod |
| 10 | Jam Nut | 24 | Jam Nut |
| 11 | Brace Rod | 25 | Ratchet Wrench |
| 12 | Pinion Shaft | 26 | Socket Hd. Setscrew |
| 13 | Clamp | 27 | Setscrew |
| 14 | Connecting Shaft |
Ball Bearing Parallel Package (optional on 8F & 10F only)
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 1 | Counter Cover | 21 | R.H. Trunnion - Connection Shaft | 41 | Retaining Bushing Nut |
| 2 | Counter Pulley | 22 | Connection Shaft | 42 | Slide Fastening Screw |
| 3 | Counter Bracket | 23 | L.H. Trunnion - Connection Shaft | 43 | Slide Nut and Tension Washers |
| 4 | Counter | 24 | L.H. Gear Case Ring | 44 | Slide |
| 5 | Gear Case Mounting Screws | 25 | Key | 45 | Stop Pin |
| 6 | R.H. Gear Case | 26 | L.H. Gear Case Shaft | 46 | Backgage Bar |
| 7 | L.H. Gear Case | 27 | Nut | 47 | Bracket Fastening Screws |
| 8 | Knurled Knob | 28 | Washer | 48 | L.H. Backgage Bracket |
| 9 | Handwheel | 29 | R.H. Bearing R.H. Shaft | 49 | R.H. Backgage Bracket |
| 10 | Friction Plate | 30 | Spacing Collar | 50 | Bracket Dowels |
| 11 | Shaft - R.H. Gear Case | 31 | L.H. Gear Case Bevel Gear | 51 | L.H. Adjusting Screw (Not Shown) |
| 12 | R.H. Bearing - R.H. Shaft | 32 | L.H. Bearing L.H. Shaft | 52 | R.H. Adjusting Screw |
| 13 | R.H. Gear Case Bevel Gear | 33 | Key | 53 | Timing Belt |
| 14 | L.H. Bearing - R.H. Shaft | 34 | Pipe Plugs | 54 | Timing Belt Pulley |
| 15 | Coupling Gear | 35 | Nut | 55 | Decimal Equiv. & Lub Plate |
| 16 | Key | 36 | Washer | 56 | Brace Rod Nuts |
| 17 | Key | 37 | Adjusting Screw Bevel Gear | 59 | Backgage Brace Rod |
| 18 | Coupling Sleeve Scale | 38 | Key | 60 | Jam Nuts |
| 19 | Coupling Sleeve | 39 | Adjusting Screw Bearing | 61 | Brace Rod Bolt |
| 20 | Spring | 40 | Retaining Bushing | 62 | Oil Hold Cover |
Front Extension Gage (Optional)
| Part # | Part Name | Part # | Part Name |
|---|---|---|---|
| 1 | Gage Block Adjusting Screw | 7 | Side Gage Mounting Screw |
| 2 | Gage Block | 8 | Floor Mounting Screw |
| 3 | Clamping Plate Screw | 9 | Extension Gage Stand |
| 4 | Clamping Plate | 10 | Bracket Support |
| 5 | Scale Fastening Screw | 11 | Gage Bottom |
| 6 | Scale | 12 | Side Gage |
