How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
FRAMECylinder
STROKE & SPEED CONTROL -STYLE "A"
Stroke & Speed Control - Style "B"
FRONT OPERATED, PARALLEL ADJUSTED BACK GAGE
HEAVY DUTY UNIVERSAL GAGE BRACKET, & GAGING STOP
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Frame
| 1 | Screw | 20 | Limit Switch Bracket |
| 2 | Gib Plate Spacer | 21 | Nut |
| 3 | Gib Mounting Plate | 22 | Threaded Stud |
| 4 | Shim | 23 | Adjusting Block |
| 5 | Gib Liner | 24 | Socket Head Screw |
| 6 | L.H. Gib | 25 | Hex Head Screw |
| 7 | Screw | 26 | Pivot Block Retainer |
| 8 | Socket Head Screw | 27 | Pivot Block |
| 9 | Socket Head Screw | 28 | Pivot Shoe |
| 10 | Hydraulic Cylinder | 29 | R.H. Gib |
| 11 | Frame | 30 | Gib Mounting Plate |
| 12 | Reservoir Cover | 31 | Gib Plate Spacer |
| 13 | Manifold Assembly | 32 | Ram |
| 14 | Shroud | 33 | Spring |
| 15 | Pressure Gage | 34 | Clamp Bar |
| 16 | Socket Head Screw | 35 | Bushing |
| 17 | Microswitch | 36 | Washer |
| 18 | Hex Head Screw | 37 | Hex Head Screw |
| 19 | Washer | 38 | Screw |

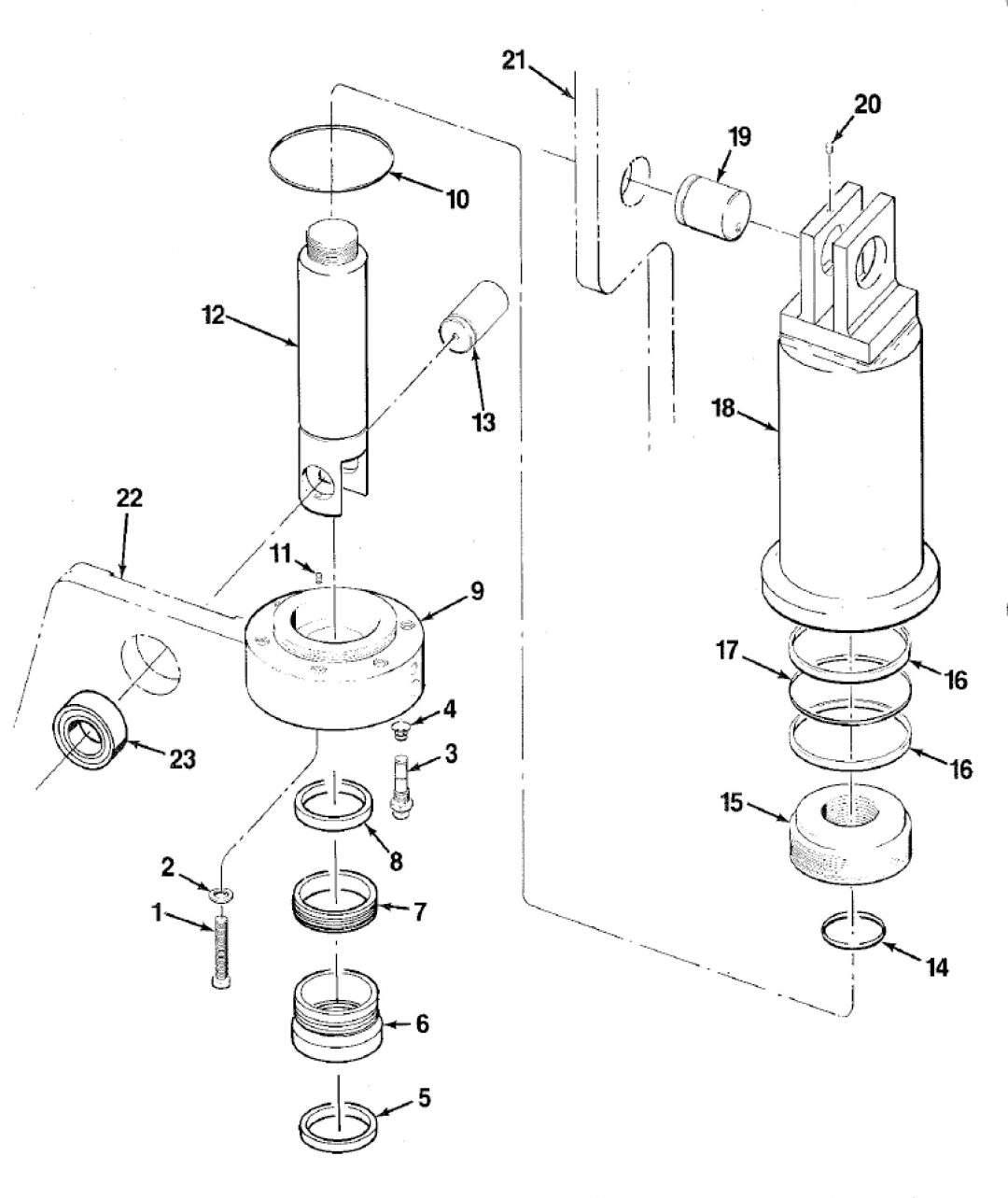

Cylinder
| 1 | Hex Head Bolt | 13 | Ram Clevis Pin |
| 2 | Flat Washer | 14 | O-Ring |
| 3 | Counterbalance Valve L.H. only | 15 | Piston |
| 4 | O-Ring Set L.H. only | 16 | Bearings |
| 5 | Wiper Ring | 17 | Piston Seal |
| 6 | Packing Nut | 18 | Body Assembly |
| 7 | Vee Packing | 19 | Cylinder Mounting Pin |
| 8 | Rod Bearing | 20 | Set Screw |
| 9 | Head Flange | 21 | Housing |
| 10 | O-Ring | 22 | Ram |
| 11 | Set Screw | 23 | Spherical Bearing |
| 12 | Rod Assembly | ||
| Specify L.H. or R.H. cylinder when ordering parts |
STROKE & SPEED CONTROL -STYLE “A”
| 1 | Roll Pin | ||
| 2 | Handle Wheel | ||
| 3 | Shaft Mounting Block-Lower | 21 | Washer |
| 4 | Limits Assembly Mounting Plate | 22 | Hex Head Screw |
| 5 | Collar | 23 | Limit Switch Assembly |
| 6 | Socket Head Screw | 24 | Washer |
| 7 | Bearing | 25 | Hex Head Screw |
| 8 | Socket Head Screw | 26 | Speed Change Cam |
| 9 | Retaining Ring | 27 | Top Stop |
| 10 | Indicator | 28 | Speed Change Block |
| 11 | Button Head Screw | 29 | Socket Head Capscrew |
| 12 | Spring Hinge | 30 | Spring Washer |
| 13 | Hex Head Capscrew | 31 | Cage Nut |
| 14 | Hex Nut | 32 | Limits Assembly Guard |
| 15 | Breakaway Plate | 33 | Cover Plate |
| 16 | Bottom Stop Block | 34 | Pointer |
| 17 | Ball Plunger | 35 | Handknob |
| 18 | Bottom Stop Adjusting Screw | 36 | Button Head Capscrew |
| 19 | Clamp Bolt | 37 | Handknob |
| 20 | Switch Enclosure Mounting Support | 38 | Button Head Capscrew |
| 39 | Shaft Mount Block-Upper | ||
| 40 | Cover Plate |
Stroke & Speed Control – Style “B”
| 1 | Roll Pin | 27 | Pivot Pin |
| 2 | Handle Wheel | 28 | Spring |
| 3 | Shaft Mounting Bracket-Lower | 29 | Switch Actuating Pin |
| 4 | Limits Assembly Mounting Plate | 30 | Washer |
| 5 | Spacer | 31 | Hex Head Screw |
| 6 | Socket Head Screw | 32 | Collar |
| 7 | Bearing | 33 | Breakaway Lever |
| 8 | Retaining Ring | 34 | Bearing |
| 9 | Shaft Mounting Block-Upper | 35 | Socket Head Capscrew |
| 10 | Ball Plunger | 36 | Washer |
| 11 | Indicator | 37 | Hex Head Screw |
| 12 | Hex Head Screw | 38 | Botom Stop |
| 13 | Nut | 39 | Button Head Screw |
| 14 | Bottom Stop | 40 | Speed Change Cam |
| 15 | Bottom Stop Adjusting Screw | 41 | Top Stop |
| 16 | Threaded Collar | 42 | Speed Change Block |
| 17 | Clamp Bolt | 43 | Spring Washer |
| 18 | Bed Reference Bracket | 44 | Socket Head Capscrew |
| *19 | Washer | 45 | Limits Assembly Guard |
| 20 | Hex Head Screw | 46 | Pointer |
| *21 | Spring | 47 | Handwheel |
| *22 | Button Head Screw | 48 | Button Head Capscrew |
| 23 | Top Stop Assembly | 49 | Handwheel |
| 24 | Nut | 50 | Button Head Capscrew |
| 25 | Washer | 51 | Cage Nut |
| 26 | Limit Switch Mounting Plate | 52 | Cover Plate |
| *Purchase together |
| 1 | Adjusting Knob | 19 | Pulley Shaft |
| 2 | Bearing | 20 | Pulley |
| 3 | Bearing Washer | 21 | Collar |
| 4 | Tape Adjustment Screw | 22 | Grease Fitting |
| 5 | Indicator | 23 | Tape |
| 6 | Roll Pin | 24 | Hex Head Capscrew |
| 7 | Button Head Screw | 25 | Tape Clamp |
| 8 | Scale | 26 | Tape Holder |
| 9 | Hex Head Screw | 27 | Nut |
| 10 | Hex Head Screw | 28 | Washer |
| 11 | Screw Housing | 29 | Servo Cushion |
| 12 | Tape Locking Collar | 30 | Servo Valve |
| 13 | Set Screw | 31 | Socket Head Screw |
| 14 | Tilt Adjustment Bracket | 32 | Hex Head Screw |
| 15 | Tilt Adjustment Bracket Support | 33 | Sub Plate |
| 16 | Hex Head Screw | 34 | Servo Mounting Bracket |
| 17 | Lockwasher | 35 | Hex Head Capscrew |
| 18 | Collar |
FRONT OPERATED, PARALLEL ADJUSTED BACK GAGE
| FRONT OPERATED, PARALLEL ADJUSTED BACK GAGE | |||
| 1 | Carriage | 24 | Chain |
| 2 | Support Plate | 25 | Sprocket |
| 3 | L.H. Chain Guard | 26 | Ballscrew & Nut Assembly |
| 4 | Finger | 27 | Olite Brg. |
| 5 | Finger Support | 28 | Snap Ring |
| 6 | Finger Rest Support Plate | 29 | Roll Pins |
| 7 | Hand Wheel | 30 | Indicator Cartridge |
| 8 | Brg. Retainer | 31 | Weld Nut |
| 9 | Rear Stop Plate | 32 | Drive Chain Guard |
| 10 | Elevating Screw | 33 | Motor Support |
| 11 | Backgage Finger Rest | 34 | Hex Hd. Bolt |
| 12 | Center Chain Guard | 35 | Special Dovetail Bolt |
| 13 | Stud Type Handle | 36 | Guide Bar |
| 14 | Hex Nut | 37 | Adjusting Shaft |
| 15 | Washer | 38 | Clamp Bolt & Handle |
| 16 | "V" Bolt | 39 | Key |
| 17 | Socket Hd. Screw | 40 | Sprocket |
| 18 | Bearing | 41 | Collar |
| 19 | Butt Hd. Capscrew | 42 | Handle Wheel |
| 20 | Locknut | 43 | Cartridge |
| 21 | Lockwasher | 44 | Sprocket |
| 22 | Key | 45 | Gear Motor |
| 23 | Washer | 46 | Chain |
| 47 | Chain | ||
| MAUALLY OPERATED ONLY | POWER OPERATED ONLY | ||
| 38 | Clamp Bolt & Handle | 33 | Motor Support |
| 42 | Handle Wheel | 34 | Hex Hd. Bolt |
| 44 | Sprocket | ||
| 45 | Gear Motor |
HEAVY DUTY UNIVERSAL GAGE BRACKET, & GAGING STOP
| HEAVY DUTY UNIVERSAL GAGE BRACKET, & GAGING STOP | |||
| 1 | Back Gage Post | 7 | Washer |
| 2 | Base-Back Gage | 8 | Gage Stop |
| 3 | Back Gage Slide | 9 | "V" Head Bolt |
| 4 | Hex Hd. Bolt | 10 | Hex Nut |
| 5 | Tee Bolt | 11 | Washer |
| 6 | Hex Nut | ||
| MICROMETER ADJUSTMENT | |||
| 12 | Hex Nut | 16 | Micrometer Nut |
| 13 | Stud | 17 | Locking Nut |
| 14 | "V" Bolt | 18 | Hex Nut |
| 15 | Micrometer Support |
