Series HB 55 100 thru 350 Ton Form B-36

Go back to
Niagara Press Parts

How to find the parts you need

Series HB 55 100 thru 350 Ton Form B-36

① Click a link to view parts list below or download the spec sheet.

Frame Assembly
Cylinder Assembly
Encoder Assembly

② Once you know which parts you want to order, request a parts quote.

Click to enlarge drawing

Frame Assembly

1Cylinder (see separate parts list)34Encoder Mounting Screw
2L.H. Cylinder Cover35Spacer
3R.H. culinder Cover (not shown)36Spacer Mounting Screw
4Threaded Rod37Limit Switch Bracket
5Hex Jam Nut38Bracket Screw
6Nut39Limit Switch
7Screw40Limit Switch Mounting Screw
8Screw41Eye Bolt
9Spacer42S' Hook
10L.H. Housing43Chain
11Housing Cross Tie44R.H. Housing Foot
12R.H. Housing45Screw
13Cross Tie Screw46Set Screw
14L.H. Reservoir Cover47L.H Housing Foot
15Cover Screw48Housing Gib
16Manifold Assembly49Housing Gib Mounting Screw
17Motor50Ram
18Motor Mounting Screw51Operator Station
19R.H. Reservoir Cover52Screw
20Filter Mounting Bracket53Ram Direction Control
21Bracket Screw54Screw
22Filter55Safety Rail
23Filter Mounting Screw56Bracket
24Inner Gib Spacer57Screw
25Center Gib Spacer58Clamp Bar
26Gib Liner59Screw
27Liner Mounting Screw60Washer
28Outer Gib Spacer61Allen Nut
29Gib Spacer Mounting Screw62Spring
30Ram Gib63Bed
31Ram Gib Mounting Screw64Bed Mounting Screw
32Shim65Bed Spacer
33Encoder Assembly (see separate part list)

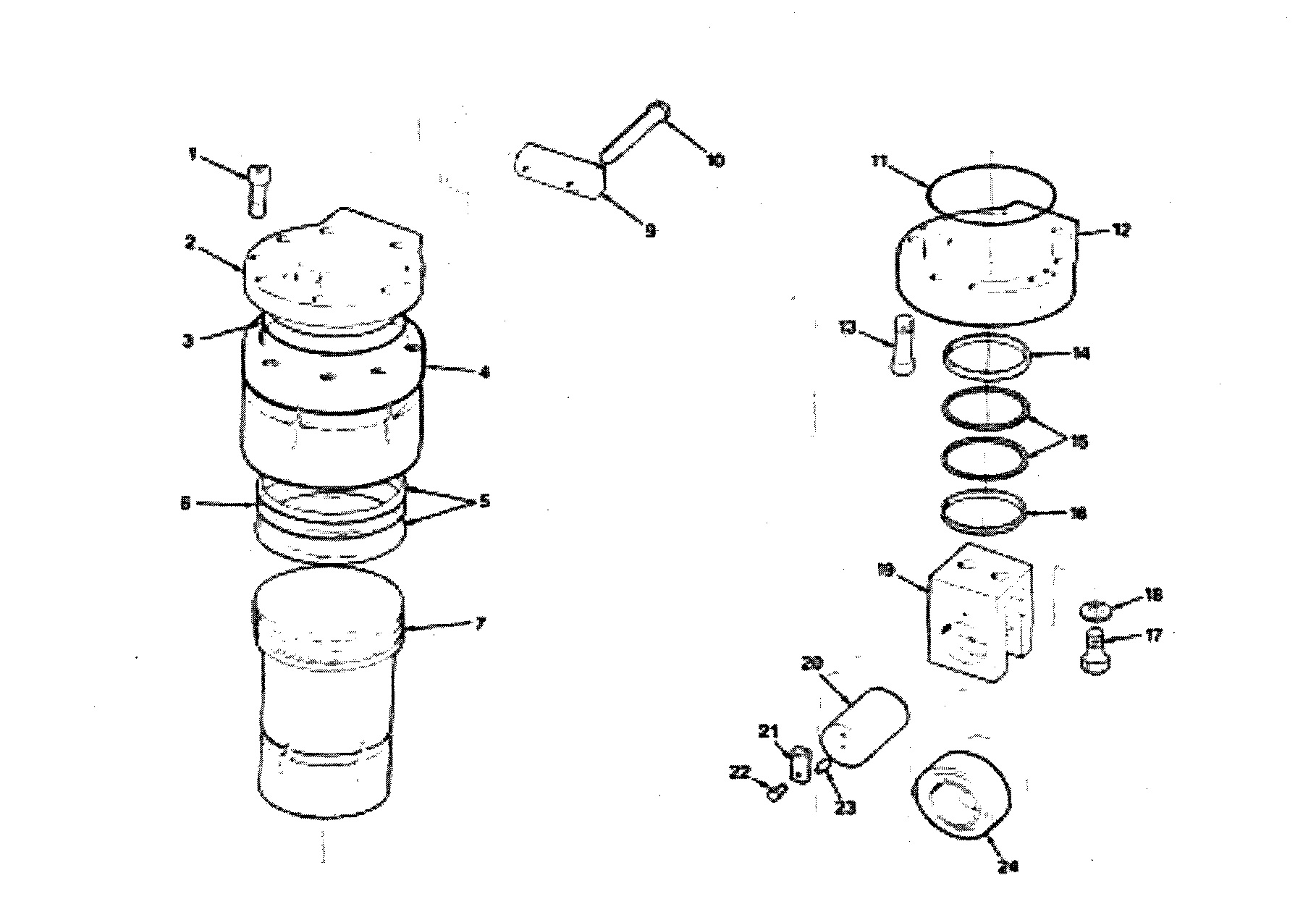

Cylinder Assembly

1Cap Screw13Cap Screw
2L.H. upper Cap14Rod Bearing
3"O" Ring15Rod Seal
4Cylinder16Wiper Ring
5Wear Ring17Bolt
6Piston Seal18Washer
7Piston19Ram Clevis
8R.H. Upper Cap (not shown)20Ram Clevis Pin
9Cylinder Mounting Pin21Pin Lock
10Hex Head Bolt22Bolt
11"O" Ring23Grease Fitting
12Lower Cap24Bearing

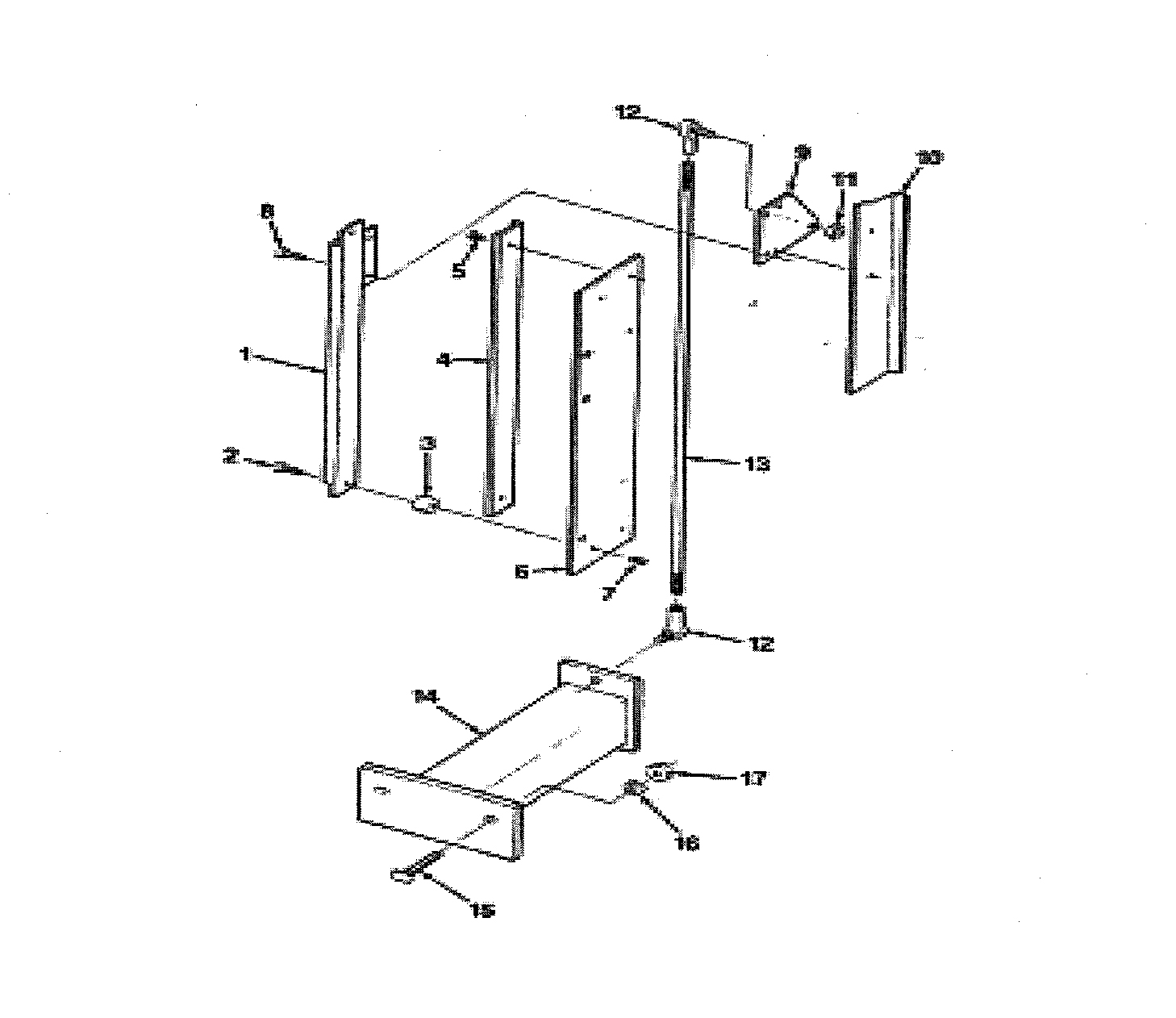

Encoder Assembly

1Liner Scale10Cover
2Scale Mounting Screw11Hex Nut
3Spacer12Ball Joint Rod End
4Slide13Rod
5Slide Screw14Bed Reference Bracket
6Encoder Mounting Plate15V' Head Bolt
7Set Screw16Washer
8Screw17Hex Nut
9Scanning Head Mounting Plate
