How to find the parts you need

Series HD 400 Ton Larger – Form B-11-B

① Click a link to view parts list below or download the spec sheet.

FRAME (ONE PIECE)
FRAME (COMPONENT PIECES)
MAIN CYLINDER
RAM LEVEL CONTROL
UPPER AND LOWER LIMIT ASSEMBLY
HEAVY DUTY BACKGAGE MANUALLY OPERATED
HEAVY DUTY BACKGAGE POWER OPERATED

② Once you know which parts you want to order, request a parts quote.

Request a parts quote

Questions? Chat with us

Click to enlarge drawing

FRAME (ONE PIECE)

1	Oil Sight Gage	31	"T" Nut
2	Motor, Manifold & Pump Assembly	32	Ram Liner
3	Reservoir Cover	33	Ram
4	Gasket	34	Safety Rail
5	Capscrew	35	Bolt
6	Frame	36	Rail Support
7	Capscrew	37	Ram Clamp Bars
8	L.H. Outer Gib	38	Bolt
9	Gib Liner	39	Spring
10	Screw	41	Ram Liner
11	Cylinder	42	Bolt
12	Capscrew	43	Washer
13	Nut	45	Capscrew
14	Stud	46	R.H. Inner Gib
15	Outer Pivot Shoe Retainer	47	Gib Liner
16	Pivot Shoe	48	Capscrew
17	Pivot Shoe	49	R.H. Outer Gib
18	Inner Pivot Shoe Retainer	50	Gib Liner
19	Stud	51	Control Box
20	Nut	52	Washer
21	L.H. Inner Gib	53	Bolt
22	Capscrew	54	Retaining Ring
23	Gib Liner	55	Pin
24	Filler Block	56	Clevis	Clean Out
25	Bed (Detachable Type)	57	"O"Ring	Cover Kit
26	Capscrew (With Detachable Type Bed Only)	58	Inspection Door	Purchased
27	Bolt (With Detachable Type Bed Only)	59	Washer	As Assembly
28	Bed Shoe Lock (With Detachable Type Bed Only)	60	Bolt
29	Bed Shoe (With Detachable Type Bed Only)
30	Capscrew (With Detachable Type Bed Only)

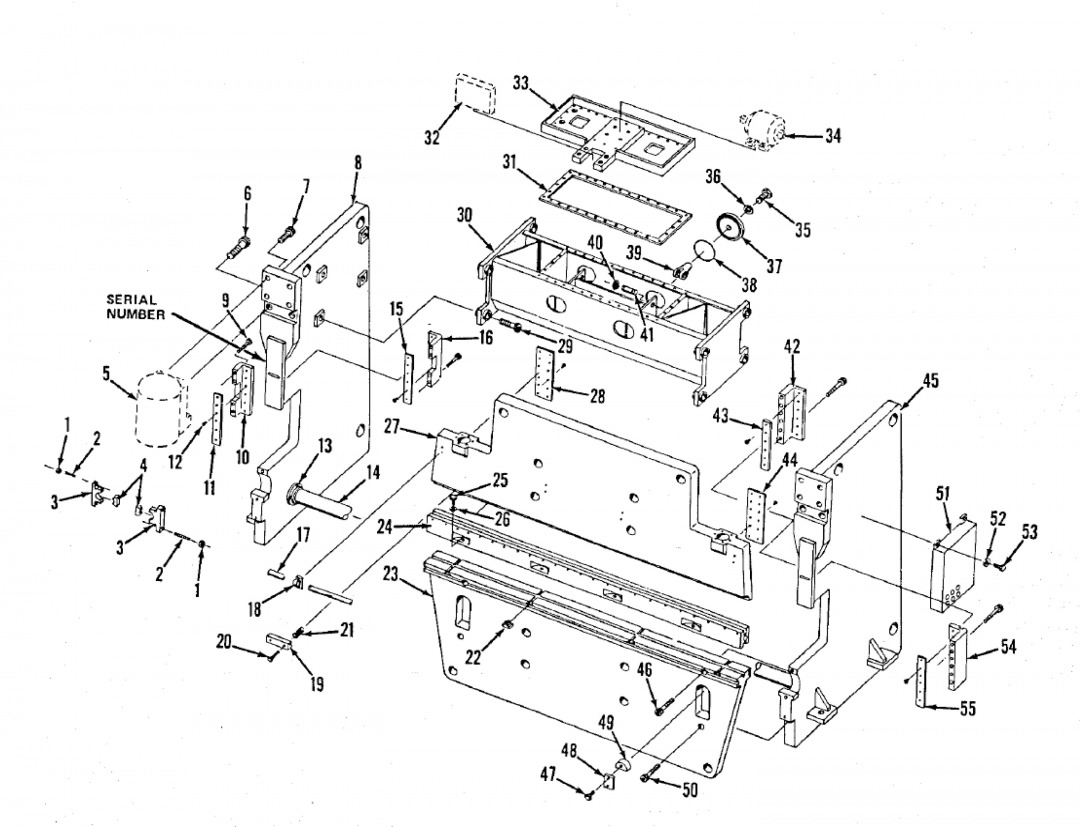

FRAME (COMPONENT PIECES)

1	Nut	29	Capscrew
2	Stud	30	Reservoir
3	Pivot Shoe Retainer	31	Gasket
4	Pivot Shoe	32	Manifold
5	Cylinder	33	Reservoir Cover
6	Capscrew	34	Motor
7	Capscrew	35	Bolt
8	L.H. Housing	36	Washer
9	Capscrew	37	Clean Out Cover	Clean Out
10	L.H. Outer Gib	38	"O" Ring	Cover Kit
11	Gib Liner	39	Clevis	Purchased
12	Screw	40	Retaining Ring	As Assembly
13	Flange	41	Pin
14	Pipe	42	R.H. Inner Gib
15	Gib Liner	43	Gib Liner
16	L.H. Inner Gib	44	R.H. Ram Liner
17	Safety Rail	45	R.H. Housing
18	Rail Support	46	Capscrew
19	Ram Clamp Bar	47	Bolt
20	Bolt	48	Bed Shoe Lock
21	Spring	49	Bed Shoe
22	"T" Nut	50	Capscrew
23	Bed	51	Control Box
24	Filler Block	52	Washer
25	Nut	53	Bolt
26	Washer	54	R.H. Outer Gib
27	Ram	55	Gib Liner
28	L.H. Ram Liner

MAIN CYLINDER

1	Test Gage	14	"V" Packing
2	Bleeder Valve	15	Wiper Cord
3	Socket	16	Packing Gland
4	Plug	17	Capscrew
5	Nipple	18	Capscrew
6	Reducer	19	Ballcap
7	Cylinder	20	Lock
8	Piston	21	Capscrew
9	Piston Rings	22	Shim
10	Bushing	23	Ballscrew
11	"O" Ring	24	Ballseat
12	Cylinder Cap	25	Ram
13	Capscrew	26	Dowel

RAM LEVEL CONTROL

1	Capscrew	20	Collar*
2	Valve	21	Set Screw*
3	Sub Plate	22	L.H. Pulley
4	Valve Bracket	23	Pulley Shaft*
5	Dowel	24	Grease Fitting
6	Bolt	25	Collar**
7	Capscrew	26	Set Screw**
8	Micro Switch	27	R.H. Pulley
9	Capscrew	28	Pulley Shaft**
10	Micro Switch Plate	29	Ram
11	Micro Switch Bracket	30	Tape Adjustment Screw
12	Nut	31	Set Screw
13	Capscrew	32	Pin & Knob
14	Micro Switch Trip	33	Screw Housing
15	Tape Holder	34	Tilt Adjust Scale
16	Tape Clamp	35	Screw
17	Capscrew	36	Bearing
18	Tape	37	Adjusting Knob
19	Grease Fitting	38	Bracket Support
		39	Tilt Adjust Bracket
		40	Bolt
		41	Bolt
		*Purchased Together
		**Purchased Together

UPPER AND LOWER LIMIT ASSEMBLY

1	R.H. Outer Gib	26	Shaft
2	Dovetail Bolt	27	Bevel Gear
3	Speed Change Cam	28	Counter Plate
4	Knurled Nut	29	Screw
5	Upper Gage Rod Bracket	30	Button Head Screw
6	Capscrew	31	Bushing
7	Set Screw	32	Roll Pin
8	Bushing	33	Bevel Gear
9	Upper Stop Block	34	Gear Cover
11	Clamp Bolt	35	Screw
12	Clamp Nut	36	Roll Pin
13	Handle	37	Handle
14	Knob	38	Counter
15	Screw	39	Roll Pin
16	Gage Rod	40	Bevel Pinion
17	Roll Pin	41	Limit Switch (Speed Change)
18	Lower Stop Block	42	Screw
19	Lower Gage Rod Bracket	43	Bracket Support
20	Bushing	44	Limit Switch Mounting Plate
21	Set Screw	45	Bolt
22	Capscrew	46	Limit Switch (Bottom Limit)
23	Bevel Pinion	47	Limit Switch (Top Limit)
24	Bushing	48	Screw
25	Roll Pin

HEAVY DUTY BACKGAGE MANUALLY OPERATED

1	Handle	38	Chain
2	Collar	39	Backgage Screw
3	Spacer	40	Woodruff Key
4	Helical Gear	41	Backlash Plate
5	Spacer	42	Disc Springs
6	Shaft	43	Screw
7	Key	44	Finger Rest Support Bracket
8	Bolt	45	Stud
9	Flange Block	46	Clamping Handle
10	Flange Block	47	Rear Stop Plate
11	Bolt	48	Bearing
12	Key	49	Shaft
13	Retaining Ring	50	Retaining Ring
14	Sprocket	51	Ball Bushing
15	Retaining Ring	52	Capscrew
16	Counter Bracket	53	Retaining Ring
17	Conter Cover	54	Capscrew
18	Screw	55	Elevating Screw
19	Counter Cover	56	Thrust Bearing
20	Counter Shaft	57	Knurled Nut
21	Retaining Ring	58	Finger Rest
22	Helical Gear	59	Washer
23	Dovetail Bolt	60	Spring
24	Washer	61	Shouldered Capscrew
25	Stud	62	Chain
26	Nut	63	Roll Pin
27	Support Plate	64	Sprocket
28	Lock Nut	65	Drive Tightener
29	Lock Washer	66	Dovetail Bolt
30	Bearing Nut	67	Finger Support
31	Bearing	68	Backgage Finger
32	Bearing	69	Washer
33	Set Screw	70	Nut
34	Capscrew	71	Bed
35	Nut
36	Retaining Ring
37	Sprocket

HEAVY DUTY BACKGAGE POWER OPERATED

16	Counter Bracket	41	Backlash Plate	66	Dovetail Bolt
17	Counter	42	Disc Springs	67	Finger Support
18	Screw	43	Screw	68	Backgage Finger
19	Counter Cover	44	Finger Rest Support Bracket	69	Washer
20	Counter Shaft	45	Stud	70	Nut
21	Retaining Ring	46	Clamping Handle	71	Bed
22	Helical Gear	47	Rear Stop Plate	72	Sprocket
23	Dovetail Bolt	48	Bearing	73	Chain
24	Washer	49	Shaft	74	Bracket
25	Stud	50	Retaining Ring	75	Hydraulic Motor
26	Nut	51	Ball Bushing	76	Bolt
27	Support Plate	52	Capscrew	77	Bolt
28	Lock Nut	53	Retaining Ring	78	Screw
29	Lock Washer	54	Capscrew	79	Washer
30	Bearing Nut	55	Elevating Screw	80	Shaft
31	Spacer	56	Thrust Bearing	81	Key
32	Bearing	57	Knurled Nut	82	Spacer
33	Set Screw	58	Finger Rest	83	Helical Gear
34	Capscrew	59	Washer	84	Spacer
35	Nut	60	Spring	85	Bushing
36	Retaining Ring	61	Shouldered Capscrew	86	Bushing
37	Sprocket	62	Chain	87	Collar
38	Chain	63	Roll Pin	88	Key
39	Backgage Screw	64	Support	89	Sprocket
40	Woodruff Key	65	Drive Tightener	90	Roll Pin
