How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
Housings, Bed, RamMain Cylinder
Holddown Foot
Stroke Control
Rake Control
Swinging Backgage
② Once you know which parts you want to order, request a parts quote.
Housings, Bed, Ram
Part # | Part Name | Part # | Part Name | Part # | Part Name | Part # | Part Name |
---|---|---|---|---|---|---|---|
1 | Cylinder (see separate parts list) | 20 | Retainer Ring | 39 | Solid Stop | 58 | Leveling Screw |
2 | Holddown (see separate parts list) | 21 | Pin | 40 | V-Head Bolt | 59 | Bolt |
3 | L.H. Gap Guard | 22 | Connecting Block | 41 | Nut | 60 | R.H. Gap Cover |
4 | Capscrew | 23 | Jam Nut | 42 | Brace Rod Nut | 61 | Control Box |
5 | L.H. Guide Cap | 24 | Brace Rod Adjusting Stud | 43 | Capscrew | 62 | Bolt |
6 | Guide Cap Liner | 25 | Adjusting Nut | 44 | R.H. Guide Cap | 63 | Bolt |
7 | Screw | 26 | Ball Transfer | 45 | Pivot Shoe | 64 | Roller |
8 | Bolt | 27 | Bed Adjusting Bolts (Push-Pull type) | 46 | Guide Cap Liner | 65 | Slitting Gage |
9 | Side Gage | 28 | Fixed Blade | 47 | Screw | 66 | Bolt |
10 | Scale | 29 | Mounting Block | 48 | Pivot Shoe | 67 | Washer |
11 | Screw | 30 | Nut | 49 | Thrust Block | 68 | Nut |
12 | Pocket Cover | 31 | Stud | 50 | Capscrew | 69 | Screw |
13 | Bed | 32 | Nut | 51 | Screw | 70 | Bed Scale Washer |
14 | Reverse Key Plow Bolt | 33 | Bolt | 52 | R.H. Ram Liner | 71 | Bed Adjusting Bolt |
15 | Moving Blade | 34 | Position Indicator | 53 | Housing (R.H. shown) | 72 | Capscrew |
16 | Washer | 35 | Stud | 54 | Dial Indicator Cover | 73 | Washer |
17 | Nut | 36 | Dovetail Bolt | 55 | Screw | 74 | Disc Spring |
18 | Ram | 37 | Front Bracket | 56 | Washer | 75 | Bed Adjusting Sleeve |
19 | Brace Rod | 38 | Nut | 57 | Bolt | 76 | Bed Adjusting Bolt |

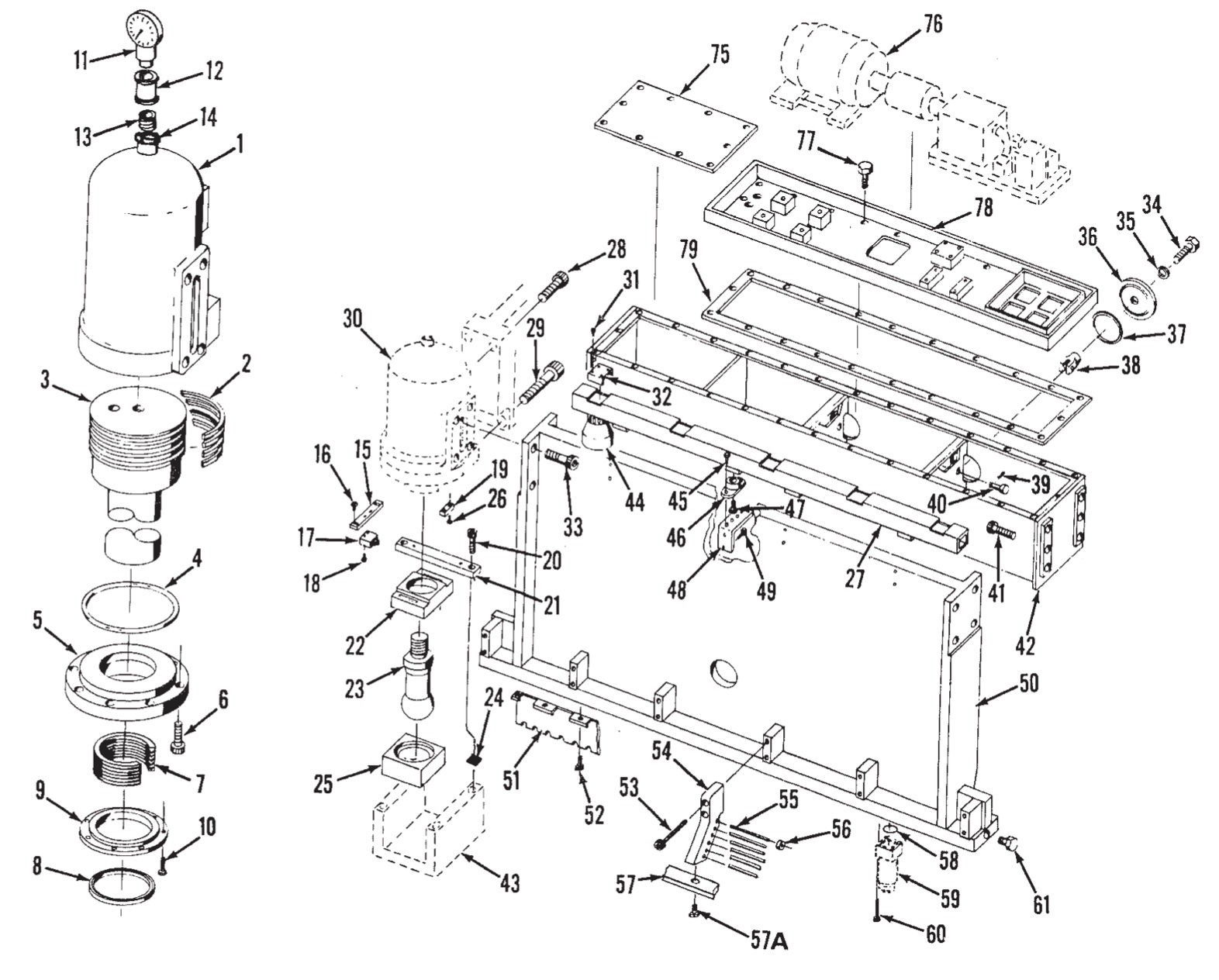

Main Cylinder

Part # | Part Name | Part # | Part Name | Part # | Part Name | Part # | Part Name |
---|---|---|---|---|---|---|---|
1 | Main Cylinder, L.H. | 16 | Screw | 31 | Screw | 46 | Shock Mount |
2 | Piston Rings | 17 | Limit Switch (2) | 32 | Cover | 47 | Bolt |
3 | Piston | 18 | Screw | 33 | Capscrew | 48 | Mounting Bracket |
4 | "O" Ring | 19 | Ballscrew Lock | 34 | Bolt | 49 | Bolt |
5 | Cylinder Cap | 20 | Capscrew | 35 | Washer | 50 | Holddown |
6 | Capscrew | 21 | Ballscrew Cap Retainer (2) | 36 | Inspection Door | 51 | Blade Guard |
7 | Chevron Packing | 22 | Ballscrew Cap | 37 | Seal | 52 | Bolt |
8 | Wiper Ring | 23 | Ballscrew | 38 | Yoke | 53 | Capscrew |
9 | Packing Gland | 24 | Shim | 39 | Cotter Pin | 54 | Guard Bracket |
10 | Capscrew | 25 | Ball Seat | 40 | Pin | 55 | Rod |
11 | Test Gage | 26 | Screw | 41 | Capscrew | 56 | Rod Retainer |
12 | Quick Disconnect Plug | 27 | Light Beam Bar | 42 | Reservoir Tank | 57 | Awareness Guard |
13 | Reducer | 28 | Capscrew | 43 | Ram (see separate parts list) | 57A | Bolt |
14 | Plug | 29 | Capscrew | 44 | Light | 58 | "O" Ring |
15 | Limit Switch Mounting Plate (2) | 30 | Cylinder Assembly | 45 | Bolt | 59 | Holddown Foot Assembly |
60 | Capscrew | ||||||
61 | Plug |
Rake Control
Part # | Part Name | Part # | Part Name | Part # | Part Name |
---|---|---|---|---|---|
17 | Capscrew | 32 | Slide | 47 | Pulley Bracket |
18 | Thrust Block | 33 | Retaining Ring | 48 | Capscrew |
19 | Capscrew | 34 | Ball Bushing | 49 | Nut |
20 | Rake Control Rod | 35 | Guide | 50 | Nut |
21 | Knurl Knob | 36 | Eye Bolt | 51 | Spring |
22 | Screw | 37 | Cable | 52 | Extension Collar |
23 | Rod End | 38 | Jam Nut | 53 | Nut |
24 | Nut | 39 | Pulley | 54 | Valve |
25 | Retaining Ring | 40 | Pulley Bracket | 55 | Stud |
26 | Nut | 41 | Stud | 56 | Nut |
27 | Retaining Ring | 42 | Nut | 57 | Rake Control Trip |
28 | Pointer | 43 | Cable | 58 | Lower Limit Switch |
29 | Mounting Bolt | 44 | Bolt | 59 | Upper Limit Switch |
30 | Trunnion | 45 | Turnbuckle | ||
31 | Ball Bushing | 46 | Pulley |
Swinging Backgage
Part # | Part Name | Part # | Part Name | Part # | Part Name | Part # | Part Name | Part # | Part Name |
---|---|---|---|---|---|---|---|---|---|
1 | Screw | 27 | Bearing | 53 | Slide Cap | 79 | Bearing | 105 | Keys |
2 | Magnifier | 28 | Spacer | 54 | Slide Liner | 80 | Bearing Nut | 106 | Brake |
3 | Screws | 29 | Helical Gear | 55 | Slide | 81 | Lock Washer | 107 | Drive Sprocket |
4 | Counter Cover | 30 | Cap Screw | 56 | Gage Bar | 82 | Nut | 108 | Set Screw |
5 | Bushings | 31 | Screw Support | 57 | Brace Rod Bolt Adjusting Nut | 83 | Adjusting Collar | 109 | Chain Guard |
6 | Support Plate | 32 | Bolt | 58 | Jam Nut | 84 | Spring | 110 | Nut |
7 | Roll Pin | 33 | Bracket | 59 | Brace Rod Bolt | 85 | Bushing | 111 | Bolt |
8 | Set Screw | 34 | Drive Shaft | 60 | Bolt | 86 | Indicating Collar | 112 | Bridge |
9 | Helical Gear | 35 | Key | 61 | Brace Rod | 87 | Screw | 113 | Clevis |
10 | Helical Gear | 36 | Key | 62 | Coupling | 88 | Gear Cover | 114 | Clevis Pin |
11 | Shaft | 37 | Bearing | 63 | Brace Rod Extension | 89 | Spacer | 115 | Spring Clips |
12 | Counter | 38 | Set Screw | 64 | Bolt | 90 | Adjusting Screw | 116 | Lifting Cylinder |
13 | Bolt | 39 | Coupling Halves | 65 | Keeper | 91 | Key | 117 | Cylinder Pin |
14 | Counter Housing | 40 | Coupling Insert | 66 | Nut | 92 | Mounting Rod | 118 | Cotter Pins |
15 | Cap Screw | 41 | Connecting Shaft | 67 | Key | 93 | Limit Switch Sprocket | 119 | Hinge Bracket |
16 | Screw | 42 | Adjusting Nut | 68 | Key | 94 | Set Screw | 120 | Hinge Pin |
17 | Sleeve | 43 | Nuts | 69 | Set Screw | 95 | Limit Switch | 121 | Bearing |
18 | Flexible Shaft | 44 | Worm Gear | 70 | Limit Switch Drive Sprocket | 96 | Oil Cup | 122 | Pivot Bracket |
19 | Set Screws | 45 | Spacer | 71 | Limit Switch Drive Chain | 97 | Screw | 123 | Crosshead Cylinder Bracket |
20 | Coupling | 46 | Bearing | 72 | Bearing | 98 | Limit Switch Cover | 124 | Instruction Plate |
21 | Set Screw | 47 | Key | 73 | Bearing Nut | 99 | Acorn Nut | 125 | Chain Guard Back Plate |
22 | Sprocket | 48 | Intermediate Shaft | 74 | Spacer | 100 | Bolt | 126 | Retaining Ring |
23 | Chain | 49 | Cap Screw | 75 | Lock Washer | 101 | Motor Mounting Bracket | ||
24 | Nuts | 50 | Grease Fittings | 76 | Nut | 102 | Washer | ||
25 | Lockwashers | 51 | Way Wipers | 77 | Adjusting Gear | 103 | Bolt | ||
26 | Retaining Rings | 52 | Screws | 78 | Retaining Ring | 104 | Drive Motor |
