How to find the parts you need
Series IB 25 Ton – Form B-12-B
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Frame and Ram
| 1 | Die Rail | 17 | Gib Screws |
| 2 | Washer | 18 | Left Gib |
| 3 | Die Rail Screw | 19 | Rear Non-Metallic Liner |
| 4 | Die Adjustment Set Screw | 20 | Front Non-Metallic Liner |
| 5 | Main Motor Control Handle or Buttons | 21 | Dowel |
| 6 | Frame | 22 | Lock Nut |
| 7 | Ram | 23 | Adjusting Screw |
| 8 | Socket Head Screw | 24 | Cap Screw |
| 9 | Motor Control Cover | 25 | Pivot Adjusting Block |
| 10 | Adjustment Switch Rear Cover (Power Ram Adjustment Only) | 26 | Cap Screw |
| 11 | Adjustment Switch Front Cover (Power Ram Adjustment Only) | 27 | Pivot Block Cover |
| 12 | Socket Head Cap Screws (Power Ram Adjustment Only) | 28 | Pivot Block |
| 13 | Punch Clamping Bar Screws | 29 | Pivot Shoes |
| 14 | Punch Clamping Bar | 30 | Right Gib |
| 15 | Clamping Bar Locknut | *31 | Ram Adjustment Switch (Power Ram Adjustment Only) |
| 16 | Spring | ||
| *Not Shown |

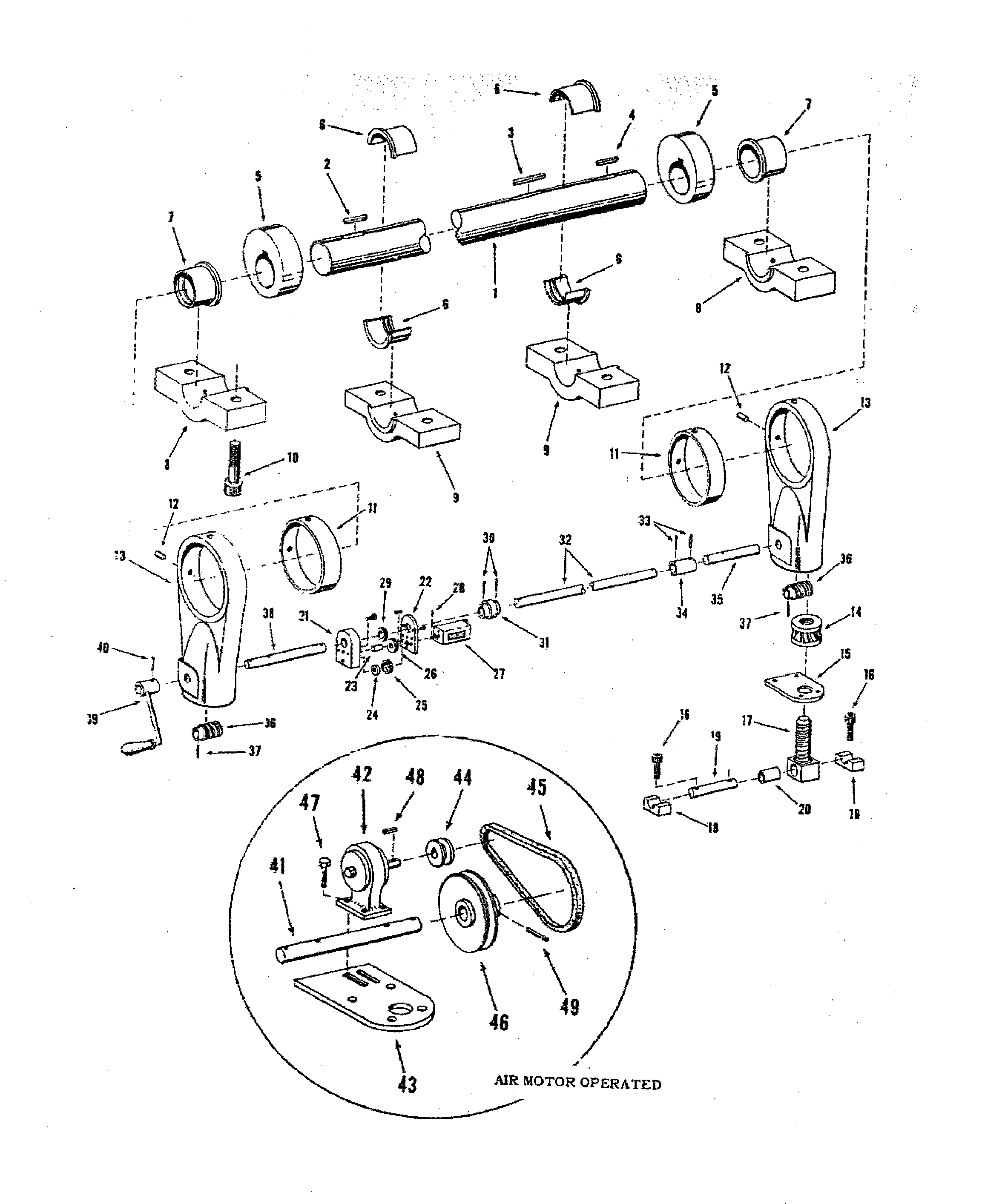

Eccentric Shaft and Ram Adjusting Mechanism
| 1 | Eccentric Shaft | 30 | Roll Pins |
| 2 | Eccentric Key | 31 | L.H. Coupling |
| 3 | Worm Gear Key | 32 | Adjusting Shaft |
| 4 | Eccentric Key | 33 | Roll Pins |
| 5 | Eccentrics | 34 | RH Coupling |
| 6 | Inboard Split Bushings | 35 | RH Ram Adjusting Shaft |
| 7 | Outboard Bushings | 36 | Worms |
| 8 | Outboard Bearing Caps | 37 | Roll Pins |
| 9 | Inboard Bearing Caps | 38 | LH Ram Adjusting Shaft |
| 10 | Socket Head Cap Screws | 39 | Crank Handle |
| 11 | Connection Bushings | 40 | Roll Pin |
| 12 | Bushing Pins | ||
| 13 | RH Eccentric | AIR MOTOR OPERATED | |
| 13a | LH Eccentric | 41 | LH Ram Adjusting Shaft |
| 14 | Adjusting Screw Connection Nut | 42 | Air Motor |
| 15 | Connection Cap | 43 | LH Connection Cap |
| 16 | Pivot Block Screw | 44 | Driving Pulley |
| 17 | Adjusting Screw | 45 | Belt |
| 18 | Adjusting Screw Pivot Block | 46 | Driven Pulley |
| 19 | Adjusting Screw Pivot Pin | 47 | Motor Mounting Screws |
| 20 | Adjusting Screw Bushing | 48 | Key |
| 21 | Gear Box | 49 | Roll Pin |
| 22 | Gear Box Cover | ||
| 23 | Idler Shaft | ||
| 24 | Counter Gear Bushing | ||
| 25 | Counter Gear | ||
| 26 | Idler Gear | ||
| 27 | Counter | ||
| 28 | Roll Pin | ||
| 29 | Shaft Gear |
Power Operated Ram Adjusting Mechanism
| 11 | Connection Bushings | 41 | Key | MULTI-BENDER (Optional) | |
| 12 | Bushing Pins | 42 | Ram Adjusting Motor** | 64a | LH Adjusting Shaft |
| 13 | RH Connection | 43 | Sprocket Box** | 65 | Clutch |
| 13A | LH Connection | 44 | Sprocket | 66 | Bushing |
| 14 | Adjusting Screw Connection Nut | 45 | Chain | 67 | Sprocket Driving Cup |
| 15 | Connection Cap | 46 | Sprocket | 68 | Driving Sprocket |
| 16 | Pivot Block Screw | 47 | Motor Screws** | 69 | Link Chain |
| 17 | Adjusting Screw | 48 | Motor Key | 70 | Screw |
| 18 | Ball Screw Pivot Block | 49 | Motor Screws** | 71 | Bushing |
| 19 | Adjusting Screw Pivot Pin | 50 | Sprocket Box Cover ** | 72 | Adjusting Shaft Collar |
| 20 | Adjusting Screw Bushing | 51 | Sprocket Box Mounting Screws** | 73 | Key |
| 21 | Gear Box | 52 | Cover Screws** | 74 | Rotary Limit Switch Box |
| 22 | Gear Box Cover | 53 | Worms | 75 | Limit Switch Plate |
| 23 | Idler Shaft | 54 | Bushings | 76 | Driven Sprocket |
| 24 | Counter Gear Bushing | 55 | Spacers | 77 | Drag Brake |
| 25 | Counter Gear | 56 | Thrust Bearings | 78 | Disengaging Handle |
| 26 | Idler Gear | 57 | Bushings | 79 | Roll Pin |
| 27 | Counter | 58 | Bearing Retainer | 80 | Pivot Arm Fulcrum |
| 28 | Roll Pin | 59 | Set Screw | 81 | Pivot Arm Nut |
| 29 | Shaft Gear | 60 | Bearing Retainer | 82 | Mounting Screw |
| 30 | Roll Pins | 61 | Worm Key | 83 | Mounting Screw |
| 31 | RH Coupling | 62 | Right Adjusting Shaft** | 84 | Mounting Screw |
| 32 | Adjusting Shaft Connection Tube | 63 | Left Adjusting Shaft** | 85 | Set Screw |
| 33 | Roll Pins | 64 | Roll Pins | ||
| 34 | LH Coupling | 86 | Bracket Mounting Bolt* | *Short Models | |
| 35 | LH Adjusting Shaft | 87 | Motor Mounting Bolt* | **Long Models | |
| 38 | RH Adjusting Shaft | 88 | Ram Adjusting Motor* | ||
| 39 | Thrust Bearings | 89 | Motor Mounting Bracket* | ||
| 40 | Worm Key |
Treadle Mechanism
| 1 | Foot Pedal | 16 | Roll Pin |
| 2 | Foot Treadle Shaft | 17 | Shifting Arm |
| 3 | Treadle Shaft Fastener | 18 | Shifting Rod |
| 4 | Yoke Pin | 19 | Shifting Forks |
| 5 | Yoke | 20 | Shifting Fork Screws |
| 6 | Jam Nut | 21 | Clutch Bracket |
| 7 | Treadle Rod | 22 | Screw |
| 8 | Cap Screw | 23 | Screw |
| 9 | Spring Support | 24 | Support Post Bracket |
| 10 | Washer | 25 | Adjusting Sleeve |
| 11 | Treadle Rod Spring | 26 | Retainer Ring |
| 12 | Jam Nuts | 27 | Support Post |
| 13 | Jam Nut | 28 | Jam Nut |
| 14 | Yoke | 29 | Clutch Brake Yoke |
| 15 | Yoke Pin | 30 | Retainer Rings |
Mechanical Drive Assembly
| 1 | Hand Wheel | 17 | Bearing Spacer |
| 2 | Cap Screw | 18 | Flywheel Bearing |
| 3 | Shaft Support | 19 | Belt |
| 4 | Key | 20 | Belt Guard |
| 5 | Motor Base Shaft Extension | FRONT MOUNTED HANDWHEEL | |
| 6 | Coupling | 21 | Motor Base Shaft Extension |
| 7 | Roll Pin | 22 | Rod End Bearing |
| 8 | Spacer | 23 | Nut |
| 9 | Cap Screw | 24 | Shaft Key |
| 10 | Motor Base Assembly | 25 | Right Angle Drive |
| 11 | Motor | 26 | Roll Pin |
| 12 | Motor Mounting Screw | 27 | Hand Wheel Shaft |
| 13 | Motor Shaft Key | 28 | Roll Pin |
| 14 | Variable Speed Pulley | 29 | End Collar |
| 15 | Flywheel | 30 | Flanged Cartridge |
| 16 | Flywheel Bearing |
Clutch and Brake
| 1 | Clutch Plate | 14 | Lock Screw | 28 | Lockwasher |
| 2 | Plate Segments | 15 | Spacer | 29 | Adjust Ring |
| 3 | Clutch and Brake Linings | 16 | Brake Bolt | 30 | Nut |
| 4 | Plate Locking Clip | 17 | Locknut | 31 | Retainer Ring |
| 5 | Brake Springs | 18 | Strap | 32 | Strap Pin |
| 6 | Hub and Plate Assembly | 19 | Link | 33 | Retainer Ring |
| 7 | Seperating Spring | 20 | Shift Sleeve | 34 | Link Pin |
| 8 | Brake Plate | 21 | Lock Ring | 35 | Grease Fittling |
| 9 | Adjust Nut | 22 | Shifter Bearing | 36 | Collar |
| 10 | Lock Pin | 23 | Drive Pin | 37 | Spring |
| 11 | Dummy Balance Plunger | 24 | Sleeve Lock Ring | 38 | Pin Guide |
| 12 | Strap Ring | 25 | Adjust Collar | ||
| 13 | Bolt Lock Pin | 26 | Adjust Sleeve | ||
| 27 | Adjust Sleeve Locknut |
Gear Box
| 1 | Grease Fittings | 15 | Worm Shaft Open Cover |
| 2 | Small Cover Screws | 16 | Oil Seal, Small |
| 3 | Worm Shaft Closed Cover | 17 | Worm Shaft Spacer |
| 4 | Bearing Cup, Small | 18 | Drain Plug |
| 5 | Bearing Cone, Small | 19 | Worm Gear Spacers |
| 6 | Worm Shaft | 20 | Worm Gear |
| 7 | Oil Fill Plug | 21 | Worm Gear Key |
| 8 | Gear Box | 22 | Output Shaft Set Screws |
| 9 | Oil Seals, Large | 23 | Output Shaft |
| 10 | Large Cover Screws | 24 | Torque Arm Cover |
| 11 | Output Shaft Cover | 25 | Capscrew |
| 12 | Bearing Cup, Large | 26 | Clutch Hub Stop |
| 13 | Bearing Cone, Large | 27 | Lockwasher |
| 14 | Oil Level Plug |
Standard Backgage
| 1 | Clamp Screws |
| 2 | Finger Clamp |
| 3 | Finger Rest Screws |
| 4 | Finger Rest |
| 5 | Finger |
| 6 | Package Brackets |
| 7 | Washers |
| 8 | Nut |
| 9 | Bracket Screws |
Front Operated Micrometer Type Backgage
| 1 | Handle | 19 | Upright Adjusting Screw |
| 2 | Hand Knob | 20 | Stud |
| 3 | Hand Crank | 21 | Knurled Knob |
| 4 | Roll Pin | 22 | Support Arm |
| 5 | Hand Wheel Dial Face | 23 | Shoulder Bolt |
| 6 | Dial | 24 | Finger Bolt |
| 7 | Set Screw | 25 | Finger |
| 8 | Bushing | 26 | Handle |
| 9 | Pointer | 27 | Hand Crank |
| 10 | Bushing | 28 | Roll Pin |
| 11 | End Collar | 29 | End Collar |
| 12 | Roll Pin | 30 | Finger Rest |
| 13 | Adjusting Screw | 31 | Nut |
| 14 | Splined Shaft | 32 | Washer |
| 15 | Upright | 33 | R.H. Support Bracket |
| 16 | Spring | 34 | L.H. Support Bracket (not shown) |
| 17 | Washer | 48 | Capscrew |
| 18 | Capscrew | 49 | Set Screw |
