How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
FrameFrame Details
Backgage - Round Bracket Models
Detail A - Bracket
Detail B - Drive
Detail C - Gage Squaring Adjuster
Detail D - Idler Bracket
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Frame
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 1 | Ram | 25 | Washer | 49 | Double Bed Rail |
| 2 | Light Bracket | 26 | Counter Bracket | 50 | Front Gib |
| 3 | Light Fixture | 27 | Counter | 51 | Front Gib Mounting Screw |
| 4 | Screw | 28 | Counter Mounting Screw | 52 | Rear Chute |
| 5 | Top Cover (specify L.H. or R.H.) | 29 | Micro Limit Switch (specify L.H., R.H., Upper or Lower) | 53 | Chute Mounting Screw |
| 6 | Top Hole Cover | 30 | Limit Switch Mounting Screw | 54 | R.H. Main Cylinder |
| 7 | Screw | 31 | Fixed Blade | 55 | L.H. Main Cylinder (not shown) |
| 8 | Rear Gib | 32 | Spherical Bearing | 56 | Frame |
| 9 | Rear Gib Mounting Screw | 33 | Bearing Retaining Ring | 57 | R.H. End Cover |
| 10 | End Roller Shoulder Screw | 34 | Cylinder Retaining Ring | 58 | End Cover Screw |
| 11 | End Roller | 35 | Lubrication Fitting | 59 | Holddown Cylinder |
| 12 | Ram Position Indicator | 36 | Motor Controller | 60 | Holddown Cylinder Footcups |
| 13 | Hex Nut | 37 | Hydraulic Power Unit | 61 | Holddown Bar |
| 14 | Moving Blade | 38 | Mounting Screw | 62 | Holddown Bar Mounting Screw |
| 15 | Reverse Key Plow Bolt | 39 | Washer | 63 | R.H. Holddown Guard |
| 16 | Washer | 40 | Reservoir Bracket | 64 | Holddown Guard Mounting Screw |
| 17 | Hex Nut | 41 | Bed Cover Screw | 65 | L.H. Holddown Guard |
| 18 | L.H. Knife Guard | 42 | End Bed Cover | 66 | L.H. End Cover |
| 19 | Knife Guard Mounting Screw | 43 | L.H. Bed Cover | 67 | Front Bracket and 'T' Slot Nut (optional) |
| 20 | R.H. Knife Guard | 44 | R.H. Bed Cover | 112 | Foot Switch |
| 21 | Brace Rod | 45 | Mounting Screw | 113 | Fluorescent Light |
| 22 | Brace Rod Nut | 46 | Washer | 114 | Fluorescent Tube Safety Shields |
| 23 | Backage (see separate part list) | 47 | Single Bed Rail | ||
| 24 | Counter Bracket Mounting Screw | 48 | Bed Rail Adjusting Screw |

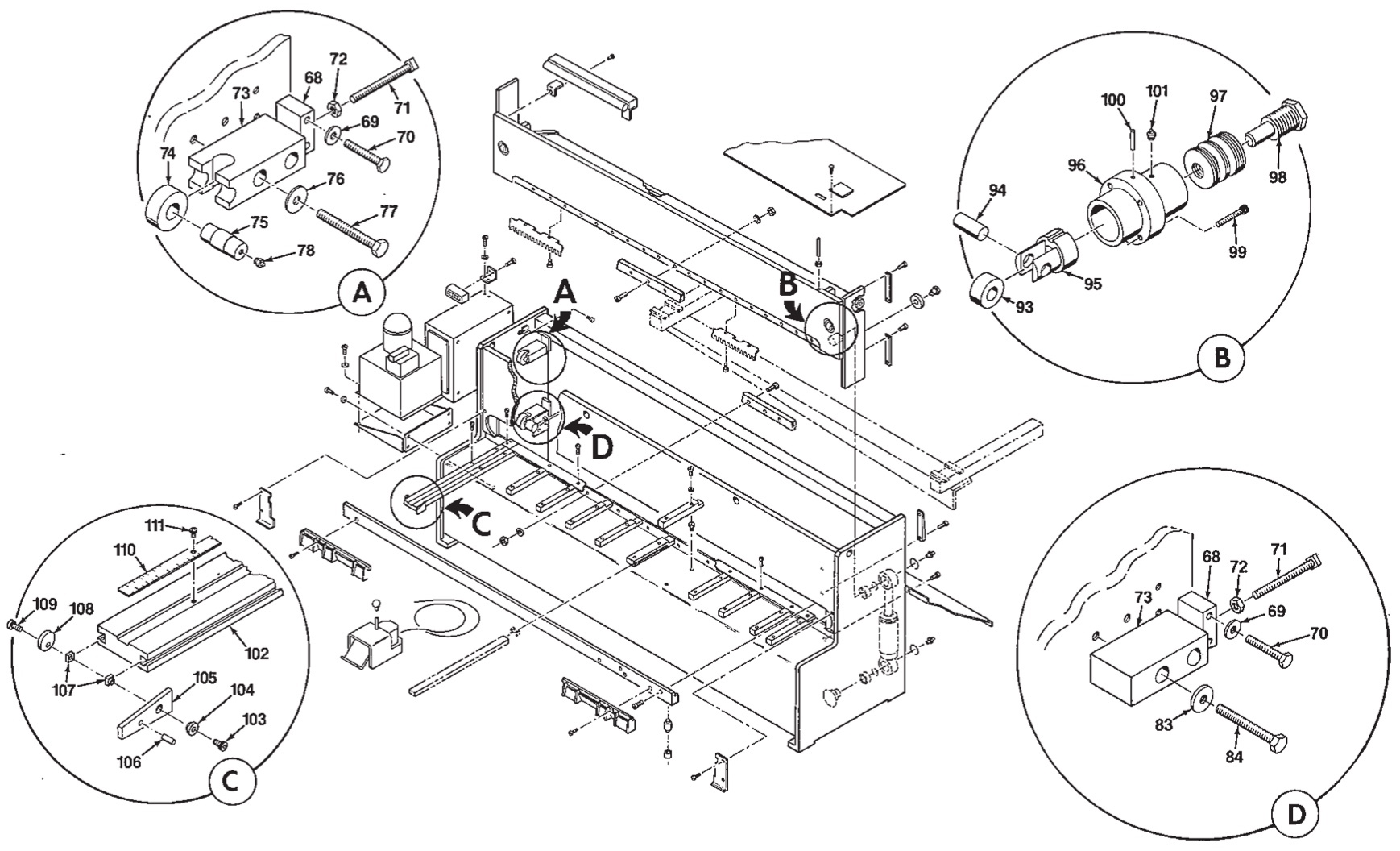

Frame Details
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 68 | Ram Adjustment Stop | 83 | Washer | 102 | Side Gage Bar |
| 69 | Washer | 84 | Adjustment Plate Mounting Screw | 103 | Cap Screw |
| 70 | Adjustment Stop Mounting Screw | 93 | Yoke Track Roller | 104 | Disappearing Stop Washer |
| 71 | Square Head Set Screw | 94 | Spring Pot Pin | 105 | Disappearing Stop |
| 72 | Hex Jam Nut | 95 | Spring Pot Piston | 106 | Roll Pin |
| 73 | Ram Adjustment Block (specify L.H. or R.H.) | 96 | Spring Pot Cylinder | 107 | "T" Slot Nut |
| 74 | Yoke Track Roller | 97 | Disc Spring Washers | 108 | Side Gage Washer |
| 75 | Ram Adjustment Pivot | 98 | Spring Pot Screw | 109 | Cap Screw |
| 76 | Washer | 99 | Spring Pot Mounting Screw | 110 | Scale |
| 77 | Adjustment Block Mounting Screw | 100 | Roll Pin | 111 | Screw |
| 78 | Lubrication Fitting | 101 | Lubrication Fitting |
Backgage – Round Bracket Models
| Part # | Part Name |
|---|---|
| 1 | Ram (reference) |
| 2 | Backgage Mounting Bolt |
| 3 | Chain |
| 4 | Backgage Bar |
Detail A – Bracket
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 5 | Washer (specify L.H. or R.H.) | 17 | Bearing | 29 | Top End Cap Screw |
| 6 | Stud | 18 | Retaining Ring | 30 | Bottom End Cap Screw |
| 7 | Hex Nut | 19 | Slide Nut | 31 | Rear End Cap |
| 8 | Backgage Mounting Plate | 20 | Felt Oil Wick | 32 | Bearing |
| 9 | Washer | 21 | R.H. Screw | 33 | Calibration Plate |
| 10 | Backgage Mounting Plate Screw | 22 | Disc Spring Washers | 34 | Adjusting Nut |
| 11 | Slide Spacer | 23 | Thrust Bearing | 35 | Fade Adjustment Pointer |
| 12 | Front Sprocket | 24 | R.H. Backgage Bracket | 36 | Screw |
| 13 | Roll Pin | 25 | Oil Hole Cover | 37 | Hex Nut |
| 14 | Set Screw | 26 | Cover Screw | ||
| 15 | Front End Cap | 27 | Lubrication Plate | ||
| 16 | Front End Cap Mounting Screw | 28 | Fade Adjustment Plate |
Detail B – Drive
| Part # | Part Name | Part # | Part Name |
|---|---|---|---|
| 38 | L.H. Screw | 49 | Set Screw |
| 39 | L.H. Backgage Bracket | 50 | Key |
| 40 | Lock Washer | 51 | Motor and "L" Bracket |
| 41 | Lock Nut | 52 | Motor Bracket Mounting Screw |
| 42 | Bracket Sprocket | 53 | Countershaft Sprocket |
| 43 | Set Screw | 54 | Set Screw |
| 44 | Roll Pin | 55 | Roll Pin |
| 45 | Chain | 56 | Bushing |
| 46 | Chain Guard | 57 | Sprocket Shaft |
| 47 | Guard Mounting Screw | 58 | Flexible Shaft |
| 48 | Motor Sprocket |
Detail C – Gage Squaring Adjuster
| Part # | Part Name |
|---|---|
| 59 | Stud |
| 60 | Hex Nut |
Detail D – Idler Bracket
| Part # | Part Name |
|---|---|
| 71 | Idler Bracket |
| 72 | Bracket Mounting Screw |
| 73 | Bushing |
| 74 | Sprocket |
| 75 | Sprocket Mounting Screw |
| 76 | Hex Nut |
| 77 | Hex Nut |
| 78 | Screw |
