How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
FrameE45 & 60
E-45, E-60 and E-75
E-90 thru E-250 SLIDE ASSEMBLY
E-45 and E-60 CONNECTION AND POWER OPERATED SLIDE ADJUSTMENT
E-75 CONNECTION AND POWER OPERATED SLIDE ADJUSTMENT
E-90, E-110 and E-150 CONNECTION AND POWER OPERATED SLIDE
E-200 and E-250 CONNECTION AND POWER OPERATED SLIDE ADJUSTMENT
DRIVE
AIR FRICTION CLUTCH - TYPE LI-P
AIR OPERATED FLYWHEEL BRAKE
'C' TYPE CUSION (when used)
② Once you know which parts you want to order, request a parts quote.
Frame
All Models | Inclinable Models Only | |||
1 | Gear Case Cover | 11 | Bolster | |
2 | Cover Gasket | 12 | Leg (L.H. shown) | |
3 | Counterbalance (See separate parts list) | 13 | Pivot Bolt | |
4 | Front Bearing Housing (See Drive parts list) | 14 | Nut | |
5 | Drive (See separate parts list) | 15 | Leg Bolt | |
6 | Connection (See separate parts list) | 16 | Nut | |
7 | Slide (See separate parts list) | 17 | Tie Rod | |
8 | Gib Adjusting Screw | 18 | Tie Rod Nut | |
9 | Gib Adjusting Nut | |||
10 | Frame | Inclinable Options | ||
Adjustable Bed Models Only | 19 | Inclining Bracket | ||
20 | Bracket Stud | |||
31 | Frame | 21 | Nut | |
32 | Bolster | 22 | Inclining Screw Pin | |
33 | Table | 23 | Retainer Ring | |
34 | Adjusting Screw | 24 | Inclining Screw Nut | |
35 | Jam Nut | 25 | Thrust Bearing | |
36 | Clamp Bar or Washer | 26 | Inclining Screw | |
37 | Clamp Screw | 27 | Adjusting Motor | |
38 | Clamp Nut | 28 | Worm Gear Jack | Power |
29 | Valve Bracket | Only | ||
30 | Hand Operated Valve | |||
39 | Motor Coupling (When Used) |
E45 & 60

E-45, E-60 and E-75
1 | Nut | E75 | |
2 | Connection Cap | ||
3 | Connection Cap Stud | 35 | Dowel Pin |
4 | Dowel Pin | 36 | Connection |
5 | Connection Bushing | 37 | Clamping Stud |
6 | Connection Bushing | 38 | Nut |
7 | Crankshaft | 39 | Pin |
8 | Retaining Ring | 40 | Slide Scale |
9 | Counterbalance Clevis | 41 | Slide Gage |
10 | Yoke | 42 | Connection Ball Cap |
11 | Clevis Pin | 43 | Shim |
12 | Retaining Ring | 44 | Connection Ball Screw |
13 | Connection | 45 | Ball Seat Insert |
14 | Clamping Stud | 46 | Ball Seat |
15 | Nut | 47 | Ball Seat Base |
16 | Slide Indication Scale | 48 | Oil Deflecctor (R.H. Shown) |
17 | Connecion Ball Cap | 49 | Slide Cover |
18 | Shim | 50 | Slide |
19 | Connection Ball Screw | 51 | Shoulder Bolt |
20 | Slide Cover | 52 | Pin |
21 | Nut | 53 | Knockout Bar |
22 | Shoulder Bolt | 54 | Bracket Mounting Screw |
23 | Slide | 55 | Knockout Bracket |
24 | Cotter Pin | 56 | Clamp Nut |
25 | Knockout Bar | 57 | Knockout Clamp |
26 | Clamp Nut | 58 | Gib (L.H. Shown) |
27 | Knockout Clamp | 59 | Knockout Pin |
28 | Bracket Mounting Screw | 60 | Dowel Pin |
29 | Knockout Bracket | 61 | Screw |
30 | Knockout Pin | 62 | Screw |
31 | Gib (L.H. Shown) | 63 | Ball Cap Stud |
32 | Ball Seat Insert | 64 | Clamp Plug |
33 | Slide Indication Gage | 65 | Gib Insert |
34 | Ball Cap Screw | 66 | Nut |

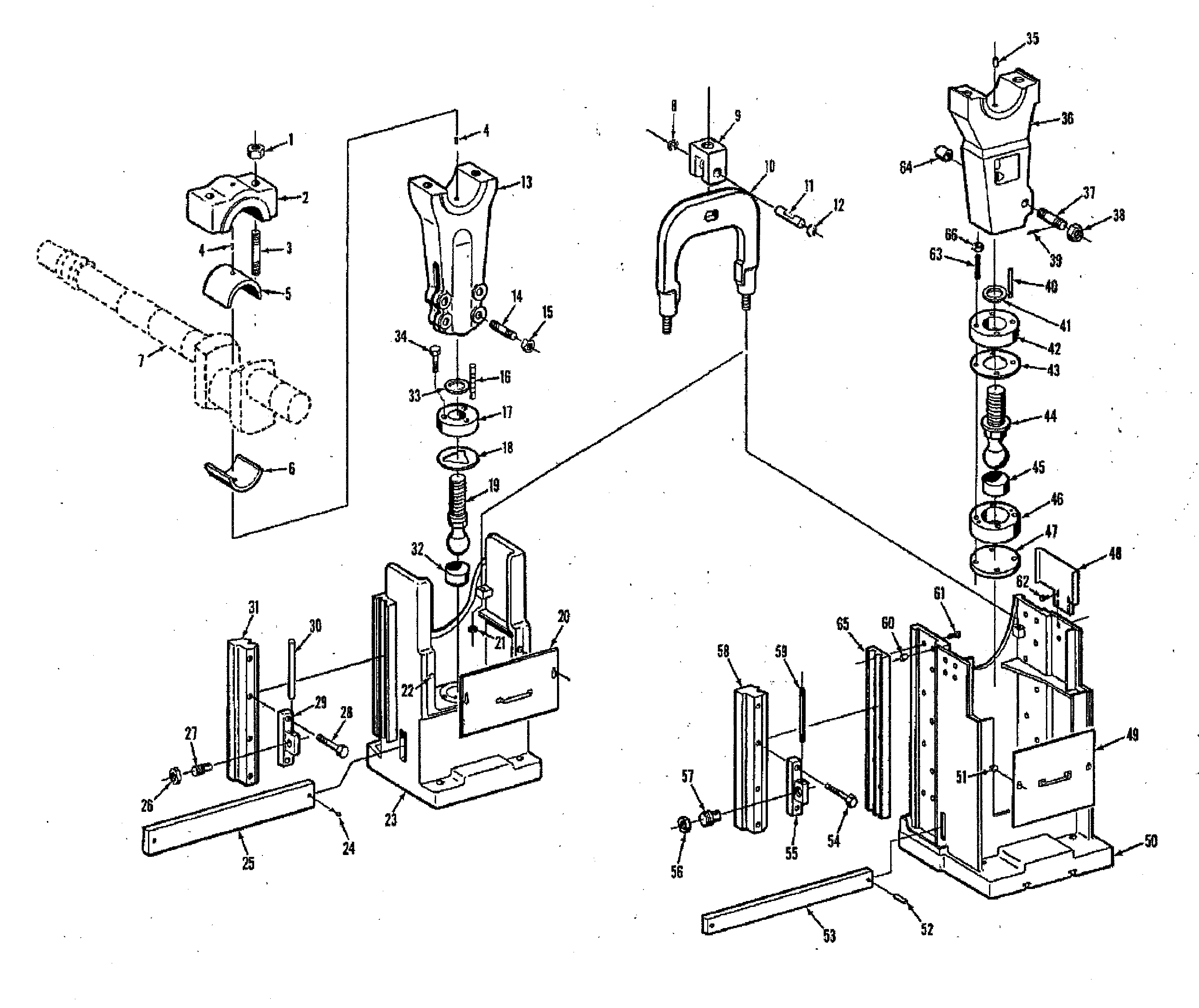

E-90 thru E-250 SLIDE ASSEMBLY
1 | Retaining Ring | 22 | Bar Mounting Screw |
2 | Counterbalance Clevis | 23 | Tie Bar |
3 | Counterbalance Yoke | 24 | Slide Cover |
4 | Clevis Pin | 25 | Slide |
5 | Retaining Ring | 26 | Cotter Pin |
6 | Bolt | 27 | Knockout Bar |
7 | Power Adjusted Connection (See Separate Parts List) | 28 | Clamp Nut |
8 | Side Gib (R.H. Shown) | 29 | Knockout Clamp |
9 | Side Slide Liner | 30 | Mounting Screw |
10 | Frame | 31 | Knockout Bracket |
11 | Side Gib Screw | 32 | Knockout Pin |
12 | Slide Liner Screw | 33 | Side Slide Liner |
13 | Slide Liner Screw | 34 | Side Gib Screw |
14 | Front Gib (R.H. Shown) | 35 | Slide Liner Screw |
15 | Washer | 36 | Side Gib (L.H. Shown) |
16 | Gib Locking Screw | 37 | Rear Gib Screw |
17 | Gib Adjusting Screw | 38 | Frame |
18 | Gib Adjusting Screw | 39 | Rear Gib (L.H. Shown) |
19 | Adjusting Nut | 40 | Slide Liner Screw |
20 | Slide Cover Mounting Screw | 41 | Rear Slide Liner |
21 | Front Slide Liner | 42 | Bolt |
43 | Gib Adjusting Plug | ||
44 | Spacer | ||
45 | Frame |
E-45 and E-60 CONNECTION AND POWER OPERATED SLIDE ADJUSTMENT
(Special order only)

1 | Nut | 9 | Bracket Mounting Screw | 20 | Stop Plate | 32 | Cap Screw |
2 | Connection Cap | 10 | Locking Pin | 21 | Worm Gear | 33 | Retainer Fastening Screw |
3 | Dowel Pin | 11 | Adjustment Locking Pinion | 22 | Retainer Shim | 34 | Plate Fastening Screw |
4 | Connection Bushing | 12 | Retaining Ring | 23 | Worm Gear Retainer | 35 | Retaining Ring |
5 | Sprocket Key | 13 | Bearing Retainer | 24 | Position Indicator Bracket | 36 | Worm Gear Drive Sprocket |
6 | Air Motor | 14 | Bearing | 25 | Position Indicator | 37 | Retaining Ring |
7 | Locking Pin Air Cylinder | 15 | Worm Shaft | 26 | Ball Screw Cap | 38 | Sprocket |
8 | Locking Pin Bracket | 16 | Pinion Key | 27 | Ball Connection Shims | 39 | Retaining Ring |
17 | Sprocket Key | 28 | Connection Ball Screw | 40 | Screw | ||
18 | Sprocket Key | 29 | Ball Screw Pin | 41 | Worm Gear Drive Chain | ||
19 | Dowel Pin | 30 | Indicator Drive Chain | 42 | Air Motor Sprocket | ||
31 | Indicator Sprocket | 43 | Bearing Retainer | ||||
44 | Bearing | ||||||
45 | Set Screw | ||||||
46 | Connection | ||||||
47 | Connection Stud |

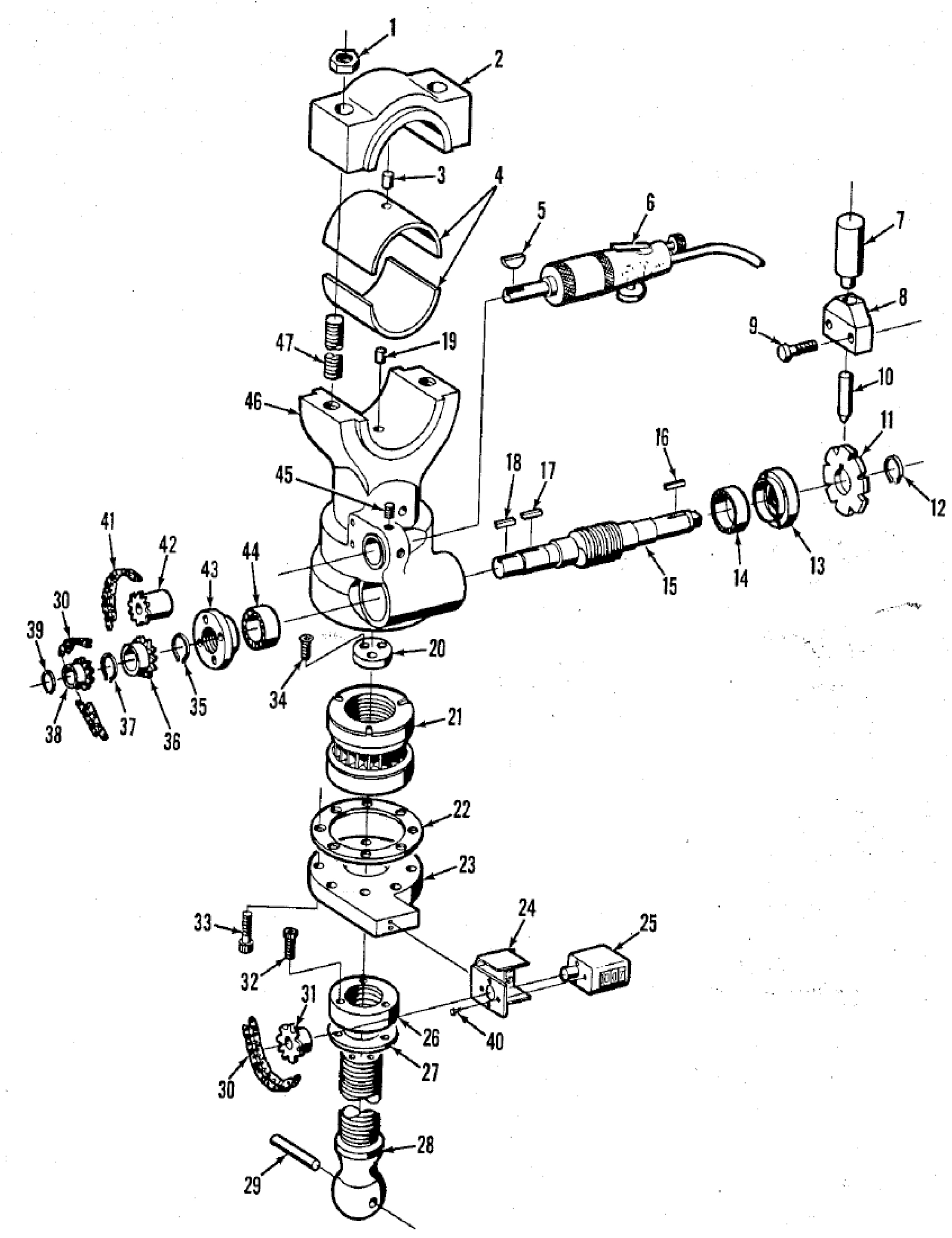

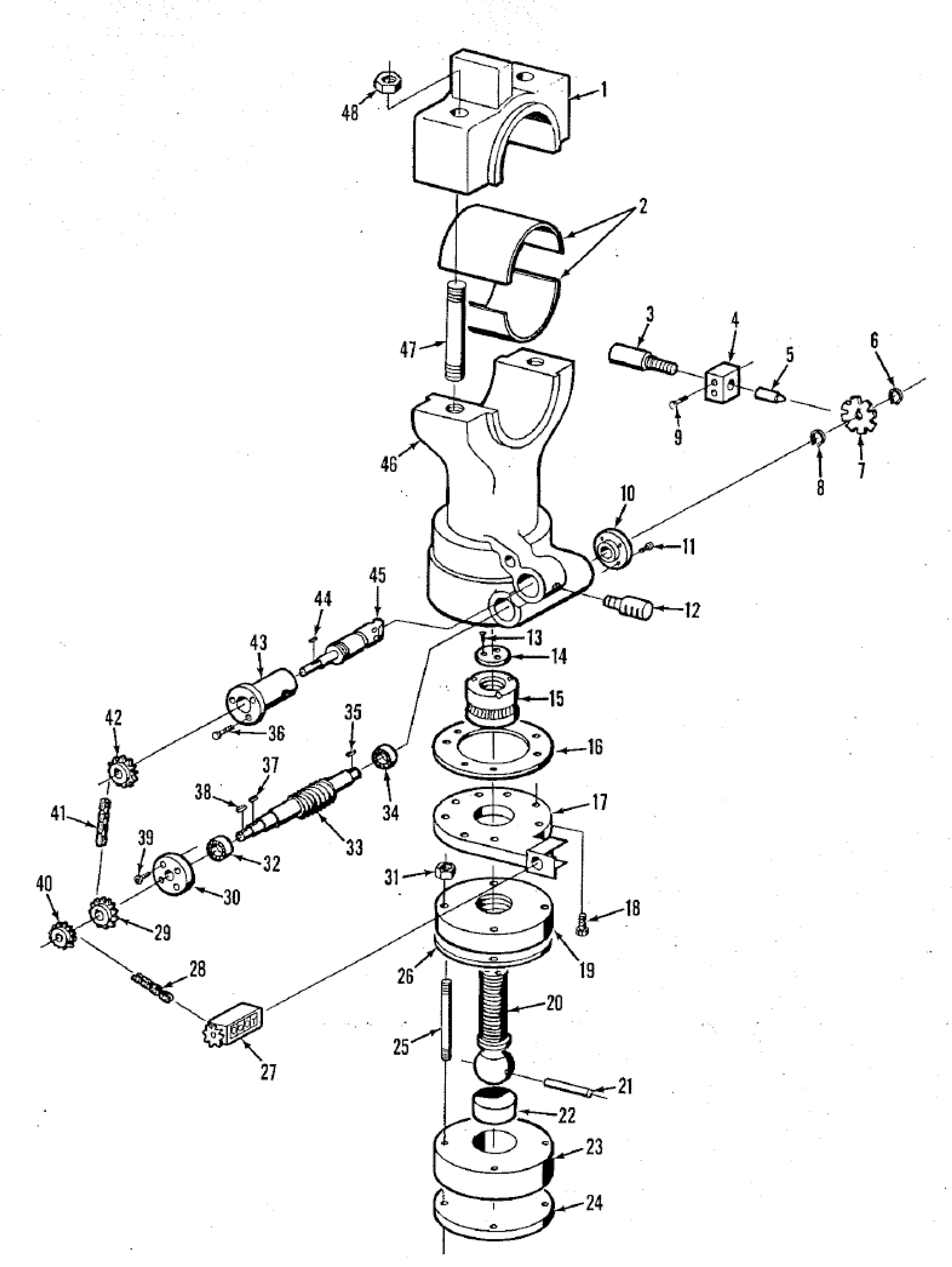

E-75 CONNECTION AND POWER OPERATED SLIDE ADJUSTMENT

1 | Connection Cap | 14 | Adjusting Screw Cap | 28 | Chain | 38 | Counter Sprocket Key |
2 | Connection Bushing | 15 | Adjusting Worm Gear | 29 | Worm Shaft Sprocket | 39 | Retainer Mounting Screw |
3 | Locking Pin Air Cylinder | 16 | Shim | 30 | Bearing Retainer | 40 | Counter Sprocket |
4 | Locking Pin Bracket | 17 | Worm Gear Retainer | 31 | Nut | 41 | Chain |
5 | Locking Pin | 18 | Retainer Mounting Screw | 32 | Bearing | 42 | Driving Sprocket |
6 | Retaining Ring | 19 | Ball Connection Cap | 33 | Worm Shaft | 43 | Air Motor Cartridge |
7 | Adjustment Locking Pinion | 20 | Ball Connection Screw | 34 | Bearing | 44 | Driving Sprocket Key |
8 | Retaining Ring | 21 | Ball Screw Pin | 35 | Pinion Key | 45 | Air Motor |
9 | Bracket Mounting Screw | 22 | Ball Seat Insert | 36 | Cartridge Mounting Screw | 46 | Connection |
10 | Bearing Retainer | 23 | Ball Seat | 37 | Worm Shaft Sprocket Key | 47 | Connection Stud |
11 | Retainer Mounting Screw | 24 | Ball Seat Base | 48 | Nut | ||
12 | Muffler | 25 | Ball Cap Stud | ||||
13 | Cap Mounting Screw | 26 | Ball Connection Screw | ||||
27 | Position Indicator |

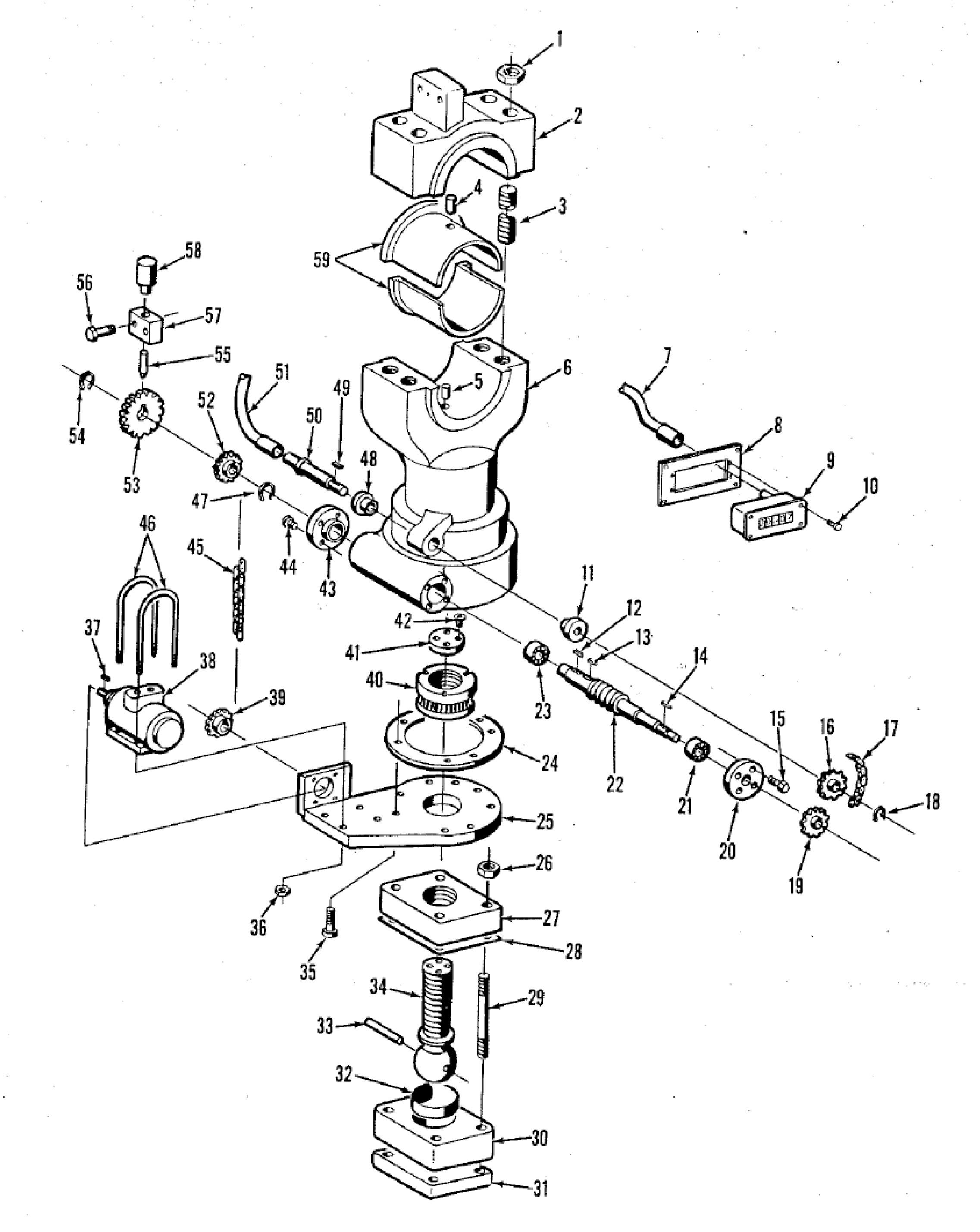

E-90, E-110 and E-150 CONNECTION AND POWER OPERATED SLIDE

1 | Nut | 16 | Large Sprocket Key | 32 | Pinion Mounting Screw | 45 | Retainer Mounting Screw |
2 | Connection Cap | 17 | Small Sprocket Key | 33 | Front Bearing Retainer | 46 | Worm Gear Retainer |
3 | Connection Stud | 18 | Air Motor | 34 | Front Bearing | 47 | Shim |
4 | Dowel Pin | 19 | Cap Mounting Screw | 35 | Worm Shaft | 48 | Adjusting Worm Gear |
5 | Connection | 20 | Rear Bearing | 36 | Nut | 49 | Adjusting Screw Cap |
6 | Bushing | 21 | Cartridge Mounting Screw | 37 | Ball Connection Cap | 50 | Muffler |
7 | Flexible Shaft | 22 | Sprocket Key | 38 | Ball Connection Shims | 51 | Rear Shaft Closure |
8 | Position Indicator | 23 | Retainer Mounting Screw | 39 | Ball Cap Stud | 52 | Closure Mounting Screw |
9 | Screw | 24 | Driving Chain | 40 | Ball Seat Insert | 53 | Bushing |
10 | Large Driving Sprocket | 25 | Worm Shaft Sprocket | 41 | Ball Connection Seat | 54 | Indicator Sprocket Key |
11 | Small Driving Sprocket | 26 | Locking Pin Bracket | 42 | Ball Seat Base | 55 | Flexible Shaft |
12 | Indicator Chain | 27 | Locking Pin Air Cylinder | 43 | Ball Screw Pin | 56 | Dowel Pin |
13 | Retaining Ring | 28 | Bracket Mounting Screw | 44 | Ball Connection Screw | 57 | Connection Bushing |
14 | Indicator Sprocket | 29 | Adjustment Locking Pinion | ||||
15 | Air Motor Cartridge | 30 | Locking Pin | ||||
31 | Retaining Ring |
E-200 and E-250 CONNECTION AND POWER OPERATED SLIDE ADJUSTMENT

1 | Nut | 16 | Indicator Sprocket | 31 | Ball Seat Base | 46 | Motor Straps |
2 | Connection Cap | 17 | Chain | 32 | Ball Seat Insert | 47 | Retaining Ring |
3 | Connection Stud | 18 | Retaining Ring | 33 | Ball Screw Pin | 48 | Bushing |
4 | Dowel Pin | 19 | Sprocket | 34 | Ball Connection Screw | 49 | Indicator Sprocket Key |
5 | Dowel Pin | 20 | Bearing Retainer | 35 | Retainer Mounting Screw | 50 | Indicator Drive Shaft |
6 | Connection | 21 | Bearing | 36 | Motor Strap Nuts | 51 | Flexible Shaft |
7 | Flexible Shaft | 22 | Worm Shaft | 37 | Key | 52 | Sprocket |
8 | Position Indicator Mounting Plate | 23 | Bearing | 38 | Air Motor | 53 | Adjustment Locking Pinion |
9 | Position Indicator | 24 | Shim | 39 | Sprocket | 54 | Retaining Ring |
10 | Screw | 25 | Worm Gear Retainer | 40 | Worm Gear | 55 | Locking Pin |
11 | Bushing | 26 | Nut | 41 | Stop Plate | 56 | Bracket Mounting Screw |
12 | Pinion Key | 27 | Ball Connection Cap | 42 | Plate Fastening Screw | 57 | Locking Pin Bracket |
13 | Sprocket Key | 28 | Ball Connection Shim | 43 | Bearing Retainer | 58 | Locking Pin Air Cylinder |
14 | Sprocket Key | 29 | Ball Cap Stud | 44 | Retainer Mounting Screw | 59 | Connection Bushing |
15 | Retainer Mounting Screw | 30 | Ball Seat | 45 | Chain |

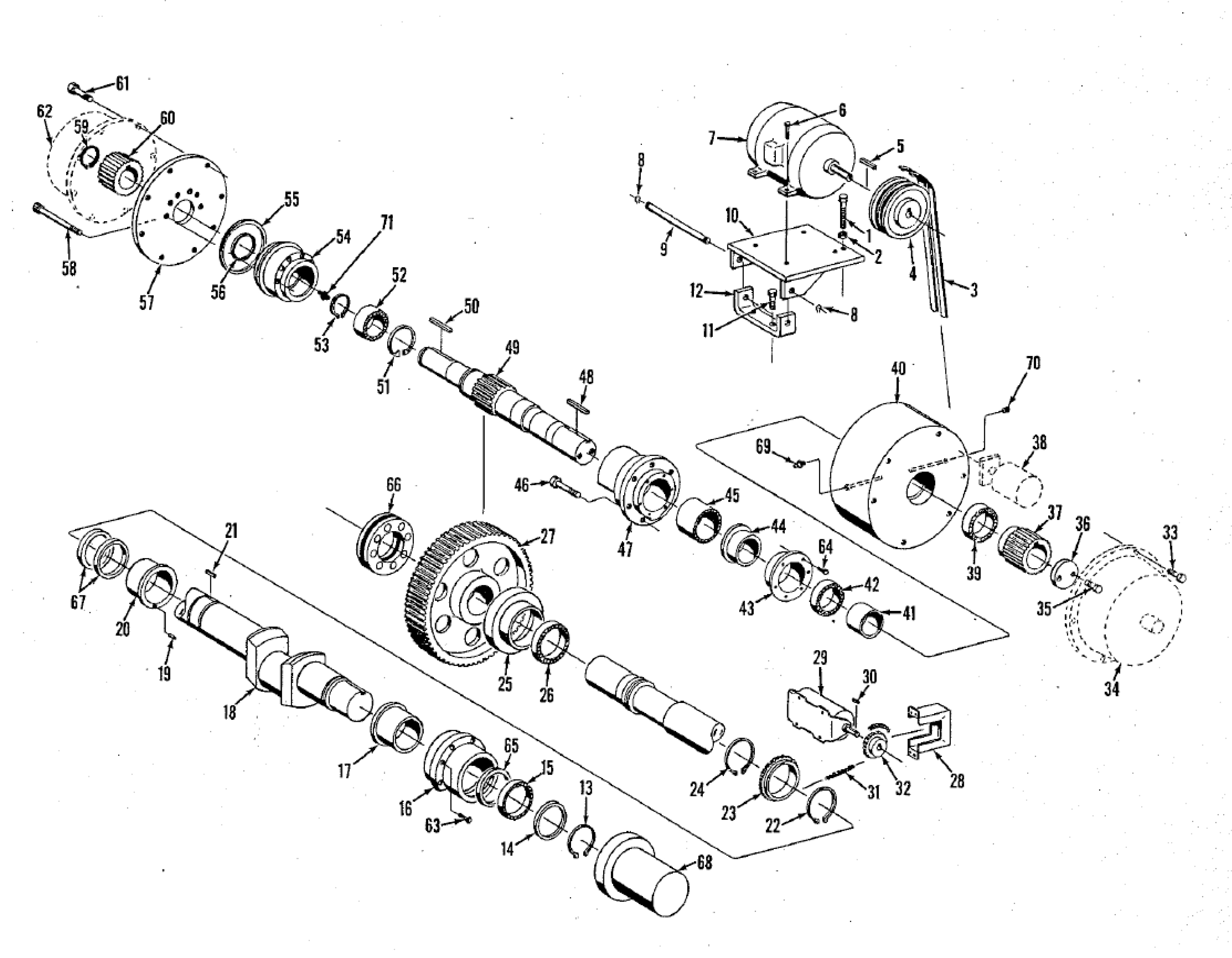

DRIVE

1 | Motor Adjusting Screw | 17 | Front Bearing Bushing | 35 | Retainer Mounting Screw | 52 | Outboard Driveshaft Bearing |
2 | Locknut | 18 | Crankshaft | 36 | Driving Hub Retainer | 53 | Retainer Ring |
3 | "V" Belt | 19 | Dowel Pin | 37 | Driving Hub | 54 | Outboard Bearing Cover |
4 | Sheave | 20 | Center Bearing Bushing | 38 | Flywheeel Brake (See separate parts list) | 55 | Sealing Ring |
5 | Sheave Key | 21 | Limit Switch Key | 39 | Flywheel Bearing | 56 | Oil Seal |
6 | Motor Mounting Screw | 22 | Retainer Ring | 40 | Flywheel | 57 | Brake Bracket |
7 | Main Driving Motor | 23 | Crankshaft Sprocket | 41 | Flywheel Bearing Spacer | 58 | Bracket Mounting Screw |
8 | Retainer Ring | 24 | Retainer Ring | 42 | Flywheel Bearing | 59 | Retainer Ring |
9 | Hinge Pin | 25 | Rear Bearing Housing (E45, E60, E75 only) | 43 | Bearing Retainer Cover | 60 | Braking Hub |
10 | Motor Plate | 26 | Rear Crankshaft Bearing * | 44 | Driveshaft Bearing Spacer | 61 | Brake Mounting Screw |
11 | Bracket Mounting Screw | 27 | Gearwheel | 45 | Inboard Driveshaft Bearing | 62 | Air Disc Brake (See separate parts list) |
12 | Motor Bracket | 28 | Chainguard | 46 | Support Mounting Screw | 63 | Housing Mounting Screw |
13 | Retainer Ring | 29 | Limit Switch | 47 | Drive Support | 64 | Cover Mounting Screw |
14 | Bearing Retainer Ring | 30 | Sprocket Key | 48 | Driving Hub Key | 65 | Oil Seal |
15 | Front Crankshaft Bearing | 31 | Chain | 49 | Driveshaft | 66 | Shrink Disc Connection |
16 | Front Bearing Housing | 32 | Limit Switch Sprocket | 50 | Brake Hub Key | 67 | Oil Seal |
33 | Clutch Mounting Screw | 51 | Retainer Ring | 68 | Cover (E45 thru E110) | ||
34 | Air Friction Clutch (See separate parts list) | 69 | Grease Fitting | ||||
70 | Plug | ||||||
*Anti-Friction Bearing on E45, E60, E75 Bronze Bushing on E90 thru E250 | 71 | Grease Fitting |

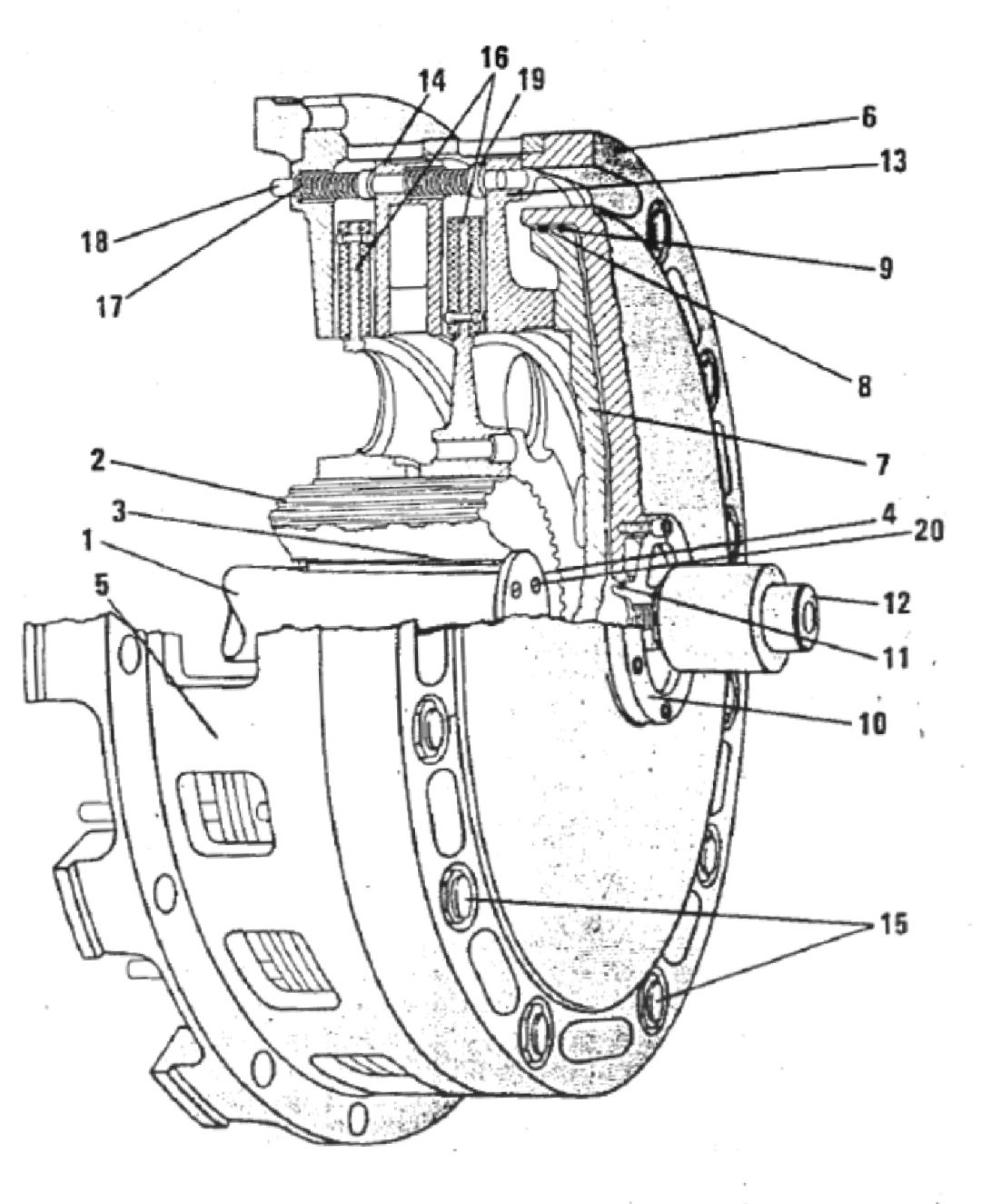

AIR FRICTION CLUTCH – TYPE LI-P

1 | Driveshaft |
2 | Driving Hub |
3 | Key |
4 | Driving Hub Retainer |
5 | Clutch Housing |
6 | Clutch Cylinder |
7 | Clutch Piston |
8 | Piston Wiper |
9 | Piston "O" Ring |
10 | Rotary Air Seal Adapter |
11 | Adapter "O" Ring |
12 | Rotary Air Seal |
13 | Pressure Plate |
14 | Inner Pressure Plate |
15 | Pressure Plate Guides & Nut |
16 | Friction Disc |
17 | Spreader Spring |
18 | Spring Guide |
19 | Guide Collar |
20 | Screw |
AIR OPERATED FLYWHEEL BRAKE
(Optional)

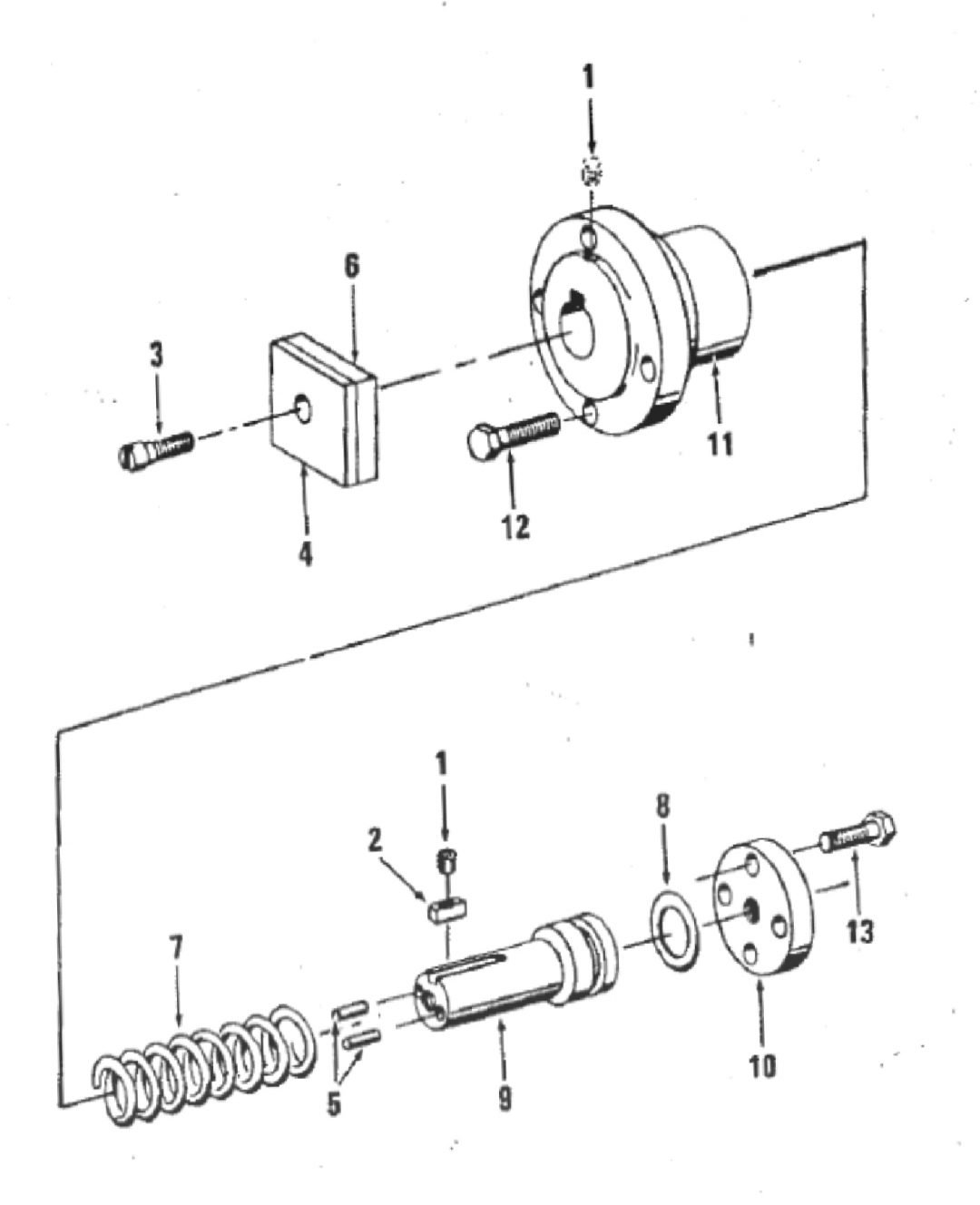

1 | Key Dowel Pin |
2 | Guide Key |
3 | Mounting Screw |
4 | Brake Lining |
5 | Dowel Pin |
6 | Brake Shoe |
7 | Spring |
8 | "O" Ring |
9 | Piston |
10 | Cylinder Cover |
11 | Cylinder |
12 | Cylinder Mounting Screw |
13 | Cover Mounting Screw |

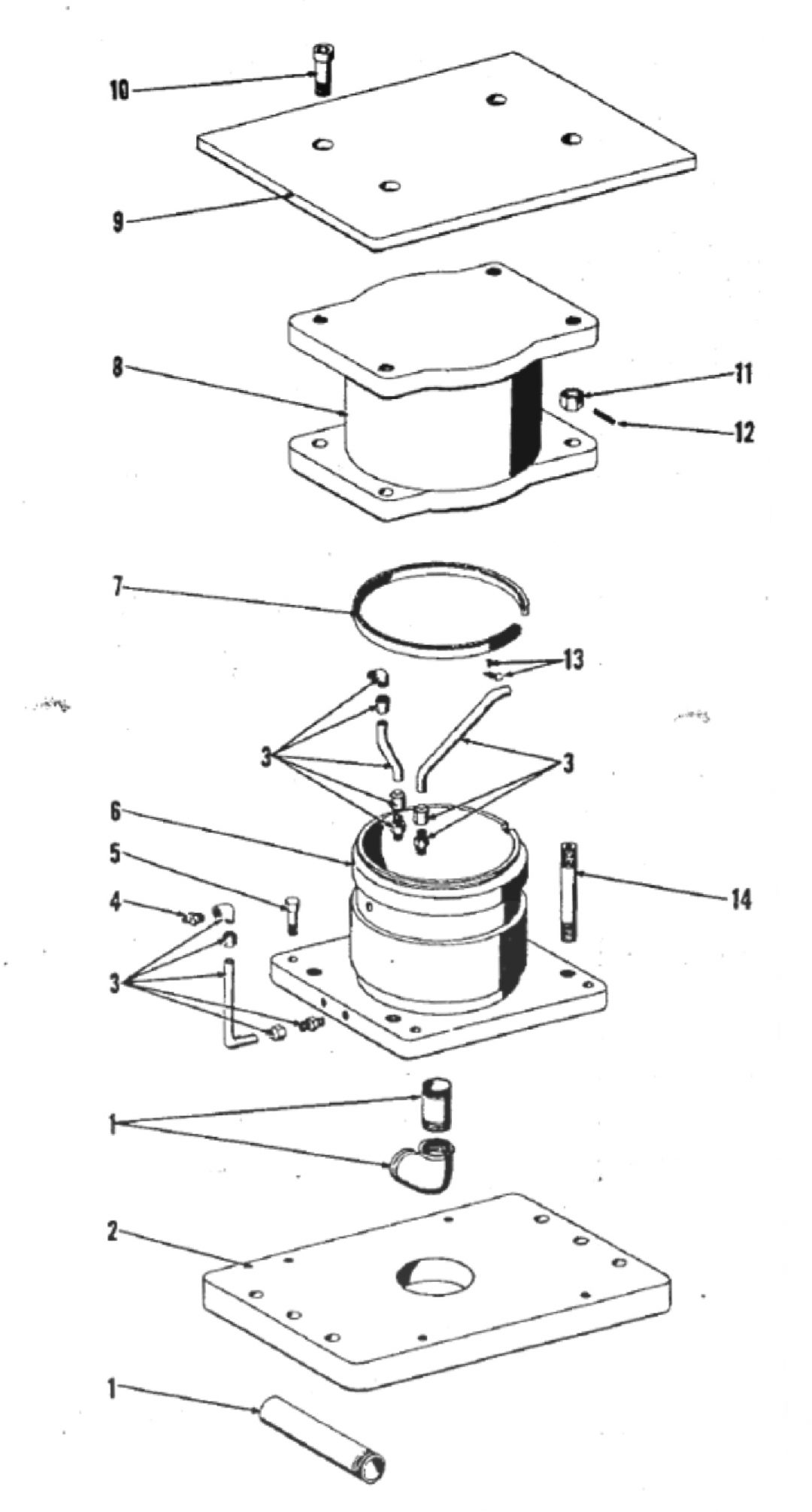

‘C’ TYPE CUSION (when used)
Series E-45, E-60 and E-75
WARNING – NEVER APPLY MORE THAN 5 PSI ON CUSHION WITH BOLSTER OFF PRESS OR WITH CUSION OUT OF PRESS.

1 | Air Piping |
2 | Mounting Plate |
3 | Lubrication Piping |
4 | Oil Fitting |
5 | Cylinder Mounting Screw |
6 | Cylinder |
7 | "U" Packing (Split for illustration purposes only) |
8 | Piston |
9 | Pressure Plate |
10 | Pressure Plate Mounting Screw |
11 | Stop Nut |
12 | Roll Pin |
13 | Lubrication Pipe Clip and Screw |
14 | Positive Stop Stud |

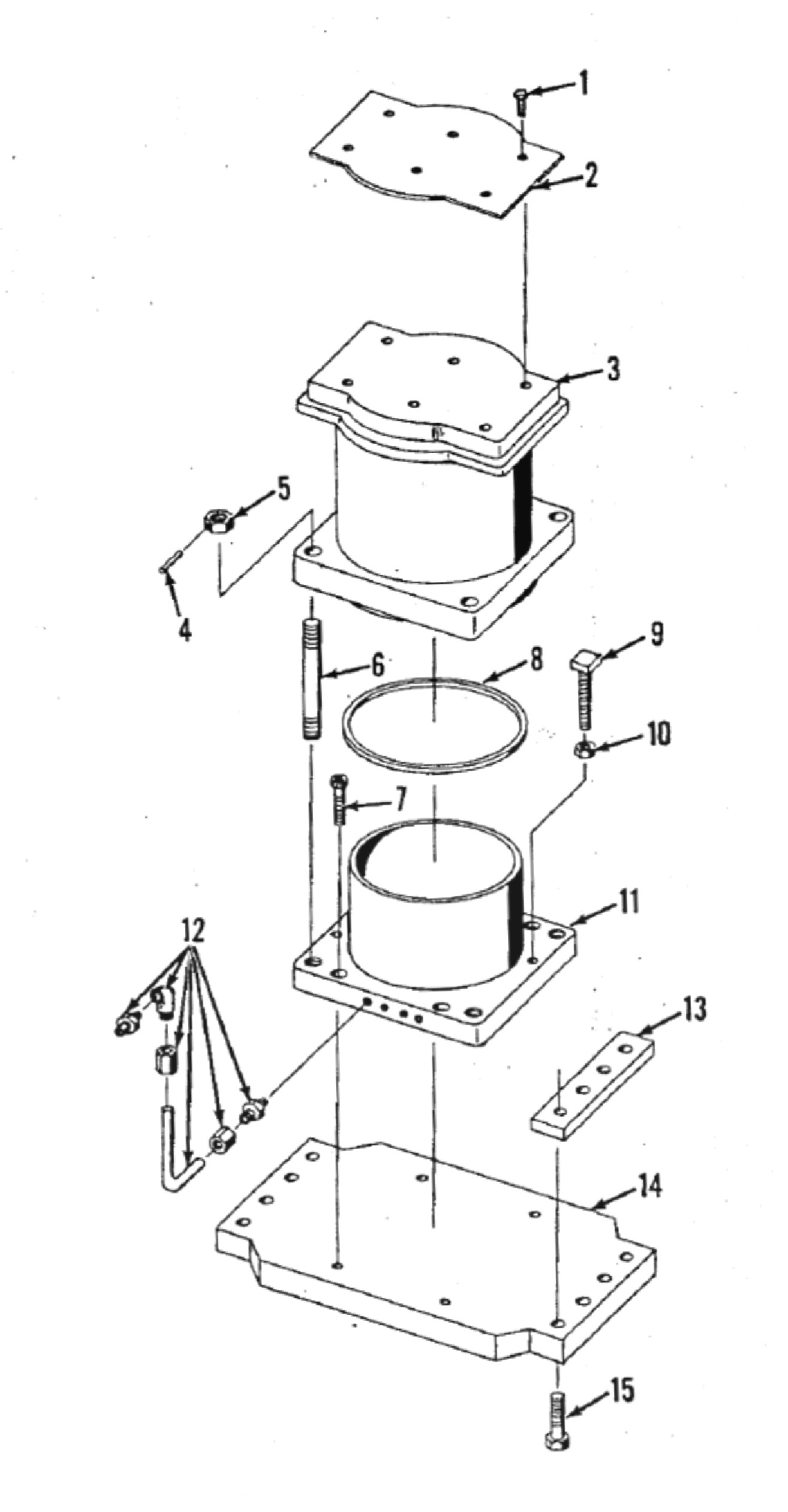

‘C’ TYPE CUSHION (When Used)
SERIES E-90 thru E-250
WARNING – NEVER APPLY MORE THAN 5 PSI ON CUSHION WITH BOLSTER OFF PRESS OR WITH CUSION OUT OF PRESS.

1 | Bolt |
2 | Pressure Plate |
3 | Cylinder Head |
4 | Roll Pin |
5 | Nut |
6 | Stud |
7 | Capscrew |
8 | Packing |
9 | Square Head Set Screw |
10 | Nut |
11 | Cylinder |
12 | Lubrication Piping |
13 | Spacer |
14 | Cylinder Mounting Plate |
15 | Bolt |
Why use genuine Niagara parts?
① Good and Services Warranty
Purchase press parts with confidence from BCN Technical Services. We guarantee at the time of delivery, the goods will be free from defects in materials and workmanship. We will perform services in a prompt, professional and workmanlike manner. View our Goods and Services Warranty for details.
② Original OEM Specifications
Replacement parts are manufactured to original OEM specifications from record sets maintained by serial number, so there’s no guessing or wondering if a part will fit. We have original drawings, manufacturing expertise, and the experience of a team of engineers who know your press inside and out.
③ Delivery
BCN Technical Services has an extensive inventory of the most requested OEM replacement parts in stock at our facility in Hastings, MI. Over 14,000 unique spare parts for presses are kept on hand. Our experienced staff is dedicated to quickly providing that critical part, which allows you to avoid delayed repairs, lost productivity and lost revenue.
Sign-up to receive updates and important information from BCN Technical Services.
Hours of Operation
Monday–Friday:
8 a.m.–5 p.m.
Saturday–Sunday:
Closed
BCN Technical Services, Inc.
1004 E State St Hastings, MI 49058
269-948-3300
info@bcntechserv.com
