How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
Eccentric Shaft and Ram Adjusting MechanismGear Box
Drive Assembly
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
| 1 | Die Rail | 11 | Adjustment Switch Front Cover | 22 | Lock Nut |
| 2 | Washer | 12 | Socket Head Cap Screws | 23 | Adjusting Screw |
| 3 | Die Rail Screw | 13 | Die Clamping Bar Screws | 24 | Cap Screw |
| 4 | Die Adjustment Set Screw | 14 | Die Clamping Bar | 25 | Pivot Adjusting Block |
| 5 | Main Motor Control | 15 | Clamping Bar Locknut | 26 | Cap Screw |
| 6 | Frame | 16 | Spring | 27 | Pivot Block Cover |
| 7 | Ram | 17 | Gib Screws | 28 | Pivot Block |
| 8 | Socket Head Screw | 18 | Left Gib | 29 | Pivot Shoes |
| 9 | Bearing End Cover | 19 | Rear Non-Metallic Liner | 30 | Right Gib |
| 10 | Adjustment Switch Rear Cover | 20 | Front Non-Metallic Liner | *31 | Ram Adjustment Switch |
| 21 | Dowel | *Not Shown |

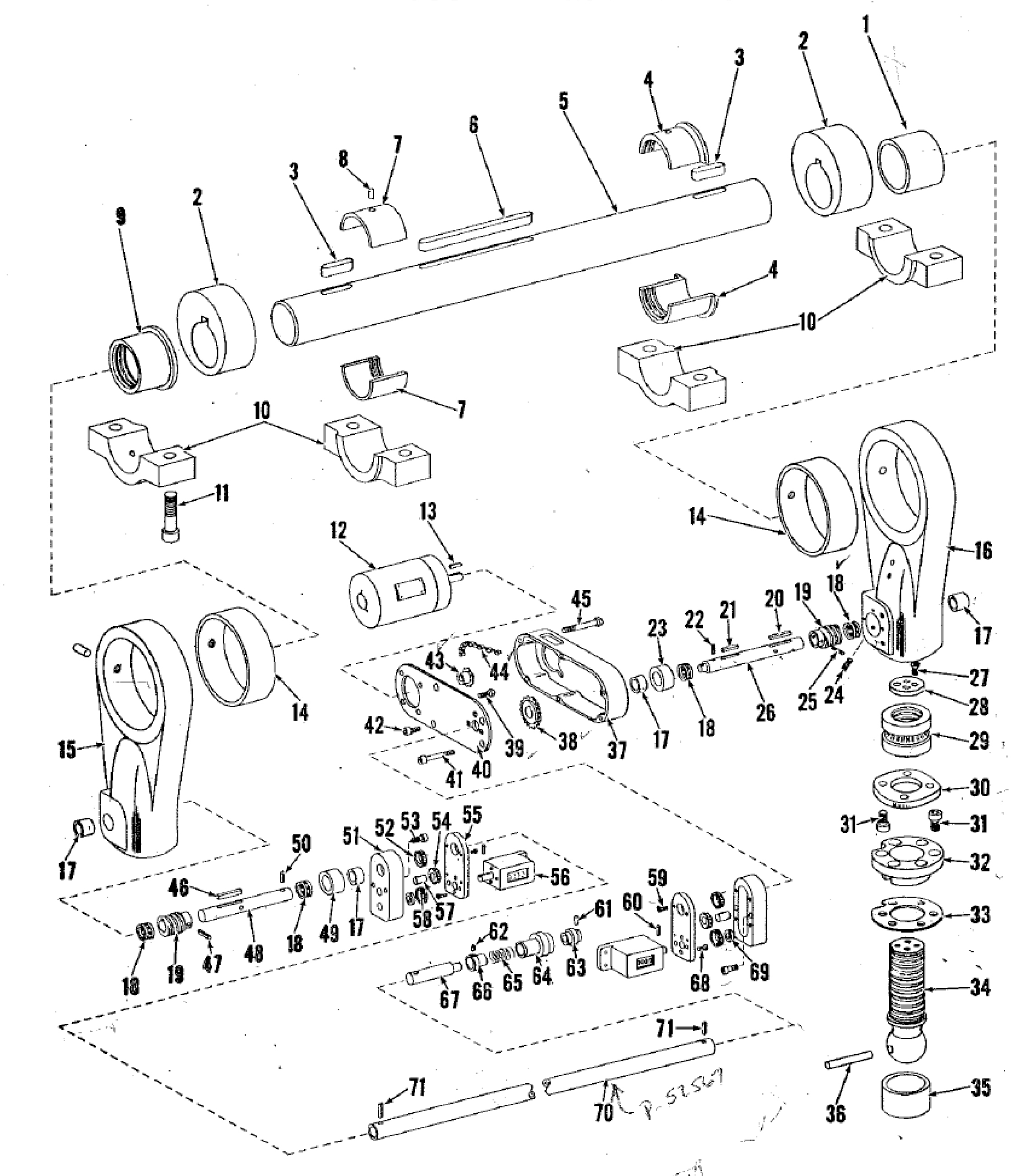

Eccentric Shaft and Ram Adjusting Mechanism
| 1 | Bronze Bushing | 17 | Bronze Bushing | 37 | Sprocket Box | 57 | Idler Shaft |
| 2 | Eccentric Cams | 18 | Thrust Bearings | 38 | Large Sprocket | 58 | Counter Gear |
| 3 | Eccentric Cam Keys | 19 | Worm | 39 | Motor Screw | 59 | Cover Screw |
| 4 | Split Flanged Bronze Bushing | 20 | Worm Key | 40 | Box Cover | 60 | Roll Pin |
| 5 | Eccentric Shaft | 21 | Sprocket Key | 41 | Sprocket Box Mounting Screws | 61 | Taper Pin |
| 6 | Gear Reducer Key | 22 | Roll Pin | 42 | Cover Screws | 62 | Set Screw |
| 7 | Split Bronze Bushing | 23 | Bearing Retainer | 43 | Small Sprocket | 63 | Coupling Gear |
| 8 | Dowel | 24 | Retainer Set Screw | 44 | Chain | 64 | Adjusting Sleeve |
| 9 | Flanged Bronze Bushing | 25 | Roll Pin | 45 | Motor Screw | 65 | Spring |
| 10 | Bearing Caps | 26 | Right Adjusting Shaft | 46 | Worm Key | 66 | Sleeve Stop |
| 11 | Socket Head Cap Screws | 27 | Stop Plate Screws | 47 | Roll Pin | 67 | Right Adjusting Shaft |
| 12 | Ram Adjusting Motor | 28 | Stop Plate | 48 | Left Adjusting Shaft | 68 | Counter Screws |
| 13 | Motor Shaft Key | 29 | Adjusting Nut | 49 | Bearing Retainer | 69 | Counter Gear Bushing |
| 14 | Connection Bushing | 30 | Connection Cover | 50 | Roll Pin | 70 | Adjusting Shaft Connection Tube |
| 15 | Left Connection | 31 | Socket Head Capscrews | 51 | Gear Box | 71 | Roll Pins |
| 16 | Right Connection | 32 | Ball Cover | 52 | Shaft Gear | ||
| 33 | Shims | 53 | Gear Box Mounting Screw | ||||
| 34 | Adjusting Screw | 54 | Idler Gear | ||||
| 35 | Ball Seat | 55 | Gear Box Cover | ||||
| 36 | Ball Pin | 56 | Counter |
Gear Box
| 1 | Bearing Cap Screw | 13 | Intermediate Gear Key | 25 | Driving Pinion |
| 2 | Bearing Cap | 14 | Lower Intermediate Gear | 26 | Drive Shaft Double Row Ball Bearing |
| 3 | Oil Seal | 15 | Intermediate Shaft Ball Bearing | 27 | Bearing Sleeve |
| 4 | Intermediate Shaft End Cover | 16 | Lower Intermediate Pinion and Shaft | 28 | Drive Shaft |
| 5 | Main Shaft Oil Seal | 17 | Upper Intermediate Pinion & Shaft | 29 | Bearing Sleeve |
| 6 | Right Hand Cover | 18 | Snap Ring | 30 | Drive Shaft Single Row Ball Bearing |
| 7 | Main Shaft Ball Bearing | 19 | Intermediate Shaft Ball Bearing | 31 | Collar |
| 8 | Snap Rings | 20 | Intermediate Gear Key | *32 | Right Hand Cover |
| 9 | Main Gear | 21 | Upper Intermediate Gear | *33 | Main Shaft Oil Seal (same as No.5) |
| 10 | Main Gear Sleeve | 22 | Intermediate Shaft Ball Bearing | *34 | Intermediate Shaft End Cover (same as No. 4) |
| 11 | Main Gear Key (3 req.) | 23 | Intermediate Shaft Ball Bearing | *35 | Right Hand Drive Shaft Cover and Oil Seal |
| 12 | Main Shaft Ball Bearing | 24 | Snap Ring | Note:Parts 13,14,15,16,18, and 19 not used on 30 ton machines. | |
| *Not Shown |
Drive Assembly
| 1 | Clutch, see Form A-6-D | 7 | Pivot Screws | 15 | Adjusting Shaft Bearing | 22 | Lock Nuts | |
| 2 | Clutch Push Pin | 8 | Brake Shaft Snap Ring | 16 | Brake, see Form A-6-C | 23 | Adjusting Screw Lock Nuts | |
| 3 | Flywheel Bearings | 9 | Gear Box Support | 17 | Adjusting Shaft | 24 | Motor Plate Pivot Screw | |
| 4 | Flywheel | 10 | Pivot Blocks | 18 | Brake Positioning | 25 | Motor Plate Pivot | |
| 5 | Clutch Push Pin Nut | 11 | Gear Box & Break Stop Support | 19 | Pivot Screw Nut | 26 | Washer | |
| 6 | Belt | 12 | Brake Support Shaft | 20 | Belt Guard | 27 | Adjusting Screw Lock Nuts | |
| 13 | Handwheel | 21 | Motor Plate | 28 | Main Motor | |||
| 14 | Roll Pin |
