How to find the parts you need

Series SE-U-Form A-39-A

① Click a link to view parts list below or download the spec sheet.

FRAME ASSEMBLY
SLIDE ASSEMBLY
DRIVE ASSEMBLY

② Once you know which parts you want to order, request a parts quote.

Request a parts quote

Questions? Chat with us

Click to enlarge drawing

FRAME ASSEMBLY

1	Frame			41	Support Block Screw
2	Drive Assembly (See Separate Part List)			42	Set Screw
3	Slide (Not shown-See Separate Part List)			43	Screw
4	Counter Balance (See Separarte Part List)	20	Top Cover (L.H.)	44	Shim	61	Sprocket
5	Counter Balance Mounting Screw	21	Top Cover (R.H.)	45	L.H. Rear Gib Drip Pan and Oil Level Gage	62	Key
6	Wrist Pin	22	Top Cover Screw	46	Drip Pan Screw	63	Chain
7	Retaining Ring	23	Belt Guard Back Plate	47	Front Gib	64	Coupling-Optional
8	Counter Balance Mounting Plate	24	Back Plate Screw	48	Gib Mounting Screw	65	Key-Optional
9	Lower Counter Balance Bracket	25	Belt Guard	49	Upper Counter Balance Guard	66	Resolver Bracket-Optional
10	Bracket Screw	26	Guard Mounting Screw	50	Screw	67	Resolver-Optional
11	Motor	27	Rear Crown Cover	51	Lower Counter Balance Guard	68	Front Crown Cover
12	Motor Mounting Screw	28	Clutch Guard	52	Screw	69	Cover Screw
13	Key	29	Electrical Enclosure	53	Limit Switch Bracket	70	Access Door (Limit Switch)
14	Motor Sheave	30	Enclosure Screw	54	Bracket Screw	71	Door Mounting Screw
15	"V" Belts	31	Flywheel Brake (See Separate Part List)	55	Limit Switch	72	Gib Drip Pan
16	Adjustable Motor Base	32	Flywheeel Brake Bracket	56	Switch Mounting Screw	73	Drip Pan Screw
17	Base Mounting Screw	33	Bracket Screw	57	Coupling	74	Bolster
18	Motor Base Mounting Plate	34	Clutch Valve and Tank Assembly*	58	Angle Gear Unit	75	Screw
19	Plate Mounting Screw	35	Tank Mounting Bracket*	59	Angle Gear Mounting Screw	76	Hex Nut
		36	Bracket Screw*	60	Key	77	Door and Frame
		37	Rear Gib			78	Frame Mounting Screw
		38	Gib Mounting Screw			79	Access Cover Plate
		39	Washer			80	Cover Screw
		40	Rear Gib Support Block
		*Arrangement Shown for 200 Presses

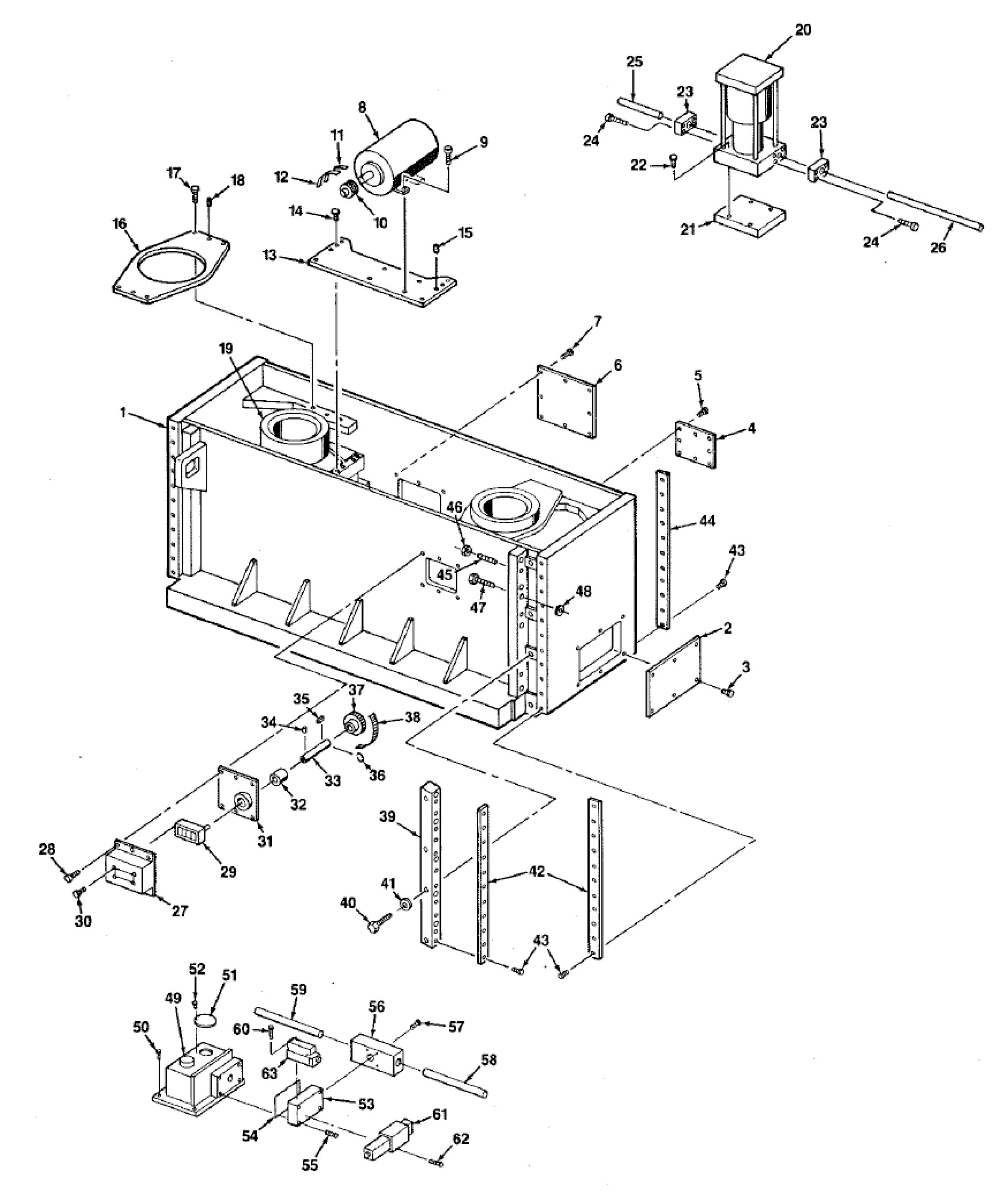

SLIDE ASSEMBLY

1	Slide	17	Yoke Mounting Screw	33	Counter Shaft	48	Shim
2	Slide Side Cover	18	Dowel	34	Set Screw	49	Reservoir †
3	Cover Screw	19	Barrel Assembly (See Separarte Part List)	35	Key	50	Screw †
4	Flange Cover	20	Hydraguard Valve*	36	Retaining Ring	51	Reservoir Cover †
5	Flange Cover Screw	21	Spacer Plate*	37	Sprocket	52	Screw †
6	Rear Valve Cover	22	Screw*	38	Chain	53	Manifold †
7	Valve Cover Screw	23	Hydraulic Adaptor*	39	Gib Block (Specify L.H., R.H., Front or Rear)	54	Gasket †
8	Slide Adjust Motor	24	Adapter Screw*	40	Gib Block Mounting Screw	55	Screw †
9	Motor Mounting Screw	25	Connecting Tube*	41	Washer	56	Tee Flange †
10	Motor Sprocket	26	Connecting Tube*	42	Front or Side Slide Liner	57	Screw †
11	Chain	27	Counter Mounting Bracket	43	Liner Mounting Screw	58	Connecting Tube †
12	Chain	28	Bracket Mounting Screw	44	Rear Slide Liner	59	Connecting Tube †
13	Slide Adjust Motor Plate	29	Counter	45	Adjusting Set Screw	60	Screw †
14	Motor Plate Mounting Screw	30	Counter Mounting Screw	46	Hex Jam Nut	61	Hydra Guard Valve †
15	Dowel	31	Counter Shaft Bracket	47	Screw	62	Screw †
16	Barrel Yoke	32	Bushing			63	Dump Valve †
		*Items 20 Thru 26-300 Press Arrangement
		† Items 49 Thru 63-150 & 200 Presses

DRIVE ASSEMBLY

1	Brake	14	Bearing	30	Retaining Ring	43	Retainer Screw
2	Brake Mounting Screw	15	Retaining Ring	31	Limit Switch Sprocket	44	Key
3	Retaining Ring	16	O' Ring	32	R.H. Front Main Pin Cartridge	45	Main Pin Bushing
4	Brake Hub	17	Quill	33	Cartridge Mounting Screw	46	O' Ring
5	Driveshaft	18	Quill Mounting Screw	34	O' Ring	47	Rear Main Pin Cartridge
6	Key	19	Bearing	35	Main Pin Bushing	48	Cartridge Mounting Screw
7	Front Bearing Housing	20	Flywheel	36	Main Gear	49	Pin Cartridge Cover
8	Housing Mounting Screw	21	Bearing	37	Connection Bushing	50	Cover Screw
9	O' Ring	22	Retaining Ring	38	Eccentric Connection	51	L.H. Front Main Pin Cartridge
10	Retaining Ring	23	Key	39	Dowel	52	Cartridge Mounting Screw
11	Bearing	24	Clutch Hub	40	Wrist Pin Bushing	53	L.H Main Pin
12	Retaining Ring	25	Retaining Ring	41	Dowel	54	Flywheel Bearing Retainer*
13	Retaining Ring	26	Clutch	42	Connection Retainer	55	Retainer Screw*
		27	Clutch Mounting Bolt			56	Flywheel Bearing Spacer*
		28	R.H. Main Pin			57	Bearing Spacer
		29	Key
		*300 Press Only
