How to find the parts you need
② Once you know which parts you want to order, request a parts quote.
| 1 | Ram | 19 | Knife Guard Mounting Screw | 36 | Motor Controller | 53 | Chute Mounting Screw |
| 2 | Light Bracket | 20 | R.H. Knife Guard | 37 | Hydraulic Power Unit | 54 | R.H. Main Cylinder |
| 3 | Light Fixture | 21 | Brace Rod | 38 | Mounting Screw | 55 | L.H. Main Cylinder (not shown) |
| 4 | Screw | 22 | Brace Rod Nut | 39 | Washer | 56 | Frame |
| 5 | Top Cover (specify L.H. or R.H.) | 23 | Backage (see separate part list) | 40 | Reservoir Bracket | 57 | R.H. End Cover |
| 6 | Top Hole Cover | 24 | Counter Bracket Mounting Screw | 41 | Bed Cover Screw | 58 | End Cover Screw |
| 7 | Screw | 25 | Washer | 42 | End Bed Cover | 59 | Holddown Cylinder |
| 8 | Rear Gib | 26 | Counter Bracket | 43 | L.H. Bed Cover | 60 | Holddown Cylinder Footcups |
| 9 | Rear Gib Mounting Screw | 27 | Counter | 44 | R.H. Bed Cover | 61 | Holddown Bar |
| 10 | End Roller Shoulder Screw | 28 | Counter Mounting Screw | 45 | Mounting Screw | 62 | Holddown Bar Mounting Screw |
| 11 | End Roller | 29 | Micro Limit Switch (specify L.H., R.H., Upper or Lower) | 46 | Washer | 63 | R.H. Holddown Guard |
| 12 | Ram Position Indicator | 30 | Limit Switch Mounting Screw | 47 | Single Bed Rail | 64 | Holddown Guard Mounting Screw |
| 13 | Hex Nut | 31 | Fixed Blade | 48 | Bed Rail Adjusting Screw | 65 | L.H. Holddown Guard |
| 14 | Moving Blade | 32 | Spherical Bearing | 49 | Double Bed Rail | 66 | L.H. End Cover |
| 15 | Reverse Key Plow Bolt | 33 | Bearing Retaining Ring | 50 | Front Gib | 67 | Front Bracket and 'T' Slot Nut (optional) |
| 16 | Washer | 34 | Cylinder Retaining Ring | 51 | Front Gib Mounting Screw | 112 | Foot Switch |
| 17 | Hex Nut | 35 | Lubrication Fitting | 52 | Rear Chute | 113 | Fluorescent Light |
| 18 | L.H. Knife Guard | 114 | Fluorescent Tube Safety Shields | ||||
| 115 | O-Ring | ||||||

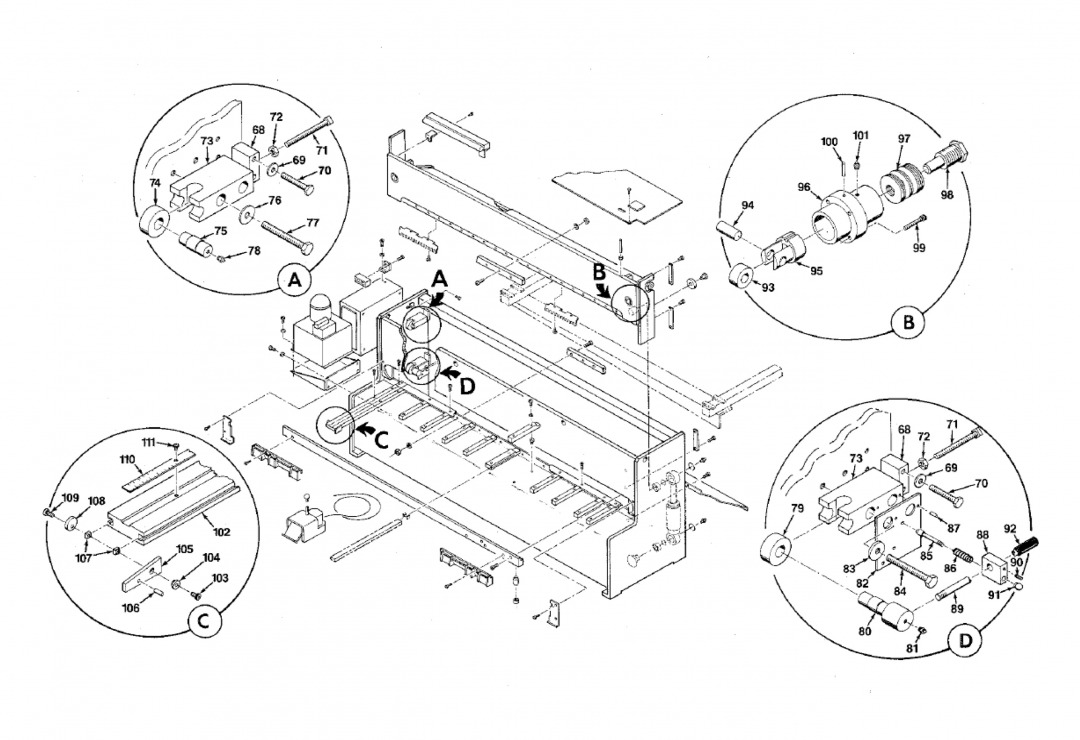

FRAME DETAILS
| 68 | Ram Adjustment Stop | 90 | Socket Set Screw |
| 69 | Washer | 91 | Knob |
| 70 | Adjustment Stop Mounting Screw | 92 | Hand Grip |
| 71 | Square Head Set Screw | 93 | Yoke Track Roller |
| 72 | Hex Jam Nut | 94 | Spring Pot Pin |
| 73 | Ram Adjustment Block (specify L.H. or R.H.) | 95 | Spring Pot Piston |
| 74 | Yoke Track Roller | 96 | Spring Pot Cylinder |
| 75 | Ram Adjustment Pivot | 97 | Disc Spring Washers |
| 76 | Washer | 98 | Spring Pot Screw |
| 77 | Adjustment Block Mounting Screw | 99 | Spring Pot Mounting Screw |
| 78 | Lubrication Fitting | 100 | Roll Pin |
| 79 | Yoke Track Roller | 101 | Lubrication Fitting |
| 80 | Blade Adjustment Pivot | 102 | Side Gage Bar |
| 81 | Lubrication Fitting | 103 | Cap Screw |
| 82 | Blade Adjustment Plate | 104 | Disappearing Stop Washer |
| 83 | Washer | 105 | Disappearing Stop |
| 84 | Adjustment Plate Mounting Screw | 106 | Roll Pin |
| 85 | Blade Adjustment Pin | 107 | T' Slot Nut |
| 86 | Blade Adjustment Spring | 108 | Side Gage Washer |
| 87 | Roll Pin | 109 | Cap Screw |
| 88 | Blade Adjustment Bar | 110 | Scale |
| 89 | Blade Adjustment Handle | 111 | Screw |
BACKGAGE
Round Bracket Models
| ROUND BRACKET MODELS | 29 | Top End Cap Screw | 56 | Bushing | |
| 1 | Ram (reference) | 30 | Bottom End Cap Screw | 57 | Sprocket Shaft |
| 2 | Backgage Mounting Bolt | 31 | Rear End Cap | 58 | Flexible Shaft |
| 3 | Chain | 32 | Bearing | ||
| 4 | Backgage Bar | 33 | Calibration Plate | DETAIL C- | BACKGAGE BAR STRAIGHTNESS ADJUSTMENT |
| DETAIL A-BRACKET | 34 | Adjusting Nut | 59 | Stud | |
| 5 | Washer (specify L.H. or R.H.) | 35 | Fade Adjustment Pointer | 60 | Hex Nut |
| 6 | Stud | 36 | Screw | ||
| 7 | Hex Nut | 37 | Hex Nut | DETAIL D-IDLER BRACKET, MODEL SP-10 1/4 | |
| 8 | Backgage Mounting Plate | 61 | Idler Bracket | ||
| 9 | Washer | DETAIL B-DRIVE | 62 | Bracket Mounting Screw | |
| 10 | Backgage Mounting Plate Screw | 63 | Set Screw Holder | ||
| 11 | Slide Spacer | 38 | L.H. Screw | 64 | Holder Mounting Screw |
| 12 | Front Sprocket | 39 | L.H. Backgage Bracket | 65 | Set Screw |
| 13 | Roll Pin | 40 | Lock Washer | 66 | Sprocket Holder |
| 14 | Set Screw | 41 | Lock Nut | 67 | Bushing |
| 15 | Front End Cap | 42 | Bracket Sprocket | 68 | Sprocket |
| 16 | Front End Cap Mounting Screw | 43 | Set Screw | 69 | Sprocket Mounting Screw |
| 17 | Bearing | 44 | Roll Pin | 70 | Sprocket Holder Mounting Screw |
| 18 | Retaining Ring | 45 | Chain | ||
| 19 | Slide Nut | 46 | Chain Guard | DETAIL E-IDLER BRACKET, MODEL SP-10 GAUGE | |
| 20 | Felt Oil Wick | 47 | Guard Mounting Screw | 71 | Idler Bracket |
| 21 | R.H. Screw | 48 | Motor Sprocket | 72 | Bracket Mounting Screw |
| 22 | Disc Spring Washers | 49 | Set Screw | 73 | Bushing |
| 23 | Thrust Bearing | 50 | Key | 74 | Sprocket |
| 24 | R.H. Backgage Bracket | 51 | Motor and 'L' Bracket | 75 | Sprocket Mounting Screw |
| 25 | Oil Hole Cover | 52 | Motor Bracket Mounting Screw | 76 | Hex Nut |
| 26 | Cover Screw | 53 | Coutnershaft Sprocket | 77 | Hex Nut |
| 27 | Lubrication Plate | 54 | Set Screw | 78 | Screw |
| 28 | Fade Adjustment Plate | 55 | Roll Pin |
