How to find the parts you need
① Scroll to view parts list below or download the spec sheet.
② Once you know which parts you want to order, request a parts quote.

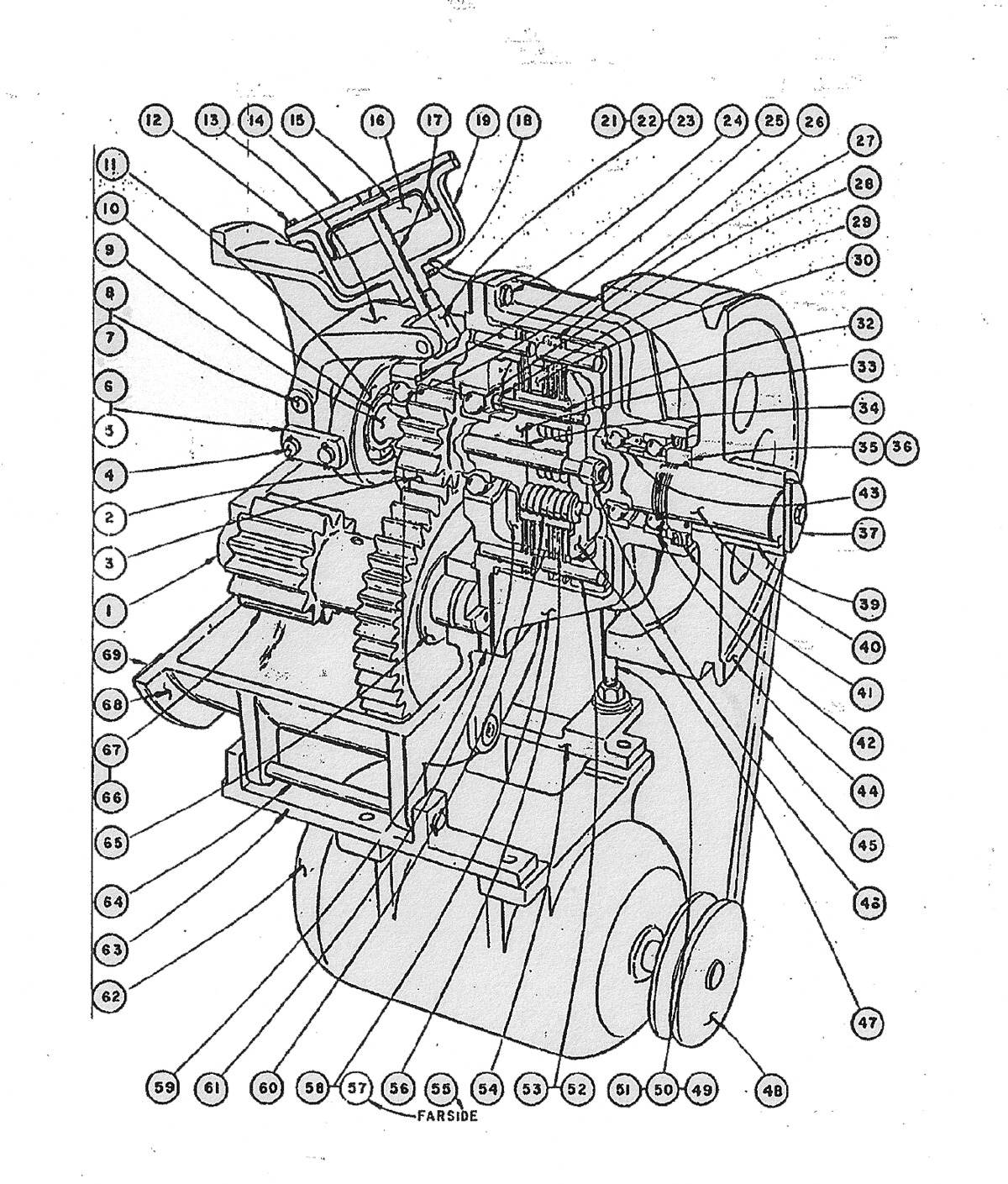

| PART NO. | DESCIPTION | NO. REQ. | PART NO. | DESCRIPTION | NO. REQ. | |
|---|---|---|---|---|---|---|
| 1 | Intermediate Shaft | 1 | 36 | "O" Ring | 1 | |
| 2 | Retaining Ring | 1 | 37 | Flywheel Retainer | 1 | |
| 3 | Drive Pinion | 1 | 38 | |||
| 4 | Bell Crank Pin | 1 | 39 | Key | 1 | |
| 5 | Link | 2 | 40 | Input Shaft | 1 | |
| 6 | Bushing | 4 | 41 | Seal | 1 | |
| 7 | Bell Crank Pivot Pin | 1 | 42 | Ball Bearing | 2 | |
| 8 | Bushing | 2 | 43 | Spacer | 1 | |
| 9 | Tie Rod | 1 | 44 | Flywheel | 1 | |
| 10 | Thrust Bearing | 1 | 45 | Belt | 1 | |
| 11 | Thrust Collar | 1 | 46 | Locknut | 1 | |
| 12 | Lock Nut | 12 | 47 | Clutch Plate | 1 | |
| 13 | Bell Crank | 1 | 48 | Sheave | 1 | |
| 14 | Cylinder Cover | 1 | 49 | Bearing Assembly | 2 | |
| 15 | Diaphragm | 1 | 50 | Rod End | 1 | |
| 16 | Piston | 1 | 51 | Rod End Anchor Pin | 1 | |
| 17 | Piston Shaft | 1 | 52 | Pin | 8 | |
| 18 | Plug | 1 | 53 | Drive Pins | 8 | |
| 19 | Cylinder | 1 | 54 | Motor Rall | 1 | |
| 20 | Breather | 1 | 55 | Oil Gage | 1 | |
| 21 | Clevis and Bushing | 1 ea. | 56 | Friction Disc | 8 | |
| 22 | Snap Ring | 1 | 57 | Rear Housing | 1 | |
| 23 | Clevis Pin | 1 | 58 | Gasket | 2 | |
| 24 | Lock Screw | 12 | 59 | Bearing Support | 1 | |
| 25 | Snap Ring | 1 | 60 | Brake Spring | 6 | |
| 26 | Ball Bearing | 1 | 61 | Brake Plate | 1 | |
| 27 | Steel Discs | 6 | 62 | Motor | 1 | |
| 28 | Ball Bearing | 1 | 63 | Motor Support | 1 | |
| 29 | Locknut | 3 | 64 | Motor Support Pin | 1 | |
| 30 | Backup Plate | 1 | 65 | Thrust Washer | 1 | |
| 31 | Dowel | 3 | 66 | Bushing | 2 | |
| 32 | Studs | 3 | 67 | Cluster Gear | 1 | |
| 33 | Output Shaft | 1 | 68 | Front Housing | 1 | |
| 34 | Bushing | 1 | 69 | Gasket | 1 | |
| 35 | Locknut | 1 |
