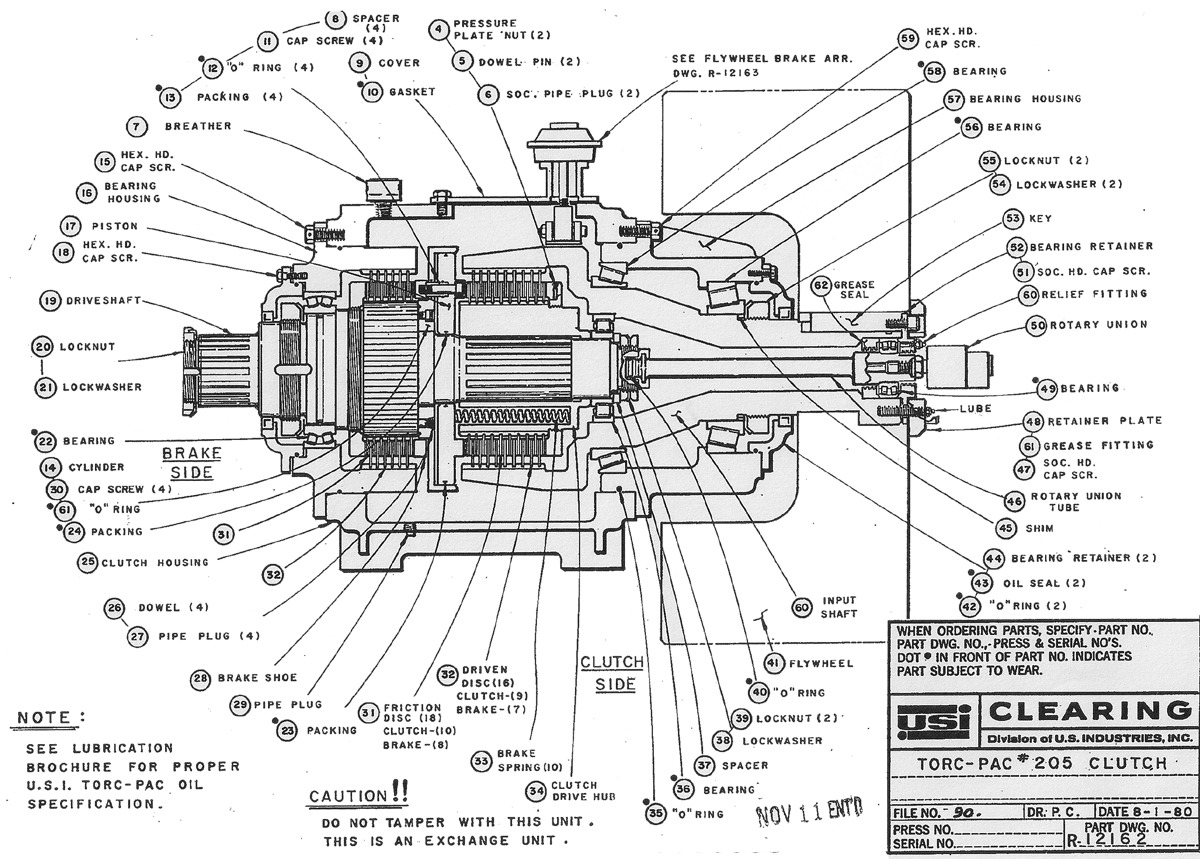

|Part No.||Description||Part No.||Description|
|4||Pressure Plate Nut (2)||33||Brake Spring (10)|
|5||Dowel Pin (2)||34||Clutch Drive Hub|
|6||Soc. Pipe Plug (2)||•35||"O" Ring|
|• 10||Gasket||39||Locknut (2)|
|11||Cap Screw (4)||•40||"O" Ring|
|• 12||"O" Ring (4)||41||Flywheel|
|•13||Packing (4)||•42||"O" Ring (2)|
|14||Cylinder||•43||Oil Seal (2)|
|15||Hex. HD. Cap Scr.||44||Bearing Retainer (2)|
|17||Piston||46||Rotary Union Tube|
|18||Hex. HD. Cap Scr.||47||Soc. HD. Cap Scr.|
|•22||Bearing||51||Soc. HD. Cap Scr.|
|25||Clutch Housing||54||Lockwasher (2)|
|26||Dowel (4)||55||Locknut (2)|
|27||Pipe Plug (4)||•56||Bearing|
|28||Brake Shoe||57||Bearing Housing|
|30||Cap Screw (4)||59||Hex. HD. Cap Scr.|
|31||Friction Disc (18) Clutch (10) Brake (8)||60||Input Shaft|
|32||Driven Disc (16) Clutch (9) Brake (7)||•61||"O" Ring|
Why use genuine Clearing parts?
① Good and Services Warranty
Purchase press parts with confidence from BCN Technical Services. We guarantee at the time of delivery, the goods will be free from defects in materials and workmanship. We will perform services in a prompt, professional and workmanlike manner. View our Goods and Services Warranty for details.
② Original OEM Specifications
Replacement parts are manufactured to original OEM specifications from record sets maintained by serial number, so there’s no guessing or wondering if a part will fit. We have original drawings, manufacturing expertise, and the experience of a team of engineers who know your press inside and out.
BCN Technical Services has an extensive inventory of the most requested OEM replacement parts in stock at our facility in Hastings, MI. Over 14,000 unique spare parts for presses are kept on hand. Our experienced staff is dedicated to quickly providing that critical part, which allows you to avoid delayed repairs, lost productivity and lost revenue.
