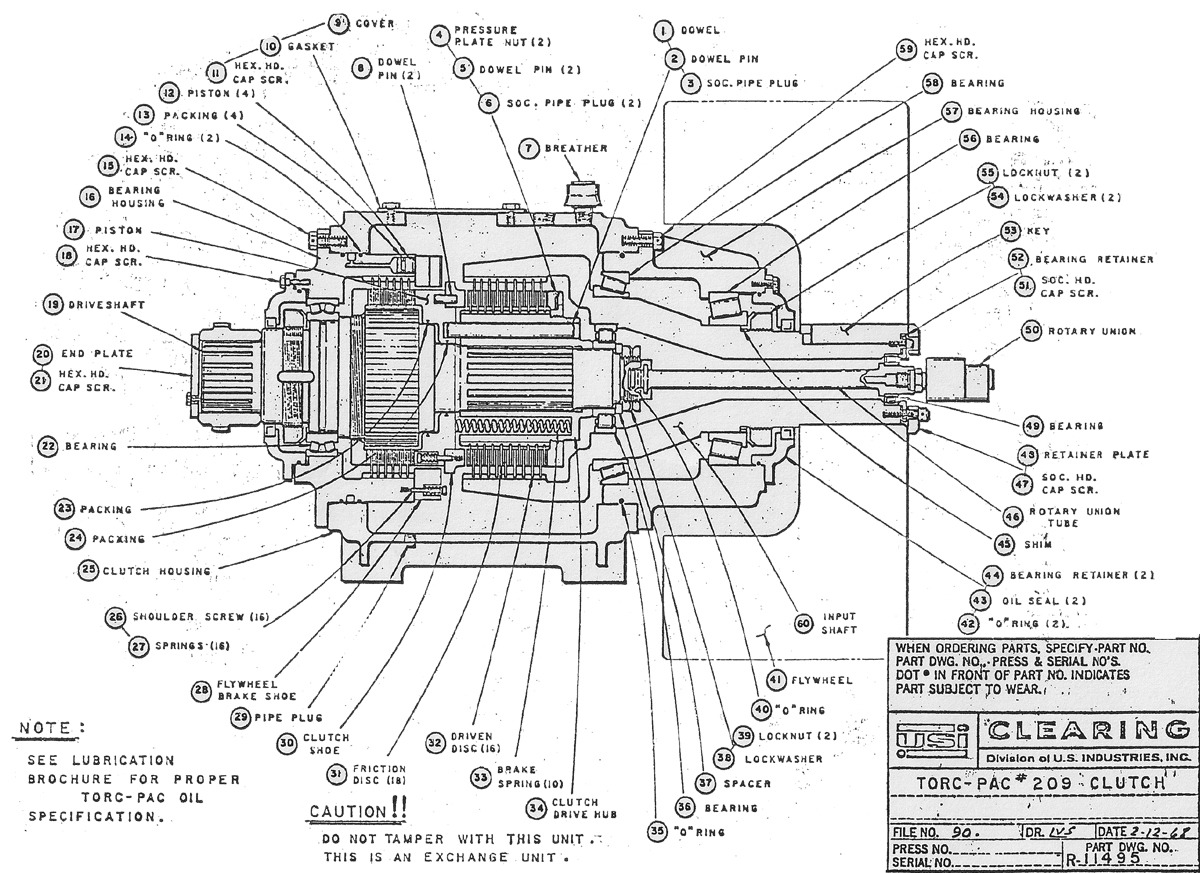

|Part No.||Description||Part No.||Description|
|1||Dowel||31||Friction Disc (18)|
|2||Dowel Pin||32||Driven Disc (16)|
|3||Soc. Pipe Plug||33||Brake Spring (10)|
|4||Pressure Plate Nut (2)||34||Clutch Drive Hub|
|5||Dowel Pin (2)||35||"O" Ring|
|6||Soc. Pipe Plug (2)||36||Bearing|
|8||Dowel Pin (2)||38||Lockwasher|
|11||Hex. HD. Cap Scr.||41||Flywheel|
|12||Piston (4)||42||"O" Ring (2)|
|13||Packing (4)||43||Oil Seal (2)|
|14||"O" Ring (2)||44||Bearing Retainer (2)|
|15||Hex. HD. Cap Scr.||45||Shim|
|16||Bearing Housing||46||Rotary Union Tube|
|17||Piston||47||Soc. HD. Cap Scr.|
|18||Hex. HD. Cap Screw||48||Retainer Plate|
|20||End Plate||50||Rotary Union|
|21||Hex. HD. Cap Scr.||51||Soc. HD. Cap Scr.|
|25||Clutch Housing||55||Locknut (2)|
|26||Shoulder Screw (16)||56||Bearing|
|27||Springs (16)||57||Bearing Housing|
|28||Flywheel Brake Shoe||58||Bearing|
|29||Pipe Plug||59||Hex. HD. Cap Scr.|
|30||Clutch Shoe||60||Input Shaft|
CAUTION!! DO NOT TAMPER WITH THIS UNIT. THIS IS AN EXCHANGE UNIT.
WHEN ORDERING PARTS, SPECIFY PART NO., PART DWG. NO., PRESS & SERIAL NO’S. DOT • IN FRONT OF PART NO. INDICATES PART SUBJECT TO WEAR.
