Torc-Pac 22

Visión general

Información de especificación Torc-Pac 22. Para descargar un PDF o para obtener información sobre cómo encontrar su número de serie, utilice el botón correspondiente a continuación.
Torc-Pac 22

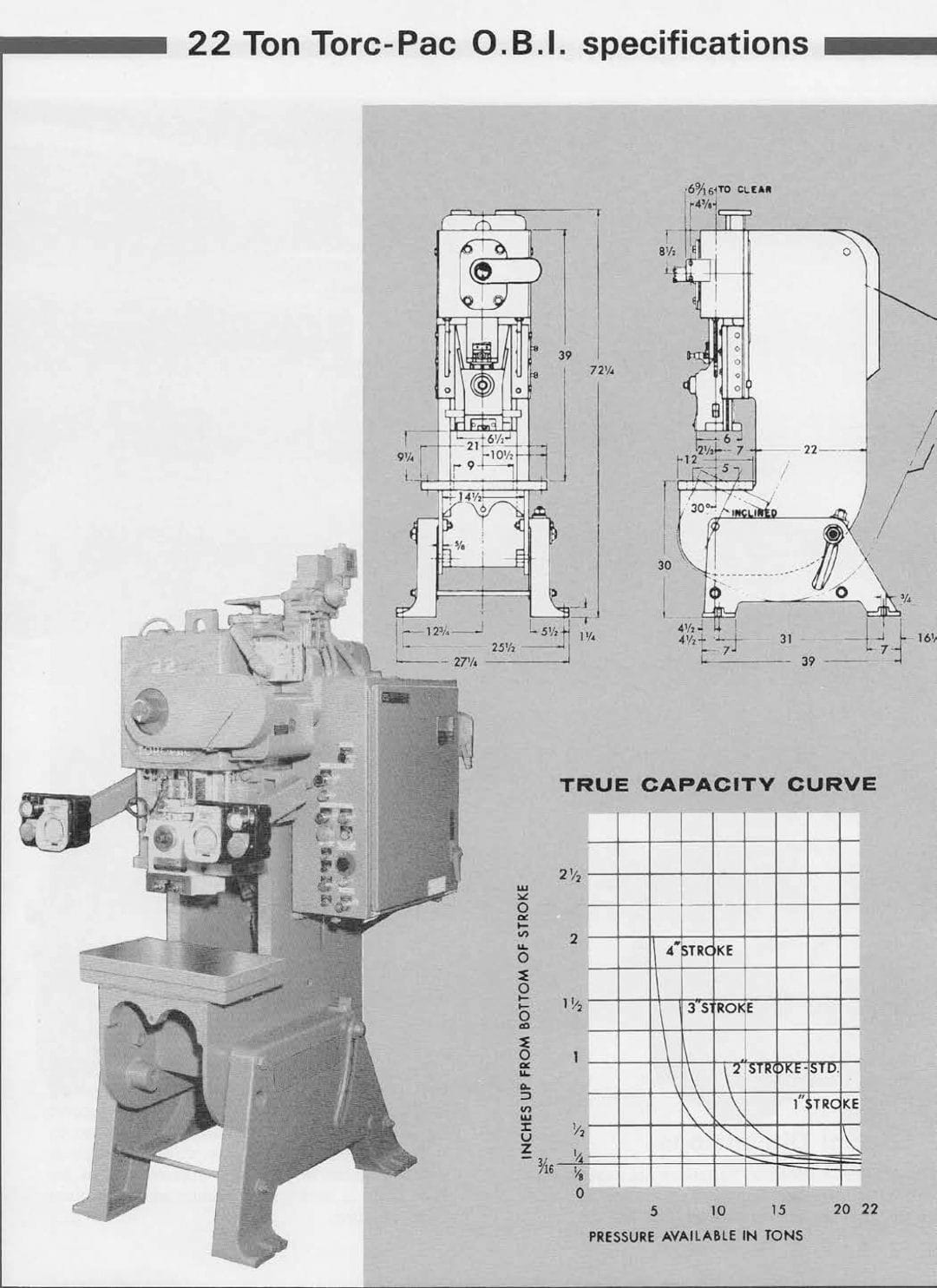

22-TON TORC-PAC PRESS SPECIFICATIONS
Capacity22 tons
Shaft diameterAt main bearings2 1/2" At Eccentric 4 1/2" (1" & 2" strokes), 6 1/2" (3" & 4" strokes)
Bolster areaL RXFBX thickness 21" x 12" x 1 3/4"
Bed opening L RXFB9" x 5"
Width through back12"
Depth of throat7"
Height72 1/4"
Basic overall dimensions (Std. frame)Width27 1/4"
FB upright40 1/2"
FB inclined59"
Strokes2" std. 1" opt. 3" opt. 4" opt.
Shut heightStandard frame9 1/4" std. 10 1/4" opt. 7 3/4" opt. 7 1/4" opt.
Opt. high body12 1/4" std. 13 1/4" opt. 10 3/4" opt. 10 1/4" opt. High body increases overall height
S.P.M.-Choice of one is standard100, 110 to 140
S.P.M.-Optional176 to 207, 150 to 180, 200
Slide adjustment2"
Approximate weight-(Std. press)Standard press2300#
Slide cap holeDiameter1-9/16" (maximum opt.-1 3/4") Depth 2 1/4"
FlywheelWeight133# Speed (min.) 575 R.P.M. @100 S.P.M.
Bolster drilling and special openingsOptional
Cushion stroke and tonnageat 100 p.s.i 2"-1.4 tons Optional
Counterbalance cylinderNot available
Flanged ram-with or without slide capsLRXFBNot available
Main motorHP & RPM3 HP-1800 R.P.M.
