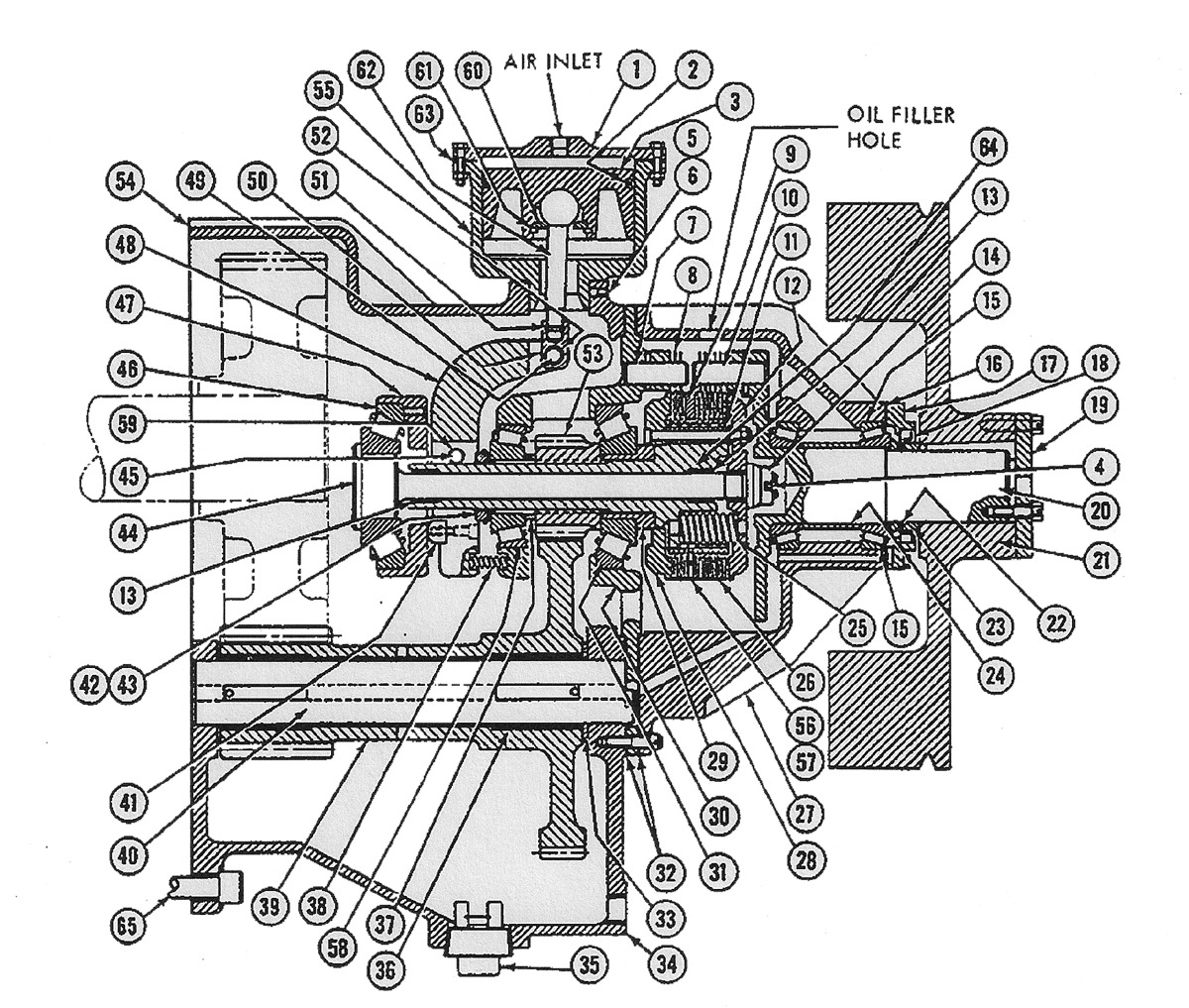

| Torc-Pac Press Drive | |||
|---|---|---|---|
| 1 | Cylinder Cover | 31 | Bearing |
| 2 | Quad Ring* | 32 | Gasket |
| 3 | Air Piston | 33 | Thrust Washer |
| 4 | Lock Pin | 34 | Front Housing |
| 5 | Nylon Plug | 35 | Magnetic Plug |
| 6 | Socket Set Screw | 36 | Bushing |
| 7 | Drive Pin | 37 | Spacer |
| 8 | Disc | 38 | Spring |
| 9 | Back Up Plate | 39 | Cluster Gear |
| 10 | Drive Pin | 40 | Shaft |
| 11 | Spacer | 41 | Wear Bar |
| 12 | Clutch Plate | 42 | Locknut |
| 13 | Bushing | 43 | Lockwasher |
| 14 | Special Nut | 44 | Tie Rod |
| 15 | Bearing | 45 | Bell Crank Pin |
| 16 | Gasket* | 46 | Bearing |
| 17 | Seal Housing | 47 | Thrust Collar |
| 18 | Oil Seal* | 48 | Bell Crank |
| 19 | Retainer | 49 | Pin |
| 20 | Input Shaft | 50 | Clevis |
| 21 | Flywheel | 51 | Snap Ring |
| 22 | "O" Ring* | 52 | Bushing |
| 23 | Bearing Retainer | 53 | Pinion |
| 24 | Spacer | 54 | Gasket |
| 25 | Spring | 55 | Cylinder |
| 26 | Friction Disc | 56 | Socket Head Set Screw |
| 27 | Rear Housing | 57 | Socket Head Set Screw |
| 28 | Brake Plate | 58 | Bearing |
| 29 | Sleeve | 59 | Bushing |
| 30 | Bearing Support | 60 | Ball Retainer |
| 61 | Retaining Ring | ||
| 62 | Piston Shaft | ||
| 63 | Gasket* | ||
| 64 | Drive Spider | ||
| 65 | Mounting Screws |
| #24 TORC-PAC CLUTCH | |||||||
|---|---|---|---|---|---|---|---|
| PARTS LIST | |||||||
| PART NO. | DESCRIPTIONQNO. REQ'D | NO. REQ'D | DETAIL NO. | PART NO. | DESCRIPTION | NO REQ'D | DETAIL NO. |
| 1 | Locknut | 1 | 47 | Spacer | 1 | ||
| 2 | Lockwasher | 1 | 48 | "O" Ring | 1 | ||
| 3 | Spline Ring | 1 | 49 | Spacer Bushing | 1 | ||
| 4 | Sun Gear | 1 | 50 | Inner Spacer | 1 | ||
| 5 | Cover Plate | 1 | 51 | Spring Retainer | 12 | ||
| 6 | Retainer | 1 | 52 | Gasket | 12 | ||
| 7 | Gasket | 1 | 53 | Spring | 12 | ||
| 8 | Drive Bolt | 8 | 54 | Brake Release Pin | 8 | ||
| 9 | Oil Retainer | 1 | 55 | Air Breather | 1 | ||
| 10 | Oil Catcher | 1 | 56 | Keybolt | 1 | ||
| 11 | Gasket | 1 | 57 | Security Locknut | 1 | ||
| 12 | Piston | 1 | 58 | Brake Ring Key | 1 | ||
| 13 | Oil Catcher | 1 | 59 | Lock Pin (Short) | 5 | ||
| 14 | "U" Packing | 1 | 60 | Lock Pin (Long) | 5 | ||
| 15 | Pressure Ring | 1 | 61 | Hex. HD. Gap Scr. | 10 | ||
| 16 | "O" Ring | 1 | 62 | Planet Gear | 5 | ||
| 17 | Piston | 1 | 63 | Planet Pin | 5 | ||
| 18 | Flyw. Brake Spring | 4 | 64 | Pin Retainer Ring | 1 | ||
| 19 | Clutch Ring | 1 | 65 | Clutch Press. Ring | 1 | ||
| 20 | Friction Disc | 11 | 66 | Pressure Ring Key | 1 | ||
| 21 | Driven Disc | 11 | 67 | Air Inlet Assy. | 1 | ||
| 22 | Annulus Spline | 1 | 68 | Dowel Pin | 4 | ||
| 23 | Housing | 1 | 69 | "E" Packing-Outer | 1 | ||
| 24 | Ring Gear | 1 | 70 | Gasket | 1 | ||
| 25 | Retaining Ring | 1 | 71 | Rest Button | 8 | ||
| 26 | Brake Pressure Ring | 1 | 72 | Oil Slinger | 1 | ||
| 27 | Soc. HD. Cap Scr. | 16 | 73 | Bearing | 2 | ||
| 28 | Brake Ring | 1 | 74 | Spacer | 1 | ||
| 29 | Soc. HD. Cap Scr. | 12 | 75 | "O" Ring | 1 | ||
| 30 | Soc. HD. Cap Scr. | 8 | 76 | Spacer | 1 | ||
| 31 | Gasket | 1 | 77 | "O" Ring | 1 | ||
| 32 | Retainer | 4 | 78 | Flywheel | 1 | ||
| 33 | Brake Pressure Pl. | 1 | 79 | "O" Ring | 2 | ||
| 34 | Spacer | 1 | 80 | Spacer | 1 | ||
| 35 | Front Cover | 1 | 81 | Quill | 1 | ||
| 36 | Spring Seat | 12 | 82 | Polar Lever | 1 | ||
| 37 | Spring Guide | 12 | 83 | Retainer Ring | 1 | ||
| 38 | Slotted Nut | 12 | 84 | "E" Packing-Inner | 1 | ||
| 39 | Spacer | 1 | 85 | Retainer | 4 | ||
| 40 | Gasket | 1 | 86 | Bushing | 1 | ||
| 41 | Oil Catcher Ring | 1 | 87 | Bushing Retainer | 1 | ||
| 42 | Bearing | 2 | 88 | Locknut | 1 | ||
| 43 | Bearing Retainer | 1 | 89 | Lockwasher | 1 | ||
| 44 | Oil Slinger | 1 | 90 | Thrust Washer | 10 | ||
| 45 | Retainer Plate | 1 | 91 | Soc. HD. Cap Scr. | 6 | ||
| 46 | Planet Spider | 1 | 92 | Hex. HD. Cap Scr. | 12 |
| #24 TORC-PAC CLUTCH | |||
|---|---|---|---|
| PARTS LIST | |||
| PART NO. | DESCRIPTIONQNO. REQ'D | NO. REQ'D | DETAIL NO. |
| 93 | Hex. HD. Cap Scr. | 6 | |
| 94 | Soc. HD. Cap Scr. | 6 | |
| 95 | Spring Lock Washer | 6 | |
| 96 | Hex. HD. Cap Scr. | 16 | |
| 97 | Hex. HD. Cap Scr. | 10 | |
| 98 | Soc. HD. Cap Scr. | 12 | |
| 99 | Soc. HD. Cap Scr. | 12 | |
| 100 | Soc. HD. Cap Scr. | 16 | |
| 101 | Soc. HD. Cap Scr. | 8 | |
| 102 | Soc. HD. Cap Scr. | 12 | |
| 103 | Soc. HD. Cap Scr. | 8 | |
| 104 | Spring Lock Washer | 8 | |
| 105 | Hex. HD. Cap Scr. | 8 | |
| 106 | Key | 1 | |
| 107 | Hex. HD. Cap Scr. | 3 | |
| 108 | Soc. HD. Cap Scr. | 24 |
