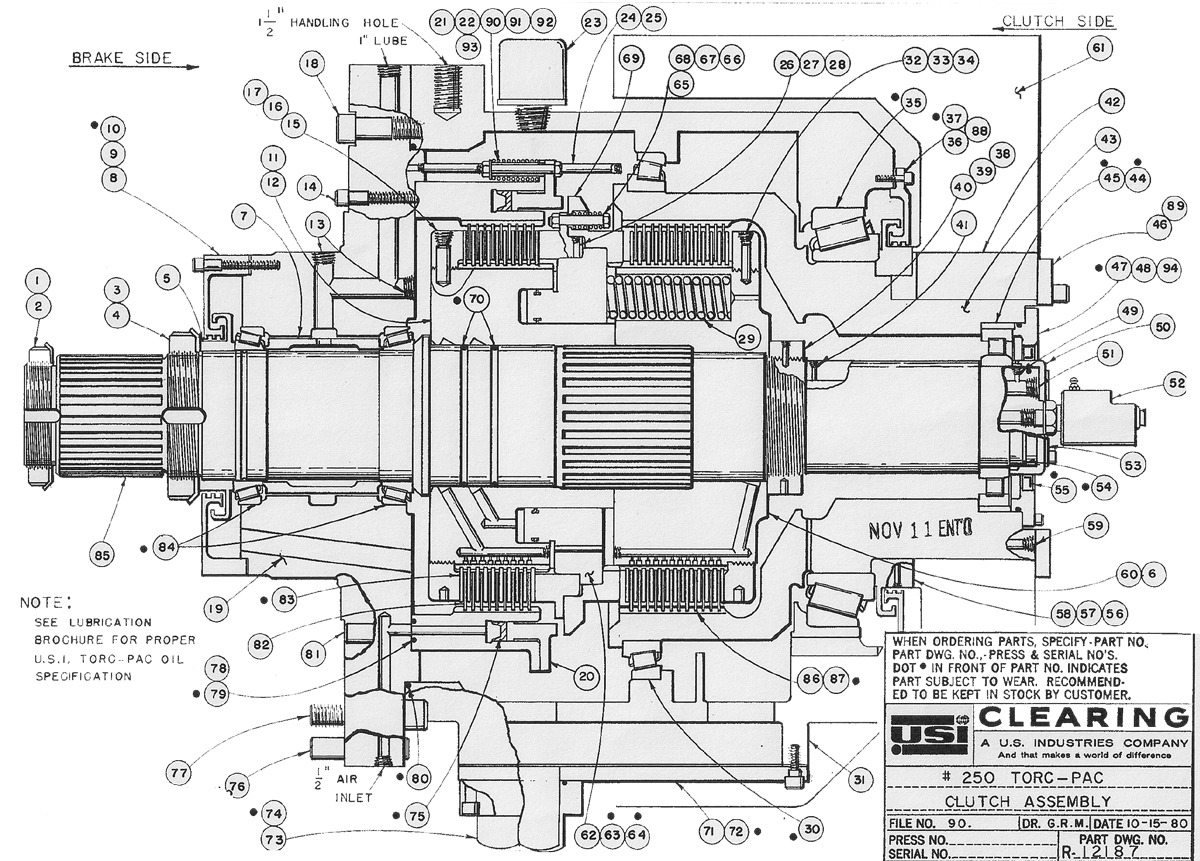

| PARTS LIST | |||||||
|---|---|---|---|---|---|---|---|
| PART NO. | DESCRIPTION | NO. REQ'D | DETAIL NO. | PART NO. | DESCRIPTION | NO. REQ'D | DETAIL NO. |
| 1 | Locknut | 1 | 46 | Retainer | 1 | ||
| 2 | Lockwasher | 1 | • 47 | "O" Ring | 1 | ||
| 3 | Locknut | 1 | 48 | Retainer | 1 | ||
| 4 | Lockwasher | 1 | 49 | Pipe Plug | 1 | ||
| 5 | Oil Slinger | 1 | 50 | Oil Seal Seat | 1 | ||
| 6 | Pipe Plug | 6 | 51 | Pipe Plug | 1 | ||
| 7 | Inner Spacer | 1 | 52 | Rotary Union | 1 | ||
| 8 | Oil Catcher Ring | 1 | 53 | Lockplate | 1 | ||
| 9 | Soc. HD. Cap Scr. | 12 | • 54 | O" Ring | 1 | ||
| • 10 | Gasket | 1 | •55 | Oil Seal | 1 | ||
| 11 | Brake Hub | 1 | 56 | Dowel Pin | 2 | ||
| 12 | Pipe Plug | 6 | 57 | Pipe Plug | 2 | ||
| 13 | Pipe Plug | 2 | 58 | Oil Slinger | 1 | ||
| 14 | Soc. HD. Cap Scr. | 8 | 59 | Pipe Plug | 1 | ||
| 15 | Pressure Plate | 1 | 60 | Drive Hub | 1 | ||
| 16 | Dowel Pin | 2 | 61 | Flywheel | 1 | ||
| 17 | Pipe Plug | 2 | 62 | Piston | 1 | ||
| 18 | Soc. HD. Cap Scr. | 12 | •63 | "GT" Ring-Inner | 1 | ||
| 19 | Bearing Housing | 1 | •64 | "GT" Ring-Outer | 1 | ||
| 20 | Piston-Flywhl. Brk. | 1 | 65 | Hex. HD. Cap Scr. | 8 | ||
| 21 | Spacer | 8 | 66 | Spring | 8 | ||
| 22 | Spring | 8 | 67 | Spacer | 8 | ||
| 23 | Air Breather | 1 | 68 | Hex. Slotted Nut | 8 | ||
| 24 | Pipe Plug | 1 | 69 | Clutch Press. Ring | 1 | ||
| 25 | Lub. Tube | 1 | •70 | "O" Ring | 2 | ||
| 26 | Pressure Ring | 1 | 71 | Cover Plate | 1 | ||
| 27 | Dowel Pin | 3 | •72 | Gasket | 1 | ||
| 28 | Pipe Plug | 3 | 73 | Drain Pipe | 1 | ||
| 29 | Spring | 14 | •74 | "O" Ring | 1 | ||
| • 30 | Roller Bearing | 1 | •75 | Packing | 1 | ||
| 31 | Clutch Housing | 1 | 76 | Dowel Pin | 2 | ||
| 32 | Pressure Plate | 1 | 77 | Soc. HD. Cap Scr. | 12 | ||
| 33 | Dowel Pin | 2 | 78 | Brake Ring | 1 | ||
| 34 | Pipe Plug | 2 | •79 | "O" Ring | 1 | ||
| •35 | Roller Bearing | 1 | •80 | "O" Ring | 1 | ||
| 36 | Seal Ring | 1 | 81 | Dowel Pin | 1 | ||
| •37 | Gasket | 1 | 82 | Driven Disc-Brake | 9 | ||
| 38 | Pipe Plug | 1 | •83 | Friction Disc-BRK | 10 | ||
| 39 | Dowel Pin | 1 | •84 | Roller Bearing | 2 | ||
| 40 | Locknut | 1 | 85 | Driveshaft | 1 | ||
| 41 | Pipe Plug | 1 | 86 | Driven Disc-Clutch | 12 | ||
| 42 | Key | 1 | •87 | Friction Disc-Clutch | 13 | ||
| 43 | Flywheel Shaft | 1 | 88 | Soc. HD. Cap Scr. | 12 | ||
| •44 | Radial Bearing | 1 | 89 | Soc. HD. Cap Scr. | 10 | ||
| •45 | Bushing | 1 | 90 | Cotter Pin | 8 |
| PARTS LIST | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | NO. REQ'D | DETAIL NO. |
| 91 | Stud | 8 | |
| 92 | Washer | 8 | |
| 93 | Nut | 8 | |
| 94 | Soc. HD. Cap Scr. | 6 |
