How to find the parts you need

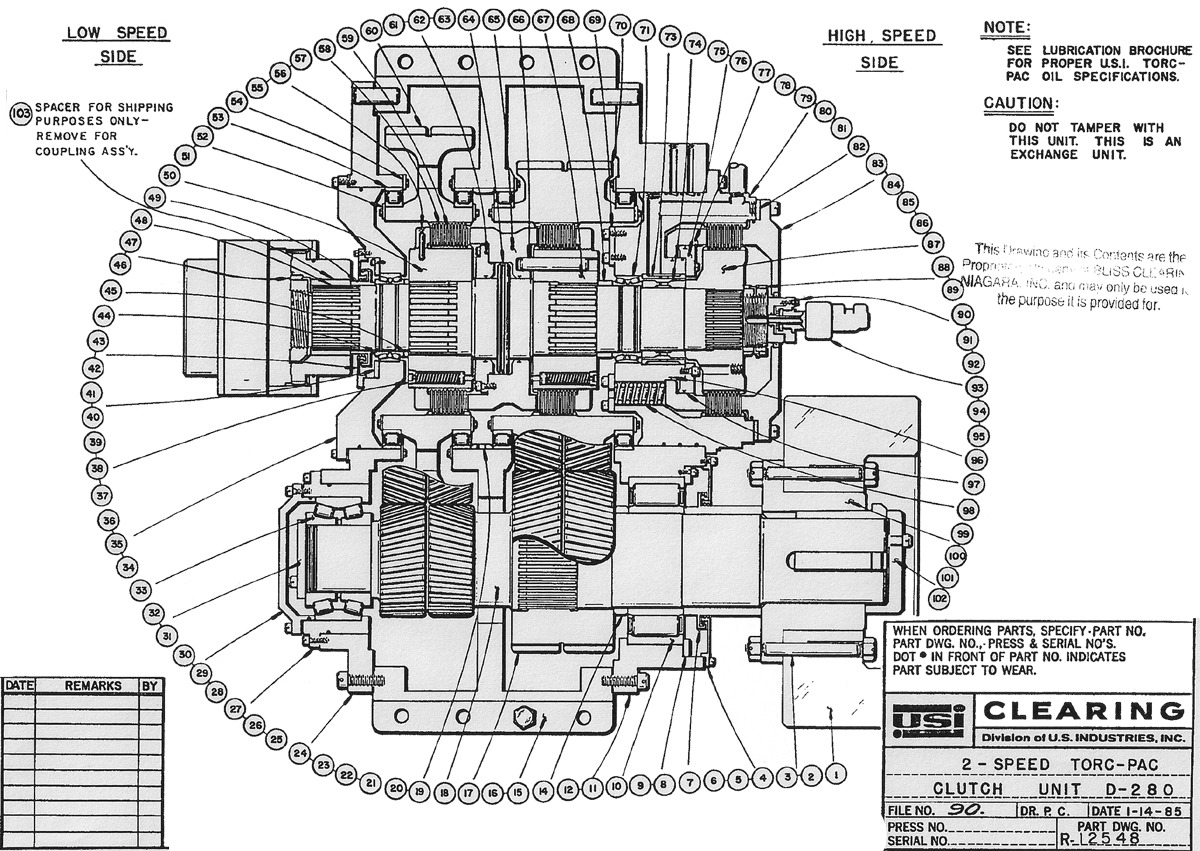

① Scroll to view parts list below or download the spec sheet.
② Once you know which parts you want to order, request a parts quote.
| PARTS LIST | |||||||
|---|---|---|---|---|---|---|---|
| PART NO. | DESCRIPTION | NO. REQ'D. | DETAIL NO. | PART | DESCRIPTION | NO. REQ'D. | DETAIL NO. |
| 1 | Flywheel | 1 | 47 | Lockwasher | 1 | ||
| 2 | Slywheel Stud | 8 | 48 | Output Shaft | 1 | ||
| 3 | Slotted Nut | 16 | 49 | Oil Slinger | 1 | ||
| 4 | Rear Seal | 1 | 50 | Clutch Hub | 1 | ||
| 5 | Soc. HD. Cap Screw | 51 | Bearing Retainer | 24 | |||
| 6 | Gasket | 1 | 52 | Hex. HD. Cap Screw | |||
| 7 | Slinger | 1 | 53 | Bearings | 4 | ||
| 8 | Bearing Retainer | 1 | 54 | Bearing Retainer | 8 | ||
| 9 | Soc. HD. Cap Screw | 55 | Clutch Pressure Pl. | 2 | |||
| 10 | Bearing Retainer | 1 | 56 | Tapped Dowel Pin | 2 | ||
| 11 | Rear Cover | 1 | 57 | Soc. HD. Cap Screw | 2 | ||
| 12 | Tapped Dowel Pin | 4 | 58 | Driven Disc | 34 | ||
| 13 | 59 | Friction Disc | 35 | ||||
| 14 | Spacer | 1 | 60 | Low Speed Gear | 1 | ||
| 15 | Housing | 1 | 61 | Clutch Piston | 1 | ||
| 16 | Hex HD. Cap Screw | 62 | GT Ring | 2 | |||
| 17 | High Speed Pinion | 1 | 63 | "O" Ring | 1 | ||
| 18 | Flywheel shaft | 1 | 64 | GT Ring | 1 | ||
| 19 | Bearing spacer | 1 | 65 | Clutch Piston | 1 | ||
| 20 | Straight Key | 1 | 66 | Tapped Dowel Pin | 2 | ||
| 21 | Front Cover | 1 | 67 | Clutch Hub | 1 | ||
| 22 | Gasket | 2 | 68 | Spacer | 1 | ||
| 23 | Soc. HD. Cap Screw | 69 | Retaining Plate | 1 | |||
| 24 | Tapped Dowel Pin | 4 | 70 | Highspeed Gear | 1 | ||
| 25 | Bearing Retainer | 1 | 71 | Bearing | 1 | ||
| 26 | "O" Ring | 1 | 72 | ||||
| 27 | Soc. HD. Cap Screw | 73 | Outer Seal | 1 | |||
| 28 | Bearing Retainer | 1 | 74 | Inner Seal | 1 | ||
| 29 | "O" Ring | 1 | 75 | Brake Piston Ret. | 1 | ||
| 30 | Soc. HD. Cap Screw | 76 | Soc. HD. Cap Screw | ||||
| 31 | Bearing Retainer | 1 | 77 | Brake Piston | |||
| 32 | Soc. HD. Cap Screw | 78 | "O" Ring-Small | 1 | |||
| 33 | Bearing | 1 | 79 | Brake Cylinder | 1 | ||
| 34 | Font Bearing Supt. | 1 | 80 | Soc. HD. Cap Screw | |||
| 35 | "O" Ring | 81 | "O" Ring-Large | 3 | |||
| 36 | Soc. HD. Cap Screw | 82 | Brake Shim | 1 | |||
| 37 | Pipe Plug | 32 | 83 | Brake Disc Retainer | 1 | ||
| 38 | Spring | 32 | 84 | "O" Ring | 1 | ||
| 39 | Centering Plunger | 32 | 85 | Oil Seal | 1 | ||
| 40 | Bearing Retainer | 1 | 86 | Soc. HD. Cap Screw | |||
| 41 | Soc. HD. Cap Screw | 87 | Brake Hub | 1 | |||
| 42 | Front Seal | 1 | 88 | Locknut | 2 | ||
| 43 | Gasket | 1 | 89 | Lockwasher | 1 | ||
| 44 | Bearing | 1 | 90 | Rotary Union Adapt | 1 | ||
| 45 | Spacer | 1 | 91 | "O" Ring | 1 | ||
| 46 | Locknut | 1 | 92 | Hex. HD. Cap Screw |
| PARTS LIST | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | NO. REQ'D | DETAIL NO. |
| 93 | Rotary Union | 1 | |
| 94 | Rotary Union Tube | 1 | |
| 95 | "O" Ring-Tube | 1 | |
| 96 | GT Ring | 1 | |
| 97 | GT Ring | 1 | |
| 98 | Spring | 14 | |
| 99 | Flywheel Hub | 1 | |
| 100 | Flywheel Gub Key | 2 | |
| 101 | End Plate | 1 | |
| 102 | Soc. HD. Cap Screw |
