How to find the parts you need
① Scroll to view parts list below or download the spec sheet.
② Once you know which parts you want to order, request a parts quote.

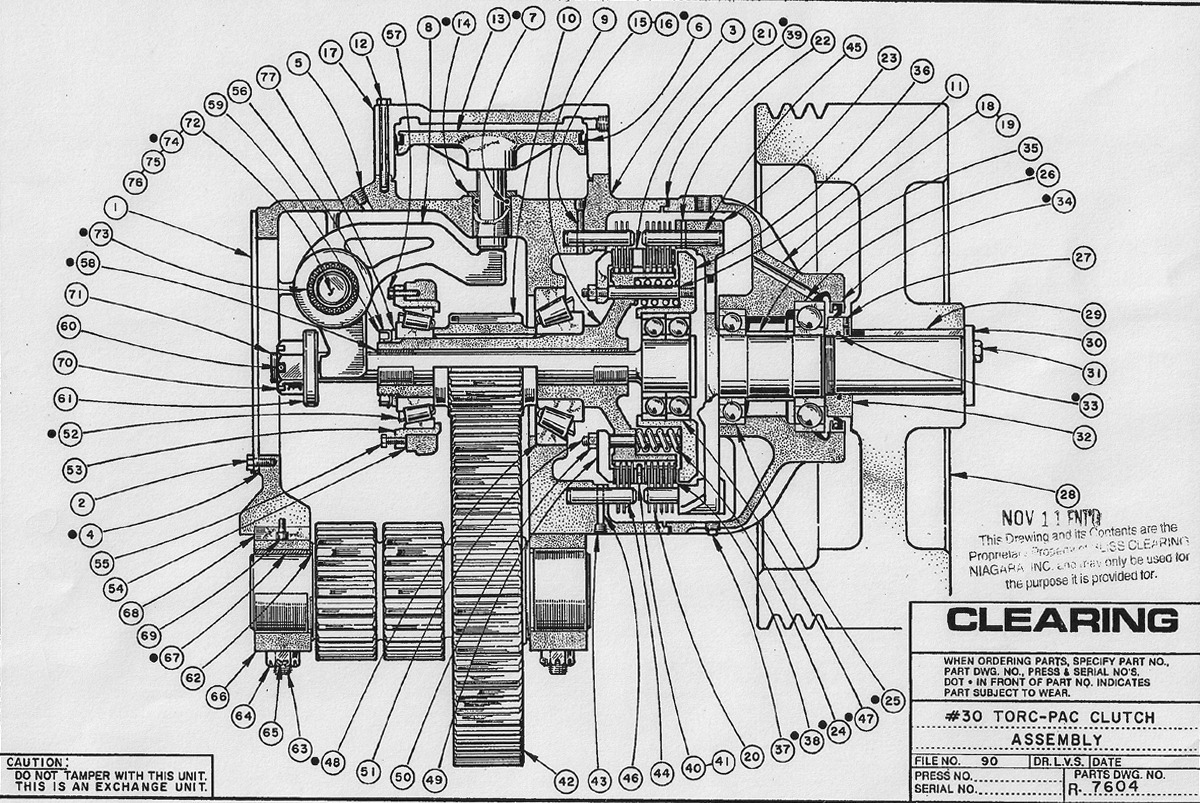

| PARTS LIST | |||||
|---|---|---|---|---|---|
| ITEM NO. | DESCRIPTION | NO. REQ'D | ITEM NO. | DESCRIPTION | NO. REQ'D |
| 1 | Cover Plate | 1 | 39 | Gasket | 1 |
| 2 | Hex. Head Cap Screw | 8 | 40 | Set Screw (Short) | 1 |
| 3 | Main Housing | 1 | 41 | Set Screw (Long) | 1 |
| 4 | Gasket | 1 | 42 | Cluster Gear | 1 |
| 5 | Pipe Pluig | 1 | 43 | Pipe Plug | 4 |
| 6 | "E" Packing | 1 | 44 | Brake Pin | 4 |
| 7 | "O" Ring | 1 | 45 | Clutch Pin | 4 |
| 8 | Rocker Arm | 1 | 46 | Dowel Pin (Bottom) | 1 |
| 9 | Pinion Shaft | 1 | 47 | Bearing (Pair) | 1 |
| 10 | Pinion | 1 | 48 | Bearing (Pair) | 1 |
| 11 | Spacer | 12 | 49 | Brake Plate | 1 |
| 12 | Hex. Head Cap Screw | 8 | 50 | Locknut | 12 |
| 13 | Piston | 1 | 51 | Stud | 12 |
| 14 | Bushing | 1 | 52 | Bearing | 1 |
| 15 | Dowel Pin (Top) | 1 | 53 | Bearing Housing | 1 |
| 16 | Dowel Pin (Side) | 2 | 54 | Shims (Set) | 1 |
| 17 | Cylinder | 1 | 55 | Jack Screw | 3 |
| 18 | Clutch Housing | 1 | 56 | Lockwasher | 1 |
| 19 | Hex. Head Cap Screw | 10 | 57 | Hex. Head Cap Screw | 6 |
| 20 | Disc | 9 | 58 | Bushing | 2 |
| 21 | Back-Up Plate | 1 | 59 | Locknut | 1 |
| 22 | Roll Pin | 4 | 60 | Roll Pin | 1 |
| 23 | Input Shaft | 1 | 61 | Washer | 1 |
| 24 | Spring | 12 | 62 | Thrust Washer | 2 |
| 25 | Bearing | 1 | 63 | Stud | 8 |
| 26 | Bearing | 1 | 64 | Slotted Nut | 8 |
| 27 | Set Screw | 2 | 65 | Cotter Pin | 8 |
| 28 | Flywheel | 1 | 66 | Pillow Block | 2 |
| 29 | Taper Key | 1 | 67 | Bushing | 2 |
| 30 | Cap | 1 | 68 | Special Key | 4 |
| 31 | Hex. Head Cap Screw | 4 | 69 | Soc. Head Cap Screw | 4 |
| 32 | Locknut | 1 | 70 | Slotted Nut | 1 |
| 33 | "O" Ring | 1 | 71 | Pull Rod | 1 |
| 34 | Oil Seal | 1 | 72 | Bell Crank Pin | 1 |
| 35 | Sleeve | 1 | 73 | Bearing | 2 |
| 36 | Clutch Plate | 1 | 74 | "O" Ring | 2 |
| 37 | Pipe Plug | 1 | 75 | Dowel Pin | 1 |
| 38 | Friction Disc. | 11 | 76 | Pipe Plug | 1 |
| 77 | Bearing Retainer | 1 |
