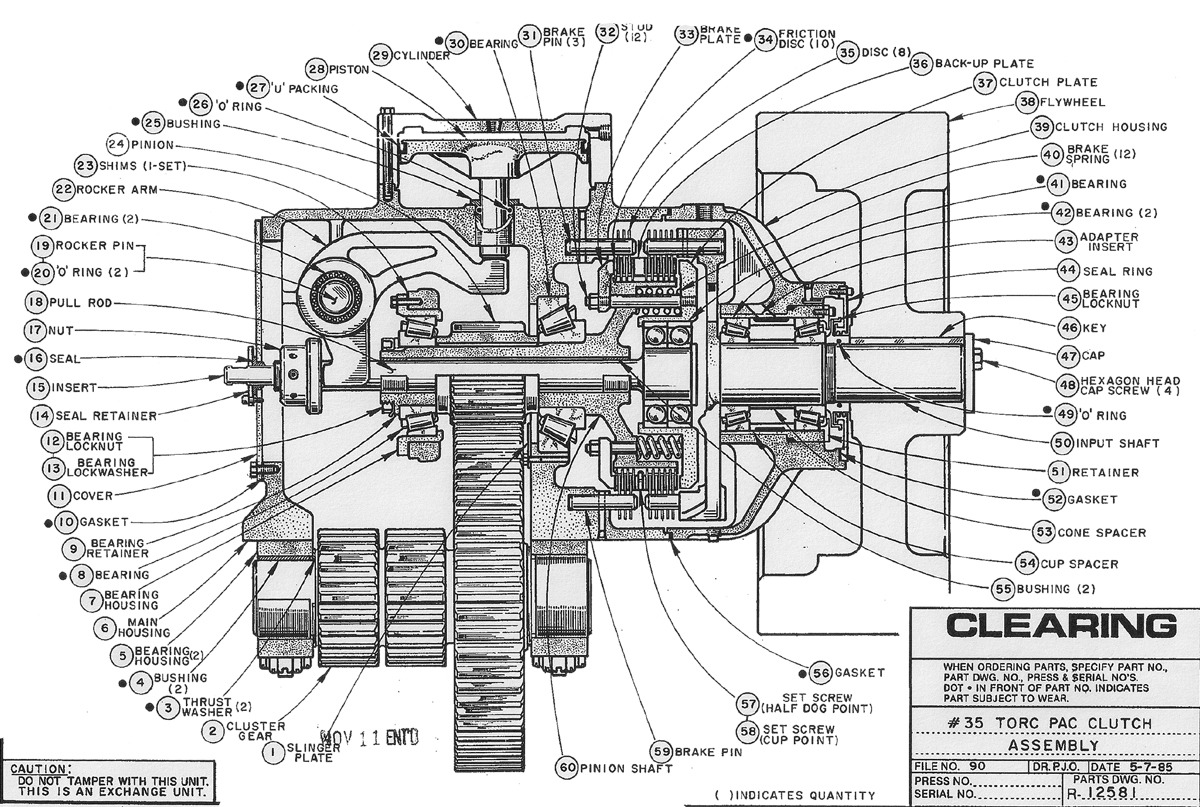

| Part No. | Description | Part. No. | Description |
|---|---|---|---|
| 1 | Slinger Plate | 31 | Brake Pin (3) |
| 2 | Cluster Gear | 32 | Stud (2) |
| 3 • | Thrust Washer (2) | 33 | Brake Plate |
| 4• | Bushing (2) | 34• | Friction Disc (10) |
| 5 | Bearing Housing (2) | 35 | Disc (8) |
| 6 | Main Housing | 36 | Back-Up Plate |
| 7 | Bearing Housing | 37 | Clutch Plate |
| 8• | Bearing | 38 | Flywheel |
| 9 | Bearing Retainer | 39 | Clutch Housing |
| 10• | Gasket | 40 | Brake Spring (12) |
| 11 | Cover | 41• | Bearing |
| 12 | Bearing Locknut | 42• | Bearing (2) |
| 13 | Bearing Lockwasher | 43 | Adapter Insert |
| 14 | Seal Retainer | 44 | Seal Ring |
| 15 | Insert | 45 | Bearing Locknut |
| 16• | Seal | 46 | Key |
| 17 | Nut | 47 | Cap |
| 18 | Pull Rod | 48 | Hexagon Head Cap Screw (4) |
| 19 | Rocker Pin | 49• | "O" Ring |
| 20• | "O" Ring (2) | 50 | Input Shaft |
| 21• | Bearing (2) | 51 | Retainer |
| 22 | Rocker Arm | 52• | Gasket |
| 23 | Shims (I-Set) | 53 | Cone Spacer |
| 24 | Pinion | 54 | Cup Spacer |
| 25• | Bushing | 55 | Bushing (2) |
| 26• | "O" Ring | 56• | Gasket |
| 27• | "U" Packing | 57 | Set Screw (Half Dog Point) |
| 28 | Piston | 58 | Set Screw (Cup Point) |
| 29 | Cylinder | 59 | Brake Pin (3) |
| 30• | Bearing | 60 | Pinion Shaft |
() INDICATES QUANTITY
CAUTION: DO NOT TAMPER WITH THIS UNIT. THIS IS AN EXCHANGE UNIT.
