How to find the parts you need
① Scroll to view parts list below or download the spec sheet.
② Once you know which parts you want to order, request a parts quote.
| Part Number | Description | No. Req. | Part Number | Description | No. Req. | Part Number | Description | No. Req. | Part Number | Description | No. Req. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Retainer Plate | 1 | 31 | Planet Pin | 5 | 65 | Locknut | 1 | 94 | Spacer | 1 |
| 2 | Gasket | 1 | 32 | Planet Washer | 10 | 66 | Spacer | 1 | 95 | “O“ Ring | 1 |
| 3 | Key Bolt | 1 | 33 | Stop Pin | 8 | 67 | Spacer | 1 | 96 | Oil Slinger | 1 |
| 4 | Hex Nut | 1 | 34 | Spacer Ring | 1 | 68 | Bearing | 2 | 97 | “O“ Ring | 1 |
| 5 | Cap Screw | 35 | Dowel Pin | 4 | 69 | Sun Gear | 1 | 98 | Inner Spacer | 1 | |
| 6 | Lockwasher | 36 | Polar Lever | 24 | 70 | Oil Slinger | 1 | 99 | Bushing | 1 | |
| 7 | 37 | Retainer Ring | 1 | 71 | Oil Catcher | 1 | 100 | Planet Spider | 1 | ||
| 8 | Retainer Plate | 1 | 38 | Cap Screw | 72 | 101 | Planet Gear | 5 | |||
| 9 | Gasket | 1 | 39 | Cap Screw | 73 | Slinger | 1 | 102 | Spacer Bushing | 1 | |
| 10 | Breather | 1 | 40 | Piston | 1 | 74 | “E“Packaging | 1 | 103 | Bearing | 2 |
| 11 | 41 | Guide Ring | 1 | 75 | “O“ Ring | 1 | 104 | Bearing Retainer | 1 | ||
| 12 | 42 | Cap Screw | 76 | Male Pipe Connector | 1 | 105 | Gasket | 1 | |||
| 13 | 43 | “E“ Packing | 1 | 77 | Flex. Hose | 1 | 106 | Gasket | 1 | ||
| 14 | 44 | Lubrication Pipe | 1 | 78 | Reducer Bushing | 1 | 107 | Oil Seal | 1 | ||
| 15 | Spring Retainer | 22 | 45 | Quill | 1 | 79 | Clutch Ring | 1 | 108 | Oil Catcher | 1 |
| 16 | Gasket | 22 | 46 | Cap Screw | 80 | Cap Screw | 109 | Cap Screw | |||
| 17 | Cap Screw | 47 | Retainer Ring | 1 | 81 | Back-up Plate | 1 | 110 | Spacer | 1 | |
| 18 | Lockwasher | 48 | Cap Screw | 82 | Brake Ring | 1 | 111 | Spacer | 1 | ||
| 19 | Cap Screw | 49 | Flywheel | 1 | 83 | Retainer | 4 | 112 | Lockwasher | 1 | |
| 20 | Housing | 1 | 50 | “O“ Ring | 1 | 84 | Cap Screw | 113 | Locknut | 1 | |
| 21 | Friction Disc | 8 | 51 | Oil Retainer | 1 | 85 | Retainer Ring | 1 | |||
| 22 | Brake Pressure Plate | 1 | 52 | “O“ Ring | 2 | 86 | Cap Screw | ||||
| 23 | Spring | 22 | 53 | “O“ Ring | 1 | 87 | Pressure Ring | 1 | |||
| 24 | Driven Disc | 8 | 54 | Drive Hub | 1 | 88 | “U“ Packing | 1 | |||
| 25 | Cap Screw | 55 | Cap Screw | 89 | Piston | 1 | |||||
| 26 | Release Pin | 8 | 56 | Cap Screw | 90 | Spring | 6 | ||||
| 27 | Cap Screw | 57 | Retainer | 1 | 91 | Oil Catcher Ring | 1 | ||||
| 28 | Cap Screw | 58 | Drive Bolt | 12 | 92 | Gasket | 1 | ||||
| 29 | Key | 1 | 59 | Spline Hulb | 1 | 93 | |||||
| 30 | Ring Gear | 1 | 60 | ||||||||
| 61 | Lockwasher | 1 | |||||||||
| 62 | Spacer | 1 | |||||||||
| 63 | Cover Plate | 1 | |||||||||
| 64 | Gasket | 1 |

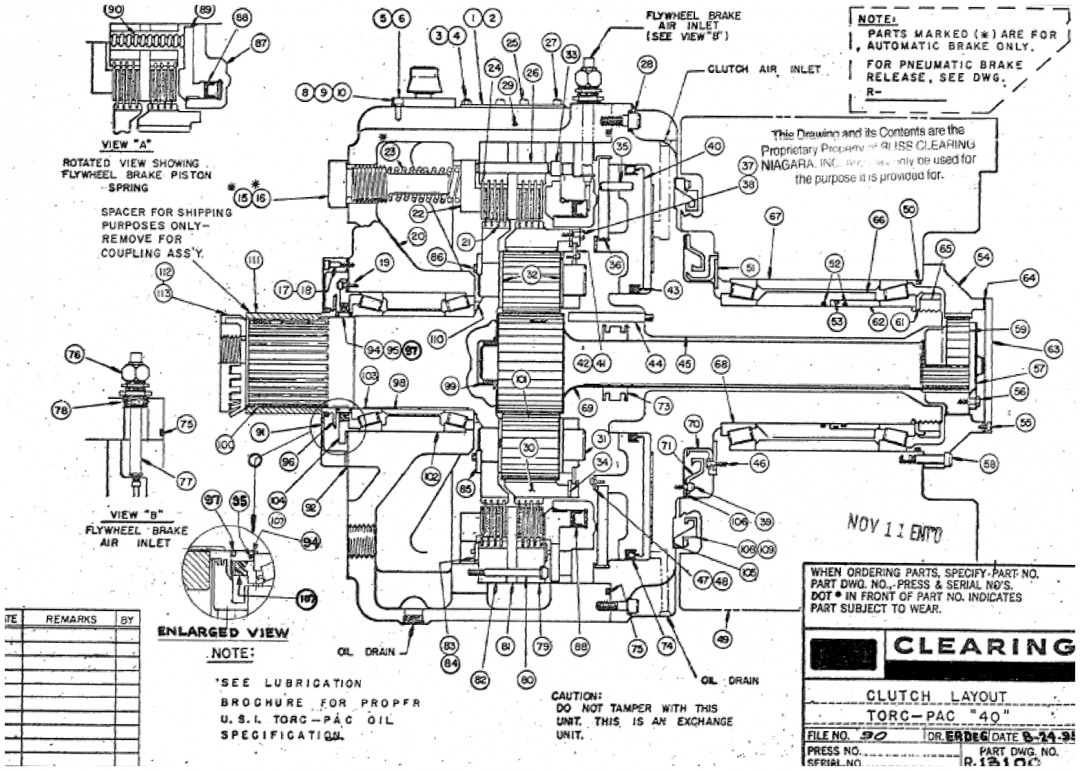

Once you download the diagram, you can use it to help diagnose your press, identify which parts need to be replaced and learn how to disassemble and reassemble the machine. Each part is conveniently labeled, so you can refer to the chart for the part’s exact name and other identifying information. The chart also displays the required quantity of the part, in case you want to order the full set or keep a few spares on hand. Either way, when you order from BCN, you’re ordering from Clearing – and there’s no better way to service your press than from the source itself.
