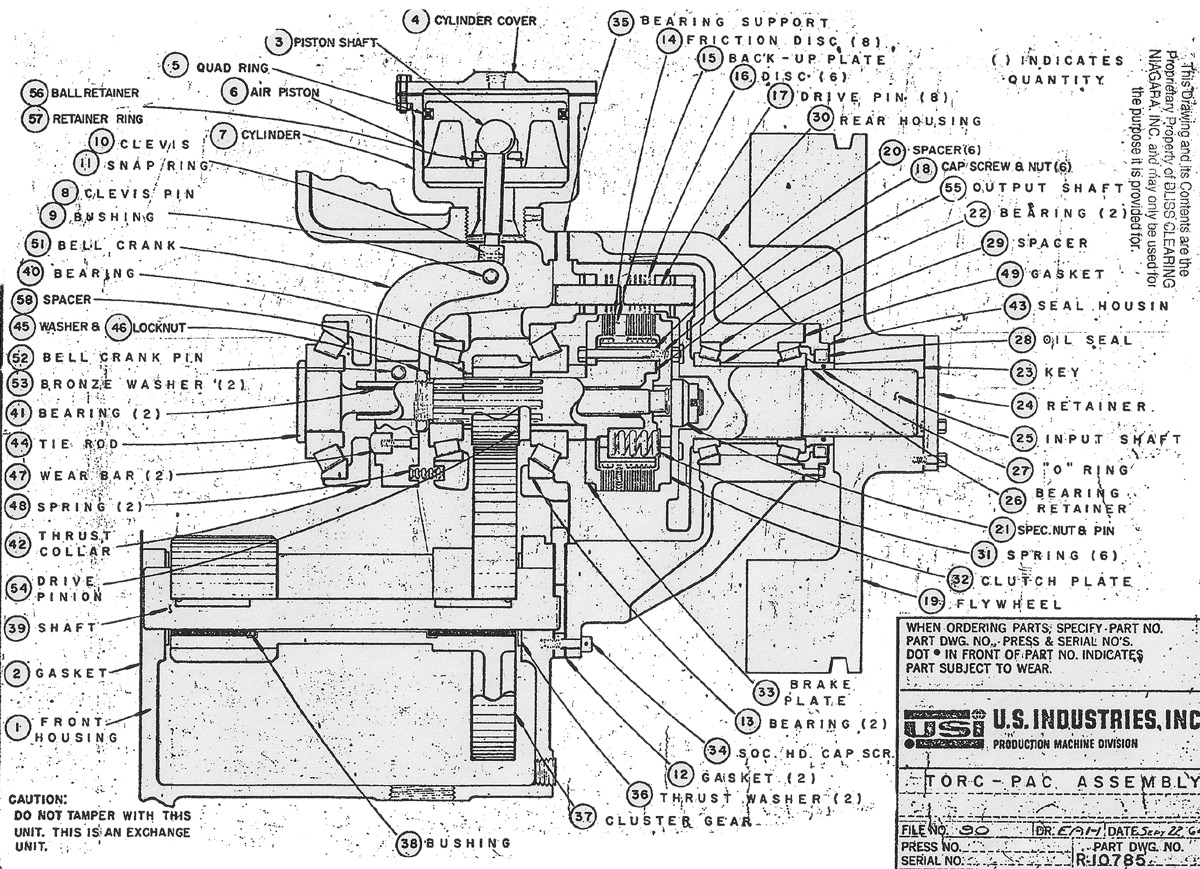

|Part No.||Description||Part No.||Description|
|1||Front Housing||30||Rear Housing|
|3||Piston Shaft||32||Clutch Plate|
|4||Cylinder Cover||33||Brake Plate|
|5||Quad Ring||34||Soc. Hd. Cap Scr.|
|6||Air Piston||35||Bearing Support|
|7||Cylinder||36||Thrust Washer (2)|
|8||Clevis Pin||37||Cluster Gear|
|12||Gasket (2)||41||Bearing (2)|
|13||Bearing (2)||42||Thrust Collar|
|14||Friction Disc (8)||43||Seal Housing|
|15||Back-Up Plate||44||Tie Rod|
|17||Drive Pin (8)||46||Locknut|
|18||Cap Screw & Nut (6)||47||Wear Bar (2)|
|21||Spec. Nut & Pin||51||Bell Crank|
|22||Bearing (2)||52||Bell Crank Pin|
|23||Key||53||Bronze Washer (2)|
|25||Input Shaft||55||Output Shaft|
|26||Bearing Retainer||56||Ball Retainer|
|27||"O" Ring||57||Retainer Ring|
