How to find the parts you need
① Scroll to view parts list below or download the spec sheet.
② Once you know which parts you want to order, request a parts quote.

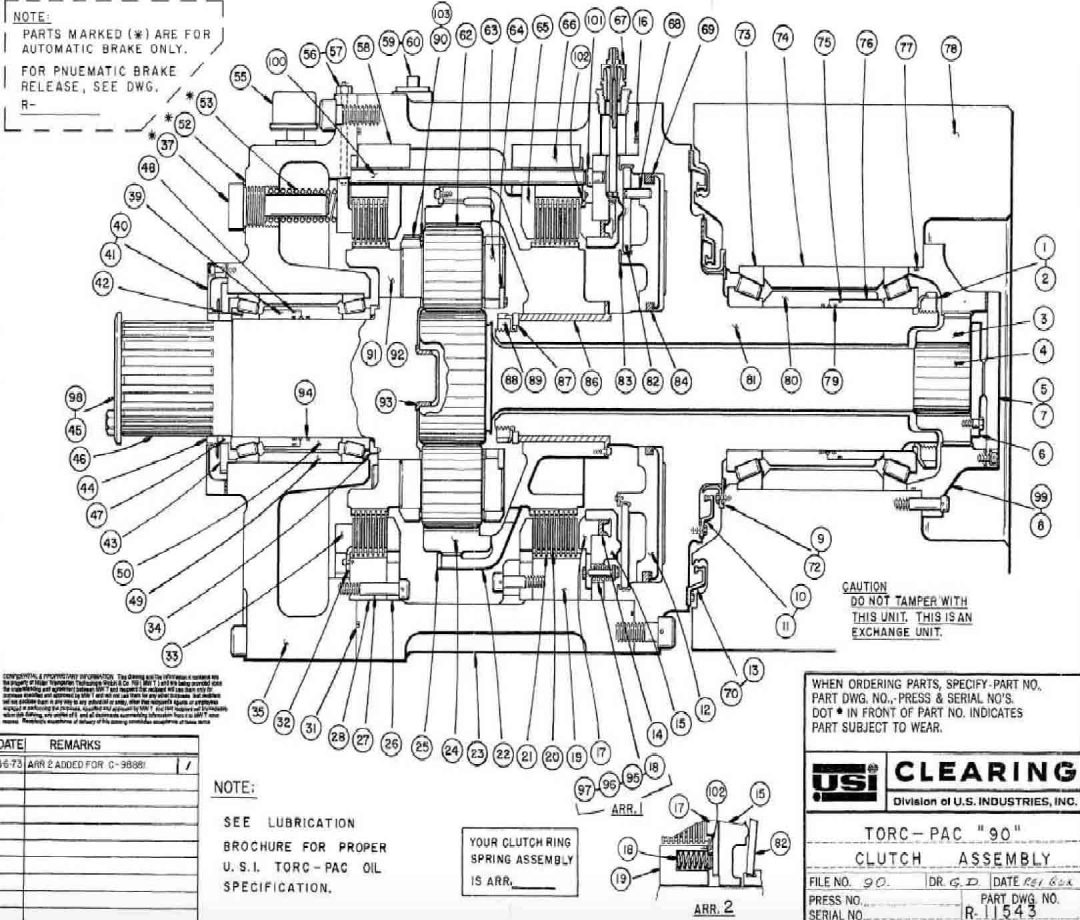

| PART NO. | DESCRIPTION | DETAIL NO. | PART NO. | DESCRIPTION | DETAIL NO. | PART NO. | DESCRIPTION | DETAIL NO. |
|---|---|---|---|---|---|---|---|---|
| 1 | Locknut | 1 | 33 | Brake Pressure Pl. | 1 | 85 | ||
| 2 | Lockwasher | 1 | 34 | Spacer | 1 | 86 | Bushing | 1 |
| 3 | Spline Ring | 1 | 35 | Front Housing | 1 | 87 | Bushing Retainer | 1 |
| 4 | Sun Gear | 1 | 36 | 88 | Locknut | 1 | ||
| 5 | Cover Plate | 1 | 37 | Spring Retainer | 22 | 89 | Lockwasher | 1 |
| 6 | Retainer | 1 | 38 | 70 | Gasket | 1 | ||
| 7 | Gasket | 1 | 39 | Spacer | 1 | 71 | ||
| 8 | Drive Bolt | 8 | 40 | Gasket | 1 | 72 | Oil Slinger | 1 |
| 9 | Oil Retainer | 1 | 41 | Oil Catcher Ring | 1 | 73 | Bearing | 2 |
| 10 | Oil Catcher | 1 | 42 | Bearing | 2 | 74 | Spacer | 1 |
| 11 | Gasket | 1 | 43 | Bearing Retainer | 1 | 75 | “O“ Ring | 1 |
| 12 | Piston | 1 | 44 | Oil Slinger | 1 | 76 | Spacer | 1 |
| 13 | Oil Catcher | 1 | 45 | Retainer Plate | 1 | 77 | “O“ Ring | 1 |
| 14 | Packing | 1 | 46 | Planet Spider | 1 | 78 | Flywheel | 1 |
| 15 | Pressure Ring | 1 | 47 | Spacer | 1 | 79 | “O“ Ring | 2 |
| 16 | “O“ Ring | 1 | 48 | “O“ Ring | 1 | 80 | Spacer | 1 |
| 17 | Piston | 1 | 49 | Spacer Bushing | 1 | 81 | Quill | 1 |
| 18 | Spring | 6 | 50 | Inner Spacer | 1 | 82 | Polar Lever Set (24) | 1 |
| 19 | Clutch Ring | 1 | 51 | 83 | Retainer Ring | 1 | ||
| 20 | Friction Disc | 16 | 52 | Gasket | 22 | 84 | “E“ Packing | 1 |
| 21 | Driven Disc | 16 | 53 | Sping | 22 | 90 | Thrust Washer | 10 |
| 22 | Annulus Spline | 1 | 54 | 91 | Brake Ring | 1 | ||
| 23 | Housing | 1 | 55 | Air Breather | 1 | 92 | Soc. Hd. Cap Screw | 5 |
| 24 | Ring Gear | 1 | 56 | Key Bolt | 1 | 93 | Bushing | 1 |
| 25 | Retaining Ring | 1 | 57 | Locknut | 1 | 94 | “O“ Ring | 2 |
| 26 | Brake Pressure Pg. | 1 | 58 | Key | 1 | 95 | Shoulder Screw | 6 |
| 27 | Soc.Ho. Cap Screw | 16 | 59 | Gear Lubricator | 1 | 96 | Jam Nut | 6 |
| 28 | Brake Ring | 1 | 60 | Gasket | 1 | 97 | Washer | 6 |
| 29 | 61 | 98 | Hex. Hd. Cap Screw | 4 | ||||
| 30 | 62 | Planet Gear | 5 | 99 | Drive Hub | 1 | ||
| 31 | “O“ Ring | 1 | 63 | Planet Pin | 5 | 100 | Brake Release Pin | 8 |
| 32 | Retainer | 4 | 64 | Pin Retainer Ring | 1 | 101 | Rest Button | 8 |
| 65 | Clutch Pressure Ring | 1 | 102 | Retainer | 4 | |||
| 66 | Key | 1 | 103 | Lock Pin | 10 | |||
| 67 | Flex. Hose. Assy. | 1 | ||||||
| 68 | Dowel | 4 | ||||||
| 69 | “E“ Packing | 1 |
Why use genuine parts?
① Good and Services Warranty
Purchase press parts with confidence from BCN Technical Services. We guarantee at the time of delivery, the goods will be free from defects in materials and workmanship. We will perform services in a prompt, professional and workmanlike manner. View our Goods and Services Warranty for details.
② Original OEM Specifications
Replacement parts are manufactured to original OEM specifications from record sets maintained by serial number, so there’s no guessing or wondering if a part will fit. We have original drawings, manufacturing expertise, and the experience of a team of engineers who know your press inside and out.
③ Delivery
BCN Technical Services has an extensive inventory of the most requested OEM replacement parts in stock at our facility in Hastings, MI. Over 14,000 unique spare parts for presses are kept on hand. Our experienced staff is dedicated to quickly providing that critical part, which allows you to avoid delayed repairs, lost productivity and lost revenue.
