Type SU Air Friction Clutch Model 81

Go back to
Bliss Press Parts

How to find the parts you need

Type SU Air Friction Clutch Model 81

① Scroll to view parts list below or download the spec sheet.

② Once you know which parts you want to order, request a parts quote.

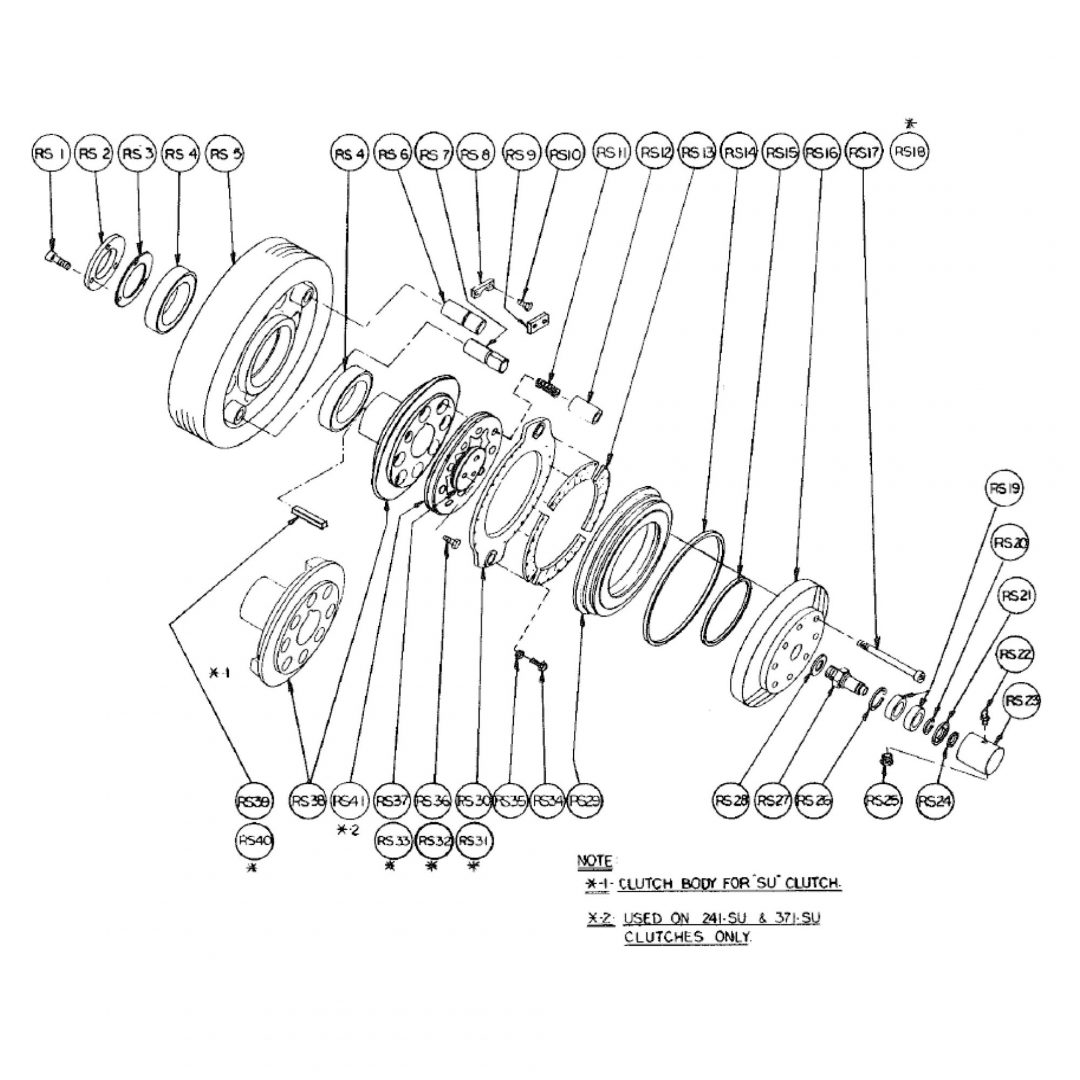

Click to enlarge drawing

Type SU Air Friction Clutch Model 81
Item NumberDescriptionQuanity81-SU Mod. C Apr. 197081-SU Mod D. Aug. 1975
RS-1Bearing Collar Screw6 pcs.6326-0-0213-2
Bearing Collar Screw3 pcs.6326-0-0213-2
RS-2Bearing Collar1 pc. 3382-A-2146-23382-A-2146-2
RS-3Fw. Bearing Shims
.005“ Thk.-Blue2 pcs.0043-3-0165-23124-A-5120-2
.002“Thk.-Red5 pcs.0043-3-0164-23124-A-5119-2
RS-4Flywheel Bearings2 pcs.6250-0-0125-26250-0-0125-2
RS-5Flywheel1 pc.Check RecordCheck Record
RS-6Friction Disc Pin - Round1 pc.0042-3-0615-23263-A-4127-2
RS-7Friction Disc Pin - Flat1 pc.0042-3-0616-23261-A-6140-2
RS-8Keeper Plate - Round1 pc.0043-3-0250-20043-3-0250-2
RS-9Keeper Plate - Flat1 pc.0042-3-0427-20042-3-0427-2
RS-10Keeper Plate Screws4 pcs.1314-3-0008-21314-3-0008-2
RS-11Brake Springs4 pcs.6661-0-0008-26661-0-0008-2
RS-12Drive Pins8 pcs.0047-3-0008-20047-3-0008-2
RS-13Clutch Linings8 pcs.0042-1-0136-20042-1-0136-2
RS-14U-Packing - Outer1 pc.2314-A-6186-22314-A-6186-2
RS-15U-Packing - Inner1 pc.5920-0-0041-25920-0-0041-2
RS-16Air Cylinder1 pc.3684-C-9123-23684-C-9125-2
RS-17Air Cylinder Bolts8 pcs.2011-A-8228-22011-A-8228-2
*RS-18Air Swivel Assembly1 pc.0048-1-0231-4
RS-19Swivel Ball Bearing1 pc.2421-A-3113-22421-A-3112-2
Swivel Ball Bearing1 pc.2422-A-3713-22422-A-3712-2
RS-20Retainer Ring1 pc.2125-A-0058-22125-A-0053-2
RS-21U-Packing1 pc.Not Used5920-0-0110-2
RS-22Alemite Fitting1 pc.2294-A-2462-28393-0-0150-2
RS-23Housing1 pc.Not Used0048-2-0233-2
RS-24Spacer Ring1 pc.3318-A-6112-20048-3-0234-2
RS-25Reducer Bushing1 pc.2222-Z-4208-22222-Z-1011-2
RS-26Retainer Ring1 pc.2125-A-1042-22125-Z-1039-2
RS-27Swivel Sleeve1 pc.3369-A-9132-20048-2-0236-2
RS-28Sleeve Gasket1 pc.2311-A-2167-20048-3-0237-2
RS-29Air Cylinder Piston1 pc.0047-1-0021-20047-1-0021-2
RS-30Clutch Friction Disc Assembly1 pc.3684-B-4213-43684-B-4213-4
*RS-31Clutch Friction Disc1 pc.3491-C-3107-23491-C-3107-2
*RS-32Clutch Friction Disc Bush. - Round1 pc.3341-B-6102-23341-B-6102-2
*RS-33Clutch Friction Disc Bush. - Flat1 pc.3344-B-9104-23344-B-9104-2
RS-34Clutch Lining Screws24 pcs.2011-Z-1583-22011-Z-1583-2
RS-35Clutch Lining Screw Nuts24 pcs.5815-0-0004-25815-0-0004-2
RS-36End Plate Screws3 pcs.1314-3-0015-21314-3-0015-2
RS-37End Plate - (Crankshaft)1 pc.0043-3-0048-23286-A-2119-2
RS-38Clutch Body1 pc.0043-1-0196-23684-C-7826-2
RS-39Shaft Key1 pc.5560-0-0267-25560-0-0267-2
