Clearing 22 Ton OBI

Go back to
Clearing Press Parts

Click to enlarge drawing

Slide Adjustment R-8205

 Slide Adjustment R-8205
1Hex Nut, 1"-8
2Knockout Rod
3Sq. Hd. Set Screw
4Jamb Nut
5R.H. Gib
6Knockout Bar
7Hx. Hd. Cap Screw
8Stud
9Hex Nut
10Slide Cap
11Roll Pin
12L.H. Gib
13Hx. Hd. Cap Screw
14Hx. Hd. Cap Screw
15Slide

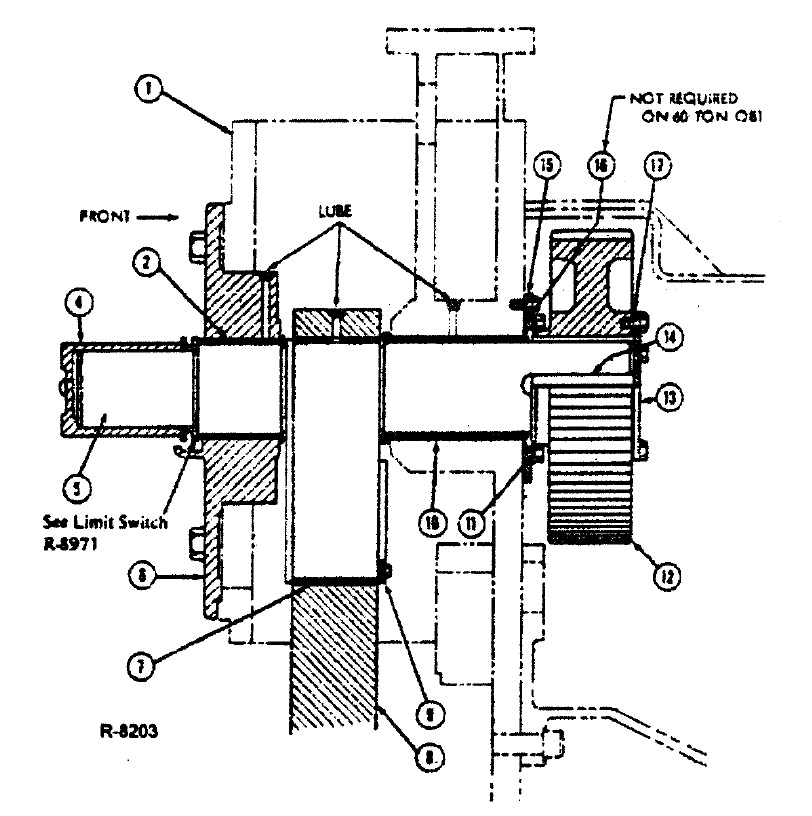

Head Assembly R-8203

 Head Assembly R-8203
1Head
2Ecc. Bushing F.
3Cam Limit Switch
4Lock Sleeve
5Ecc. Shaft
6Front Cover
7Ecc. Bushing
8Connection
9Retainer Ring
10Ecc. Bushing R.
11Oil Seal
12Main Gear
13Shaft End Cover
14Main Gear Key
15Seal Housing
17Gasket

Motor Drive R-8204

 Motor Drive R-8204
1Vbelts
2Hx. Hd. Cap Screws
3Security Locknut
410 HP Main Motor
5Sheave
6Cotter Pins
7Hx. Hd. Cap Screws
8Bracket
9Washers
10Motor Support Pin
1110 hp Motor Support
12Pivot Pin
13Rod End
14Hex. Nut
15Spacers (2)
16Yoke
17Pin
18Cotter Pins

New Style Adjustment Screw Lock R-8207

 New Style Adjustment Screw Lock R-8207
1Scale
2Indicator Screw
3Connection Nut
4Adj. Lock Plate
5Sl. Adj. Locknut
6Stud
7Slotted Hx. Nut
8Rack
9Roll Pin
10Adj. Lock Cover
11Spring
12Knurled Nut
13Gear Rack Holder
14Dowel Pin
15Soc. Hd. Set Screw (2)
16Latch Screw
17Set Screw
18Indicator

Old Style Adjustment Screw Lock R-8207

 Old Style Adjustment Screw Lock R-8207
16Latch Screw
17Set Screw
18Indicator

Clearelease Mechanism R-8206

 Clearelease Mechanism R-8206
1Wrist Pin
2Locking Nut
3Wrist Pin Bushing
4Locating Dowel

Cushion Assembly R-8210

 Cushion Assembly R-8210
1Pressure Plate
2Cushion Cylinder
3Gasket
4Soc. Hd. Cap Screw
5Soc. Hd. Cap Screw
6Cushion Support
7Support Pin
8"U"-Packing
9Cushion Piston
10Soc. Hd. Cap Screw
