How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
Frame AssemblyDrive Assembly
Air Operated Clamping Discs
Power Downfeed
② Once you know which parts you want to order, request a parts quote.
Frame Assembly
Part # | Part Name | Part # | Part Name | Part # | Part Name |
---|---|---|---|---|---|
1 | Square Head Set Screw | 20 | Nut | 39 | Circle Arm |
2 | Collar | 21 | Snap Ring | 40 | Set Screw |
3 | Side Gage | 22 | Piston | 41 | Slide |
4 | Shaft | 23 | Suppressor Sleeve | 42 | Plate |
5 | Snap Ring | 24 | Spring | 43 | Bed |
6 | Pin | 25 | Piston | 44 | Socket Head Cap Screw |
7 | Lever | 26 | Snap Ring | 45 | Gear Rack |
8 | Handle | 27 | Clamping Disc | 46 | Crank Pin |
9 | Square Head Set Screw | 28 | Center Point | 47 | Slide Gear and Handle |
10 | Lock Nut | 29 | Bushing | 48 | Snap Ring |
11 | Wearing Pin | 30 | Nut | 49 | Gage |
12 | Pin for Upper Disc | 31 | Pin for Lower Disc | 50 | Gage Bolt |
13 | Spring | 32 | Nut | 51 | Gage Bracket |
14 | Upper Cartridge | 33 | Formica Pad | 52 | Nut |
15 | Clamping Disc | 34 | Dowel | 53 | Hex Head Cap Screw |
16 | Snap Ring | 35 | Hex Head Cap Screw | 54 | Frame |
17 | Pin | 36 | Stud | 55 | Screw Key |
18 | Set Screw | 37 | Jam Nut | 56 | Magnetic Starter |
19 | Pad | 38 | Washer | 57 | Foot Switch |

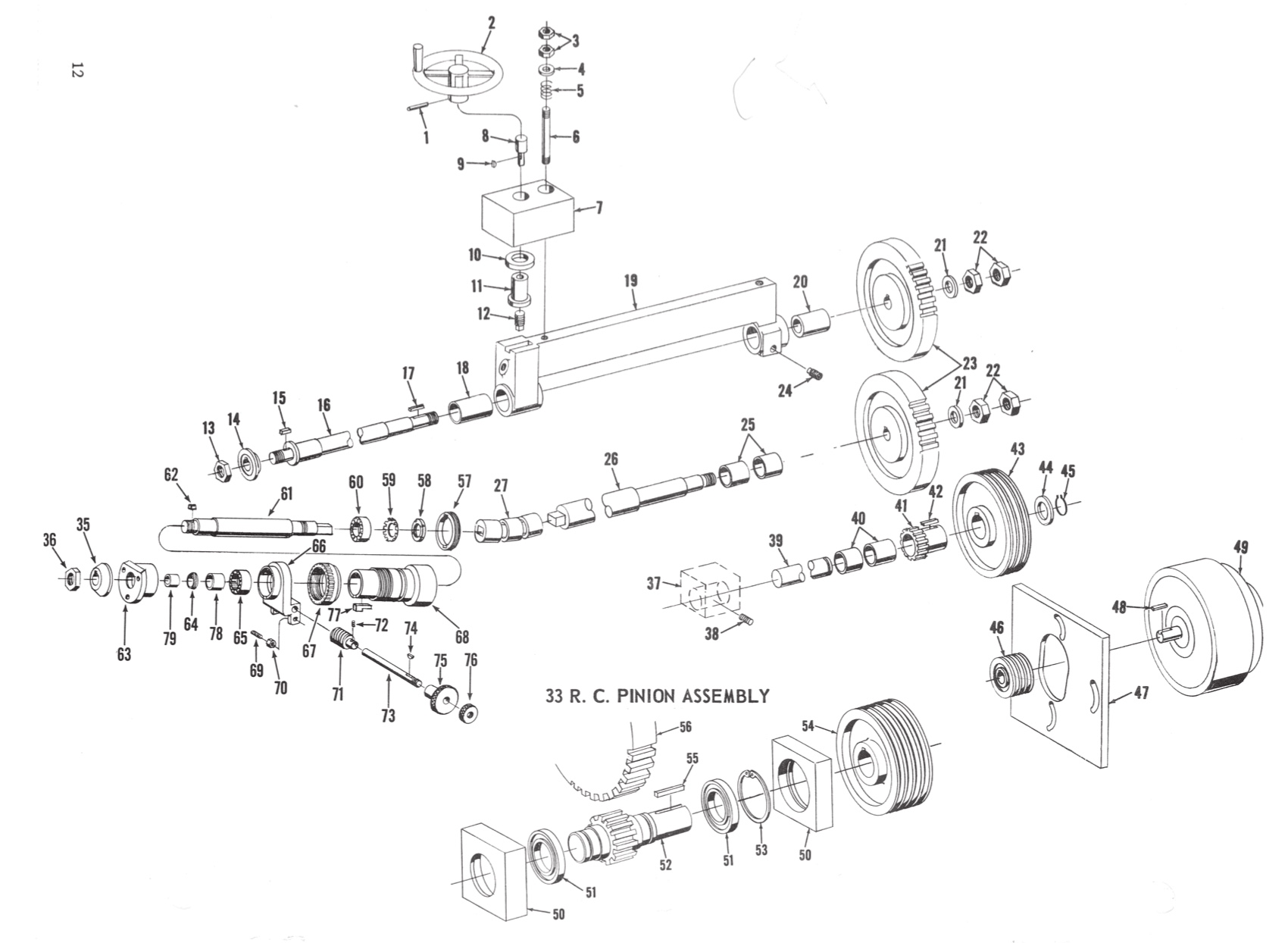

Drive Assembly

Part # | Part Name | Part # | Part Name | Part # | Part Name | Part # | Part Name |
---|---|---|---|---|---|---|---|
1 | Roll Pin | 20 | Bushing | 46 | Motor Sheave | 65 | Bearing |
2 | Revolving Handle | 21 | Washer | 47 | Motor Plate | 66 | Worm Bracket |
3 | Jam Nuts | 22 | Jam Nut | 48 | Key | 67 | Worm Gear |
4 | Washer | 23 | Main Gear | 49 | Motor | 68 | Quill |
5 | Spring | 24 | Pivot Screw | 50 | Frame Member * | 69 | Stud |
6 | Stud | 25 | Bushing | 51 | Bearing * | 70 | Jam Nut |
7 | Frame | 26 | Lower Shaft | 52 | Pinion Shaft * | 71 | Worm |
8 | Pin | 27 | Universal | 53 | Snap Ring * | 72 | Roll Pin |
9 | Woodruff Key | 35 | Lower Cutter | 54 | Driven Sheave * | 73 | Worm Shaft |
10 | Thrust Bearing | 36 | Jam Nut | 55 | Key * | 74 | Key |
11 | Elevation Nut | 37 | Frame Member ** | 56 | Main Gear * | 75 | Adjusting Knob |
12 | Screw | 38 | Set Screw ** | 57 | Retainer | 76 | Clamp Nut |
13 | Jam Nut | 39 | Pinion Shaft ** | 58 | Locknut | 77 | Key |
14 | Upper Cutter | 40 | Bushing ** | 59 | Washer | 78 | Race |
15 | Key | 41 | Pinion Gear ** | 60 | Bearing | 79 | Bearing Sleeve |
16 | Upper Shaft | 42 | Key ** | 61 | Inclined Shaft | ||
17 | Key | 43 | Driven Sheave ** | 62 | Key | * 33 R.C. Pinion Assembly only. | |
18 | Bushing | 44 | Washer | 63 | Outer Bearing Cartridge | ** 31 R.C. Pinion Assembly only. | |
19 | Rocking Box | 45 | Snap Ring | 64 | Wiper |
