Series 6 Thru 12 Form C-10-C Supplement

Click to enlarge drawing

Housings, Bed & Ram

Part #Part NamePart #Part NamePart #Part NamePart #Part NamePart #Part Name
1Gearbox Assembly (see Separate Parts List)23Ram Eccentric Connection44Screw65Holddown Guard Crossbar86Screw
2L.H. Housing24Ram Pin45Front Gage Bracket66Screw87Liner (Specify R.H. or L.H.)
3L.H. Top Cover25L.H. Eccentric46V-Head Bolt67Rod88Screw
4Screw26Bearing47Hex Nut68Set Screw89Liner Backing (Specify R.H. or L.H.)
5Upper Rear Cover27Key48Disappearing Stop69Holddown Guard Bar90Screw
6Lower Rear Cover28Bed Key Dowel49Screw70Screw91Ram Pin Lock
7Screw29Bed Key50Holddown71Screw92Screw
8Holding Plate30Bed51Holddown Foot72Washer93Counterbalance Bracket
9Screw31Bed Adjusting Screw52Holddown Foot Cap73Ram94Screw
10R.H. Housing32Bed Mounting Bolt53Holddown Foot Spring74Brace Rod95Counterbalance Rod
11R.H. Top Cover33Bed Mounting Washer54Holddown Foot Washer75Turnbuckle96Washer
12Screw34Fixed Blade55Hex Nut76Jam Nut97Counterbalance Spring Washer
13Side Cover35Fixed Blade Plow Bolt56Holddown Gib77Adjusting Nut98Counterbalance Spring
14Screw36Fixed Blade Washer57Screw78Brace Rod Nut99Counterbalance Spring Spacer
15Detent and Brake Assembly (see Separate Parts List)37Fixed Blade Nut58Blade Guard79Moving Blade100Jam Nut
17Eccentric Shaft38Scale59Guard Bolt80Moving Blade Plow Bolt 101Brace Rod Bolt
18Shaft Collar39Screw60Hex Nut81Moving Blade Washer
19Bearing (Models 6 & 7 only)40Scale Clamping Washer61Set Screw82Moving Blade Nut
20Holddown Eccentric Connection41Bolt Pocket Cover62Hex Nut83Holddown Gib
21Holddown Pin42Screw63Holddown Guard84Screw
22Eccentric Oiler Chain43Side Gage64Rod Holder85Ram Gib

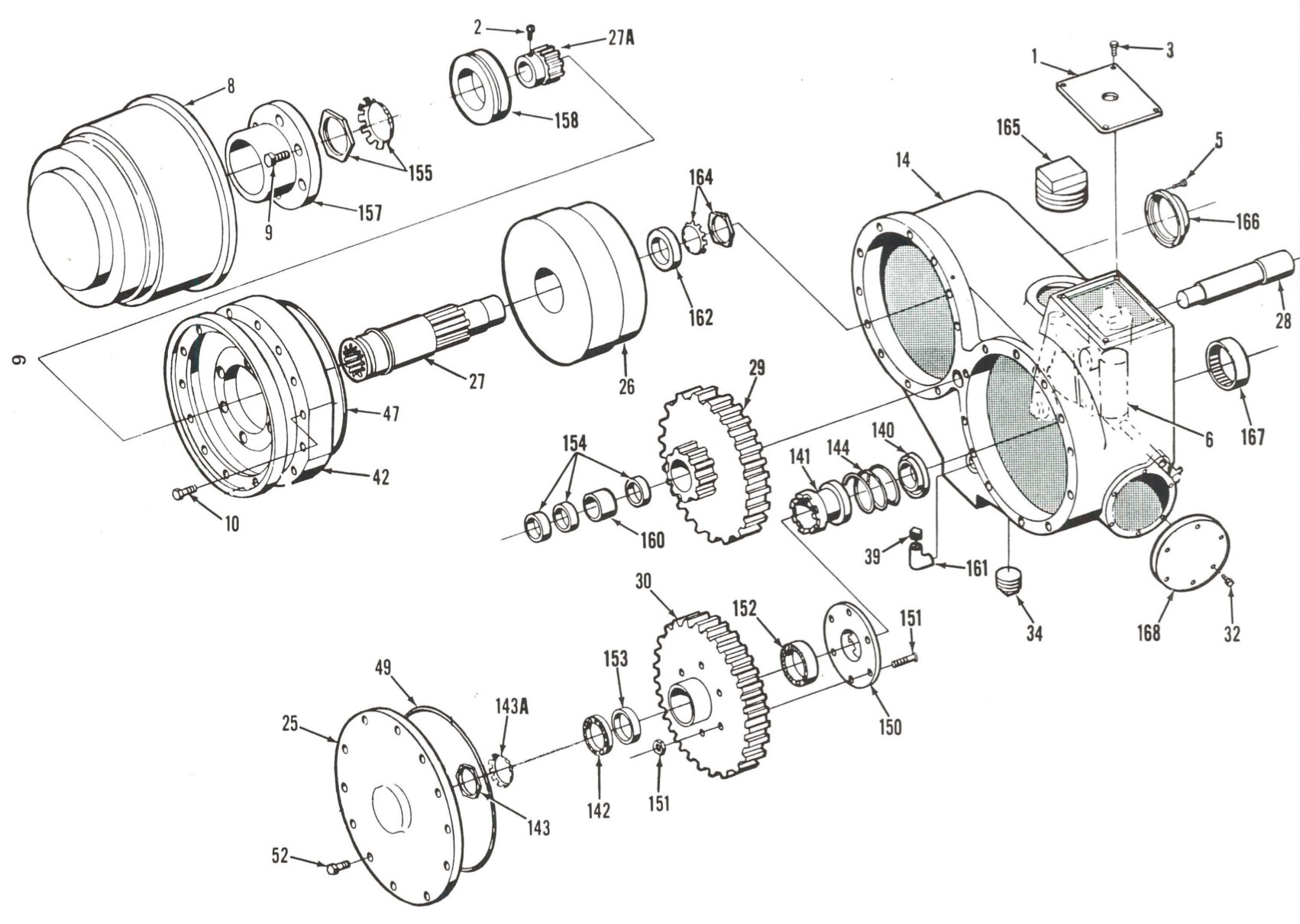

Gear Box Assembly

Part #Part NamePart #Part NamePart #Part Name
1Cover30Clutch Gear151Clutch Face Bolt & Nut
2Set Screw32Hex Head Screw152Inner Clutch Gear Bearing
3Hex Head Screw34Pipe Plug153Clutch Gear Bearing Spacer
5Hex Head Screw39Pipe Plug154Intermediate Shaft Bearings
6Latch Bracket Assembly (see Separate Parts List)42Motor Adapter Flange155Locknut & Washer
8Motor47O-Ring157Oil Catcher & Bearing Retainer
9Hex Head Screw49O-Ring158Pinion Shaft Flywheel Bearing
10Hex Head Screw52Hex Head Screw160Intermediate Shaft Bearing Spacer
14Gear Box140Single Stroke Cam161Oil Level Elbow
25Gear Box Cover141Clutch Sleeve162Pinion Shaft Bearing
26Flywheel142Outer Clutch Gear Bearings164Locknut & Washer
27Drive Shaft143Locknut165Single Stroke Cam Cover
27ASplined Motor Coupling143ALockwasher166Pinion Shaft Bearing Cover
28Intermediate Shaft144Clutch Sleeve Spring167Eccentric Shaft Bearing
29Intermediate Gear and Pinion Cluster150Clutch Wheel Face168Inspection Cover

Latch Bracket Assembly

Part #Part NamePart #Part NamePart #Part Name
1Roll Pin102Cam Roller Shaft121Spacing Collar
14Gear Box Housing103Cam Lever122Throwout Shaft Locknut
19Nut & Washer104Cam Lever Pin123Latch Spring Pin
21Roll Pin105Selector Knob Spring124Bell Crank Pin
26Taper Pin106Single Stroke Selector Knob125Bell Crank
32Pin107Throwout Spring126Latch Spring
35O-Ring108Throwout Pin127Lock Washer
40Cotter Pins109Latch Hinge Pin128Throwout Shaft Nut
43Nut111Latch129Treadle Spring Plunger
44Lockwasher112Throwout Key130Treadle Spring
45Hex Head Capscrew113Throwout131Locking Bar Indicator
46Cover Mounting Screw114Throwout Ball Bearing132Locking Bar Handle
47Cylinder Cover115Throwout Needle Bearing134Clutch Bracket
48Cylinder Gasket116Selector Knob Pin135Locking Bar
50Bushing117Sliding Pin136Locking Bar Spring
51Piston118Throwout Shaft137Locking Bar Collar
52O-Ring119Throwout Housing End Cover138Cam Roller
53Air Fitting120End Cover Bolt and Washer

Detent Parts

Part #Part NamePart #Part Name
2Spacer10Hex Head Screw
3Detent Cam13Hex Head Screw
4Retaining Ring14Plug
5Cam Housing15Spring Pot
6Pipe Plug16Spring
7Retaining Ring17Spring Plunger
8Bearing18Lever Pin
9Cam Roller19Cam Lever

Brake Parts

Part #Part NamePart #Part Name
20Dowel Pin33Hex Nut
21Stud34Stud
22Brake Strap35Brake Collar
23Washer36Cover and Brake Support
24Hex Nut37Spring Plunger
25Hex Jam Nut38Brake Lining
26Brake Guard39Pipe Plug
31Spring40Retaining Ring
32Hex Jam Nut41Detent Bushing

Back Gage

Part #Part NamePart #Part NamePart #Part NamePart #Part Name
1Cotter Pin28Washer53Coupling Half81Gear Spacer
2Castle Nut29Adjusting Collar Spring54Coupling Insert82Helical Gear
3Washer30Adjusting Collar55Connecting Shaft83Bearing Spacer
4Gage Bar31Locknut56Mounting Rod84Bearing
6Brace Rod Nuts32Lockwasher57Guard Nut85Coupling Key (Used only with Part No. 53)
7Jam Nut33Bearing Spacer58Acorn Nut86Helical Gear Key
7ABrace Rod Bolt Adjusting Nut34Bearing Nut60Chain87Coupling Key (Used only with Part No. 53)
8Brace Rod Bolt35Bearing61Pinion Shaft88Drive Shaft
9Wiper Fastening Screw36Adjusting Collar Key62Motor Sprocket89Inside Retaining Ring
10Wiper37Adjusting Screw63Motor Mounting Screw90Bracket Mounting Screw
11Lube Fitting38Retaining Ring64Motor with Brake91Center Gear Case Lube Fitting
12Slide Cap Fastening Screw39Adjusting Gear65Indicator Cover92End Gear Case Lube Fitting
13Slide Cap40Locknut66Counter Helical Gear93Oil Cup
14Retaining Ring41Lockwasher67Counter94Gage Brackets
15Set Screw42Bearing Spacer68Shaft Helical Gear98Retainer
16Slide Stud43Bearing Nut69Bushing99Coupling
17Slide44Bearing70Flexible Shaft100Magnifier
18Set Screw45Retaining Nut71Indicator Bracket101Roll Pin
19Indicating Collar46Worm Gear72Set Screw102Lubrication Plate (Not shown)
20Plate Mounting Screw47Retaining Ring73Shaft Adapter103Cover
21Gear Cover Plate48Bearing76Driveshaft Sprocket104Trantorque Unit
22Support Mounting Screw49Worm Gear Key77Outside Retaining Ring105Limit Switch
23Screw Support50Collar Key78Locknut106L.S. Mounting Plate
26Adjusting Nut51Intermediate Shaft79Lockwasher108Adj. Screw Mounting Plate
27Retaining Ring52Set Screw80Bearing109Adjusting Screw

Counterbalance Parts List (Models 10 & 12)

Part #Part Name
1Bracket (Specify RH or LH)
2Top Spring Washer
3Outer Spring (Shown shortened)
4Inner Spring (Shown shortened)
5Spring Spacer
6Spring Casing (Located in housing)
