How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
Frame AssemblyLINEAR ENCODER ASSEMBLY
RESERVOIR COVER ASSEMBLY
PENDENT ARM ASSEMBLY
HPS-110 SLIDE ASSEMBLY
HPS-150 & 250 SLIDE ASSEMBLY
HPS-110 BALL SEAT
HPS-150 CYLINDER ASSEMBLY
HPS-150 & 250 SLIDER ASSEMBLY
HPS-110 CYLINDER ASSEMBLY
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Frame Assembly
| 1 | Manifold, Motor & Pump Assembly | 41 | "T" Nut | |
| 2 | Oil Sight Gage | 42 | Capscrew | |
| 3 | Reservoir Cover | 43 | Washer | |
| 4 | Gasket | 44 | Nut | |
| 5 | Frame | 45 | Stud | |
| 6 | Capscrew | 46 | Capscrew | |
| 7 | Capscrew | 47 | Adjusting Block | |
| 8 | Capscrew | 48 | Inner Pivot Block | |
| 9 | L.H. Outside Gib | 49 | Pivot Block Retainer | |
| 10 | Gib Liner | 50 | Washer | |
| 11 | Screw | 51 | Bolt | |
| 12 | L.H. Cylinder (R.H. Same) | 52 | Inner Pivot Shoe | |
| 13 | Filler Block | 53 | Outer Pivot Shoe | |
| 17 | Bed (Detachable Type) | 54 | Outer Pivot Block | |
| 18 | Capscrew (With Detachable Type Bed Only) | 55 | Stud | |
| 19 | Bolt (With Detachable Type Bed Only) | 56 | Nut | |
| 20 | Bed Shoe Lock (With Detachable Type Bed Only) | 60 | Gib Liner | |
| 21 | Bed Shoe (With Detachable Type Bed Only) | 61 | R.H. Outer Gib | |
| 22 | Capscrew (With Detachable Type Bed Only) | 62 | Capscrew | |
| 31 | R.H. Ram Liner | 63 | Control Box | |
| 32 | Ram | 64 | Washer | |
| 33 | Safety Rail | 65 | Bolt | |
| 34 | Bolt | 66 | Retaining Ring | |
| 35 | Pillow Block | 67 | Pin | |
| 36 | Bolt | 68 | Clevis | Clean Out |
| 37 | Center Ram Clamp Bars | 69 | "O" Ring | Cover Kit |
| 38 | Spring | 70 | Inspection Door | Purchased |
| 39 | End Ram Clamp Bars | 71 | Washer | As Assembly |
| 40 | R.H. Ram Liner | 72 | Bolt |

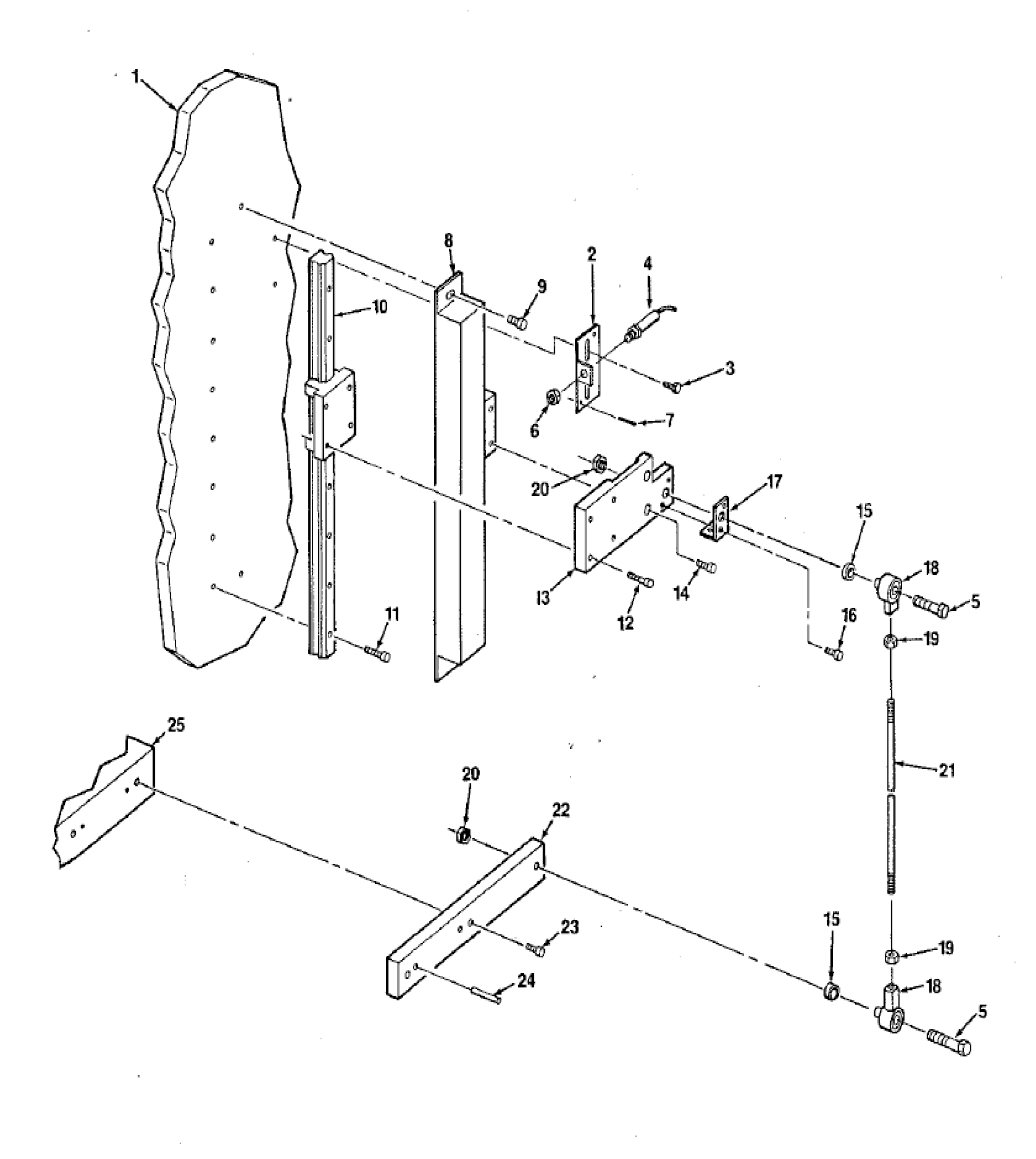

LINEAR ENCODER ASSEMBLY
| 1 | Frame (ref.) | 14 | Screw |
| 2 | Over-Travel Switch Bracket | 15 | Spacer |
| 3 | Screw | 16 | Screw |
| 4 | Proximity Sensor | 17 | Cable Support |
| 5 | Rod End Bolt | 18 | Rod End with Grease Fitting |
| 6 | Hex Nut | 19 | Hex Nut |
| 7 | Roll Pin | 20 | Jam Nut |
| 8 | Linear Encoder | 21 | Threaded Rod |
| 9 | Transducer Mounting Screw | 22 | Encoder Bracket |
| 10 | Rail Guide | 23 | Bracket Mounting Screw |
| 11 | Rail Guide Mounting Screw | 24 | Dowel Pin |
| 12 | Screw | 25 | Slide (ref.) |
| 13 | Scanning Head Support Guide |
RESERVOIR COVER ASSEMBLY
| 1 | Reservoir Cover | 19 | Spacer |
| 2 | Main Manifold Assembly | 20 | Screw |
| 3 | Front Manifold Mounting Block | 21 | Screw |
| 4 | Screw | 22 | Magnetic Plug |
| 5 | Rear Manifold Mounting Block | 23 | Motor |
| 6 | Screw | 24 | Motor Mounting Screw |
| 7 | Filler Strainer Unit | 25 | Motor Mounting Bar |
| 8 | Screw | 26 | Bar Screw |
| 9 | Filter | 27 | Vibration Isolator |
| 10 | Screw | 28 | Single Pump (double pump with optional knockout) |
| 11 | Pipe Coupling | 29 | Washer |
| 12 | Pipe | 30 | Screw |
| 13 | Gage | 31 | Suction Flange |
| 14 | Gage Mounting Block | 32 | Screw |
| 15 | Pipe Spacer | 33 | Suction cover |
| 16 | Screw | 34 | Screw |
| 17 | Frame Cover | 35 | Pipe Flange |
| 18 | Oil Cooler | 36 | Screw |
| 37 | Temperature Sensor |
PENDENT ARM ASSEMBLY
| 1 | Control Box (ref.) | 14 | Pendent Thrust Bearing |
| 2 | Gasket | 15 | Screw |
| 3 | Wire Stand Pipe | 16 | Pendent Arm |
| 4 | Screw | 17 | Coupling |
| 5 | Lock Washer | 18 | Set Screw |
| 6 | Hex Nut | 19 | Clamping Lever |
| 7 | "V" Ring Seal | 20 | Washer |
| 8 | Lock Nuts | 21 | Bearing |
| 9 | Pivot Bracket | 22 | Capstan Nut |
| 10 | Screw | 23 | Operator Terminal |
| 11 | Lock Washer | 24 | Pendent Stop |
| 12 | Set Screw | 25 | Bumper |
| 13 | Hex Nut | 26 | Shim |
| 27 | Frame (ref.) |
HPS-110 SLIDE ASSEMBLY
| 1 | Slide |
| 2 | Cylinder and Ball Enclosure (see separate part list) |
| 3 | Slide Liner |
| 4 | Screw |
| 5 | Slide Cover |
| 6 | Screw |
| 7 | Detector Switch Bracket |
| 8 | Bracket Screw |
| 9 | Roll Pin |
| 10 | Switch Mounting Plate |
| 11 | Plate Screw |
| 12 | Detector Switch Lever |
| 13 | Shoulder Bolt |
| 14 | Spring Plunger |
| 15 | Detector Switch |
| 16 | Switch Screw |
| 17 | Proximity Sensor* |
| 18 | Hex Nut* |
| 19 | Sensor Mounting Bracket* |
| 20 | Bracket Screw* |
| 21 | Hose Bracket* |
| 22 | Bracket Screw* |
| 23 | Junction Block* |
| 24 | Screw* |
| *Optional | |
HPS-150 & 250 SLIDE ASSEMBLY
| 1 | Slide | 16 | Retaining Ring |
| 2 | Cylinder Assembly (see separate part list) | 17 | "O" Ring |
| 3 | Slider Assembly (see separate part list) | 18 | "O" Ring |
| 4 | Hydraulic Cylinder | 19 | Wrist Pin Retainer |
| 5 | Knockout Cylinder Mounting Bracket | 20 | Screw |
| 6 | Screw | 21 | Slide Liner |
| 7 | Screw | 22 | Screw |
| 8 | Clevis | 23 | Side Slide Cover |
| 9 | Clevis Pin | 24 | Screw |
| 10 | Knockout Bar | 25 | Front Slide Cover |
| 11 | Switch Bracket | 26 | Screw |
| 12 | Proximity Switch | 27 | Hose Bracket* |
| 13 | Screw | 28 | Bracket Screw* |
| 14 | Roll Pin | 29 | Junction Block* |
| 15 | Wrist Pin | 30 | Screw* |
| *Optional |
HPS-110 BALL SEAT
NOTE: USE THIS PARTS LIST FOR HPS-150 SERIAL NOS. P-53364 AND LOWER
| 1 | "V" Ring Seal | 12 | Ball Seat Wear Plate |
| 2 | Ball Cap Enclosure | 13 | Ball Seat Housing |
| 3 | Screw | 14 | "O" Ring |
| 4 | Stud | 15 | Ball Seat Base |
| 5 | Hex Nut | 16 | Screw |
| 6 | Ball Cap | 17 | Slide (ref.) |
| 7 | Piston Rod and Ball (ref.) | 18 | Hydraulic Cylinder * |
| 8 | Ball Seat Shim | 19 | Screw* |
| 9 | Ball Seat | 20 | Rod End Coupling* |
| 10 | Screw | 21 | Screw* |
| 11 | Enclosure Shim | 22 | Knockout Bar* |
| *Optional |
HPS-150 CYLINDER ASSEMBLY
NOTE: USE THIS PARTS LIST FOR HPS-150 SERIAL NOS. P-53364 AND LOWER
| 1 | Slide ( ref. ) |
| 2 | Piston Rod Support |
| 3 | Screw |
| 4 | Piston Rod and Ball |
| 5 | Wiper Ring |
| 6 | Rod Seal |
| 7 | Rod Bearing |
| 8 | Lower Cylinder Cap |
| 9 | Screw |
| 10 | Lockwasher |
| 11 | "O" Ring |
| 12 | Lock Valve Manifold |
| 13 | Screw |
| 14 | "O" Ring |
| 15 | Cylinder Body |
| 16 | "O" Ring |
| 17 | Piston Bearing |
| 18 | Piston Seal |
| 19 | Screw* |
| 20 | Cylinder Assembly Cover* |
| 21 | Piston Assembly Stud* |
| 22 | Washer* |
| 23 | Hex Nut* |
| *WARNING | |
| For use during cylinder Assembly or removal only. These items must be removed before press start up. |
HPS-150 & 250 SLIDER ASSEMBLY
NOTE: HPS-150 SERIAL NOS P-53364 AND LOWER, USE PARTS LIST ON PGS 44 AND 45
| 1 | Cylinder Assembly ( ref. ) | 11 | Enclosure Front Plate |
| 2 | "V" Ring | 12 | R.H. Slider Enclosure Seal |
| 3 | Clip | 13 | L.H. Slider Enclosure Seal |
| 4 | Screw | 14 | Upper Slider Liner |
| 5 | Slider Enclosusre Top Plate | 15 | Screw |
| 6 | Screw | 16 | Lower Slider Liner |
| 7 | Slider Enclosure | 17 | Slider |
| 8 | R.H. Slider Enclosure End Plate | 18 | Spherical Bearing |
| 9 | Screw | 19 | Bearing Keeper |
| 10 | L.H. Slider Enclosure End Plate | 20 | Screw |
| 21 | Slider Enclosure Base | ||
| 22 | Screw | ||
| 23 | Slide ( ref. ) |
HPS-110 CYLINDER ASSEMBLY
NOTE: USE THIS PARTS LIST FOR HPS-150 SERIAL NOS. P-53364 AND LOWER
| 1 | Cylinder Assembly ( ref. ) | 11 | Enclosure Front Plate |
| 2 | "V" Ring | 12 | R.H. Slider Enclosure Seal |
| 3 | Clip | 13 | L.H. Slider Enclosure Seal |
| 4 | Screw | 14 | Upper Slider Liner |
| 5 | Slider Enclosusre Top Plate | 15 | Screw |
| 6 | Screw | 16 | Lower Slider Liner |
| 7 | Slider Enclosure | 17 | Slider |
| 8 | R.H. Slider Enclosure End Plate | 18 | Spherical Bearing |
| 9 | Screw | 19 | Bearing Keeper |
| 10 | L.H. Slider Enclosure End Plate | 20 | Screw |
| 21 | Slider Enclosure Base | ||
| 22 | Screw | ||
| 23 | Slide ( ref. ) |
