How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
FRAME ASSEMBLYRAM ASSEMBLY
RAM/BLADE ADJUSTMENT
CYLINDER ASSEMBLY, SPECIFY L.H. OR R.H. (Bore Size)
BACKGAGE
② Once you know which parts you want to order, request a parts quote.
FRAME ASSEMBLY
| 1 | Frame | 32 | Bed Rail |
| 2 | Ram Assembly (see separate part list) | 33 | Side Gage |
| 3 | Hydraulic Cylinder Assembly (see separate part list) | 34 | Scale |
| 4 | Bearing | 35 | Rear Chute |
| 5 | Swivel Pin | 36 | Screw |
| 6 | Snap Ring | 37 | Top Cover |
| 7 | Ram Adjustment/Blade Adjustment Assem. (see separate part list) | 38 | Screw |
| 8 | Holddown Bar | 39 | Frame Lift Bar |
| 9 | Screw | 40 | Screw |
| 10 | Holddown Cylinder | 41 | Side Covers (specify location) |
| 11 | R.H. Blade Guard | 42 | Screw |
| 12 | L.H. Blade Guard (not shown) | 43 | L.H. Bed Cover |
| 13 | Screw | 44 | Center Bed Cover |
| 14 | L.H. Awareness Barrier | 45 | R.H. Bed Cover |
| 15 | R.H. Awareness Barrier (not shown) | 46 | Hydraulic Power Unit |
| 16 | Screw | 47 | Grease Fitting |
| 17 | Holddown End Cover | 48 | Foundation Screw |
| 18 | Screw | 49 | Leveling Screw |
| 19 | Fixed Blade | 50 | Spring Pot Cylinder |
| 20 | Reversed Key Plow Bolt | 51 | Spring Pot Screw |
| 21 | Washer | 52 | Disc Springs |
| 22 | Hex Nut | 53 | Spring Pot Piston |
| 23 | Front Bed Cover | 54 | Track Roller |
| 24 | Screw | 55 | Pin |
| 25 | Front Rail | 56 | Roll Pin |
| 26 | Screw | 57 | Grease Fitting |
| 27 | Bed Rail (wide) | 58 | Screw |
| 28 | Bed Adjusting Screw | 59 | Front Bracket (optional) |
| 29 | Screw | 60 | "T" Slot Screw (optional) |
| 30 | R.H. Bed Rail | 61 | Hex Nut (optional) |
| 31 | L.H. Bed Rail |

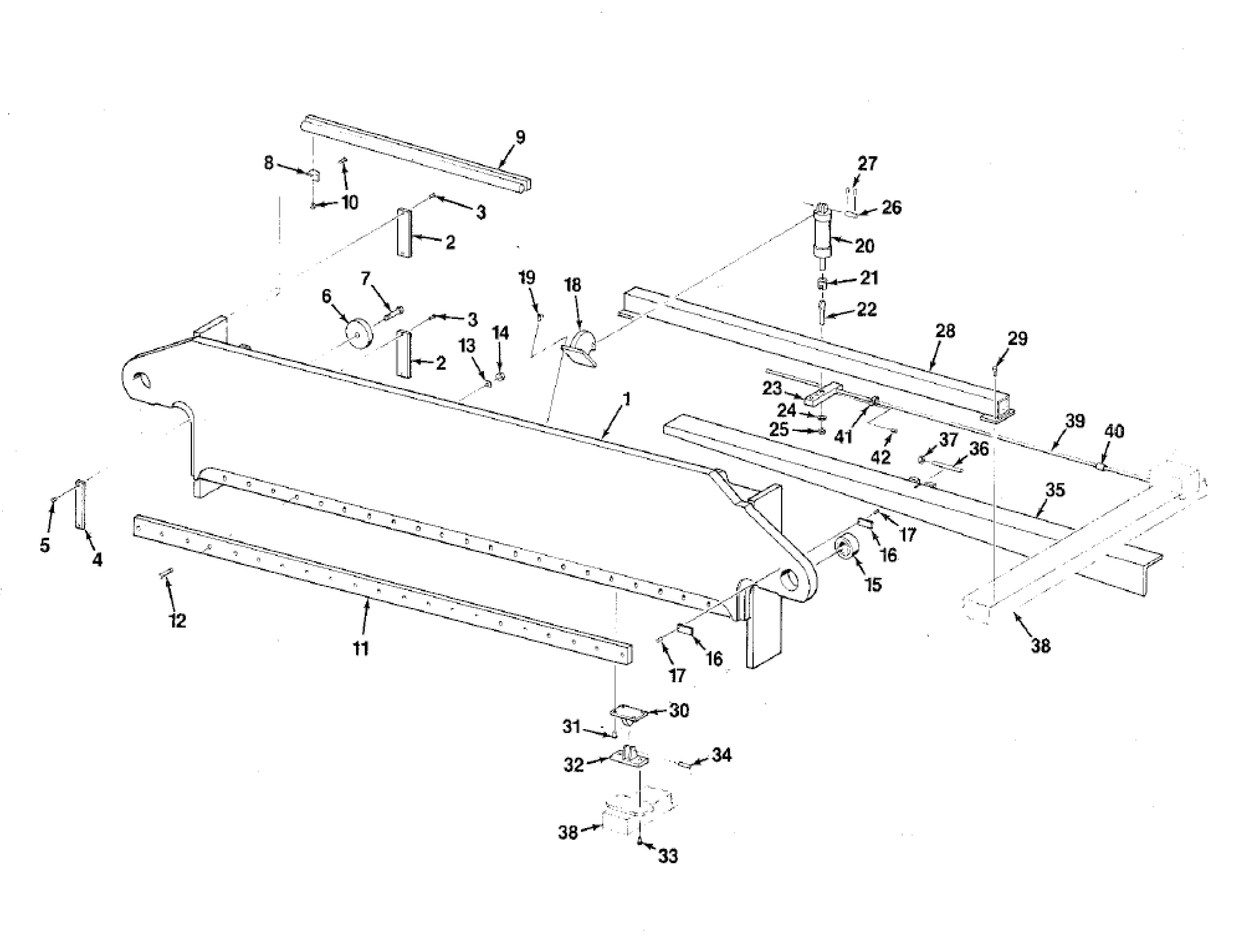

RAM ASSEMBLY
| 1 | Ram | 22 | Lift Rod Eye |
| 2 | Rear Gib | 23 | Shaft Support |
| 3 | Screw | 24 | Washer |
| 4 | Front Gib | 25 | Hex Nut |
| 5 | Screw | 26 | Clevis Pin |
| 6 | End Roller | 27 | Snap Ring |
| 7 | Shoulder Screw | 28 | Backgage Bridge |
| 8 | "L" Bracket | 29 | Screw |
| 9 | Light Fixture | 30 | Backgage Pivot Bracket |
| 10 | Screw | 31 | Screw |
| 11 | Moving Blade | 32 | Backgage Hinge |
| 12 | Reverse Key Plow Bolt | 33 | Screw |
| 13 | Washer | 34 | Pin |
| 14 | Hex Nut | 35 | Backgage Bar |
| 15 | Bearing | 36 | Stud |
| 16 | Bearing Keeper | 37 | Hex Nut |
| 17 | Screw | 38 | Backgage (see separate part list) |
| 18 | Backgage Lift Bracket | 39 | Backgage Connection Shaft |
| 19 | Screw | 40 | Coupling |
| 20 | Cylinder | 41 | Shaft Support Bearing |
| 21 | Rod Clevis | 42 | Screw |
RAM/BLADE ADJUSTMENT
| 1 | Ram Adjustment Block |
| 2 | Gib Block Shim |
| 3 | Washer |
| 4 | Screw |
| 5 | Ram Adjustment Stop |
| 6 | Screw |
| 7 | Screw |
| 8 | Jam Nut |
| 9 | Ram Adjustment Pivot |
| 10 | Roller Bearing |
| 11 | Grease Fitting |
| 12 | Blade Adjustment Pivot |
| 13 | Grease Fitting |
| 14 | Blade Adjustment Plate* |
| 15 | Blade Adjustment Pin |
| 16 | Spring |
| 17 | Roll Pin |
| 18 | Blade Adjustment Bar |
| 19 | Knob |
| 20 | Set Screw |
| 21 | Blade Adjustment Handle |
| 22 | Handgrip |
| *(specify L.H. or R.H.) |
CYLINDER ASSEMBLY, SPECIFY L.H. OR R.H. (Bore Size)
| 1 | Cylinder Head, Clevis End |
| 2 | O-Ring |
| 3 | Cylinder |
| 4 | Piston |
| 5 | Seal |
| 6 | Screw |
| 7 | O-Ring |
| 8 | Rod |
| 9 | Cylinder Head, Rod-End |
| 10 | Seal |
| 11 | Packing Gland |
| 12 | Seal |
| 13 | Retainer |
| 14 | Screw |
| 15 | Rod Clevis |
| 16 | Set Screws |
| 17 | Roll Pin |
| 18 | The Rod |
| 19 | Hex Nut |
BACKGAGE
| 1 | Cotter Pin | 37 | Adjusting Screw | 72 | Washer |
| 2 | Castle Nut | 38 | Retaining Ring | 73 | Nut |
| 3 | Washer | 39 | Adjusting Gear | 76 | Driveshaft Sprocket |
| 4 | Gage Bar | 40 | Locknut | 77 | Outside Retaining Ring |
| 5 | Hex Nut | 41 | Lockwasher | 78 | Locknut |
| 6 | Stud | 42 | Bearing Spacer | 79 | Lockwasher |
| 9 | Wiper Fastening Screw | 43 | Bearing Nut | 80 | Bearing |
| 10 | Wiper | 44 | Bearing | 81 | Gear Spacer |
| 11 | Lube Fitting | 45 | Retaining Nut | 82 | Helical Gear |
| 12 | Slide Cap Fastening Screw | 46 | Helical Gear | 83 | Bearing Spacer |
| 13 | Slide Cap | 47 | Retaining Ring | 84 | Bearing |
| 14 | Retaining Ring | 48 | Bearing | 85 | Key |
| 15 | Set Screw | 49 | Worm Gear Key | 86 | Helical Gear Key |
| 16 | Slide Stud | 50 | Collar Key | 87 | Key |
| 17 | Slide | 51 | Intermeiate Shaft | 88 | Drive Shaft |
| 18 | Set Screw | 53 | Coupling | 89 | Inside Retaining Ring |
| 19 | Indicating Collar | 54 | Key | 90 | Bracket Mounting Screw |
| 20 | Plate Mounting Screw | 55 | Connecting Shaft | 91 | Center Gear Case Lube Fitting |
| 21 | Gear Cover Plate | 56 | Mounting Rod | 92 | End Gear Case Lube Fitting |
| 22 | Support Mounting Screw | 57 | Guard | 93 | Oil Cup |
| 23 | Screw Support | 58 | Acorn Nut | 94 | Gage Brackets |
| 26 | Adjusting Nut | 60 | Chain | 98 | Mounting Screw |
| 27 | Retaining Ring | 62 | Motor Sprocket | 99 | Mounting Screw |
| 28 | Washer | 63 | Motor Mounting Screw | 102 | Lubrication Plate (Not shown) |
| 29 | Adjusting Collar Spring | 64 | Motor with Brake | 103 | Motor Adapter Plate |
| 30 | Adjusting Collar | 65 | Encoder Bracket | 104 | Trantorque Unit |
| 31 | Locknut | 66 | Encoder | 105 | Limit Switch |
| 32 | Lockwasher | 67 | Pulley | 106 | L.S. Mounting Plate |
| 33 | Bearing Spacer | 68 | Belt | 108 | Adj. Screw Mounting Plate |
| 34 | Bearing Nut | 69 | Pulley | 109 | Adjusting Screw |
| 35 | Bearing | 70 | Mounting Screw | ||
| 36 | Adjusting Collar Key | 71 | Threaded Rod |
