IF-10-1/4 Shear

How to find the parts you need

1. Click a link to view parts below or download a PDF Spec Sheet
2. Once you’ve found your part number and part name, request a parts quote

Questions? Contact Us

Jump to Assembly Parts and Manual Drawings

(Manual Number: C-24-B)

Frame
Backgage
Main Hydraulic Cylinder (Niagara Type)
Drive Assembly

Click to enlarge
Download a PDF Spec Sheet

Frame

Request a Quote

Part #	Part Name
2	Guard (End-Specify Right Or Left Hand)
3	Guard
5	Cylinder Mounting Socket Head Cap Screw
6	Holddown Cylinder (Replacements Available)
7	Holddown Socket Head Cap Screw
8	Holddown Beam
9	Fastening Bolt
10	Mounting Bracket
10A	Shock Mount
11	Lamp
12	Socket
13	Channel
14	Foot Switch
15	Control Box
16	Nut
17	Dove Tail Bolt
18	Front Bracket
19	Scale Mounting Screw & Washer
20	Bed Scale
21	Side Gage Mounting Bolt
22	Side Gage
23	Bed Mounting Bolt
24	Washer
25	Bed Adjusting Bolt
26	Locknut
27	Bed Adjustment Cover
28	Sleeve Bolt
29	Nut & Washer
30	Reservoir Mounting Bolt
31	Reverse Key Plow Bolt
32	Fixed Blade
33	Belleville Spring Assembly
34	Bed Adjusting Sleeve
35	Plate Mounting Bolt
36	Front Cover Plate
37	Bed
38	Reservoir & Pump Assembly
39	Pocket Cover
40	End Cover Plate (Specify Right Or Left Hand)
41	Retaining Ring
42	Frame Cylinder Pin
43	Retaining Ring
44	Ram Cylinder Pin
45	R.H. Main Cylinder -See Separate Part List
46	L.H. Main Cylinder (Not Shown)-See Separate Part List
47	Backing Mounting Bolt
48	Liner Backing
49	Liner Mounting Screw
50	Front Gib Liner
51	Liner Mounting Screw
52	Rear Gib Liner
53	Reverse Key Plow Bolt
54	Moving Blade
55	Nut & Washer
56	Backgage (See Separate Part List)
57	Brace Rod Nut
58	R.H. Brace Rod
59	Turn Buckle
60	L.H. Brace Rod
61	Brace Rod Bolt
62	Adjusting Nut
62A	Lock Nut
63	Ram
64	Frame (One Piece)
65	Hand Wheel
66	Roll Pin
67	Stroke Control Rod
68	Jam Nuts
69	Stroke Control Bar
70	Stroke Control Guide
71	Limit Switch
72	Limit Switch Angle
73	Jam Nut
74	Limit Switch Stop
75	Angle Screw
76	Guide Screw
77	Limit Switch
78	Blade Guard
79	Dial Indicator
80	Pin
81	Adjusting Screw Mount Block

Click to enlarge

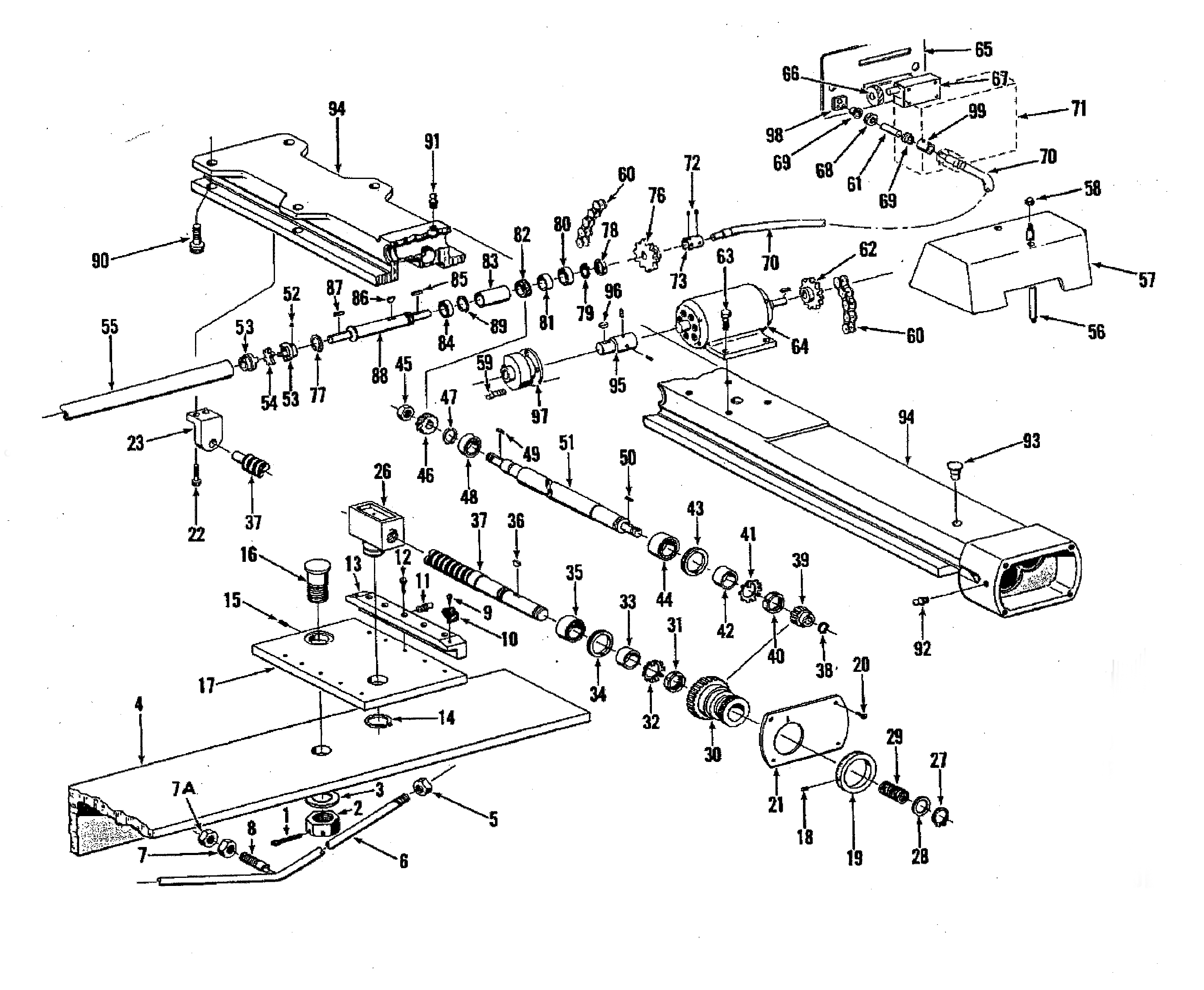

Backgage

Request a Quote

Part #	Part Name
1	Cotter Pin
2	Castle Nut
3	Washer
4	Gage Bar
5	Brace Rod Nuts
6	Brace Rod
7	Jam Nut
7A	Brace Rod Bolt Adjusting Nut
8	Brace Rod Bolt
9	Wiper Fastening Screw
10	Wiper
11	Lube Fitting
12	Slide Cap Fastening Screw
13	Side Cap
14	Retaining Ring
15	Set Screw
16	Slide Stud
17	Slide
18	Set Screw
19	Indicating Collar
20	Plate Mounting Screw
21	Gear Cover Plate
22	Support Mounting Screw
23	Screw Support
26	Adjusting Nut
27	Retaining Ring
28	Washer
29	Adjusting Collar Spring
30	Adjusting Collar
31	Locknut
32	Lockwasher
33	Bearing Spacer
34	Bearing Nut
35	Bearing
36	Adjusting Collar Key
37	Adjusting Screw
38	Retaining Ring
39	Adjusting Gear
40	Locknut
41	Lockwasher
42	Bearing Spacer
43	Bearing Nut
44	Bearing
45	Retaining Nut
46	Worm Gear
47	Retaining Ring
48	Bearing
49	Worm Gear Key
50	Collar Key
51	Intermediate Shaft
52	Set Screw
53	Coupling Half
54	Coupling Insert
55	Connecting Shaft
56	Mounting Rod
57	Guard
58	Acorn Nut
59	Mounting Screw
60	Chain
61	Pinion Shaft
62	Motor Sprocket
63	Motor Mounting Screw
64	Motor
65	Indicator Cover
66	Counter Helical Gear
67	Counter
68	Shaft Helical Gear
69	Bushing
70	Flexible Shaft
71	Indicator Bracket
72	Set Screw
73	Shaft Adapter
76	Driveshaft Sprocket
77	Outside Retaining Ring
78	Locknut
79	Lockwasher
80	Bearing
81	Gear Spacer
82	Helical Gear
83	Bearing Spacer
84	Bearing
85	Coupling Key (Used only with Part No. 53)
86	Helical Gear Key
87	Coupling Key (Used only with Part No. 53)
88	Drive Shaft
89	Inside Retaining Ring
90	Bracket Mounting Screw
91	Center Gear Case Lube Fitting
92	End Gear Case Lube Fitting
93	Oil Cup
94	Gage Brackets
95	Shaft Extension
96	Woodruff Key
97	Brake
98	Retainer
99	Coupling
