How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
FRAMEUPPER & LOWER LIMITS ASSEMBLY (CONTINUED)
RAM LEVEL CONTROL (Continued)
HYDRAULIC CYLINDER (Continued)
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Frame
| 1 | Main Motor and Pump | 22 | Pivot Block |
| 2 | Bolt | 23 | Pivot Shoe |
| 3 | Valve Manifold | 24 | Pivot Block Retainer |
| 4 | Bolt | 25 | Bolt |
| 5 | Reservoir Cover | 26 | Bolt |
| 6 | Bolt | 27 | Adjusting Block |
| 7 | Oil Level Gage and Thermometer | 28 | Set Screw |
| 8 | Mounting Bolt | 29 | Ram |
| 9 | Seal | 30 | Pillow Block |
| 10 | Cleanout Cover | 31 | Bolt |
| 11 | Clevis | 32 | Safety Rail |
| 12 | Pin | 33 | Ram Clamp Bar |
| 13 | Snap Ring | 34 | Bolt |
| 14 | Frame | 35 | Spring |
| 15 | Limit Switch Assembly | 36 | L.H. Gib |
| 16 | Filler Block | 37 | Bolt |
| 17 | R.H. Gib | 38 | T-Nut |
| 18 | Bolt | 39 | Washer |
| 19 | Gib Liner (R.H. & L.H.) | 40 | Bolt |
| 20 | Bolt | 41 | Cylinder |
| 21 | Ram Liner |

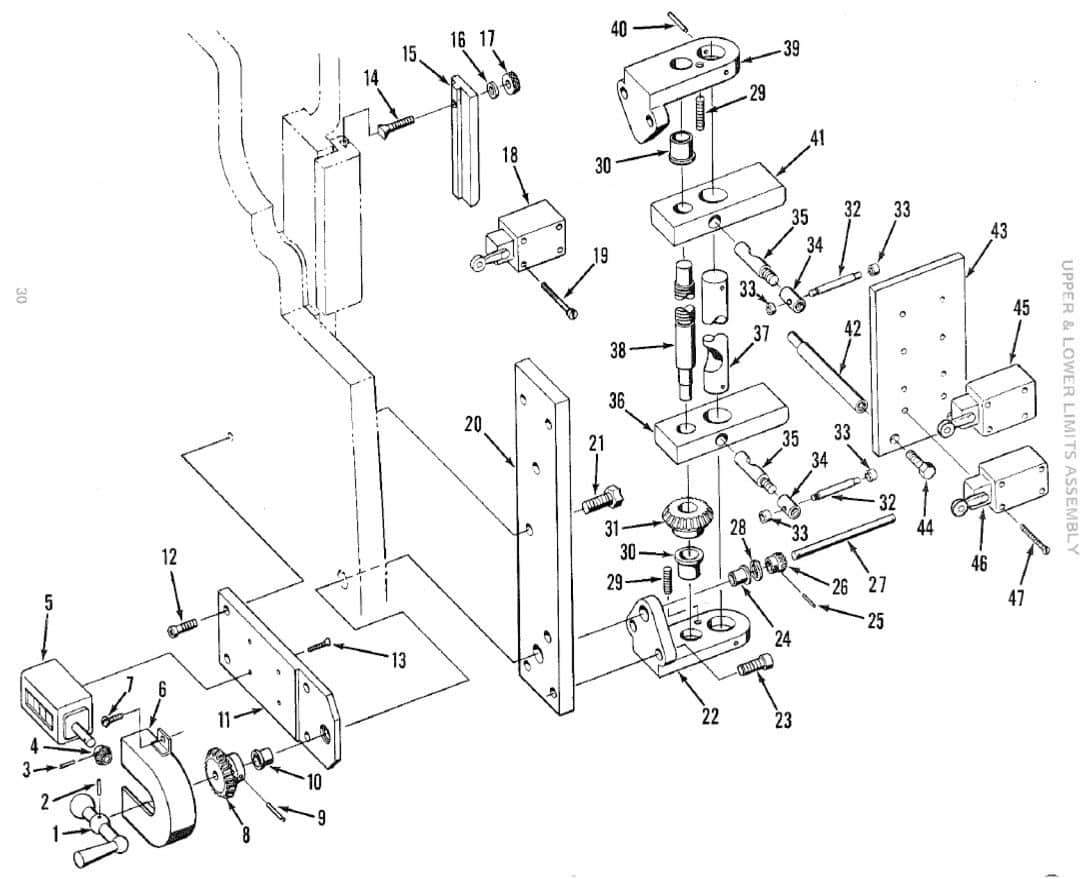

UPPER & LOWER LIMITS ASSEMBLY (CONTINUED)
| 1 | Handle | 25 | Pin |
| 2 | Pin | 26 | Bevel Gear |
| 3 | Pin | 27 | Shaft |
| 4 | Bevel Gear | 28 | Retaining Ring |
| 5 | Counter | 29 | Set Screws |
| 6 | Gear Cover | 30 | Bushings |
| 7 | Screw | 31 | Bevel Gear |
| 8 | Bevel Gear | 32 | Handle |
| 9 | Pin | 33 | Stops |
| 10 | Bushing | 34 | Clamp Nut |
| 11 | Bracket | 35 | Clamp Bolt |
| 12 | Screw | 36 | Stop Block |
| 13 | Screw | 37 | Gage Rod |
| 14 | "V" Head Bolt | 38 | Screw |
| 15 | Cam | 39 | Bracket |
| 16 | Washer | 40 | Roll Pin |
| 17 | Nut | 41 | Stop Block |
| 18 | Limit Switch | 42 | Support |
| 19 | Screw | 43 | Bracket |
| 20 | Plate | 44 | Bolt |
| 21 | Bolt | 45 | Limit Switch |
| 22 | Bracket | 46 | Limit Switch |
| 23 | Capscrew | 47 | Screw |
| 24 | Bushing |
RAM LEVEL CONTROL (Continued)
| 1 | Tape | 24 | Bearing |
| 2 | Cam Followers | 25 | Collar |
| 3 | Sub Plate | 26 | Capscrew |
| 4 | Plate | 27 | Shaft |
| 5 | Bolt | 28 | Bracket |
| 6 | Servo Sub Plate | 29 | Bolt |
| 7 | Bolt | 30 | Collar |
| 8 | Servo Valve | 31 | Set Screw |
| 9 | Spring | 32 | Roll Pin |
| 10 | Washer | 33 | Knob |
| 11 | Screw | 34 | Set Screw |
| 12 | Guide Rod | 35 | Tape Adjustment Screw |
| 13 | Valve Mounting Bolt | 36 | Screw Housing |
| 14 | Cushion | 37 | Screw |
| 15 | Washer | 38 | Tilt Adjustment Scale |
| 16 | Nut | 39 | Bearing |
| 17 | Tape Holder | 40 | Thrust Race |
| 18 | Tape Clamp | 41 | Adjustment Nut |
| 19 | Capscrew | 42 | Bolt |
| 20 | Grease Fitting | 43 | Bolt |
| 21 | Collar | 44 | Bracket |
| 22 | Set Screw | 45 | L.H. Tape Idler |
| 23 | R.H. Tape Idler |
HYDRAULIC CYLINDER (Continued)
| 1 | Cap* |
| 2 | Fitting |
| 3 | Pin |
| 4 | Retaining Ring |
| 5 | Tie Rod |
| 6 | "O" Rings* |
| 7 | Barrel* |
| 8 | Piston Rings* |
| 9 | Piston* |
| 10 | Head* |
| 11 | Lock Nut |
| 12 | Wear Ring |
| 13 | "V" Packing |
| 14 | Packing Gland |
| 15 | Capscrew |
| 16 | Wiper Ring |
| 17 | Ball Screw Cap |
| 18 | Mounting Bolt |
| 19 | Ball Screw Lock |
| 20 | Bolt |
| 21 | Ball Screw |
| 22 | Ball Seat |
| *Specify R.H. or L.H. |
| 1 | Handle Screw | 25 | Sprocket |
| 2 | Hand Knob | 26 | Key |
| 3 | Hand Crank (Manually Driven) | 27 | Adjusting Screw |
| 3a | Spacer (Power Driven) | 28 | Guide Rod |
| 4 | Key | 29 | Set Screw |
| 5 | Helical Gear (Adjusting Screw) | 30 | Upright |
| 6 | Collar | 31 | Washer |
| 7 | Bushing | 32 | Cap Screw |
| 8 | Cover Screw | 33 | Upright Adjusting Screw |
| 9 | Counter Cover | 34 | Nut |
| 10 | Mounting Screw | 35 | Washer |
| 11 | Roll Pin (Used for Location) | 36 | Finger Rest |
| 12 | Counter Mounting Screw | 37 | Finger Bolt |
| 13 | Counter Bracket | 38 | Finger |
| 14 | Counter | 39 | Shoulder Bolt |
| 15 | Helical Gear (Counter) | 40 | Spring |
| 16 | Set Screw | 41 | Support Arm |
| 17 | Torque Tightening Sprocket | 42 | Collar |
| 18 | Mounting Bolt | 43 | Roll Pin |
| 19 | Chain | 44 | Roll Pin |
| 20 | Cartridge | 45 | Hand Crank |
| 21 | Bushing | 46 | Handle |
| 22 | Mounting Bolt | 47 | Stud |
| 23 | Collar | 48 | Knurled Knob |
| 24 | Set Screw |
| 1 | Chain Guard |
| 2 | Screw |
| 3 | Screw |
| 4 | Bolt |
| 5 | Sprocket Guard |
| 6 | Bolt |
| 7 | Motor |
| 8 | Chain |
| 9 | Bolt |
| 10 | Motor Bracket |
| 11 | Sprocket Idlers |
| 12 | Tightener |
| 13 | Bolt |
| 14 | Drive Sprocket |
| 1 | Finger Bolts |
| 2 | Tee Bolts |
| 3 | Washers |
| 4 | Nuts |
| 5 | Finger Rest |
| 6 | Backgage Brackets |
| 7 | Fingers |
| 8 | Bracket Bolts |
| 9 | Washers |
| 10 | "V" Bolt |
| 11 | Backgage Base |
| 12 | Lockwasher |
| 13 | Locknut |
| 14 | Bracket |
| 15 | Tee Bolts |
| 16 | Micrometer Stud |
| 17 | Micrometer Support |
| 18 | Nut |
| 19 | Micrometer Nut |
| 20 | Jam Nut |
| 21 | Cap Screw |
| 22 | Finger Support |
| 23 | Finger |
