How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
FrameSlide - Connections
Drive
Clutch
Brake
② Once you know which parts you want to order, request a parts quote.
Click to enlarge drawing
Frame
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 1 | Tie Bar Mounting Screw | 13 | Bolster Plate | 26 | Oil Shield Bar Mounting Screw |
| 2 | Tie Bar | 15 | Dowel Pin | 27 | Front Oil Shield Bar |
| 3 | Lockwasher | 16 | Brake Bracket Mounting Screw | 28 | Front Oil Shield |
| 4 | Gib Lock Screw | 17 | Brake Bracket | 29 | Front Oil Shield Mounting Screw |
| 5 | Adjusting Locknut | 18 | Guard Clamp Mounting Screw | 30 | Rear Oil Shield Mounting Screw |
| 6 | Adjusting Screw | 19 | Belt Guard Clamp | 31 | L.H. Rear Oil Shield |
| 7 | Gib Screw | 20 | Guard Clip Mounting Screw | 32 | R.H. Rear Oil Shield |
| 8 | R.H. Front Gib | 21 | Belt Guard Clip | 33 | Oil Shield Strap Mounting Screw |
| 9 | L.H. Front Gib | 22 | Belt Guard Mounting Screw | 34 | Rear Oil Shield Strap |
| 10 | Rear Gib Liner Screw | 23 | Belt Guard | 35 | Frame |
| 11 | Rear Gib Liner | 24 | Eye Bolt | ||
| 12 | Bolster Mounting Screw | 25 | Eye Bolt Locknut |

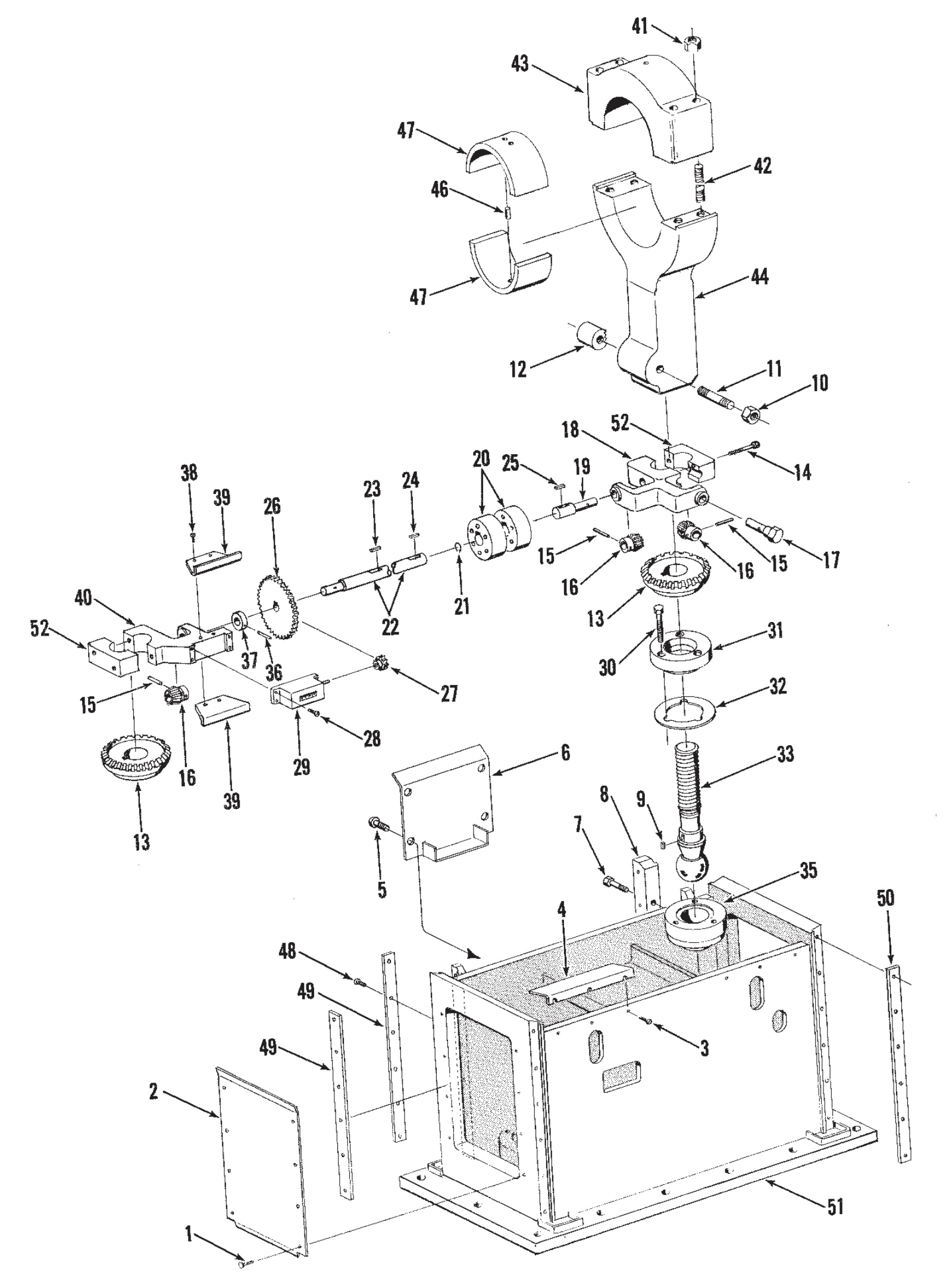

Slide – Connections
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 1 | Cover Screw | 18 | R.H. Adjusting Bracket | 36 | Collar Roll Pin |
| 2 | End Slide Oil Cover | 19 | R.H. Adjusting Shaft | 37 | Collar |
| 3 | Deflector Screw | 20 | Coupling (2 Halves) | 38 | Mounting Screw |
| 4 | Front Slide Oil Deflector | 21 | Retainer Ring | 39 | Counter Support Plate |
| 5 | Cover Screw | 22 | L.H. Adjusting Shaft | 40 | L.H. Adjusting Bracket |
| 6 | Rear Slide Oil Cover | 23 | Key | 41 | Connection Cap Nut |
| 7 | Gib Screw | 24 | Key | 42 | Connection Mounting Stud |
| 8 | Rear Adjustable Gib | 25 | Key | 43 | Connection Cap |
| 9 | Ball Screw Key | 26 | Driving Gear | 44 | R.H. Connection |
| 10 | Clamping Nut | 27 | Driven Gear | 45 | L.H. Connection (Not Shown) |
| 11 | Clamping Stud | 28 | Mounting Screw | 46 | Dowel Pin |
| 12 | Clamp Plug | 29 | Counter | 47 | Connection Bushing |
| 13 | Bevel Gear | 30 | Ball Cap Mounting Screw | 48 | Slide Liner Mounting Screws |
| 14 | Cap Fastening Screw | 31 | Ball Cap | 49 | Rear Slide Liner |
| 15 | Pinion Roll Pin | 32 | Ball Cap Shim | 50 | Front Slide Liner |
| 16 | Bevel Pinion | 33 | Ball Screw (specify R.H. or L.H.) | 51 | Slide |
| 17 | Adjusting Stud | 35 | Ball Seat | 52 | Adjustment Bracket Cap |
Drive
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 1 | Driving Belts | 15 | Angle Gear | 29 | Limit Switch Driven Sprocket |
| 2 | Sheave | 16 | Stroke Position Indicator | 30 | Limit Switch |
| 3 | Motor Key | 17 | Limit Switch Sprocket Cover | 31 | Limit Switch Pad |
| 4 | Motor Plate | 18 | Adjustable Coupling | 32 | Bearing Cap Mounting Screw |
| 5 | Motor Plate Mounting Screw | 19 | Motor Mounting Screw | 33 | Main Bearing Cap |
| 6 | Locknut | 20 | Driving Motor | 34 | R.H. Main Bearing Bushing |
| 7 | Motor Plate Adjusting Screw | 21 | Clutch Assembly (see page 18) | 35 | Center Main Bearing Cap |
| 8 | Shaft Counterweights | 22 | Flywheel Bearing | 36 | Center Main Bearing Bushing |
| 9 | Counterweights Key | 23 | Flywheel Bearing Spacer | 37 | Dowel Pin |
| 10 | Counterweight Mounting Screw | 24 | Flywheel & Clutch Housing | 38 | Brake Assembly (see page 18) |
| 11 | Sprocket Fastening Screw | 25 | Sprocket Fastening Screw | 39 | Brake Collar |
| 12 | Stroke Position Driving Sprocket | 26 | Limit Switch Driving Sprocket | 40 | Brake Collar Key |
| 13 | Stroke Position Chain | 27 | Sprocket Key | 41 | L.H. Main Bearing Bushing |
| 14 | Stroke Position Driven Sprocket | 28 | Limit Switch Chain | 42 | Eccentric Shaft |
Clutch
| Part # | Part Name | Part # | Part Name |
|---|---|---|---|
| 1 | Adapter | 8 | Clutch Facing |
| 2 | Clutch Cylinder Mounting Screw | 9 | Inner Clutch Plate |
| 3 | Clutch Cylinder | 10 | Retainer Mounting Screw |
| 4 | Diaphragm | 11 | Clutch Hub Retainer |
| 5 | Push Plate | 12 | Driving Hub |
| 6 | Spring Plunger | 13 | Flywheel & Clutch Housing (see Pg. 16) |
| 7 | Clutch Spring |
Brake
| Part # | Part Name | Part # | Part Name |
|---|---|---|---|
| 340 | Arm | 348 | Spring |
| 341 | Snap Ring | 349 | Piston |
| 342 | Pin | 350 | U' Packing |
| 343 | Rod End | 351 | Cylinder |
| 344 | Locknut | 352 | Shoe |
| 345 | Retaining Ring | 353 | Brake Lining |
| 346 | Spring Retainer Plate | ||
| 347 | Oilite Bushing |
