SS Series, Saturn
1. Click a link to view parts below or download a PDF Spec Sheet
2. Once you’ve found your part number and part name, request a parts quote
Questions? Contact Us
Jump to Assembly Parts and Manual Drawings
Click to enlarge
Download a PDF Spec Sheet
Series SS Form C-32
| Part # | Part Name |
|---|---|
| 1 | Ram |
| 2 | Lubricator Bracket |
| 3 | Bracket Mounting Screw |
| 4 | Lubricator |
| 5 | Lubricator Mounting Screw |
| 6 | Washer |
| 7 | Backgage (see separate part list) |
| 8 | Holddown Foot Lift Block |
| 9 | Lift Block Mounting Screw |
| 10 | Moving Blade |
| 11 | Reverse Key Plow Bolt |
| 12 | Washer |
| 13 | Hex Nut |
| 14 | Brace Rod |
| 15 | Hex Nut |
| 16 | Gib Liner |
| 17 | Gib Shim |
| 18 | Gib Liner Mounting Screw |
| 19 | Gib Spacer |
| 20 | Gib Spacer Mounting Screw |
| 21 | Limit Switch Cam |
| 22 | Cam Mounting Screw |
| 23 | Washer |
| 24 | Limit Switch |
| 25 | Limit Switch Mounting Screw |
| 26 | Limit Switch Mounting Block |
| 27 | Block Mounting Screw |
| 28 | Washer |
| 29 | Push Button Bracket |
| 30 | Control Bracket |
| 31 | Bracket Mounting Screw |
| 32 | Control Box |
| 33 | Push Button Box |
| 34 | Bearing Support Mounting Screw |
| 35 | R.H. Bearing Support |
| 36 | Retaining Ring |
| 37 | Bearing |
| 38 | Retaining Ring |
| 39 | Bed Shoe |
| 40 | Shoe Lock |
| 41 | Screw |
| 42 | Bed Beam Screw |
| 43 | R.H. Housing |
| 44 | Side Gage |
| 45 | Side Gage Mounting Screw |
| 46 | Scale |
| 47 | Scale Clamp Screw |
| 48 | Scale Clamp Washer |
| 49 | Front Bracket |
| 50 | "V"-Head Bolt |
| 51 | Hex Nut |
| 52 | Liner Backing Mounting Screw |
| 53 | R.H. Gib Liner Backing |
| 54 | Fixed Blade |
| 55 | Reverse Key Plow Bolt |
| 56 | Bolt Pocket Cover |
| 57 | Pocket Cover Screw |
| 58 | Bed Beam |
| 59 | Bed |
| 60 | Eccentric Shaft |
| 61 | Rear Chute and Support |
| 62 | Chute Mounting Screw |
| 63 | Washer |
| 64 | Rear Cover |
| 65 | Rear Cover Mounting Screw |
| 66 | Connection Pin |
| 67 | Connection Pin Retainer |
| 68 | Retainer Mounting Screw |
| 69 | L.H. Gib Liner Backing |
| 70 | Motor Drive and Gearbox (see separate part list) |
| 71 | Solenoid Valve |
| 72 | Valve Mounting Screw |
| 73 | Filter/Regulator/Lubricator |
| 74 | Mounting Screw |
| 75 | Holddown Assembly |
| 76 | Holddown Mounting Screw |
| 77 | L.H. Knife Guard |
| 78 | R.H. Knife Guard |
| 79 | Knife Guard Mounting Screw |
| 80 | L.H. Housing |
| 81 | L.H. Holddown Guard |
| 82 | R.H. Holddown Guard |
| 83 | Holddown Guard Mounting Screw |
| 84 | Roll Pin |
| 85 | Holddown End Guard |
| 86 | End Guard Mounting Screw |
| 87 | Pillow Block Bracket |
| 88 | Bracket Mounting Screw |
| 89 | Washer |
| 90 | Pillow Block |
| 91 | Pillow Block Mounting Screw |
| 92 | Foot Switch |
Click to enlarge
Frame Details
| Disappearing Stop-Detail A | |
|---|---|
| 93 | Disappearing Stop Bracket |
| 94 | Disappearing Stop |
| 95 | Lock Screw |
| 96 | Disappearing Stop Pin |
| Holddown & Foot-Detail B | |
|---|---|
| 97 | Elastic Stop Nut |
| 98 | Washer |
| 99 | Upper Holddown Foot Washer |
| 100 | Holddown Foot |
| 101 | Holddown Foot Lift Angle |
| 102 | Holddown Foot Spacer |
| 103 | Disc Spring Washer |
| 104 | Holddown Foot Cup |
| 105 | Jack Screw |
| Eccentric Assembly-Detail C | |
|---|---|
| 106 | Bearing Spacer |
| 107 | Eccentric Connection |
| 108 | Dowel |
| 109 | Bushing |
| 110 | Bushing |
| 111 | Eccentric |
| 112 | Ecccentric Key |
| 113 | Bearing |
| 114 | Bearing Retainer Bolt |
| 115 | Washer |
| 116 | Hex Nut |
| Bed Adjustment Assembly-Detail D | |
|---|---|
| 117 | Adjusting Stud |
| 118 | Hex Jam Nut |
| 119 | Hex Nut |
| 120 | Washer |
| 121 | Washer |
| 122 | Front Adjusting Bolt |
| 123 | Roll Pin |
| 124 | Bed Adjusting Wrench |
| 125 | Hex Jam Nut |
| 126 | Rear Adjusting Bolt |
| 127 | Adjusting Spacer |
| 128 | Washer |
| 129 | Screw |
| 130 | Bed Stud |
| 131 | Hex Jam Nut |
| 132 | Adjusting Washer |
Click to enlarge
Drive and Gear Box
| Part # | Part Name |
|---|---|
| 1 | Retaining Ring |
| 2 | Brake Hub |
| 3 | Brake Mounting Screw |
| 4 | Brake Mounting Plate |
| 5 | Plate Mounting Screw |
| 6 | Brake Hub Key |
| 7 | Gear Box |
| 8 | Eccentric Shaft (reference) |
| 9 | Shaft Clamp |
| 10 | Shaft Clamp Screw |
| 11 | Key |
| 12 | Motor Bracket |
| 13 | Motor Bracket Screws |
| 14 | Sliding Motor Base |
| 15 | Motor Base Screw |
| 16 | Motor |
| 17 | Motor Mounting Screw |
| 18 | Motor Sheave Key |
| 19 | Motor Sheave |
| 20 | V-Belts |
| 21 | Clutch Hub Key |
| 22 | Quill |
| 23 | Quill Mounting Screw |
| 24 | Belt Guard Back Plate |
| 25 | Back Plate Mounting Screw |
| 26 | Bearing |
| 27 | Flywheel |
| 28 | Retaining Ring |
| 29 | Clutch Hub |
| 30 | Retaining Ring |
| 31 | Clutch |
| 32 | Clutch Mounting Screws |
| 33 | Union |
| 34 | Belt Guard |
| 35 | Belt Guard Mounting Screws |
| 36 | Washer |
| 37 | Retaining Ring |
| 38 | Bearing |
| 39 | Gear Box Mounting Plate |
| 40 | Gear Box Mounting Screws |
| 41 | Plate Mounting Screws |
| 42 | Gear Box Spacer |
Click to enlarge

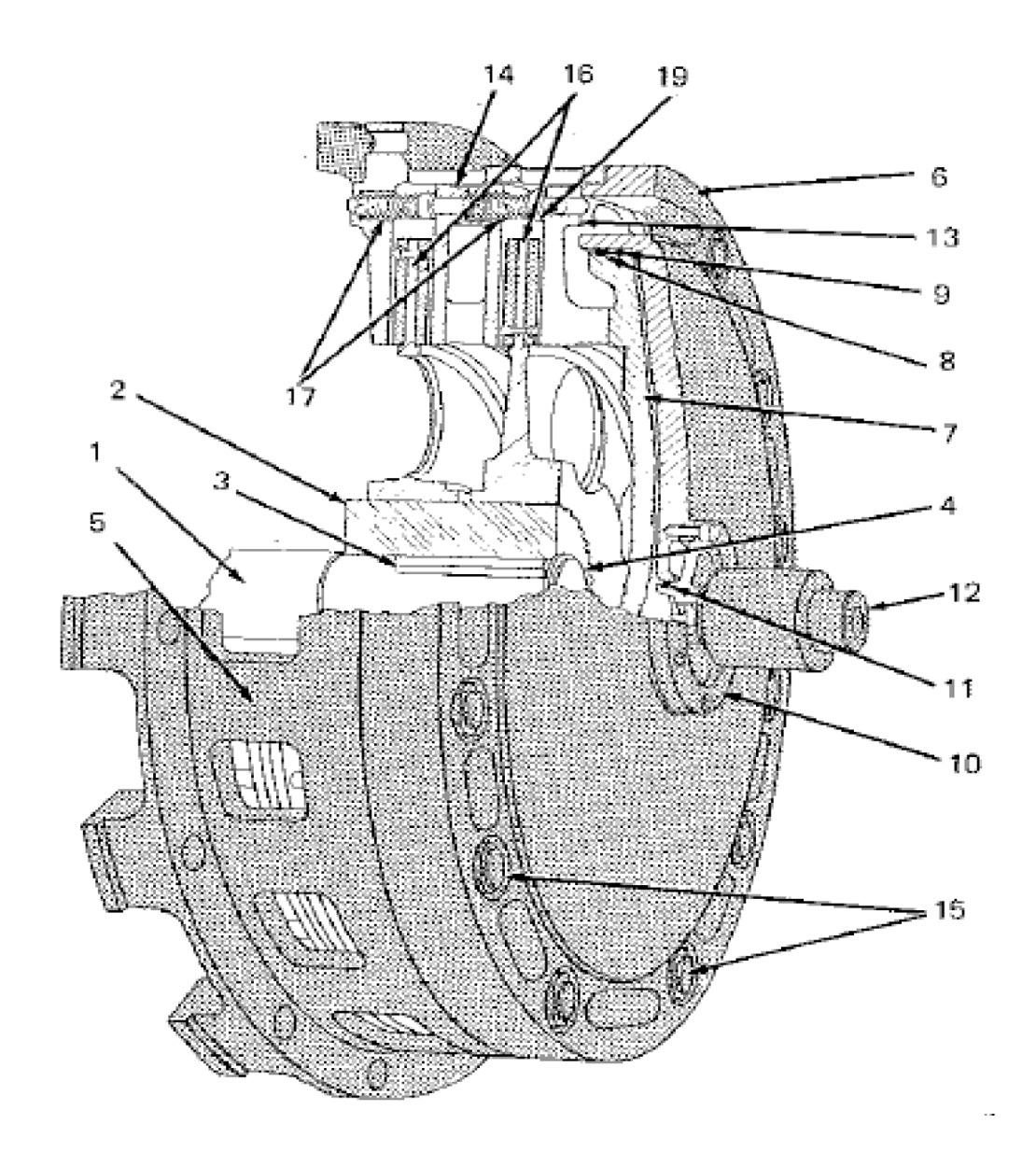

Air Friction Clutch Type LI-P
| Part # | Part Name |
|---|---|
| 1 | Drive Shaft |
| 2 | Driving Hub |
| 3 | Key |
| 4 | Retainer Ring |
| 5 | Clutch Housing |
| 6 | Clutch Cylinder |
| 7 | Clutch Piston |
| 8 | Piston Wiper |
| 9 | Piston "O"Ring |
| 10 | Rotary Air Seal Adapter |
| 11 | Adapter "O" Ring |
| 12 | Rotary Air Seal |
| 13 | Pressure Plate |
| 14 | Inner Pressure Plate |
| *15 | Pressure Plate Guides & Nut |
| 16 | Friction Disc |
| 17 | Spreader Spring |
| 18 | Spring Guide |
| 19 | Guide Collar |
| *Refer to table for recommended torque value. | |
| TORQUE VALUES BY FRICTION DISC DIAMETER | |
| 11" | 35-40 ft./lbs |
Click to enlarge

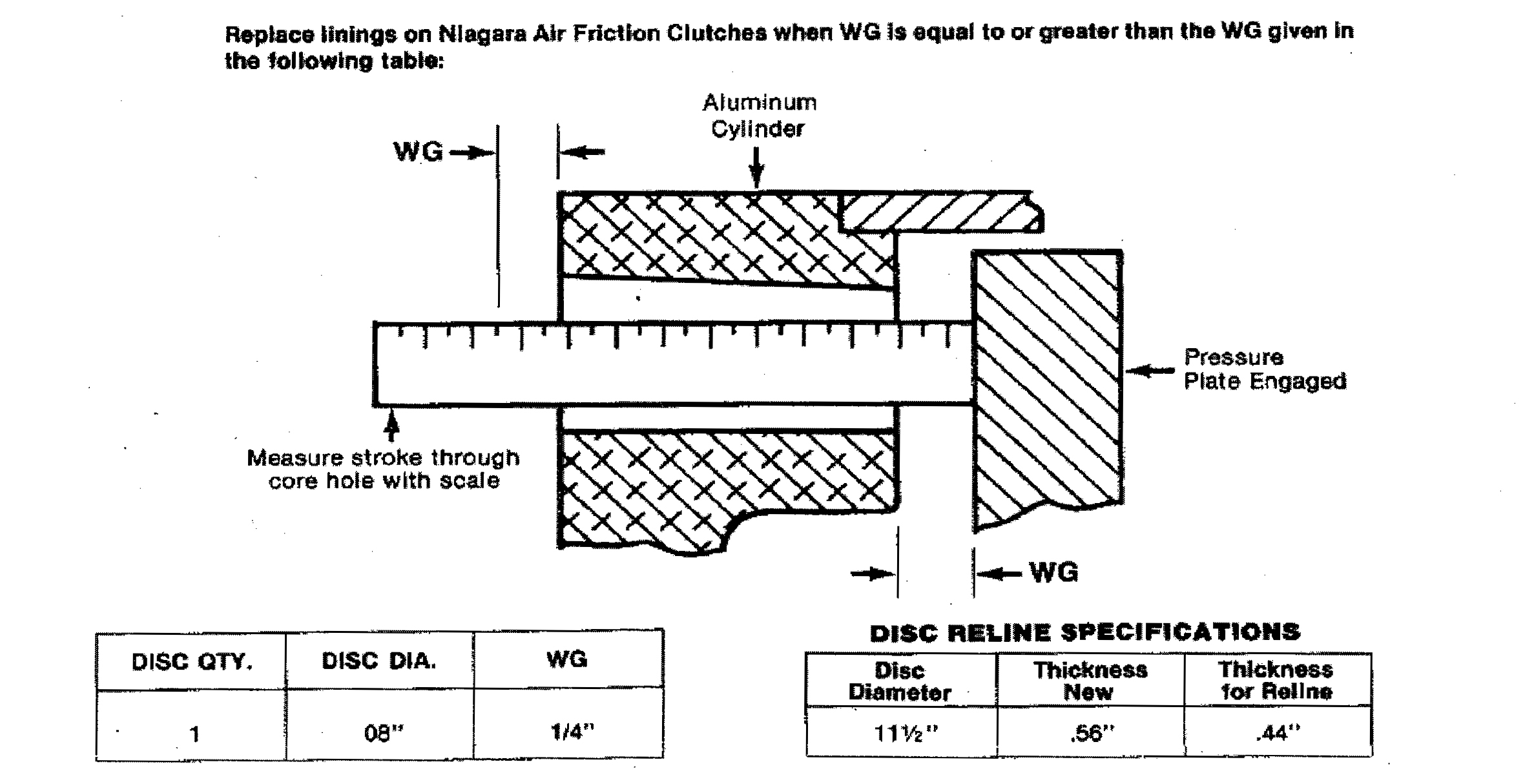

Clutch Lining Replacement

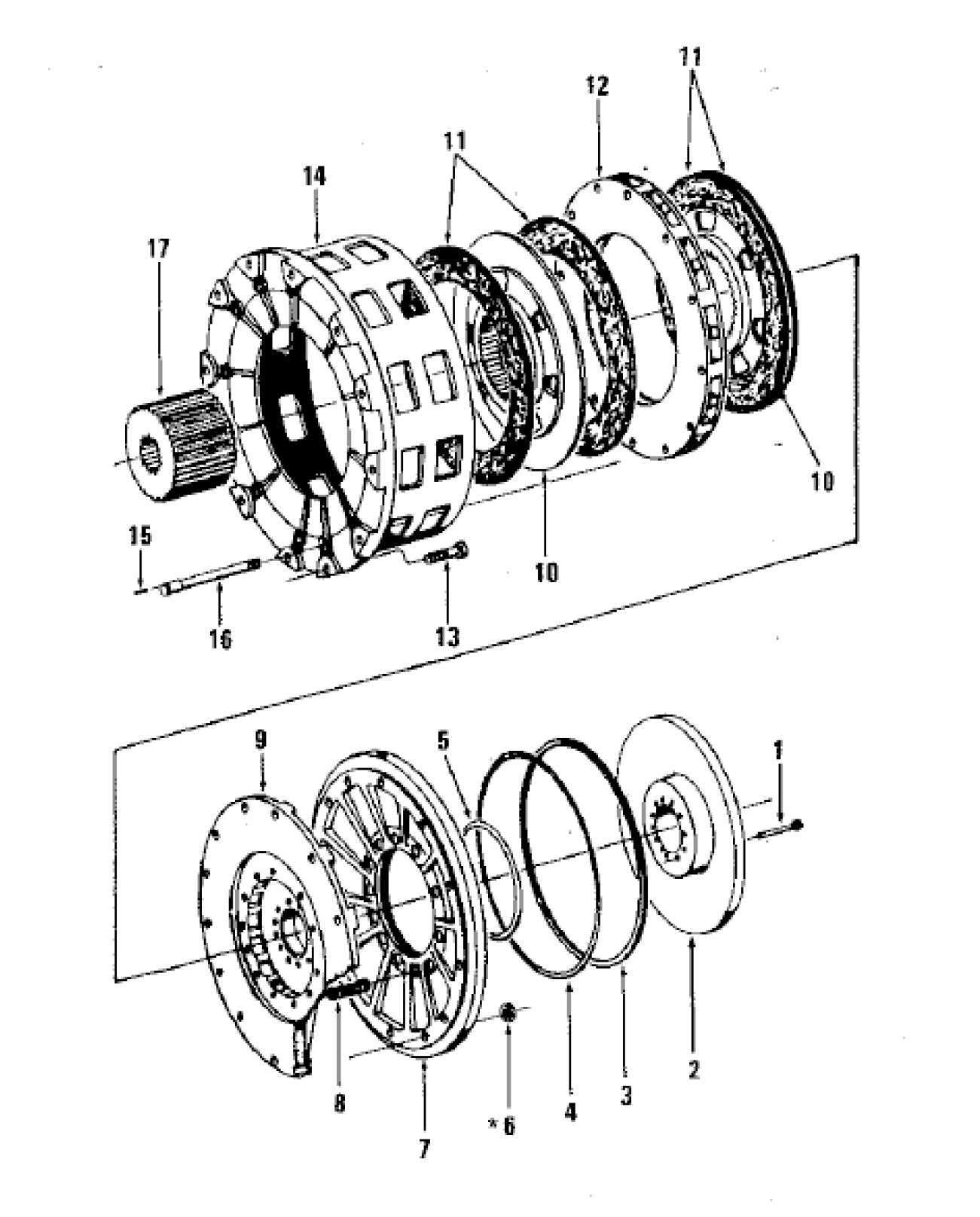

Air Releasing Disc Brake
| Part # | Part Name |
|---|---|
| 1 | Piston Screw (Remove to replace seal and rings.) |
| 2 | Piston |
| 3 | Piston Dust Seal |
| 4 | Piston Ring (outer) |
| 5 | Piston Ring (inner) |
| *6 | Cylinder Stud Nut (Remove to replace linings.) |
| 7 | Cylinder |
| 8 | Spring |
| 9 | Pressure Plate |
| 10 | Brake Disc (quantitiy may vary) |
| 11 | Brake Lining (quantitiy may vary) |
| 12 | Center Plate (not used with single disc) |
| 13 | Brake Ring Mounting Screw |
| 14 | Brake Ring |
| 15 | Brake Stud Pin |
| 16 | Brake Stud |
| 17 | Brake Hub |
| 18 | Lining Rivet (not shown) |
| *Refer to Table for recommended torque value. | |
| TORQUE VALUES BY FRICTION DISC DIAMETER | |
| 11" | 35-40 ft/lbs |
Click to enlarge

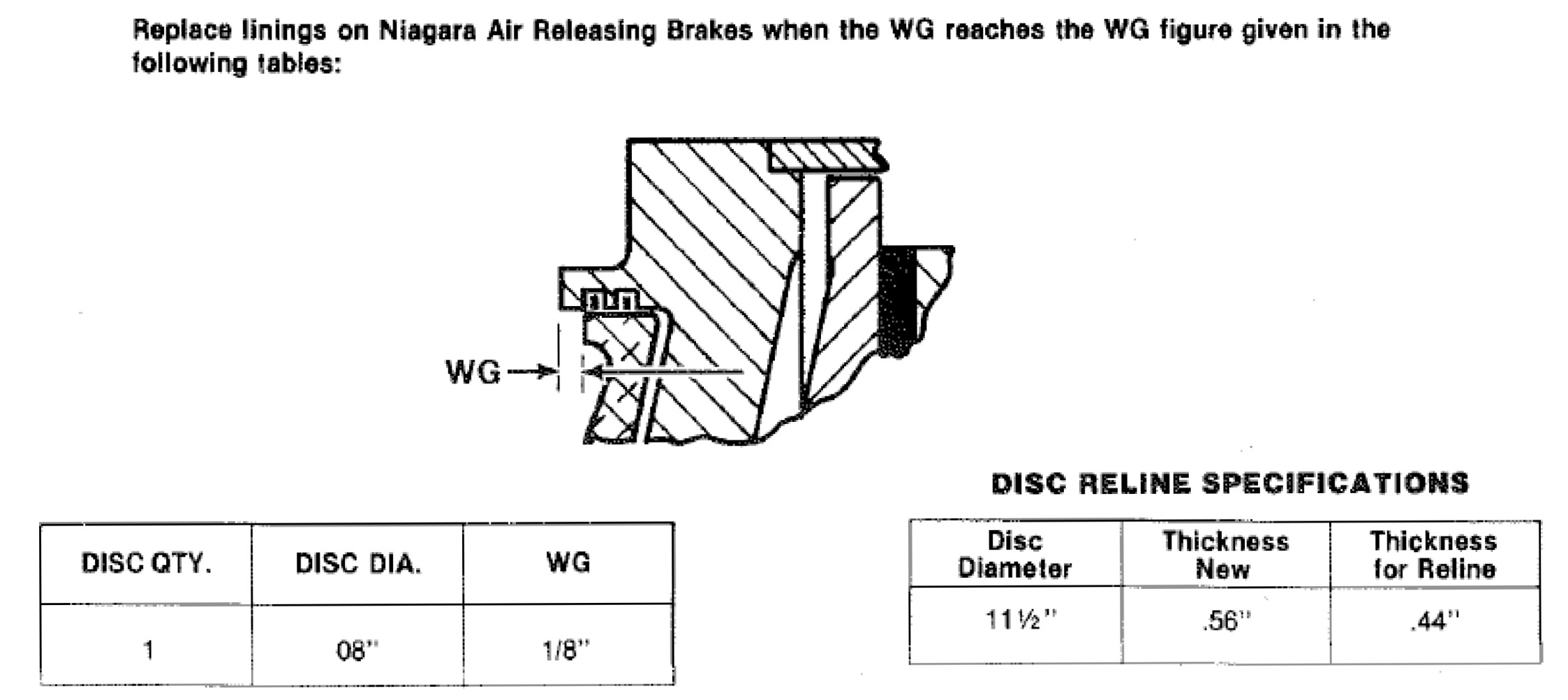

Brake Lining Replacement
Backgage
| Part # | Part Name |
|---|---|
| 1 | Cotter Pin |
| 2 | Castle Nut |
| 3 | Washer |
| 4 | Gage Bar |
| 5 | Brace Rod Nuts |
| 6 | Brace Rod |
| 7 | Jam Nut |
| 7A | Brace Rod Bolt Adjusting Nut |
| 8 | Brace Rod Bolt |
| 9 | Wiper Fastening Screw |
| 10 | Wiper |
| 11 | Lube Fitting |
| 12 | Slide Cap Fastening Screw |
| 13 | Slide Cap |
| 14 | Retaining Ring |
| 15 | Set Screw |
| 16 | Slide Stud |
| 17 | Slide |
| 18 | Set Screw |
| 19 | Indicating Collar |
| 20 | Plate Mounting Screw |
| 21 | Gear Cover Plate |
| 22 | Support Mounting Screw |
| 23 | Screw Support |
| 24 | Backlash Nut |
| 25 | Backlash Spring |
| 26 | Adjusting Nut |
| 27 | Retaining Ring |
| 28 | Washer |
| 29 | Adjusting Collar Spring |
| 30 | Adjusting Collar |
| 31 | Locknut |
| 32 | Lockwasher |
| 33 | Bearing Spacer |
| 34 | Bearing Nut |
| 35 | Bearing |
| 36 | Adjusting Collar Key |
| 37 | Adjusting Screw |
| 38 | Retaining Ring |
| 39 | Adjusting Gear |
| 40 | Locknut |
| 41 | Lockwasher |
| 42 | Bearing Spacer |
| 43 | Bearing Nut |
| 44 | Bearing |
| 45 | Retaining Nut |
| 46 | Worm Gear |
| 47 | Retaining Ring |
| 48 | Bearing |
| 49 | Worm Gear Key |
| 50 | Collar Key |
| 51 | Intermediate Shaft |
| 52 | Set Screw |
| 53 | Coupling Half |
| 54 | Coupling Insert |
| 55 | Connecting Shaft |
| 56 | Mounting Rod |
| 57 | Guard |
| 58 | Acorn Nut |
| 59 | Mounting Screw |
| 60 | Chain |
| 61 | Pinion Shaft |
| 62 | Motor Sprocket |
| 63 | Motor Mounting Screw |
| 64 | Motor |
| 65 | Indicator Cover |
| 66 | Counter Helical Gear |
| 67 | Counter |
| 68 | Shaft Helical Gear |
| 69 | Bushing |
| 70 | Flexible Shaft |
| 71 | Indicator Bracket |
| 72 | Set Screw |
| 73 | Shaft Adapter |
| 76 | Driveshaft Sprocket |
| 77 | Outside Retaining Ring |
| 78 | Locknut |
| 79 | Lockwasher |
| 80 | Bearing |
| 81 | Gear Spacer |
| 82 | Helical Gear |
| 83 | Bearing Spacer |
| 84 | Bearing |
| 85 | Coupling Key (Used only with Part No. 53) |
| 86 | Helical Gear Key |
| 87 | Coupling Key (Used only with Part No. 53) |
| 88 | Drive Shaft |
| 89 | Inside Retaining Ring |
| 90 | Bracket Mounting Screw |
| 91 | Center Gear Case Lube Fitting |
| 92 | End Gear Case Lube Fitting |
| 93 | Oil Cup |
| 94 | Gage Brackets |
| 95 | Shaft Extension |
| 96 | Woodruff Key |
| 97 | Brake |
| 98 | Retainer |
| 99 | Coupling |
