Frame and Ram

Part #Part Name
1Die Rail
2Washer
3Die Rail Screw
4Die Adjustment Set Screw
5Main Motor Control
6Frame
7Ram
8Socket Head Screw
9Bearing End Cover
10Adjustment Switch Rear Cover
11Adjustment Switch Front Cover
12Socket Head Cap Screws
13Punch Clamping Bar Screws
14Punch Clamping Bar
15Clamping Bar Locknut
16Spring
17Gib Screws
18Left Gib
19Rear Non-Metallic Liner
20Front Non-Metallic Liner
21Dowel
22Lock Nut
23Adjusting Screw
24Cap Screw
25Pivot Adjusting Block
26Cap Screw
27Pivot Block Cover
28Pivot Block
29Pivot Shoes
30Right Gib
31*Ram Adjustment Switch

*Not Shown

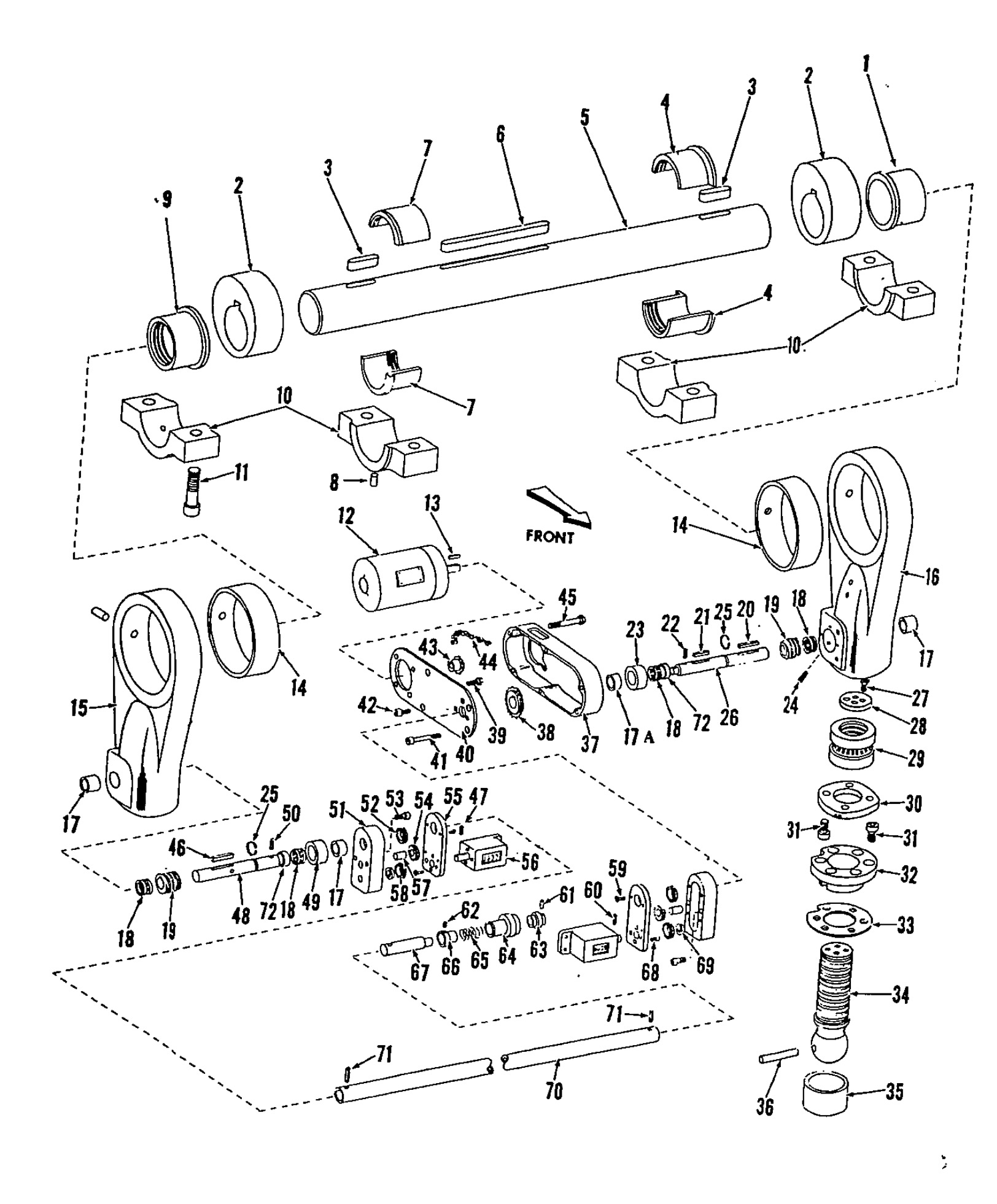

Eccentric Shaft and Ram Adjusting Mechanism

Part #Part Name
1Bronze Bushing
2Eccentric Cams
3Eccentric Cam Keys
4Split Flanged Bronze Bushing
5Eccentric Shaft
6Gear Reducer Key
7Split Bronze Bushing
8Dowel
9Flanged Bronze Bushing
10Bearing Caps
11Socket Head Cap Screws
12Ram Adjusting Motor
13Motor Shaft Key
14Connection Bushing
15Left Connection
16Right Connection
17Bronze Bushing
17ABronze Bushing
18Thrust Bearings
19Worm
20Worm Key
21Sprocket Key
22Roll Pin
23Bearing Retainer
24Retainer Set Screw
25Snap Ring
26Right Adjusting Shaft
27Stop Plate Screws
28Stop Plate
29Adjusting Nut
30Connection Cover
31Socket Head Capscrews
32Ball Cover Right Hand
32ALeft Hand Ball Cover
33Shims
34Ball Screw
35Ball Seat
36Ball Pin
37Sprocket Box
38Large Sprocket
39Motor Screw
40Box Cover
41Sprocket Box Mounting Screws
42Cover Screws
43Small Sprocket
44Chain
45Motor Screw
46Worm Key
47Roll Pin
48Left Adjusting Shaft
49Bearing Retainer
50Roll Pin
51Gear Box
52Shaft Gear
53Gear Box Mounting Screw
54Idler Gear
55Gear Box Cover
56Counter
57Idler Shaft
58Counter Gear
59Cover Screw
60Roll Pin
61Roll Pin
62Set Screw
63Coupling Gear
64Adjusting Sleeve
65Spring
66Sleeve Stop
67Inner Worm Shaft
68Counter Screws
69Counter Gear Bushing
70Adjusting Shaft Connection Tube
71Roll Pins
72Spacer

Gear Box

Part #Part Name
1Socket Head Screw
2Right Hand Bearing Cap
3Flywheel Bearings
4Flywheel
5Main Gear Bearings
6Left Hand Bearing Cap
7Locknut
8Set Screw
9Main Gear and Output Hub
10Intermediate Shaft Bearings
11Snap Ring
12Intermediate Gear
13Intermediate Pinion and Shaft
14Keys
15Right Hand Drive Shaft Bearing
16Driveshaft
17Left Hand Drive Shaft Bearing
18Countersunk Screws
19Sockethead Screws
20Oil Fill Plug
21Gear Box Housing
22Gear Box Cover
23Oil Level Window
24Main Bearing Cap
25Oil Drain Plug
26Removable Set Screw to pull #24
27Bearing Cover
28Socket Head Screw

Mechanical Friction Clutch

Part #Part Name
1Shafter Collar
2Adjusting Ring
3Hub
4Drive Disc Assembly
5Driving Plate
6Adjusting Nut
7Hex Head Capscrew
8Spring
9Push Ring
10Roll Pin
11Spring
12Release Latch
13Pin (9 Req.)
14Snap Ring (18 Req.)
15Toggle (6 Req.)
16Pin (3 Req.)
17Toggle Lever (3 Req.)
18Drawrod (See pg. 24)

Drive Mechanism, Mechanical Friction Clutch, Single Speed

Part #Part Name
20Belt Guard
21Motor Plate
28Motor
30Support Plate Cap
31Left Hand Support Plate
32Pivot Pin
33Right Hand Support Plate
34Snap Ring
35Belts
36Adjusting Block
37Locknut
38Adjusting Screw
39Sheave
40Adjusting Block Screws
41Socket Head Screw

Drive Mechanism, Mechanical Friction Clutch, Adjustable Speed

Part #Part Name
6Belt
13Handwheel
14Roll Pin
15Adjusting Shaft Bearing
17Adjusting Shaft
20Belt Guard
21Motor Plate
22Locknuts
23Adjusting Screw Locknuts
24Motor Plate Pivot Screw
25Motor Plate Pivot
26Washer
27Adjusting Screw Locknuts
28Motor and Adjustable Sheave
30Support Plate Cap
31Left Hand Support Plate
32Pivot Pin
33Right Hand Support Plate
34Snap Ring
41Socket Head Screws
42Pulley

Mechanical Treadle Mechanism

Part #Part Name
1Retainer Locknut
2Drawrod Adjustable Retainer
3Snap Ring
4Drawrod
5Roll Pin
6Drawrod Retainer
7Bearing Retainer
8Sealed Bearing
9Snap Ring
10Bearing Retainer Cap
11Socket Head Screws
12Chain Link
13Link Cap
14Bushing
15Upper Rocker Arm
16Snap Ring
17Pivot Pin
18Cap Screw
19Lockwasher
20Rocker Arm Pivot Bracket
21Pivot Pin
22Yoke
23Yoke Locknut
24Washer
25Return Spring
26Lockwasher
27Cap Screw
28Spring Bracket
29Verticale Treadle Rod
31Locknut
32Lockwasher
33Rocker Arm Pin
34Lower Rocker Arm
35Snap Ring
36Cotter Pin
37Bell Crank
38Set Screw
39Roll Pin
40Cap Screw
41Foot Pedal
42Foot Treadle Shaft
43Pillow Block
44Yoke Locknut
45Lower Treadle Rod
46Bronze Bushing

Multi-Bender (Optional) (Arrangement of parts is reversed on some models)

Part #Part Name
179Brake Collar Snap Ring
180*Brake Collar
181Brake Air Cylinder Head
182Brake Spring Pot
183Brake Spring
184Brake Piston
185Piston 'U' Ring Packing
186Non-Metallic Bushing
187Brake Lever Arms
188Brake Shoe
189Brake Shoe Lining
190*Tubular Rivet For Brake
191Brake Pivot
192Pivot Spacer
193Short Brake Shoe Pin
194Long Brake Shoe Pin
195Short Brake Shoe Spacer
196Long Brake Shoe Spacer
197Trunion
198Cylinder Drain Petcock
199Brake Pivot Pin Snap Rings

Note: Arrangement of parts is reversed on some models.

Air Friction Clutch-Type LI-P

Part #Part Name
1Clutch (See separate parts list)
2Clutch Push Pin
3Flywheel Bearings
4Flywheel
5Clutch Push Pin Nut
12Brake Support Shaft
16Brake (See separate parts list)
20Belt Guard
21Motor Plate
28Main Motor
29Snap Ring
30Support Plate Cap
31Left Hand Support Plate
32Pivot Pin
33Right Hand Support Plate
34Snap Ring
35Belts
36Adjusting Block
37Locknut
38Adjusting Screw
39Sheave
40Adjusting Block Screw
41Socket Head Screws
42Brake Collar
43Brake Support Shaft Nut

Air Releasing Brake

Part #Part Name
179Brake Collar Snap Ring
180*Brake Collar
181Brake Air Cylinder Head
182Brake Spring Pot
183Brake Spring
184Brake Piston
185Piston 'U' Ring Packing
186Non-Metallic Bushing
187Brake Lever Arms
188Brake Shoe
189Brake Shoe Lining
190*Tubular Rivet For Brake
191Brake Pivot
192Pivot Spacer
193Short Brake Shoe Pin
194Long Brake Shoe Pin
195Short Brake Shoe Spacer
196Long Brake Shoe Spacer
197Trunion
198Cylinder Drain Petcock
199Brake Pivot Pin Snap Rings

Drive Mechanism, Air Friction Clutch, Single Speed

Part #Part Name
1Clutch (See separate parts list)
2Clutch Push Pin
3Flywheel Bearings
4Flywheel
5Clutch Push Pin Nut
12Brake Support Shaft
16Brake (See separate parts list)
20Belt Guard
21Motor Plate
28Main Motor
29Snap Ring
30Support Plate Cap
31Left Hand Support Plate
32Pivot Pin
33Right Hand Support Plate
34Snap Ring
35Belts
36Adjusting Block
37Locknut
38Adjusting Screw
39Sheave
40Adjusting Block Screw
41Socket Head Screws
42Brake Collar
43Brake Support Shaft Nut
