Frame
| Part # | Part Name | Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|---|---|
| 1 | Ram | 19 | Knife Guard Mounting Screw | 37 | Hydraulic Power Unit | 55 | L.H. Main Cylinder (not shown) |
| 2 | Light Bracket | 20 | R.H. Knife Guard | 38 | Mounting Screw | 56 | Frame |
| 3 | Light Fixture | 21 | Brace Rod | 39 | Washer | 57 | R.H. End Cover |
| 4 | Screw | 22 | Brace Rod Nut | 40 | Reservoir Bracket | 58 | End Cover Screw |
| 5 | Top Cover (specify L.H. or R.H.) | 23 | Backage (see separate part list) | 41 | Bed Cover Screw | 59 | Holddown Cylinder |
| 6 | Top Hole Cover | 24 | Counter Bracket Mounting Screw | 42 | End Bed Cover | 60 | Holddown Cylinder Footcups |
| 7 | Screw | 25 | Washer | 43 | L.H. Bed Cover | 61 | Holddown Bar |
| 8 | Rear Gib | 26 | Counter Bracket | 44 | R.H. Bed Cover | 62 | Holddown Bar Mounting Screw |
| 9 | Rear Gib Mounting Screw | 27 | Counter | 45 | Mounting Screw | 63 | R.H. Holddown Guard |
| 10 | End Roller Shoulder Screw | 28 | Counter Mounting Screw | 46 | Washer | 64 | Holddown Guard Mounting Screw |
| 11 | End Roller | 29 | Micro Limit Switch (specify L.H., R.H., Upper or Lower) | 47 | Single Bed Rail | 65 | L.H. Holddown Guard |
| 12 | Ram Position Indicator | 30 | Limit Switch Mounting Screw | 48 | Bed Rail Adjusting Screw | 66 | L.H. End Cover |
| 13 | Hex Nut | 31 | Fixed Blade | 49 | Double Bed Rail | 67 | Front Bracket and 'T' Slot Nut (optional) |
| 14 | Moving Blade | 32 | Spherical Bearing | 50 | Front Gib | 112 | Foot Switch |
| 15 | Reverse Key Plow Bolt | 33 | Bearing Retaining Ring | 51 | Front Gib Mounting Screw | 113 | Fluorescent Light |
| 16 | Washer | 34 | Cylinder Retaining Ring | 52 | Rear Chute | 114 | Fluorescent Tube Safety Shields |
| 17 | Hex Nut | 35 | Lubrication Fitting | 53 | Chute Mounting Screw | ||
| 18 | L.H. Knife Guard | 36 | Motor Controller | 54 | R.H. Main Cylinder |

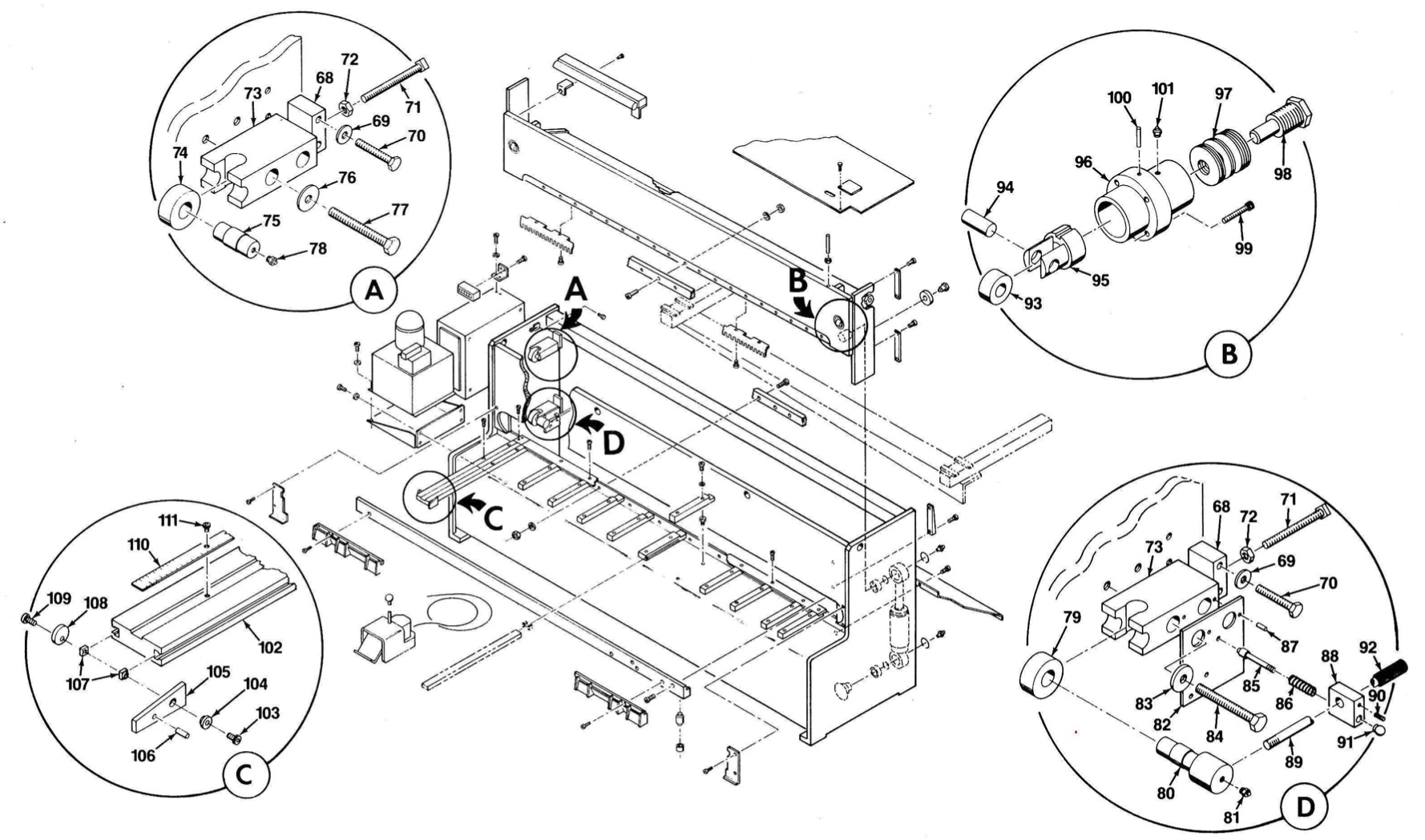

Frame Details
| Part # | Part Name | Part # | Part Name | Part # | Part Name |
|---|---|---|---|---|---|
| 68 | Ram Adjustment Stop | 83 | Washer | 98 | Spring Pot Screw |
| 69 | Washer | 84 | Adjustment Plate Mounting Screw | 99 | Spring Pot Mounting Screw |
| 70 | Adjustment Stop Mounting Screw | 85 | Blade Adjustment Pin | 100 | Roll Pin |
| 71 | Square Head Set Screw | 86 | Blade Adjustment Spring | 101 | Lubrication Fitting |
| 72 | Hex Jam Nut | 87 | Roll Pin | 102 | Side Gage Bar |
| 73 | Ram Adjustment Block (specify L.H. or R.H.) | 88 | Blade Adjustment Bar | 103 | Cap Screw |
| 74 | Yoke Track Roller | 89 | Blade Adjustment Handle | 104 | Disappearing Stop Washer |
| 75 | Ram Adjustment Pivot | 90 | Socket Set Screw | 105 | Disappearing Stop |
| 76 | Washer | 91 | Knob | 106 | Roll Pin |
| 77 | Adjustment Block Mounting Screw | 92 | Hand Grip | 107 | "T" Slot Nut |
| 78 | Lubrication Fitting | 93 | Yoke Track Roller | 108 | Side Gage Washer |
| 79 | Yoke Track Roller | 94 | Spring Pot Pin | 109 | Cap Screw |
| 80 | Blade Adjustment Pivot | 95 | Spring Pot Piston | 110 | Scale |
| 81 | Lubrication Fitting | 96 | Spring Pot Cylinder | 111 | Screw |
| 82 | Blade Adjustment Plate | 97 | Disc Spring Washers |
