How to find the parts you need
① Click a link to view parts list below or download the spec sheet.
Shaft and Slide Adjusting MechanismGear Box
DRIVE MECHANISM AIR FRICTION CLUTCH
AIR FRICTION CLUTCH-TYPE Ll-P
AIR RELEASING DISC BRAKE
② Once you know which parts you want to order, request a parts quote.

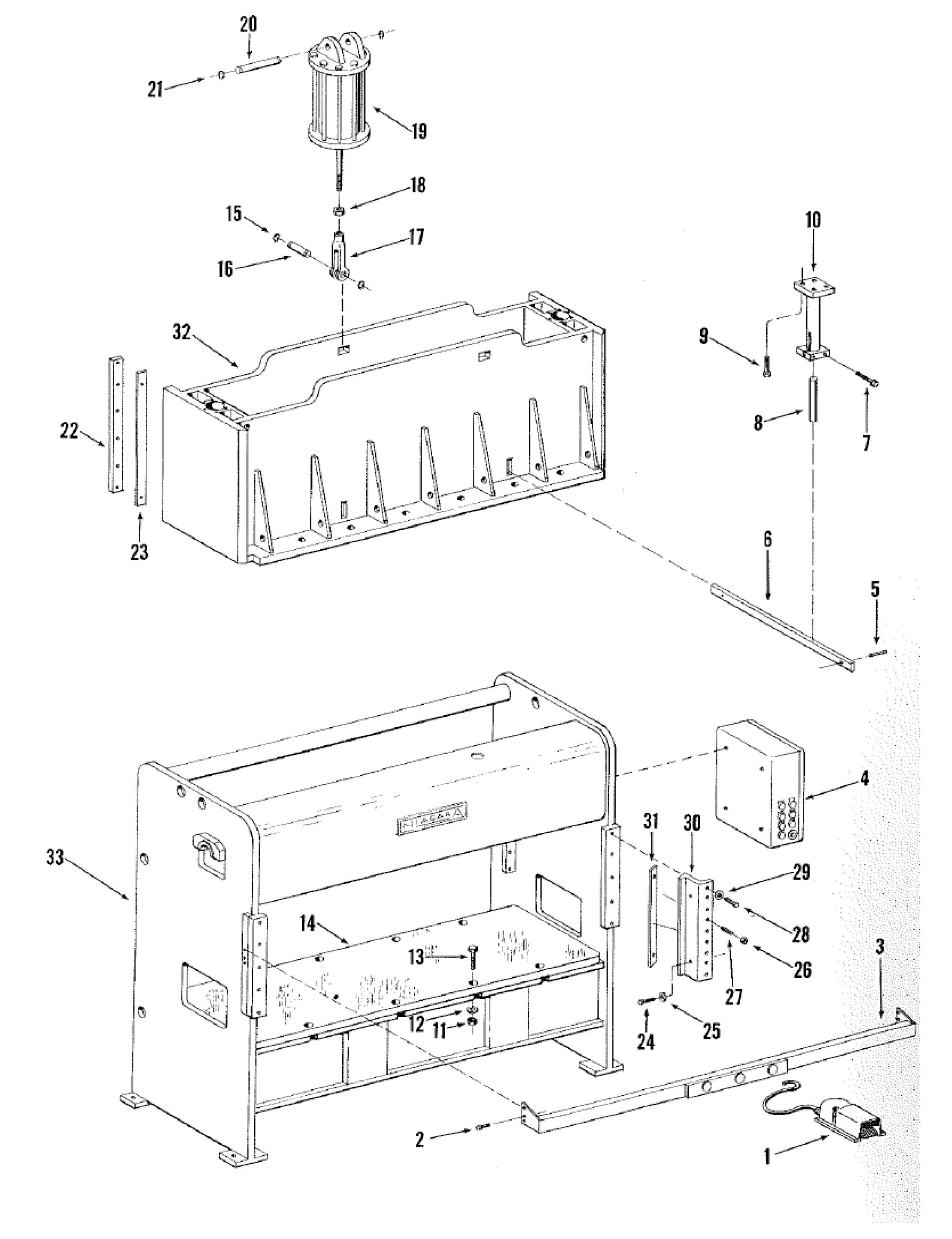

Click to enlarge drawing

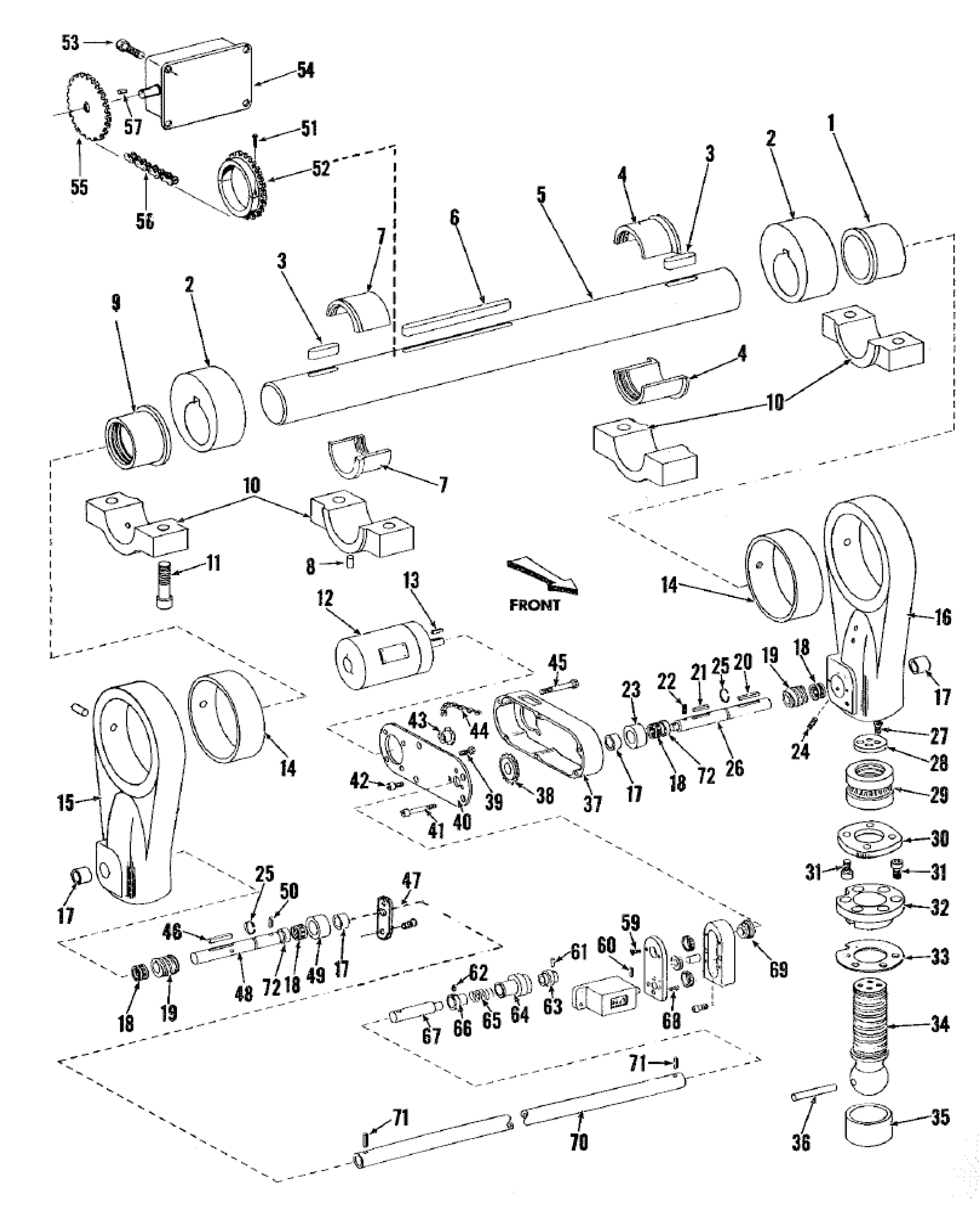

Shaft and Slide Adjusting Mechanism
| 1 | Bronze Bushing | 36 | Ball Pin |
| 2 | Eccentric Cams | 37 | Sprocket Box |
| 3 | Eccentric Cam Keys | 38 | Large Sprocket |
| 4 | Split Flanged Bronze Bushing | 39 | Motor Screw |
| 5 | Eccentric Shaft | 40 | Box Cover |
| 6 | Gear Reducer Key | 41 | Sprocket Box Mounting Screws |
| 7 | Split Bronze Bushing | 42 | Cover Screws |
| 8 | Dowel | 43 | Small Sprocket |
| 9 | Flanged Bronze Bushing | 44 | Chain |
| 10 | Bearing Caps | 45 | Motor Screw |
| 11 | Socket Head Cap Screws | 46 | Worm Key |
| 12 | Slide Adjusting Motor | 47 | Plate |
| 13 | Motor Shaft Key | 48 | Left Adjusting Shaft |
| 14 | Connection Bushing | 49 | Bearing Retainer |
| 15 | Left Connection | 50 | Roll Pin |
| 16 | Right Connection | 51 | Screws |
| 17 | Bronze Bushing | 52 | Split Sprocket |
| 18 | Thrust Bearings | 53 | Mounting Screw |
| 19 | Worm | 54 | Limit Switch |
| 20 | Worm Key | 55 | L.S. Sprocket |
| 21 | Sprocket Key | 56 | Chain |
| 22 | Roll Pin | 57 | Key |
| 23 | Bearing Retainer | 59 | Cover Screw |
| 24 | Retainer Set Screw | 60 | Roll Pin |
| 25 | Retaining Ring | 61 | Roll Pin |
| 26 | Right Adjusting Shaft | 62 | Set Screw |
| 27 | Stop Plate Screws | 63 | Coupling Gear |
| 28 | Stop Plate | 64 | Adjusting Sleeve |
| 29 | Adjusting Nut | 65 | Spring |
| 30 | Connection Cover | 66 | Sleeve Stop |
| 31 | Socket Head Capscrews | 67 | Inner Worm Shaft |
| 32 | Ball Cover Right Hand | 68 | Counter Screws |
| 32A | Left Hand Ball Cover | 69 | Flanged Bushing |
| 33 | Shims | 70 | Adjusting Shaft Connection Tube |
| 34 | Ball Screw | 71 | Roll Pins |
| 35 | Ball Seat | 72 | Spacer |
Gear Box
| 1 | Socket Head Screw | 15 | Right Hand Drive Shaft Bearing |
| 2 | Right Hand Bearing Cap | 16 | Driveshaft |
| 3 | Flywheel Bearings | 17 | Left Hand Drive Shaft Bearing |
| 4 | Flywheel | 18 | Countersunk Screws |
| 5 | Main Gear Bearings | 19 | Sockethead Screws |
| 6 | Left Hand Bearing Cap | 20 | Oil Fill Plug |
| 7 | Locknut | 21 | Gear Box Housing |
| 8 | Set Screw | 22 | Gear Box Cover |
| 9 | Main Gear and Output Hub | 23 | Oil Level Window |
| 10 | Intermediate Shaft Bearings | 24 | Main Bearing Cap |
| 11 | Retaining Ring | 25 | Oil Drain Plug |
| 12 | Intermediate Gear | 26 | Removable Set Screw to pull #24 |
| 13 | Intermediate Pinion and Shaft | 27 | Bearing Cover |
| 14 | Keys | 28 | Socket Head Screw |
DRIVE MECHANISM AIR FRICTION CLUTCH
| 20 | Belt Guard | 34 | Retaining Ring |
| 21 | Motor Plate | 35 | Belts |
| 28 | Main Motor | 36 | Adjusting Block |
| 30 | Support Plate Cap | 37 | Locknut |
| 31 | Left Hand Support Plate | 38 | Adjusting Screw |
| 32 | Pivot Pin | 39 | Sheave |
| 33 | Right Hand Support Plate | 41 | Socket Head Screws |
| 43 | Brake Support Shaft Nut |
AIR FRICTION CLUTCH-TYPE Ll-P
| 1 | Drive Shaft | 10 | Rotary Air Seal Adapter |
| 2 | Driving Hub | 11 | Adapter "O" Ring |
| 3 | Driving Hub Retaining Ring | 12 | Rotary Air Seal |
| 4 | Clutch Snap Ring | 13 | Pressure Plate |
| 5 | Clutch Housing | 14 | Inner Pressure Plate |
| 6 | Clutch Cylinder | 15 | Pressure Plate Guides and Nut |
| 7 | Clutch Piston | 16 | Friction Disc |
| 8 | Piston Wiper | 17 | Spreader Spring |
| 9 | Piston "O" Ring | 18 | Spring Guide |
| 19 | Guide Collar |
AIR RELEASING DISC BRAKE
| 1 | Piston Screw | 10 | Brake Disc |
| 2 | Piston | 11 | Brake Lining |
| 3 | Piston Duet Seal | 12 | Center Plate |
| 4 | Piston Ring (outer) | 13 | Brake Ring Mounting Screw |
| 5 | Piston Ring (inner) | 14 | Brake Ring |
| 6 | Cylinder Stud Nut | 15 | Brake Stud Pin |
| 7 | Cylinder | 16 | Brake Stud |
| 8 | Spring | 17 | Brake Hub |
| 9 | Pressure Plate | 18 | Lining Rivet (not shown) |
